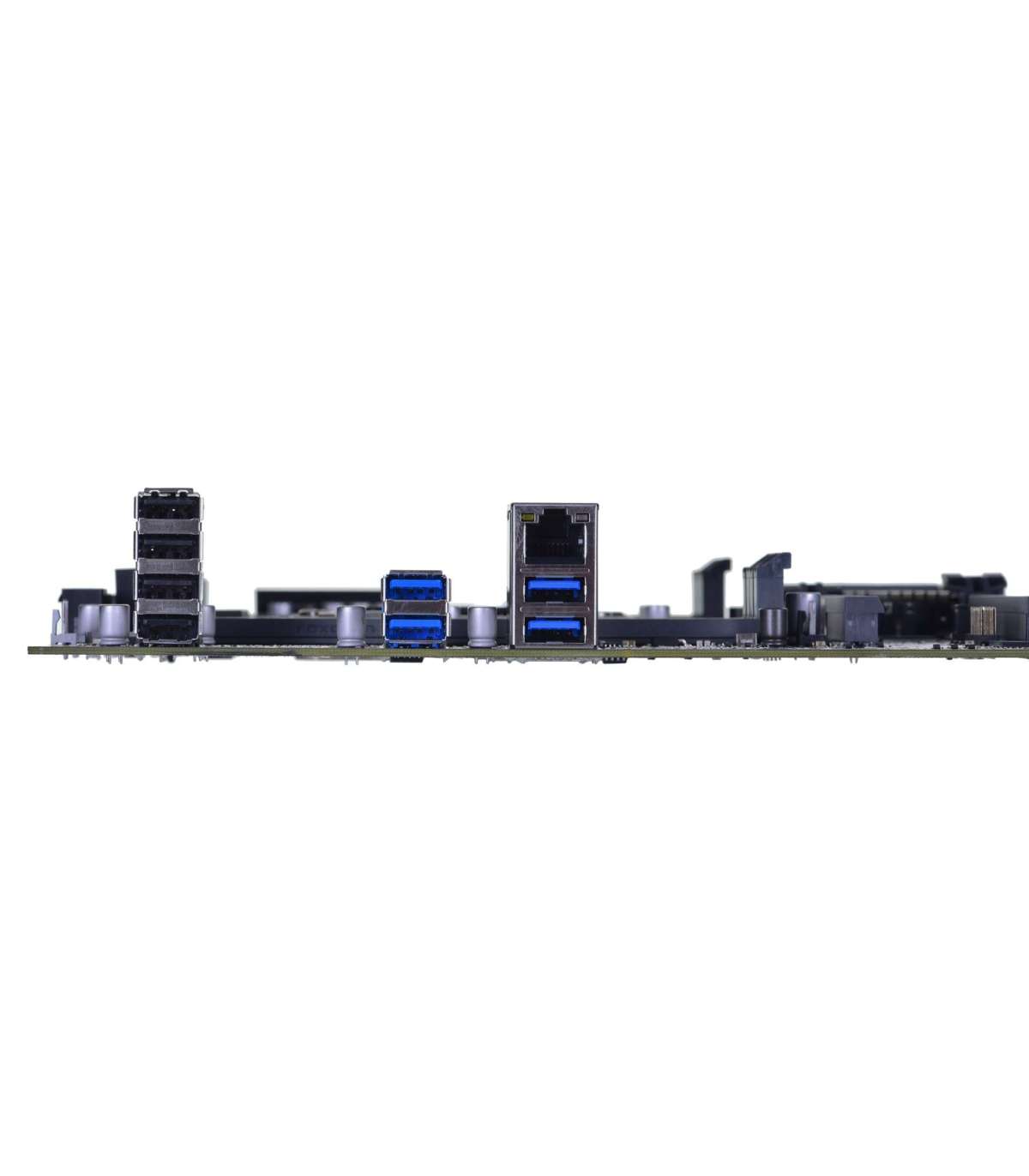

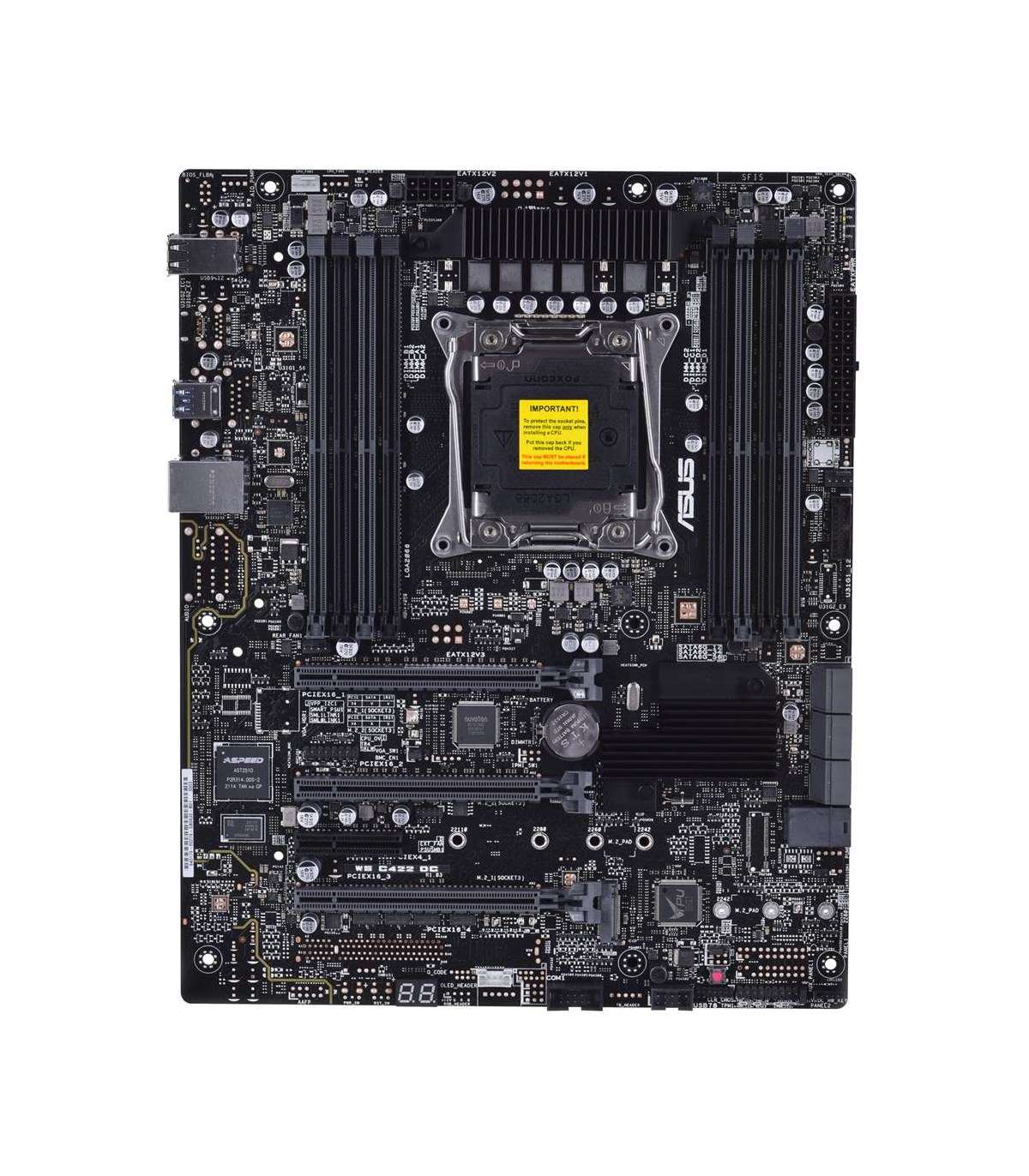

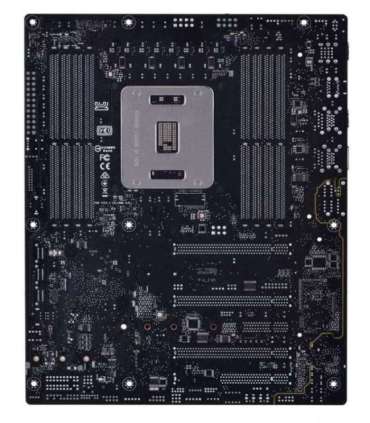

Asus Server Board WS C422 90SB08J0-M0XBN1

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

3

Component for

Server

Processor manufacturer

Intel

On-board graphics card model

Aspeed AST2510

Maximum internal memory

1 TB

Trusted Platform Module (TPM)

Yes

Motherboard chipset

Intel® C422

Memory channels

Quad-channel

USB 2.0 connectors

1

Processor socket

LGA 2066

Compatible processor series

Intel Xeon W

Motherboard form factor

ATX

Supported memory clock speeds

2133
2400
2666
2933

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I210-AT

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

M.2, SATA III, U.2

PCI Express x16 (Gen 3.x) slots

3

RAID levels

0
1
5
10

Number of M.2 (M) slots

1

Number of EATX power connectors

1

Power fan connector

Yes

Number of SATA connectors

6

Clear CMOS button

Yes

COM ports quantity

1

12V power connector (8-pin)

Y

Intel® Turbo Boost Technology

2.0

PCI Express x4 (Gen 3.x) slots

1

VGA connectors

1

Number of DIMM slots

8

Intel Rapid Storage Technology enterprise

Yes
