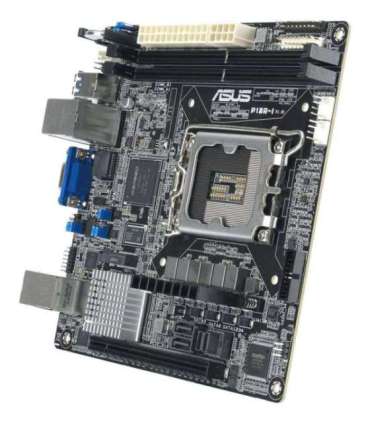

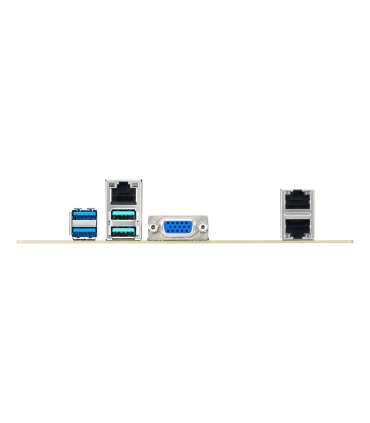

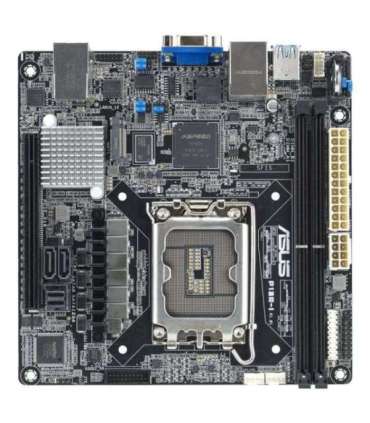

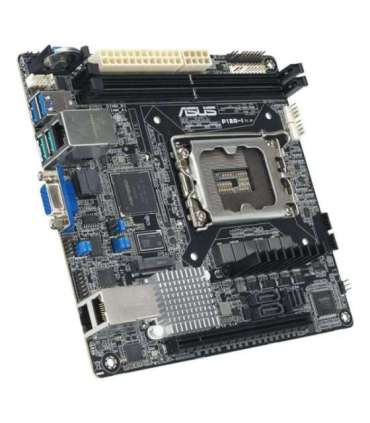

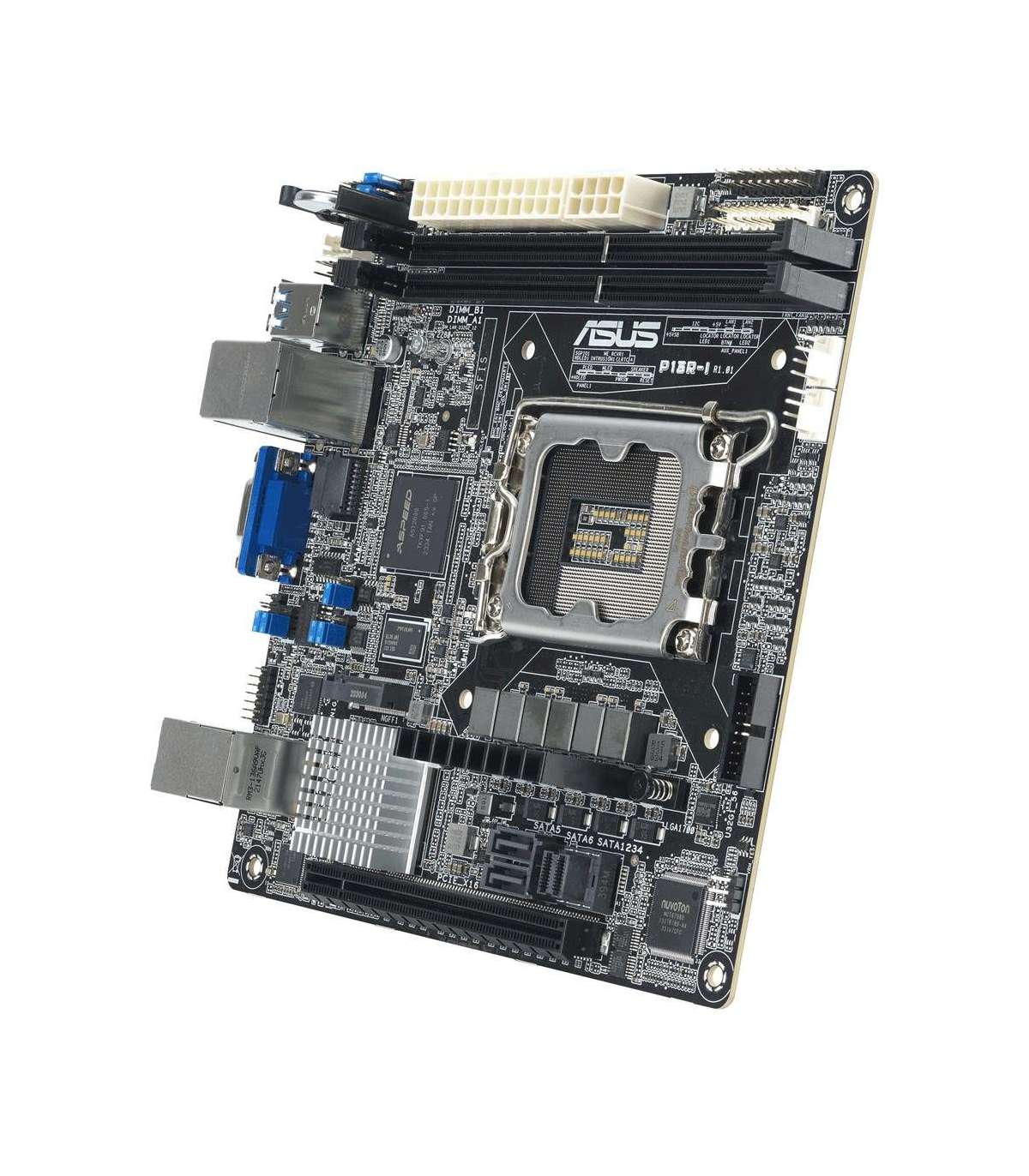

ASUS P13R-I Intel C262 LGA 1700 mini ITX

Lisainfo

Videokaardi mudel

AST2600

Depth

170 mm

Laius

170 mm

Product colour

Must

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

No

Component for

Server

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel C262

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Memory channels

Dual-channel

Processor socket

LGA 1700

On-board graphics card memory

64 MB

Compatible processor series

Intel Xeon E
Intel® Pentium®
Intel® Xeon®

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Supported memory clock speeds

3600
4000 MHz
4400
4800

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Number of COM connectors

1

CPU fan connector

Yes

Number of HDDs supported

6

Supported storage drive interfaces

PCI Express 4.0, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

6

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

4800 MHz

Front panel connector

Yes

Number of storage drives supported

7

Cooling type

Passive

Number of CPU fan connectors

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 5.x) slots

1
