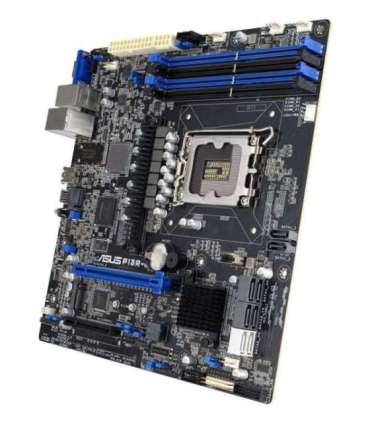

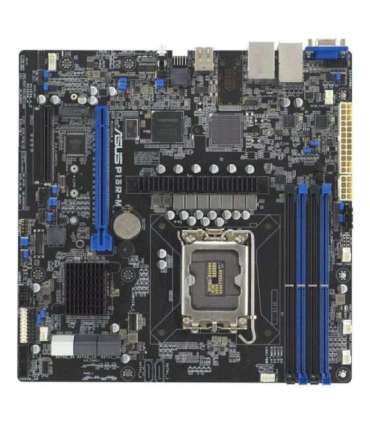

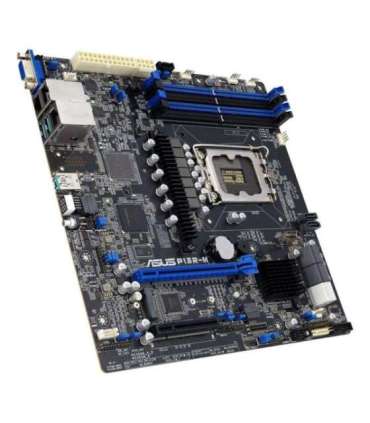

ASUS P13R-M Intel C262 LGA 1700 micro ATX

Lisainfo

Videokaardi mudel

AST2600

Depth

244 mm

Kaal

760 g

Laius

244 mm

Package weight

1.3 kg

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Component for

Server

Ethernet interface type

Fast Ethernet
Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel C262

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Memory channels

Dual-channel

USB 2.0 connectors

1

Graphics card family

ASPEED

Processor socket

LGA 1700

Compatible processor series

Intel Xeon E
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Supported memory clock speeds

3600
4000
4400 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of HDDs supported

8

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

8

TPM connector

Yes

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

Supported memory module capacities

8GB
16GB
32GB

Serial port headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

3

PCI Express x16 (Gen 5.x) slots

1
