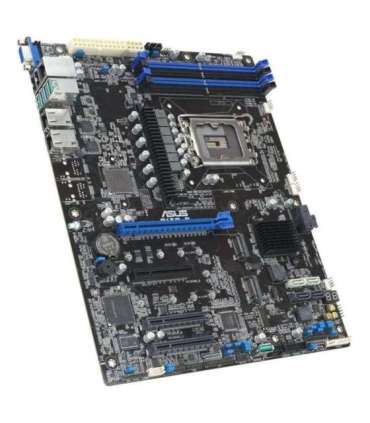

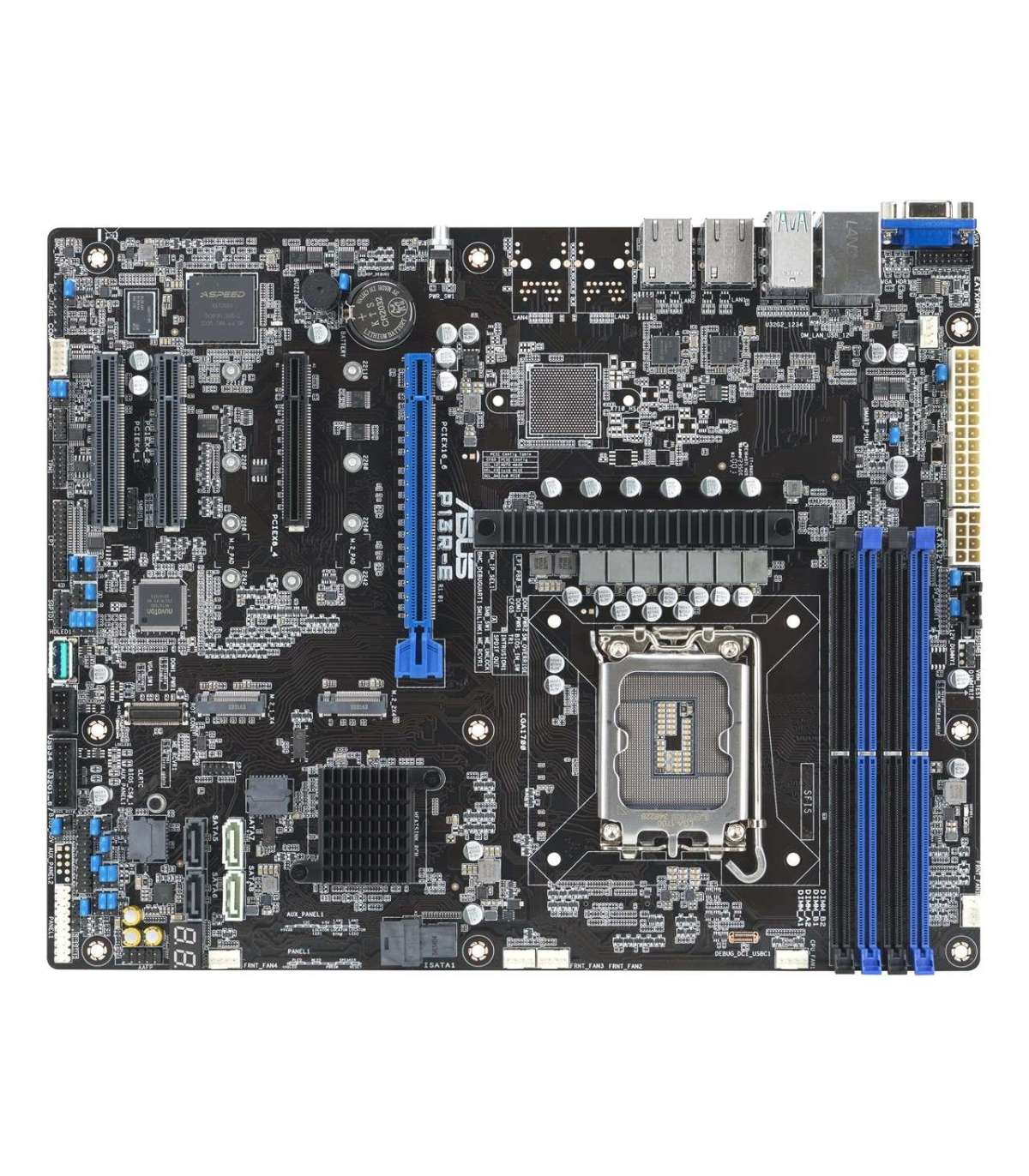

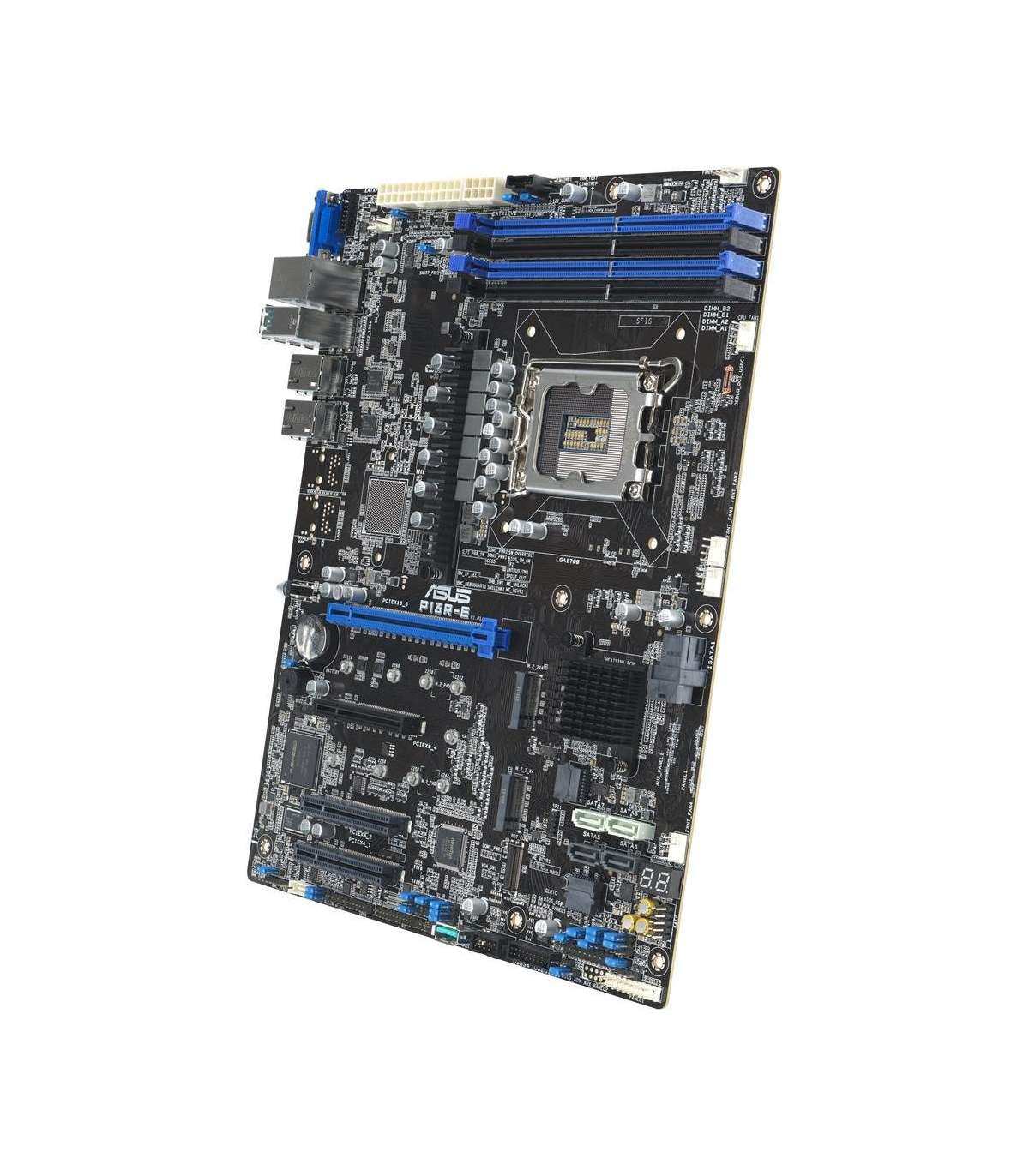

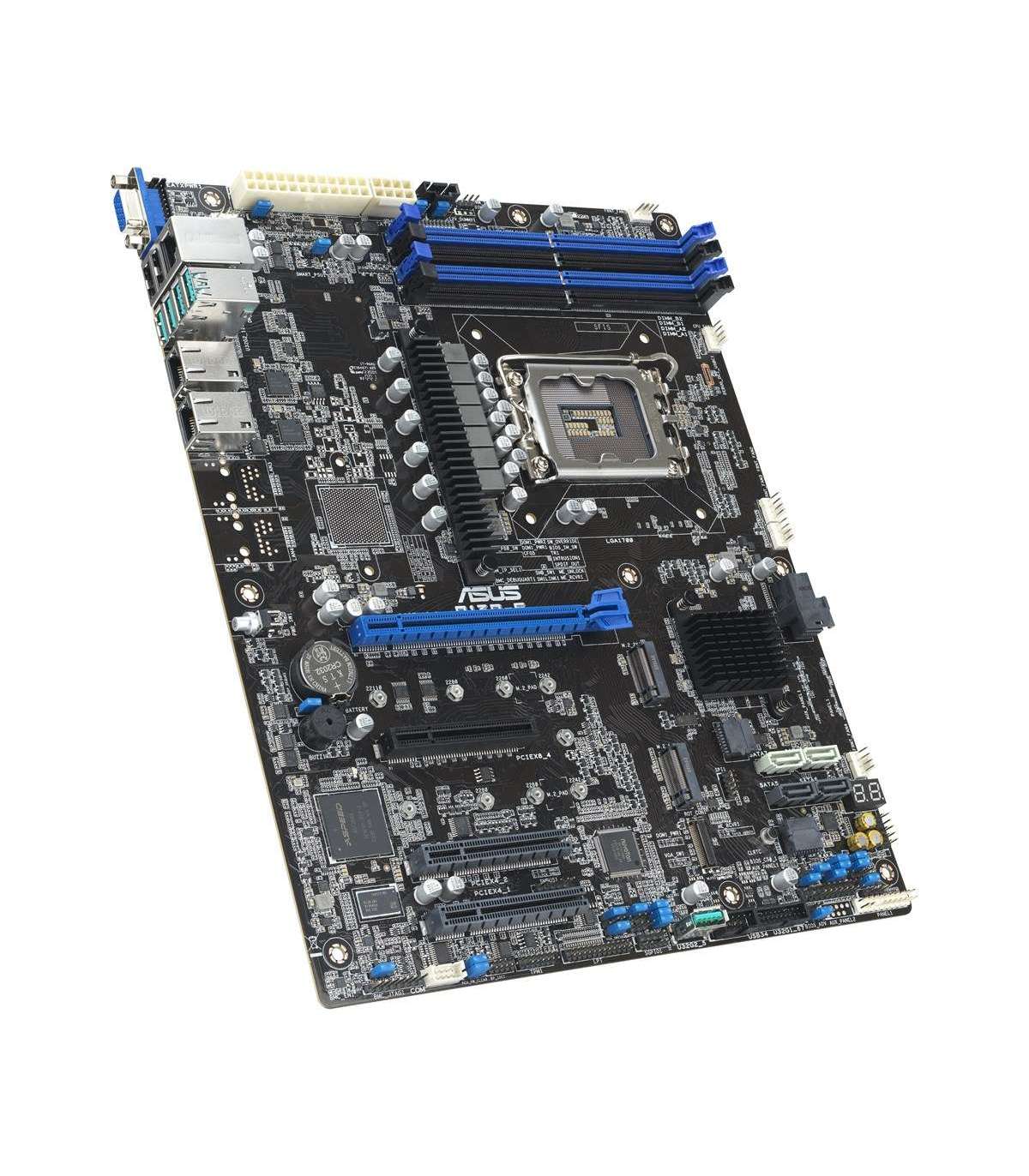

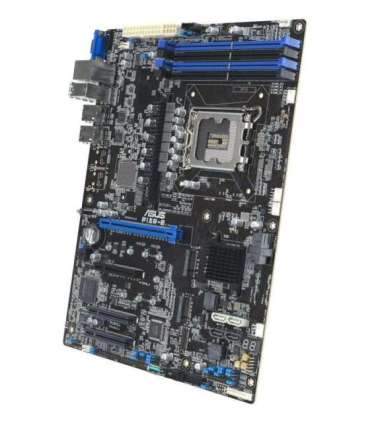

ASUS P13R-E Intel C266 LGA 1700 ATX

Lisainfo

Depth

244 mm

Kaal

800 g

Kõrgus

68 mm

Laius

305 mm

Package weight

1.5 kg

Product colour

Must

Power source type

ATX

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Package width

341 mm

Package depth

281 mm

Package height

78 mm

USB 2.0 ports quantity

2

Wi-Fi

No

Component for

Server

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel C266

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Memory channels

Dual-channel

USB 2.0 connectors

1

Processor socket

LGA 1700

Compatible processor series

AMD Turion X2 Ultra Dual-Core
Intel Xeon 6300
Intel Xeon E
Intel® Pentium®

Motherboard form factor

ATX

Motherboard chipset family

Intel

Supported memory clock speeds

3600
4000
4400 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

6

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of HDDs supported

8

Supported storage drive interfaces

PCI Express 4.0, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

Parallel processing technology support

Not supported

PC health monitoring

CPU
Fan
Temperature

Number of SATA III connectors

8

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

4400 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

10

Cooling type

Passive

Maximum internal memory per slot

32 GB

Number of EPS power connectors (8-pin)

1

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

1st M.2 highest PCI Express generation

4.0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

2

PCI Express x8 (Gen 5.x) slots

1
