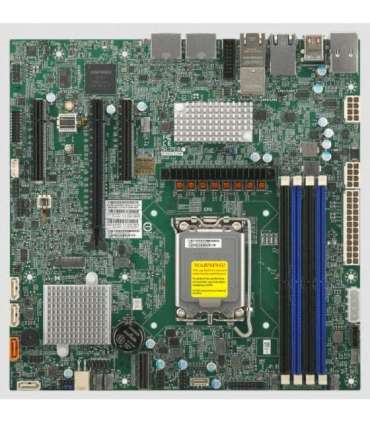

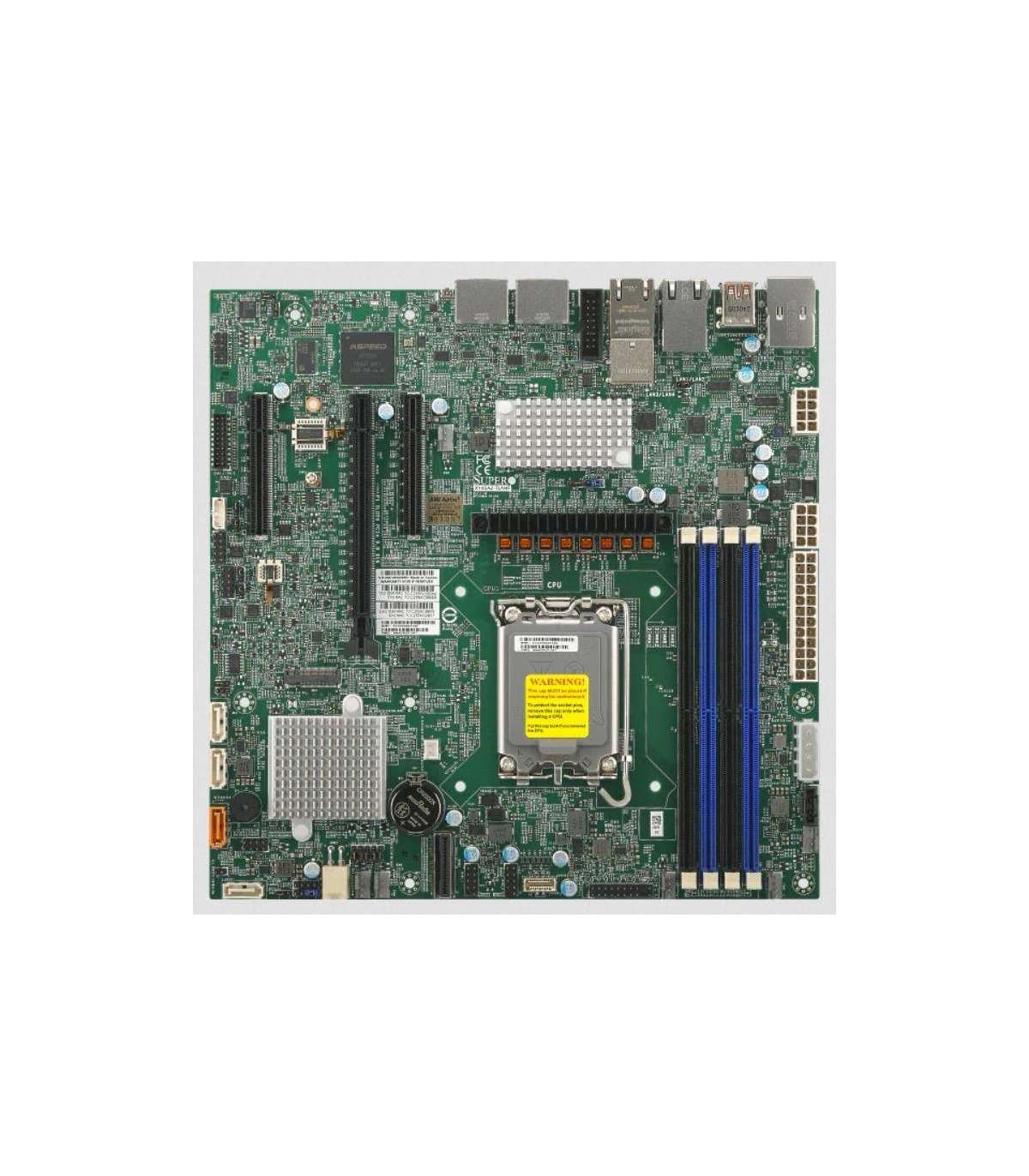

Supermicro MBD-X14SAZ-TLN4F-O motherboard Intel W880

Lisainfo

Depth

244 mm

Laius

244 mm

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

0 - 60 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

10 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Processor cores

24

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

USB 2.0 ports quantity

4

Component for

Server

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

HDMI ports quantity

2

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Supported memory clock speeds

5600

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Intel I226-LM

BIOS type

UEFI AMI

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC & Non-ECC

Number of SATA III connectors

4

TPM connector

Yes

DisplayPorts quantity

2

Serial port headers

2

Memory voltage

1.1 V

Serial ports quantity

2

ACPI version

6.5

System Management BIOS (SMBIOS) version

3.7

IPMI LAN (RJ-45) port

Yes
