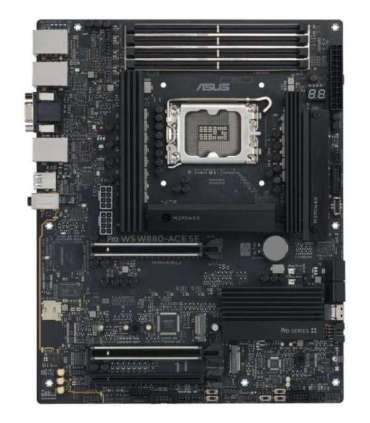

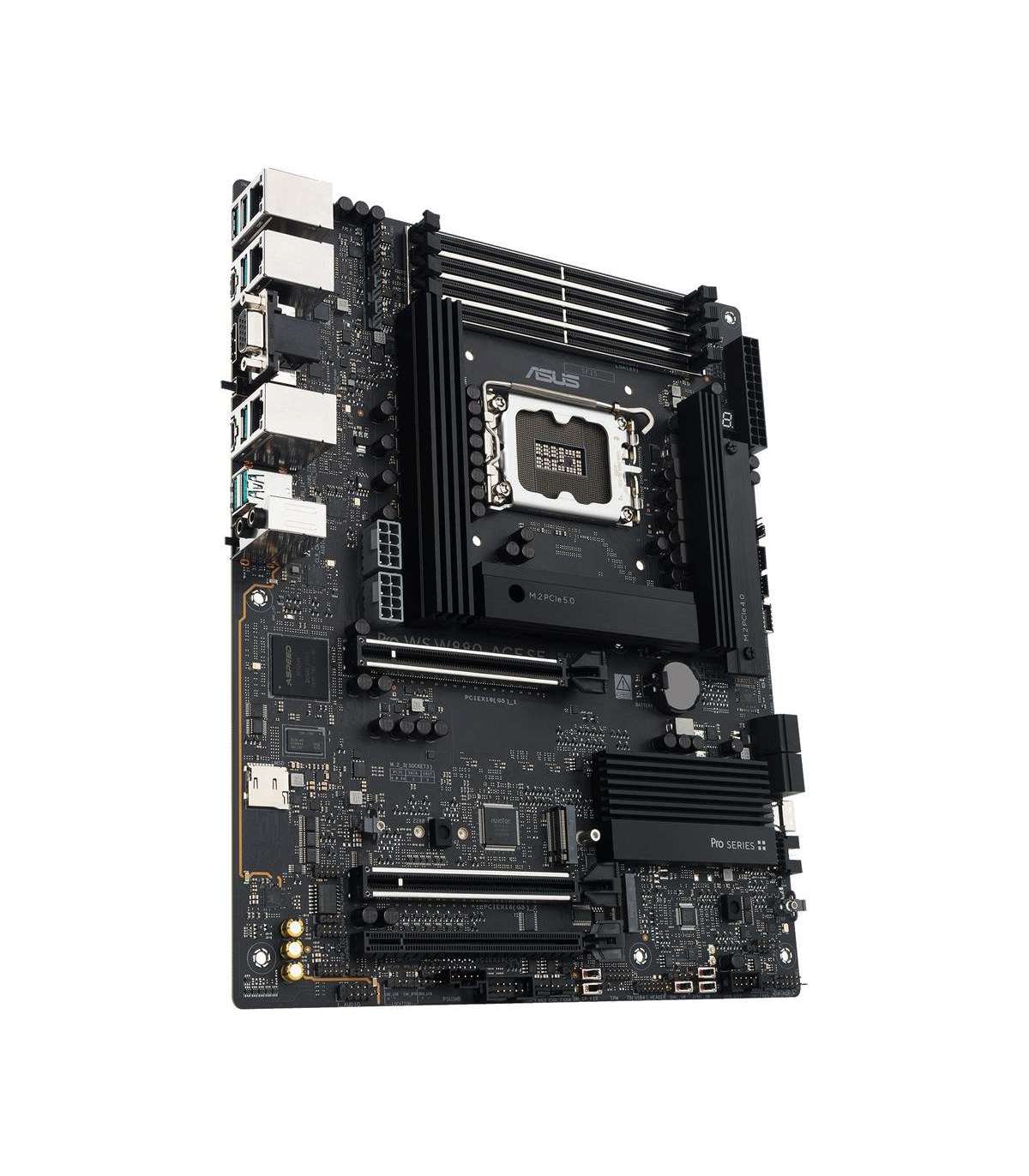

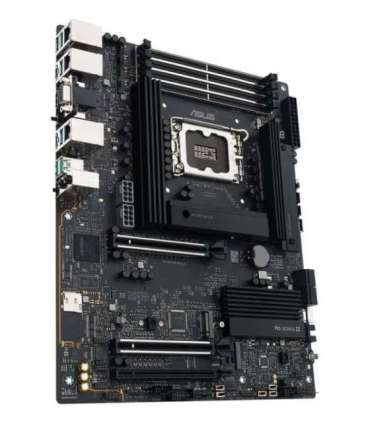

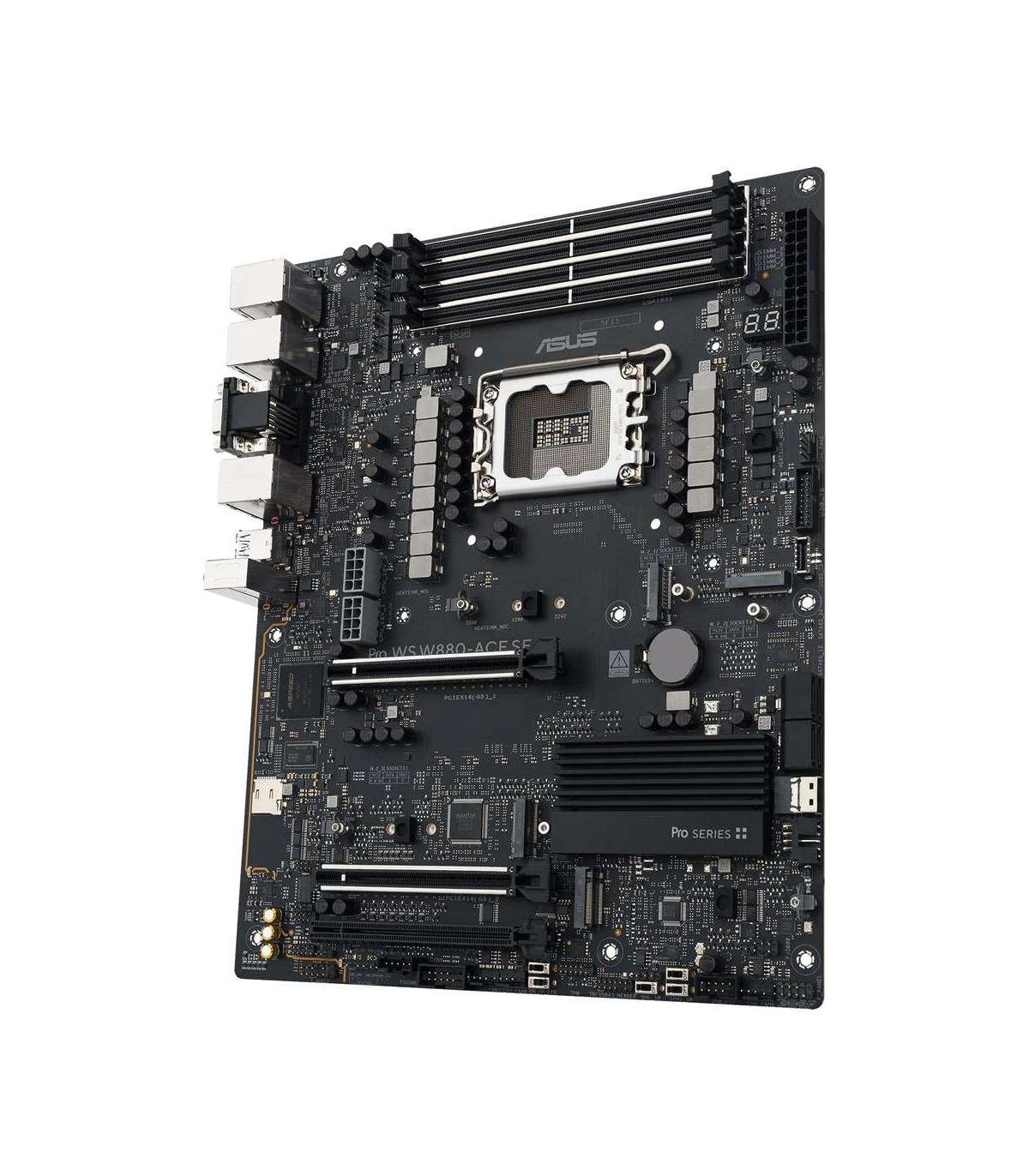

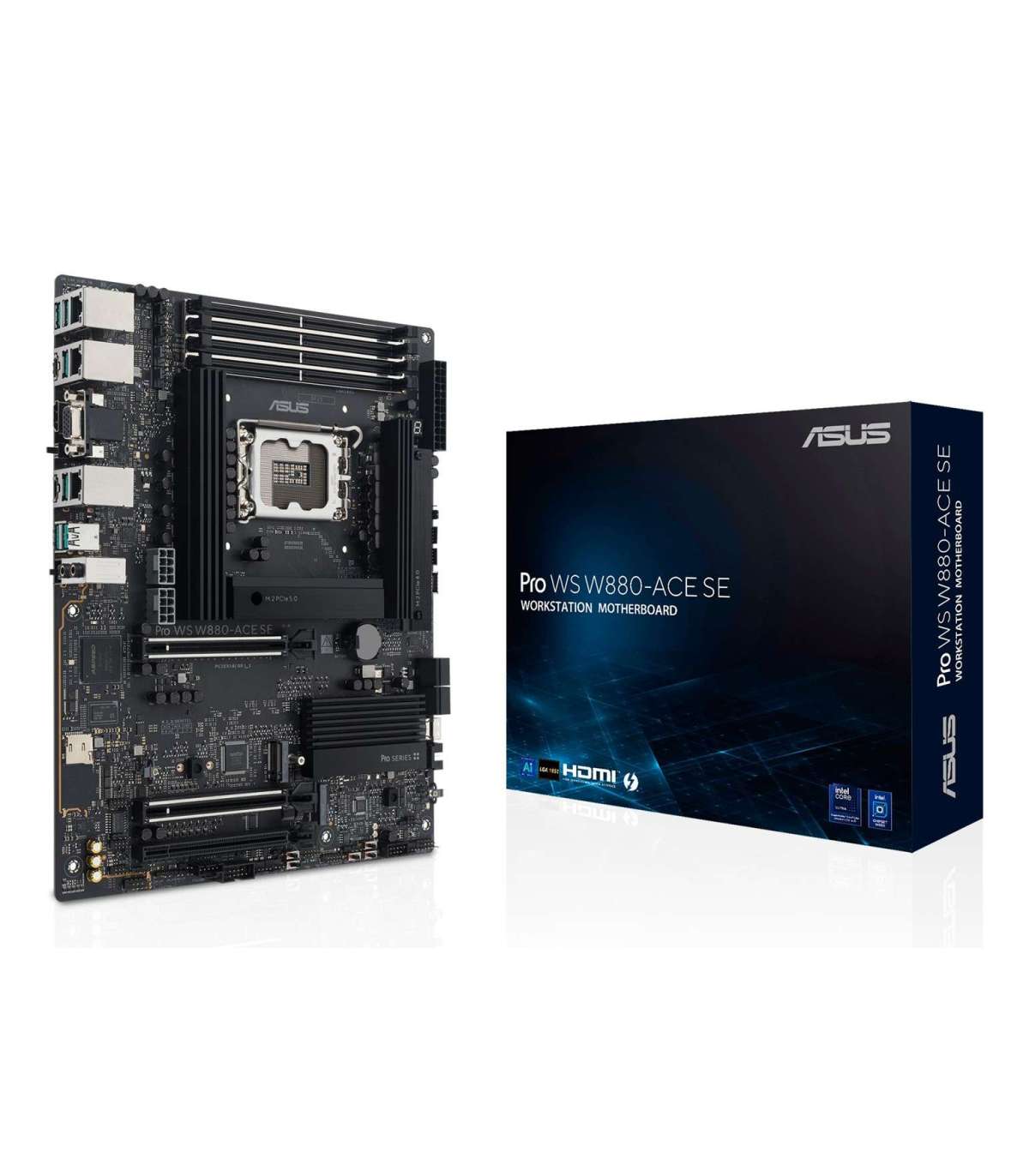

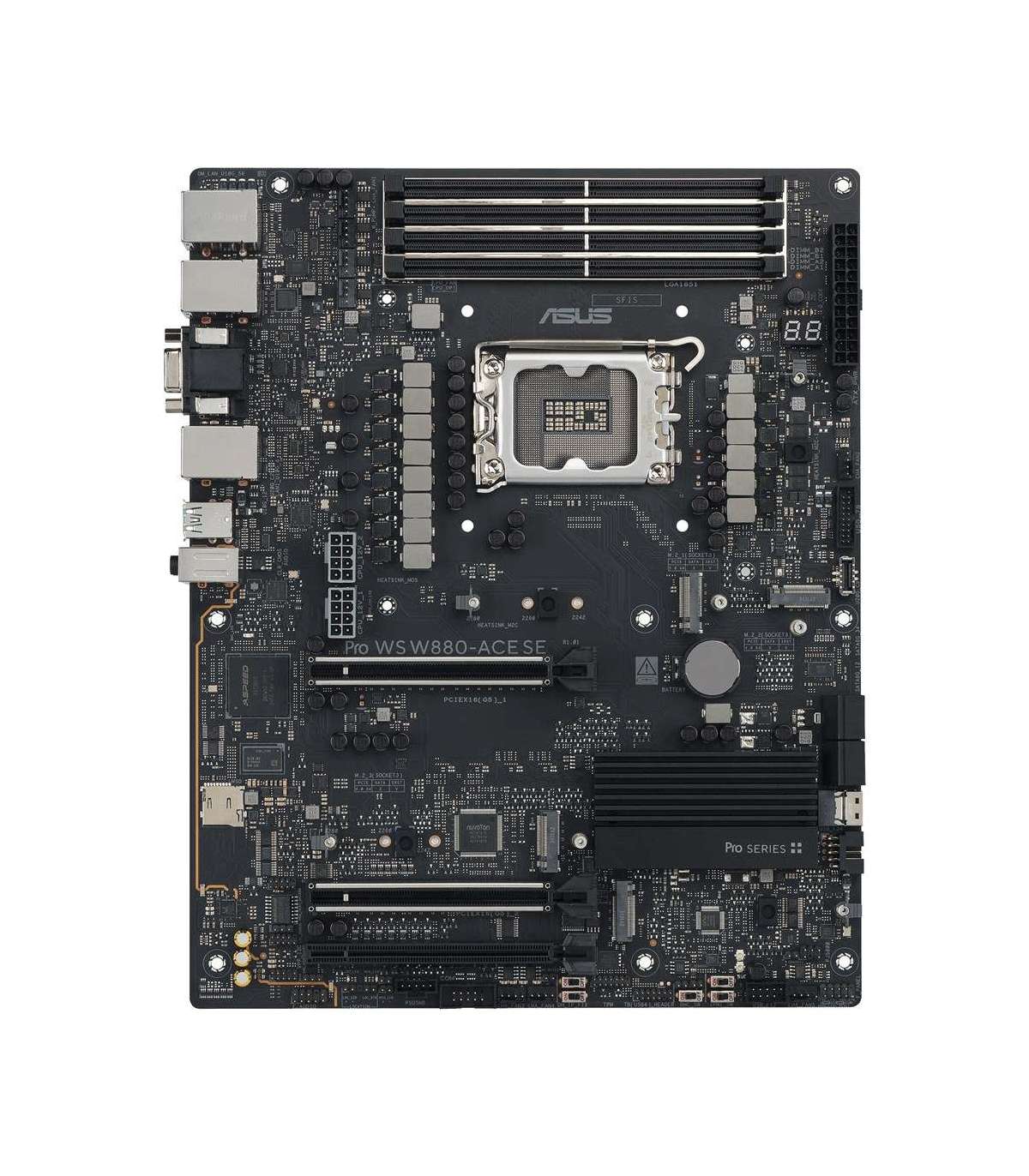

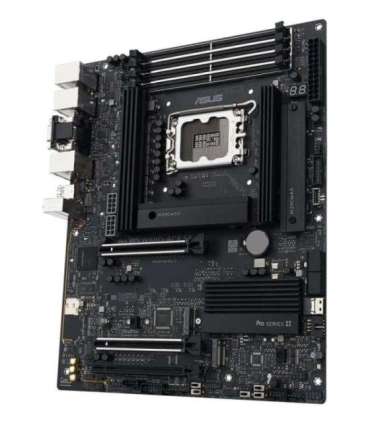

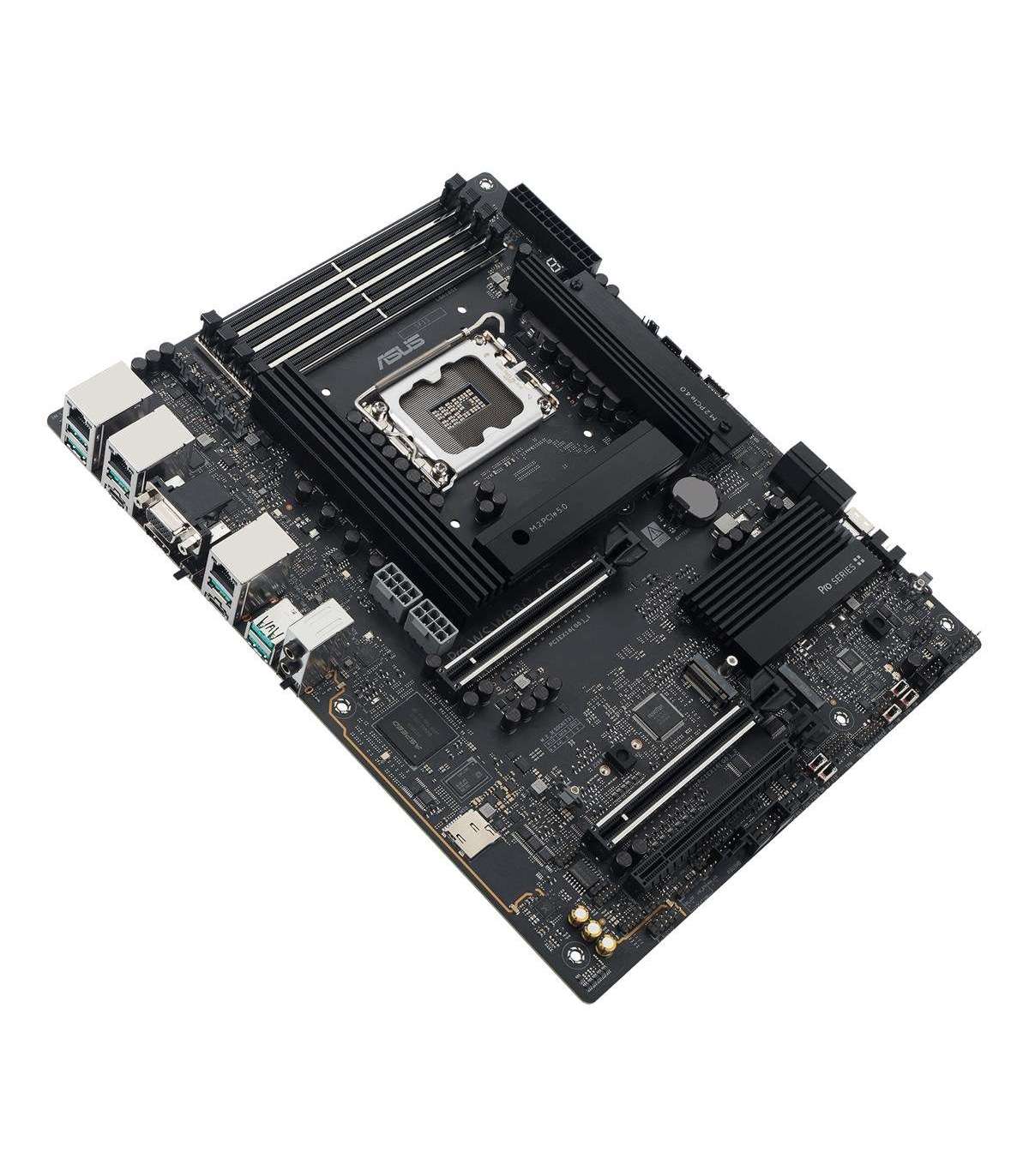

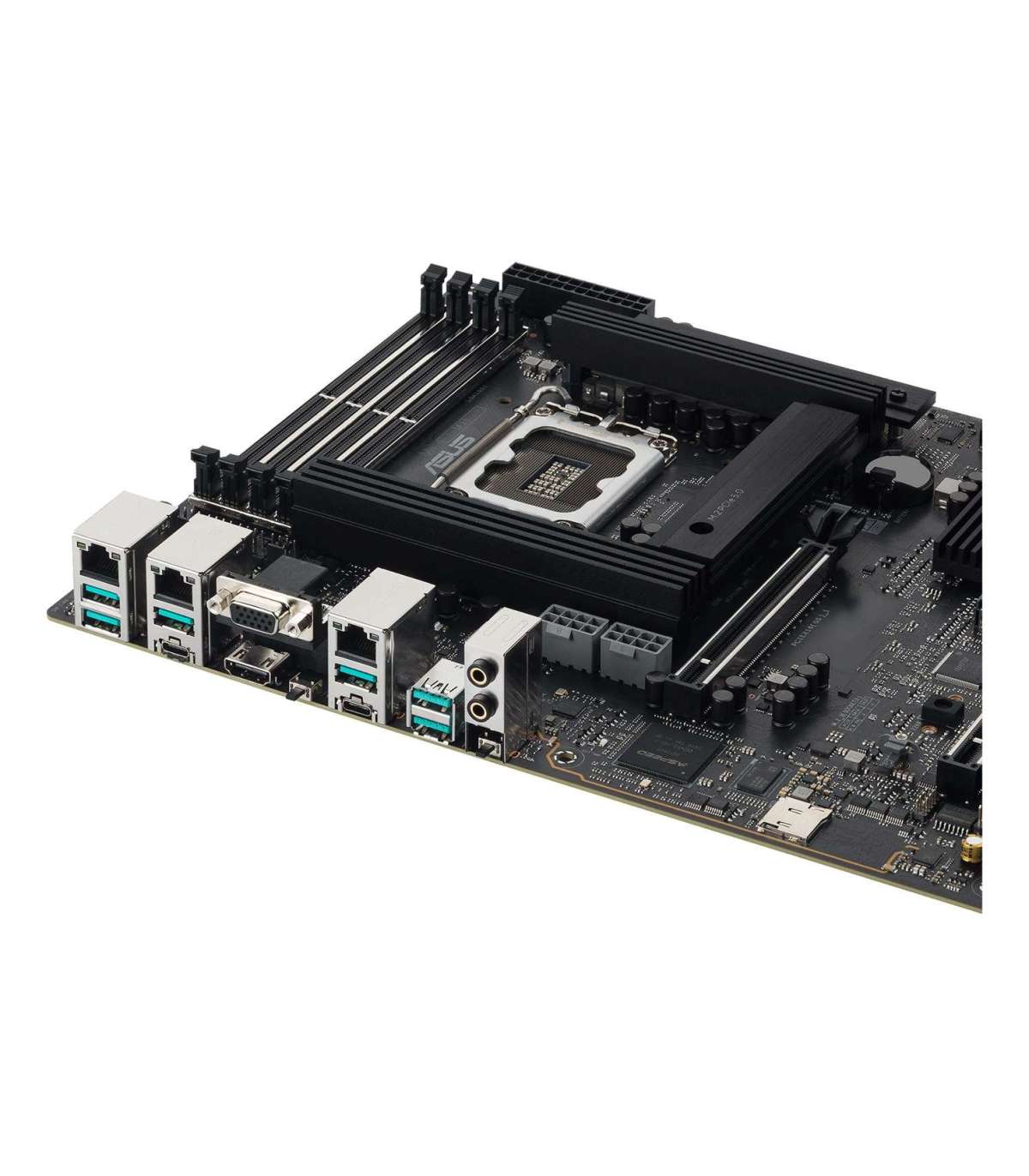

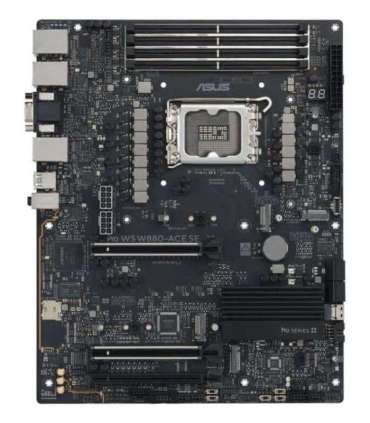

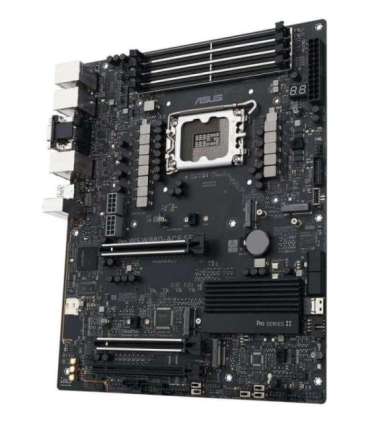

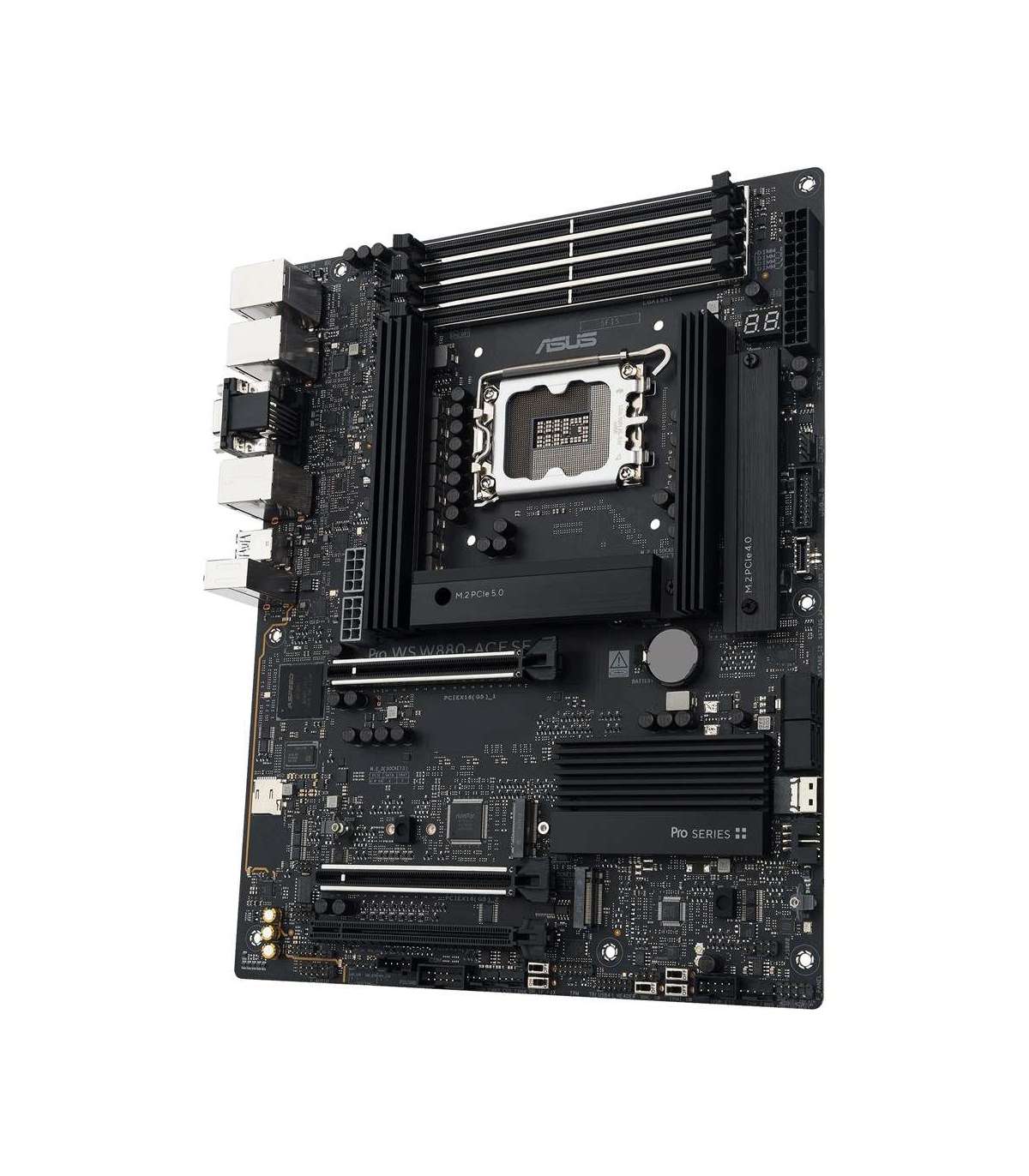

ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Product colour

Hall

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

3

Windows operating systems supported

Windows 10 x64
Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

Wi-Fi

No

Component for

Workstation

Ethernet interface type

2.5 Gigabit Ethernet
Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC1220P

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

5

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

3840 x 2160 pixels

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

Supported processor sockets

Intel LGA1851

Supported memory clock speed (max)

9066 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

8

RAID support

Yes

Line-in

Yes

Cooling type

Passive

Maximum internal memory per slot

64 GB

Number of EPS power connectors (8-pin)

2

Number of CPU fan connectors

1

Number of water pump connectors

1

DisplayPort version

2.1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

Clear CMOS button

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

2

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Number of temperature sensor headers

1

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

BIOS memory size

256 Mbit

Thunderbolt ports quantity

1

Integrated SAS ports

1
