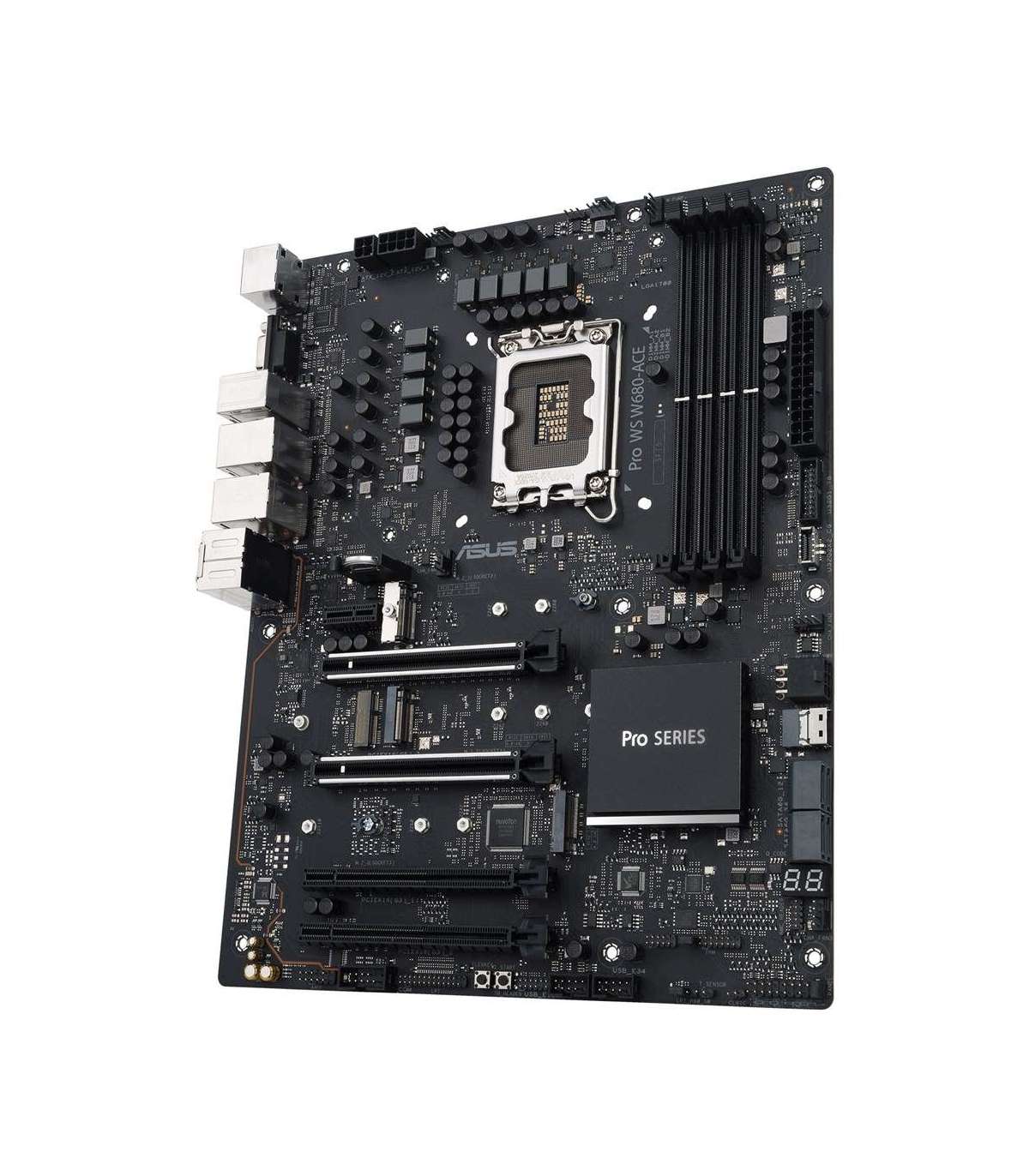

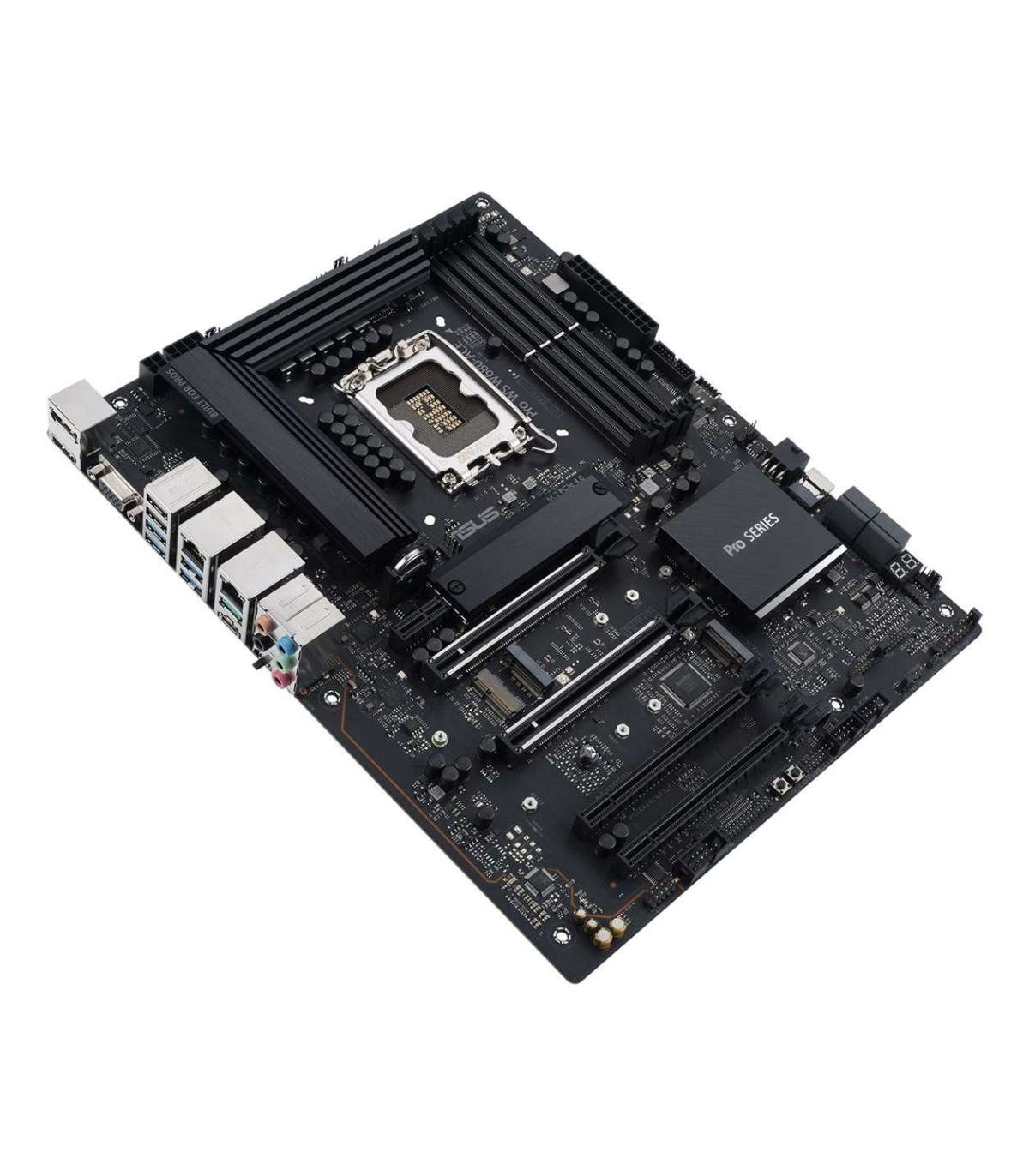

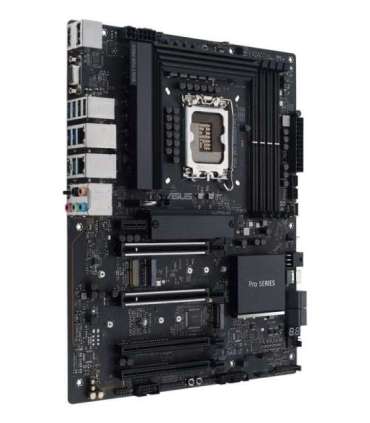

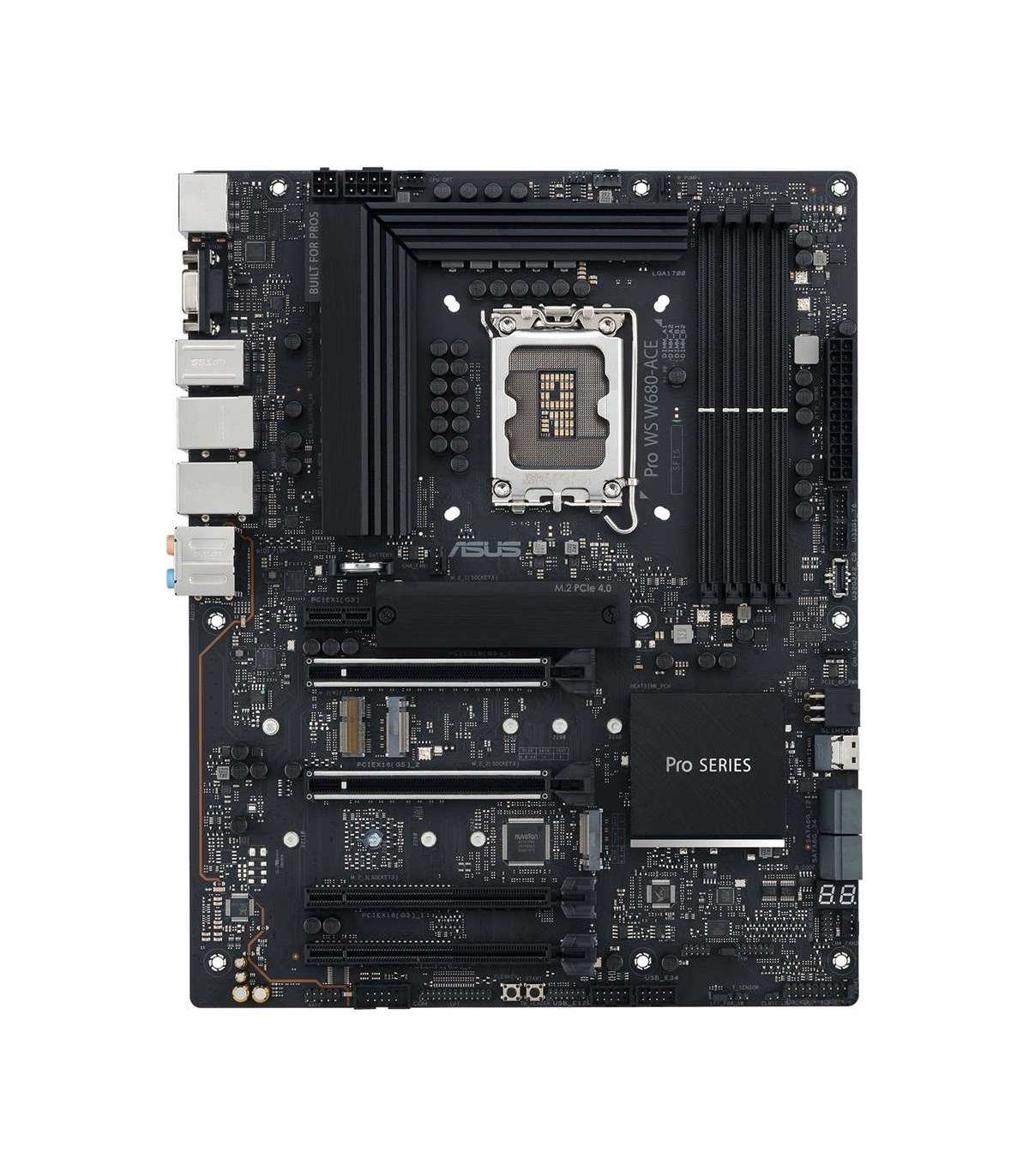

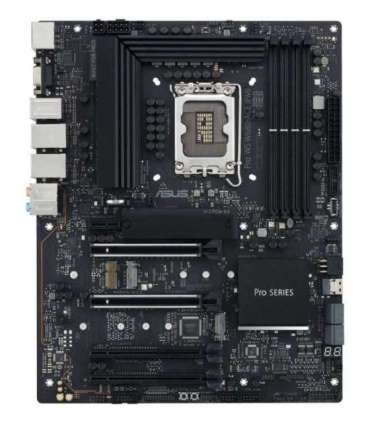

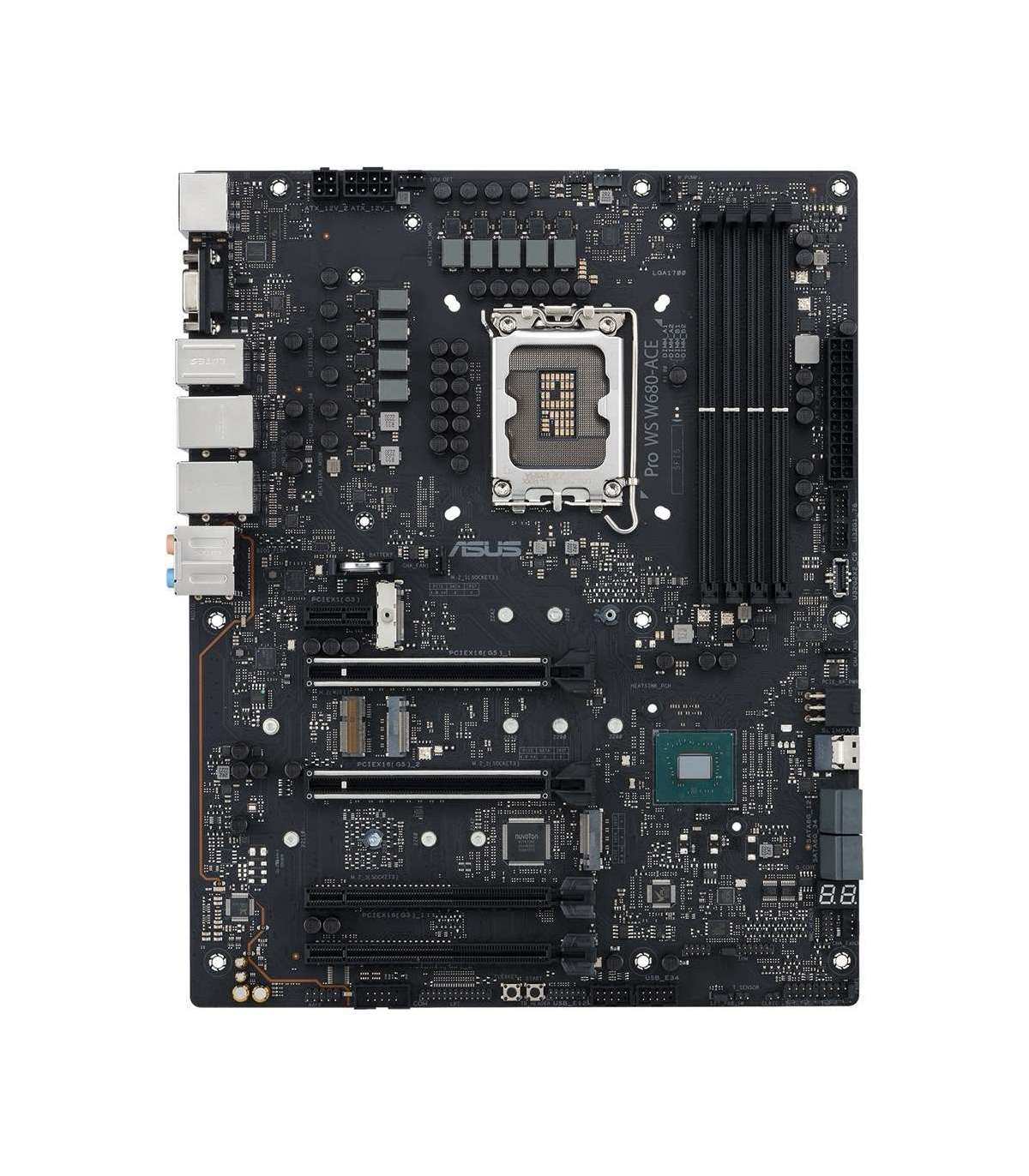

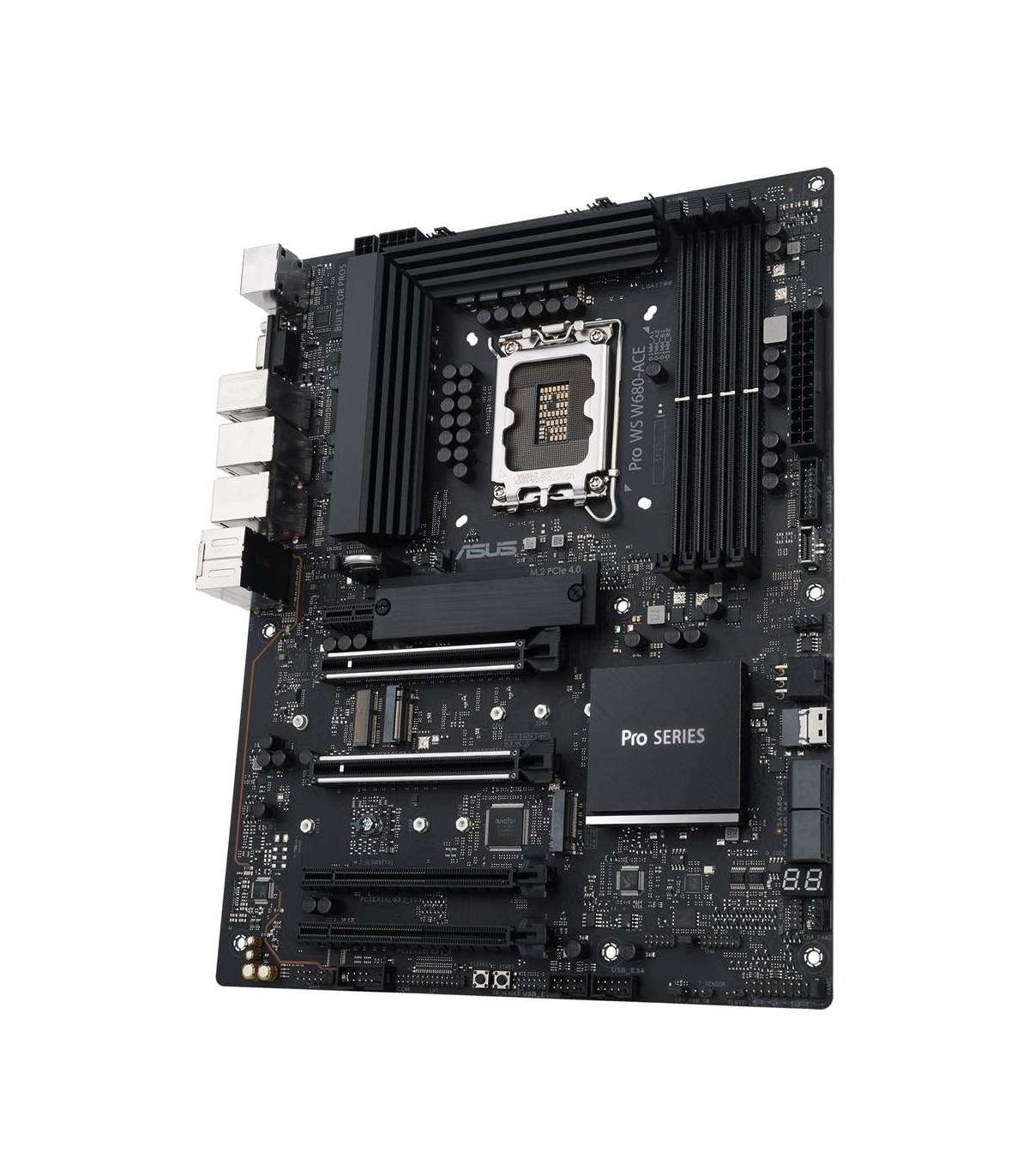

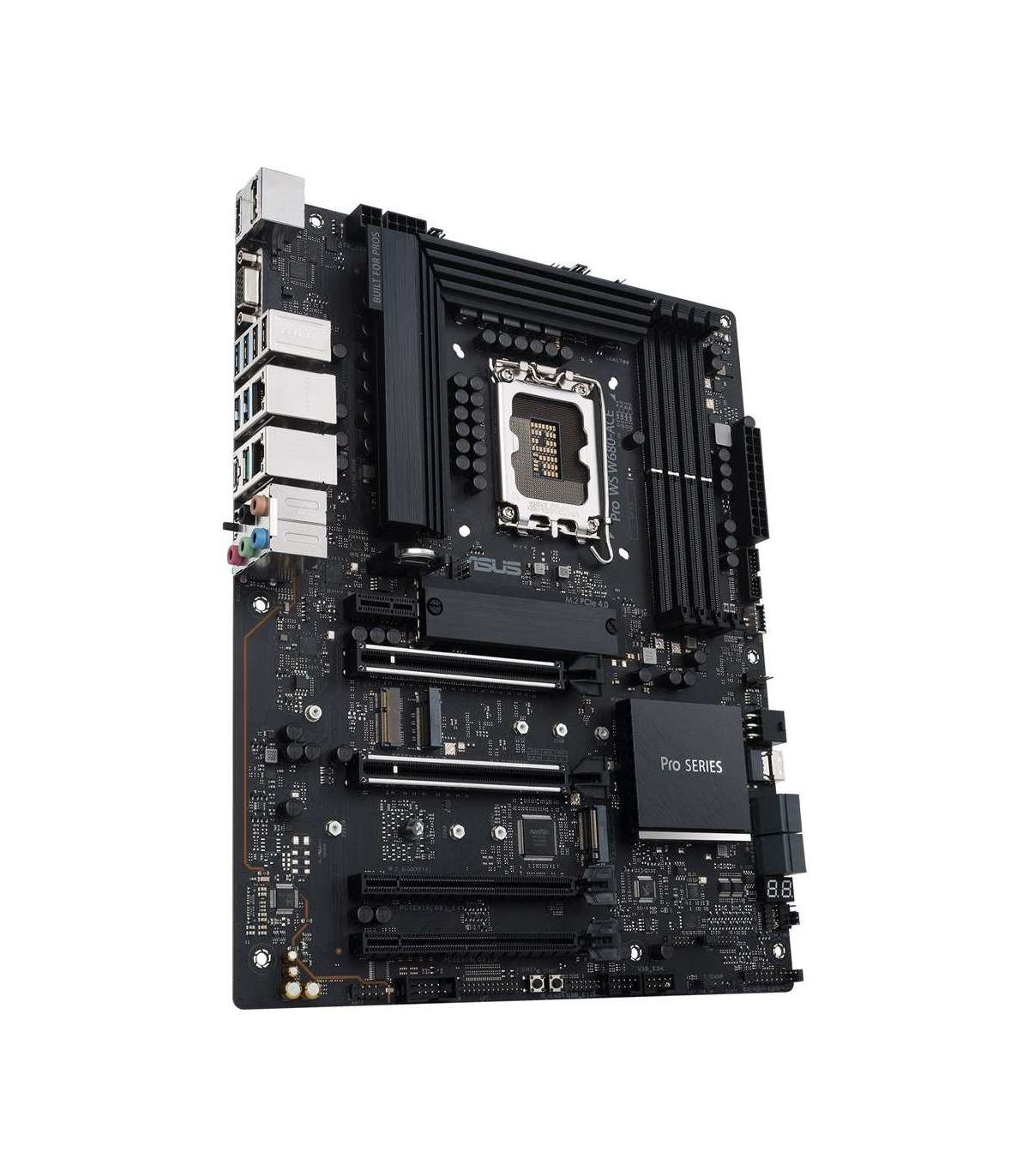

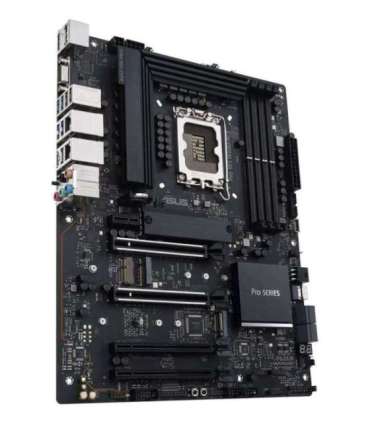

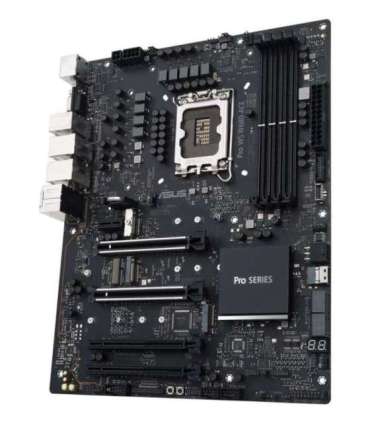

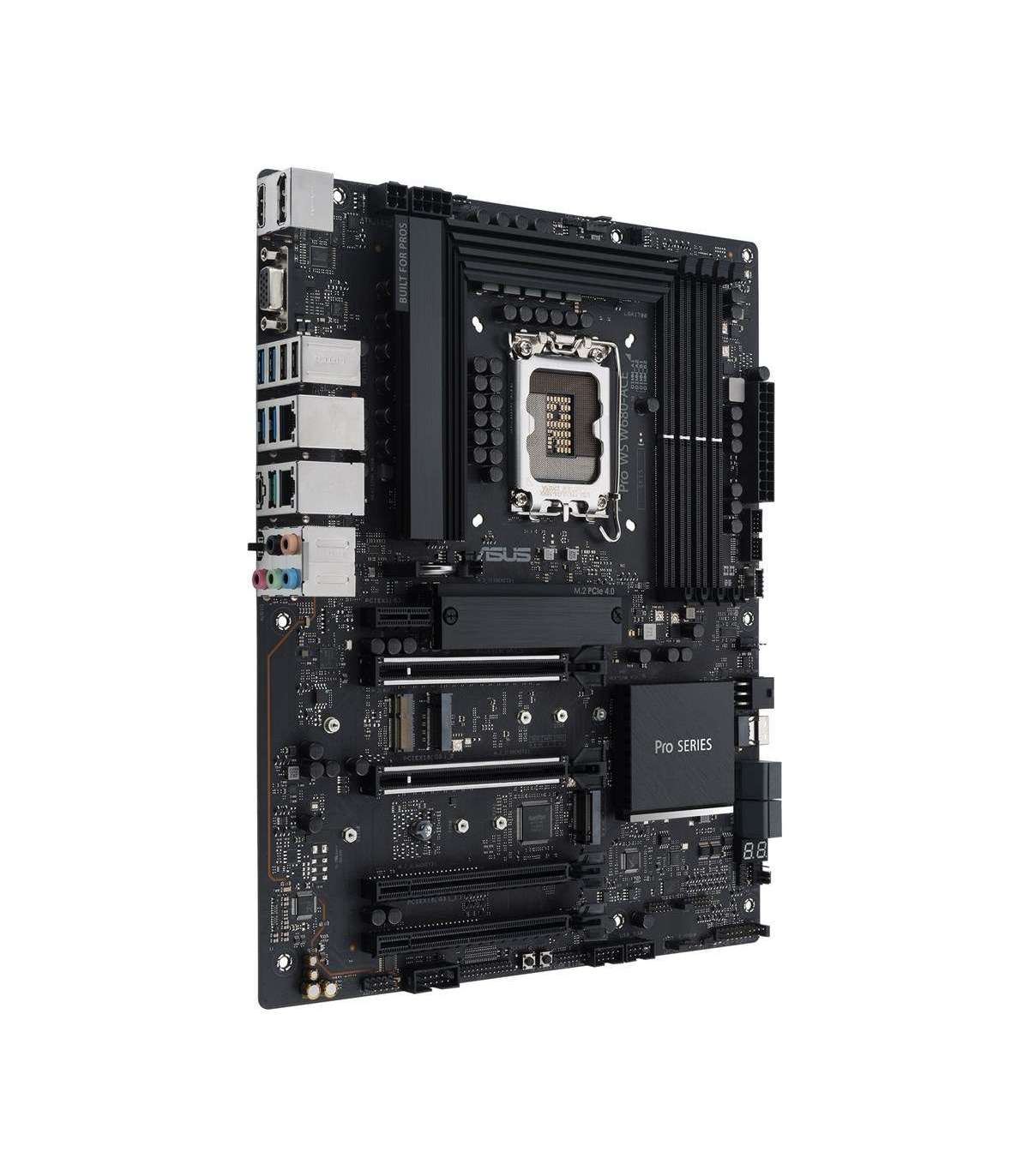

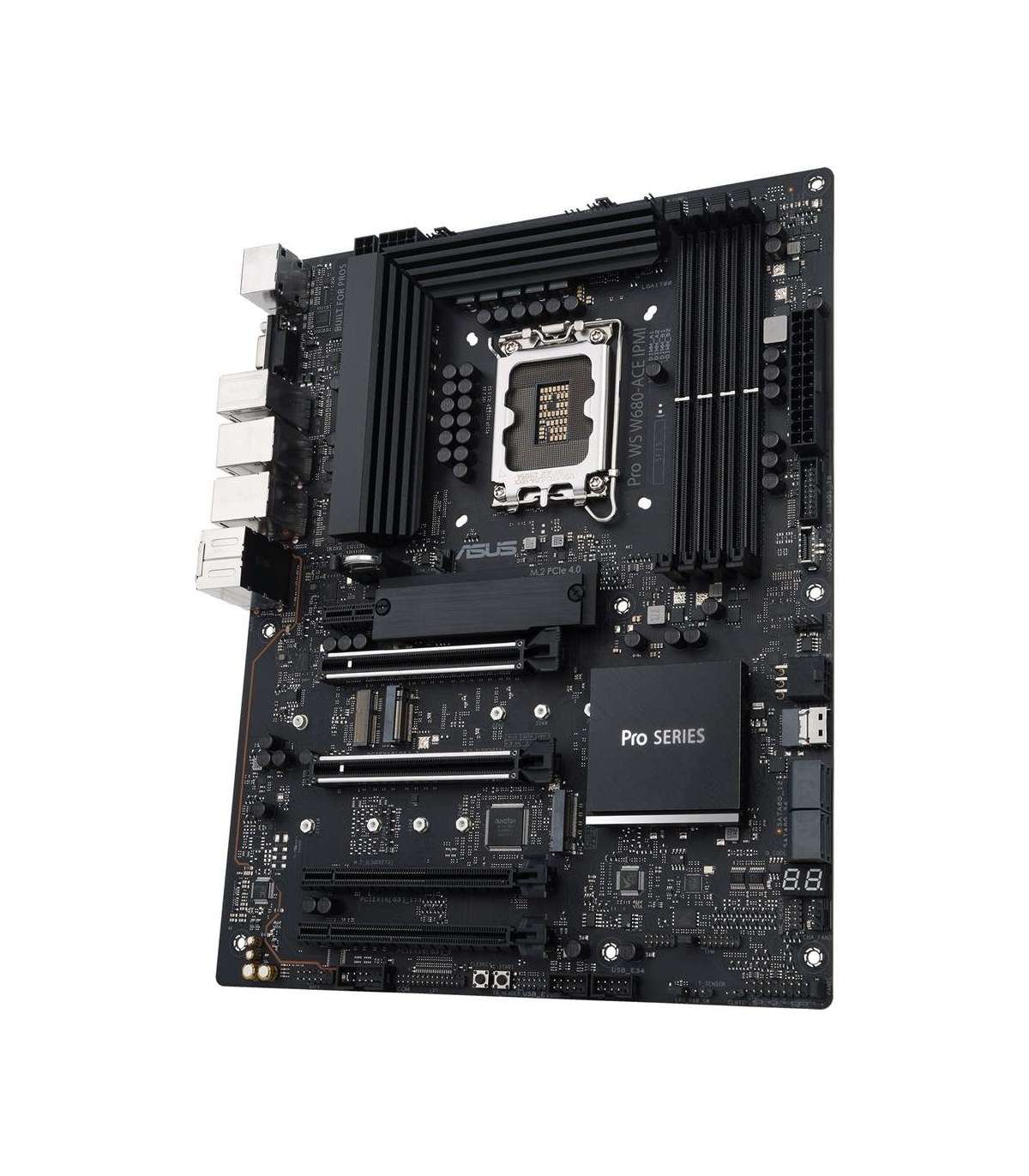

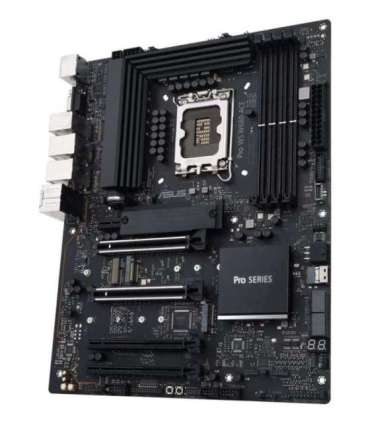

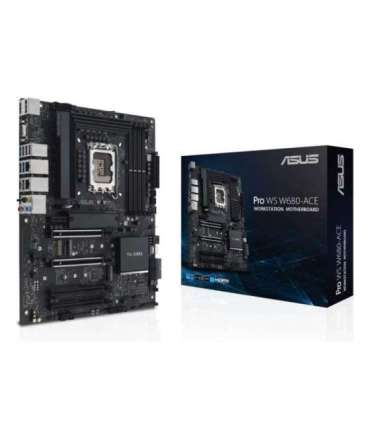

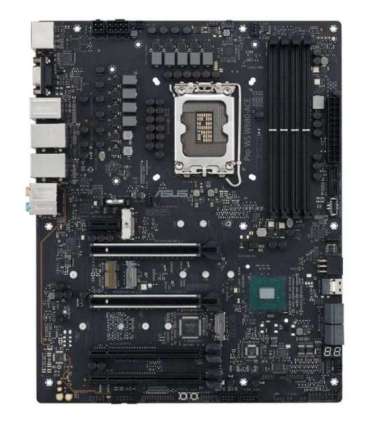

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX motherboard

Lisainfo

Depth

244 mm

Kaal

997 g

Kõrgus

50 mm

Laius

305 mm

Package weight

1.18 kg

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

331 mm

Package depth

266 mm

Package height

76 mm

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Component for

PC

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

No

Maximum internal memory

128 GB

Motherboard chipset

Intel W680

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

3

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

8

Supported storage drive interfaces

M.2, NVMe, SATA III

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

2

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Number of storage drives supported

11

RAID support

Yes

Line-in

Yes

Cooling type

Passive

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Peripheral (Molex) power connectors (4-pin)

1

Thunderbolt headers

1

Back-to-BIOS button

Yes

BIOS memory size

256 Mbit

Number of M.2 (E) slots

1

User guide

Yes

Integrated SAS ports

1
