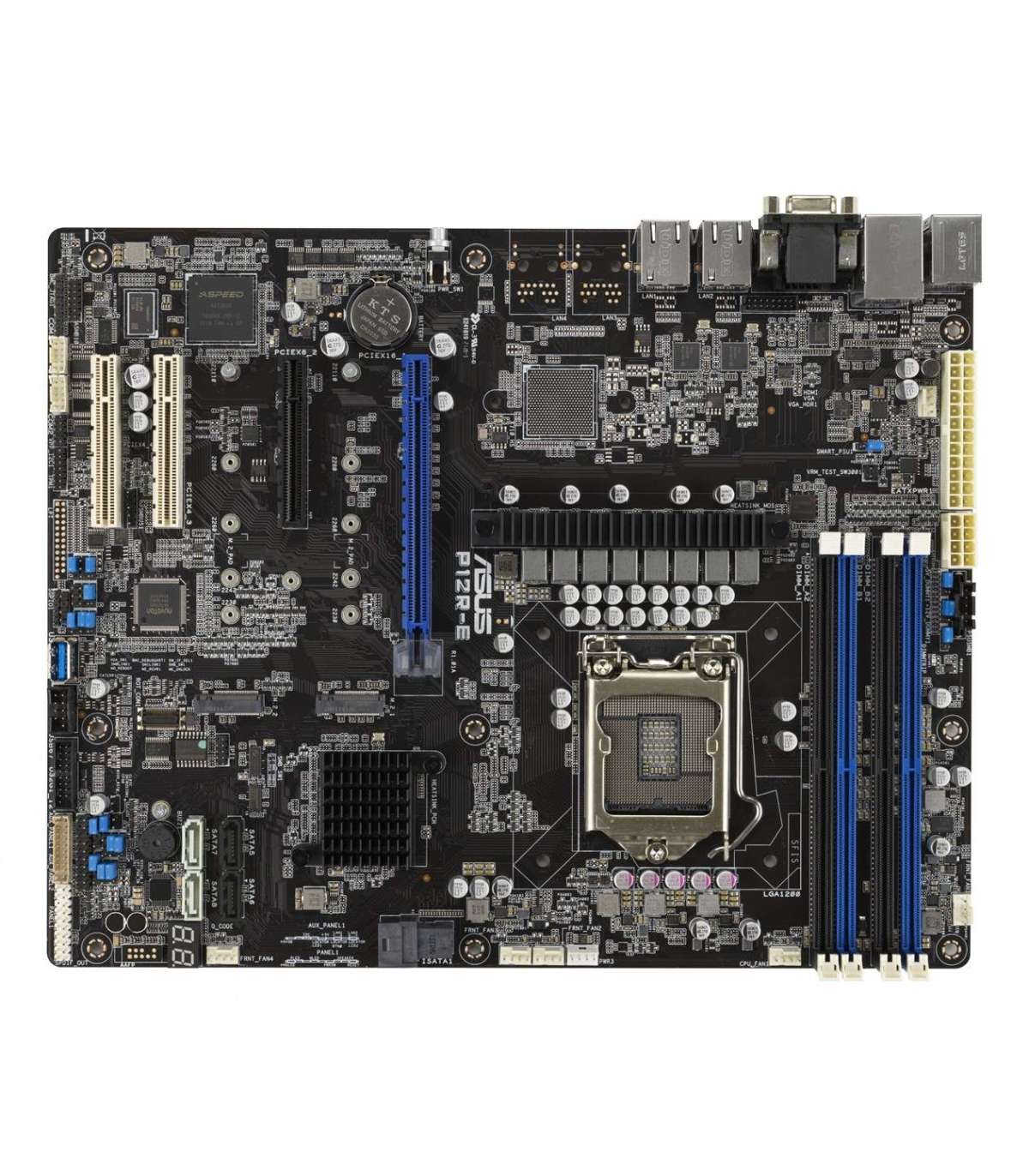

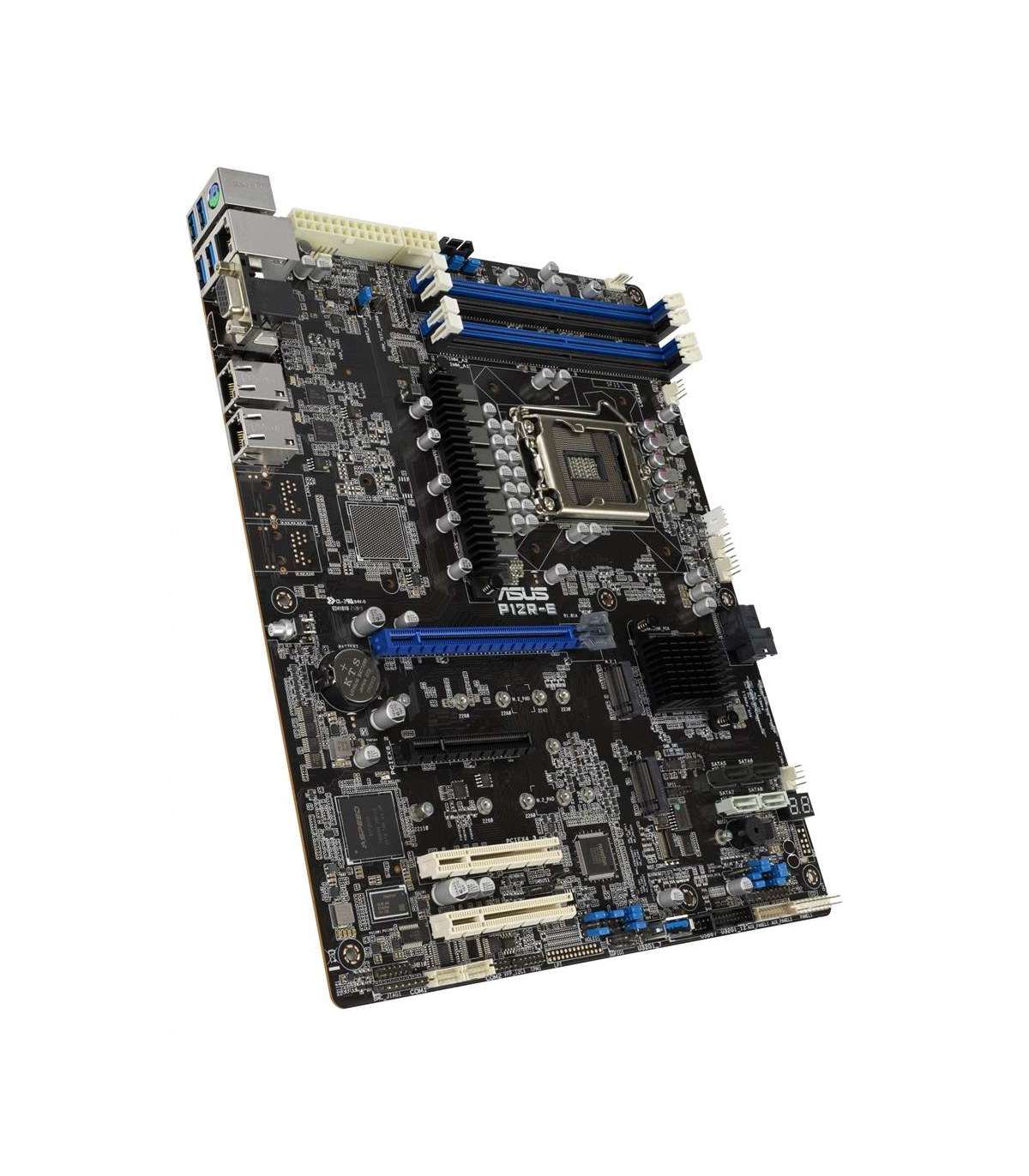

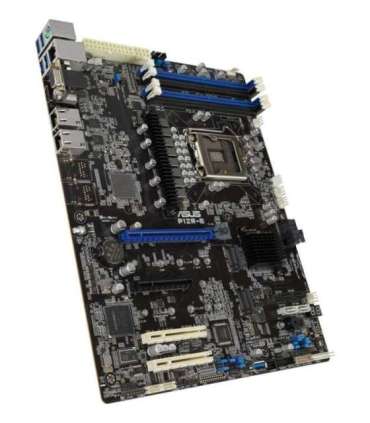

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX server motherboard

Lisainfo

Depth

244 mm

Kaal

800 g

Kõrgus

68 mm

Laius

305 mm

Package weight

1.5 kg

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Package width

341 mm

Package depth

281 mm

Package height

78 mm

Harmonized System (HS) code

84733020

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

No

Component for

Server

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

Yes

On-board graphics card model

Aspeed AST2600

Maximum internal memory

128 GB

Motherboard chipset

Intel C256

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

USB 2.0 connectors

1

Graphics card family

ASPEED

Processor socket

LGA 1200 (Socket H5)

On-board graphics card memory

64 MB

Compatible processor series

Intel Xeon E
Intel® Pentium®

Motherboard form factor

ATX

Motherboard chipset family

Intel

Supported memory clock speeds

2666
2933
3200 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of HDDs supported

8

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

PC health monitoring

CPU
Fan

Number of SATA III connectors

8

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported memory clock speed (max)

3200 MHz

Number of storage drives supported

10

RAID support

Yes

Supported memory module capacities

8GB
16GB
32GB

Power fan connector

Yes

PCI Express x8 (Gen 4.x) slots

1

PCI Express x8 (Gen 3.x) slots

2
