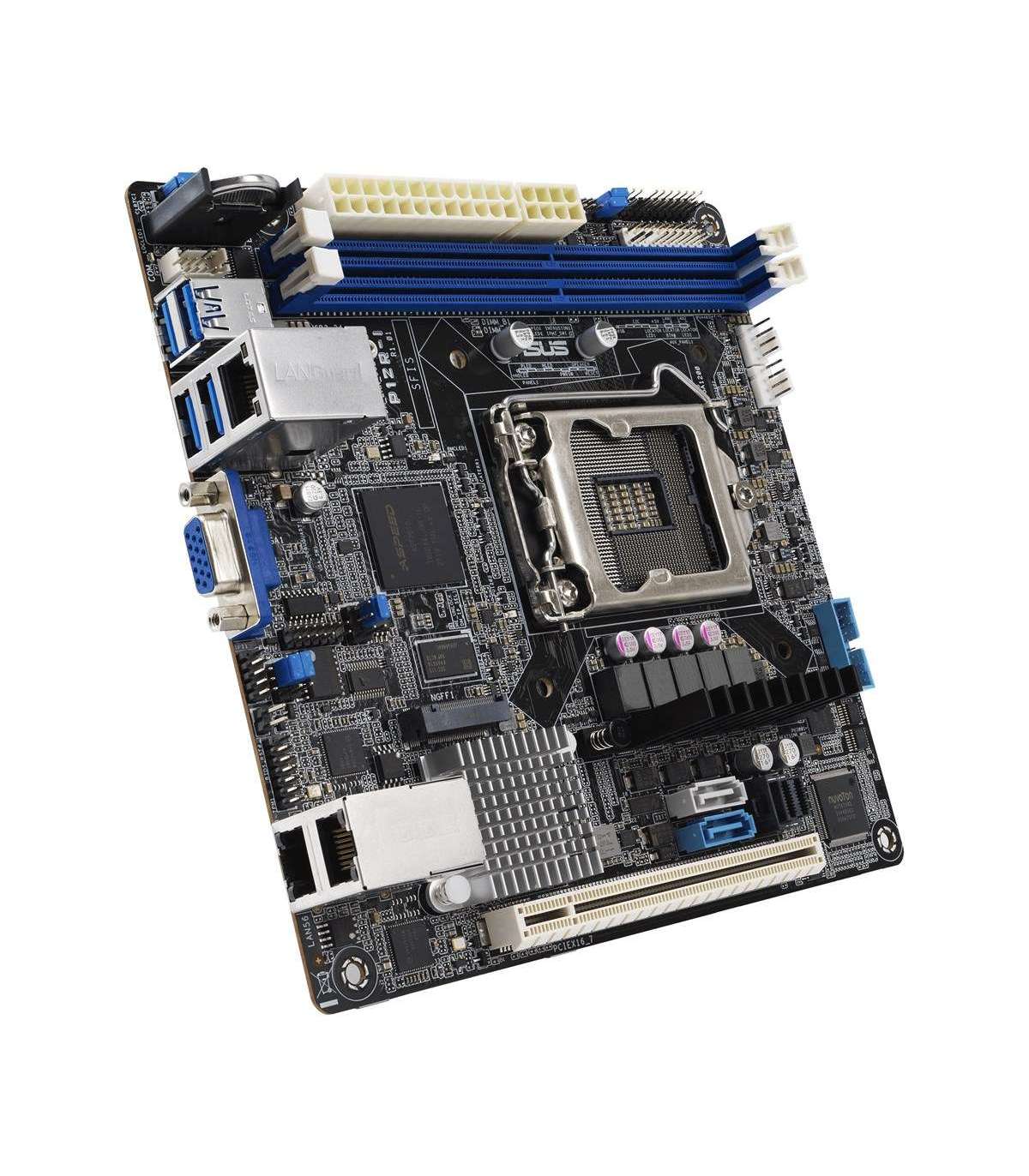

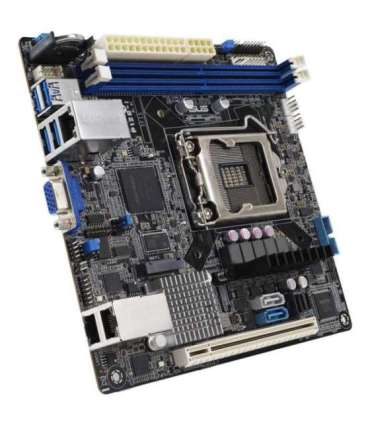

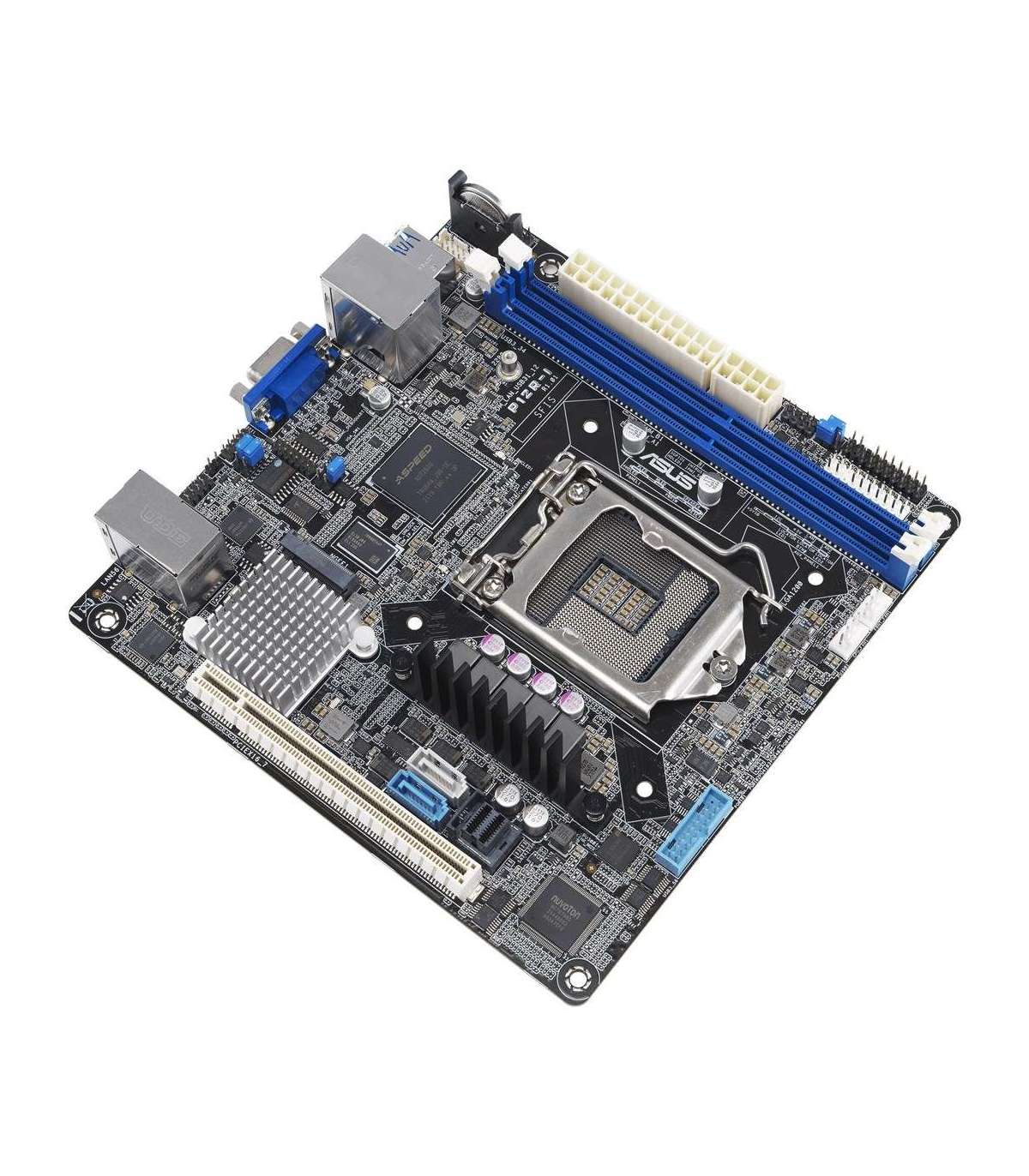

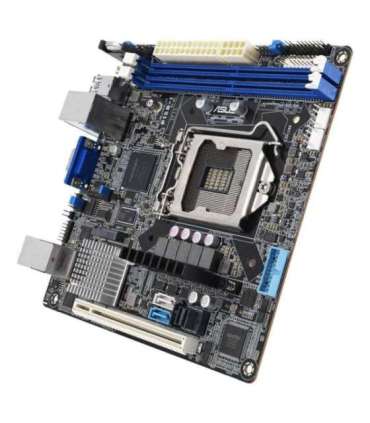

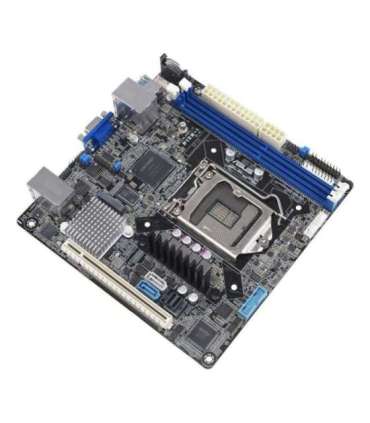

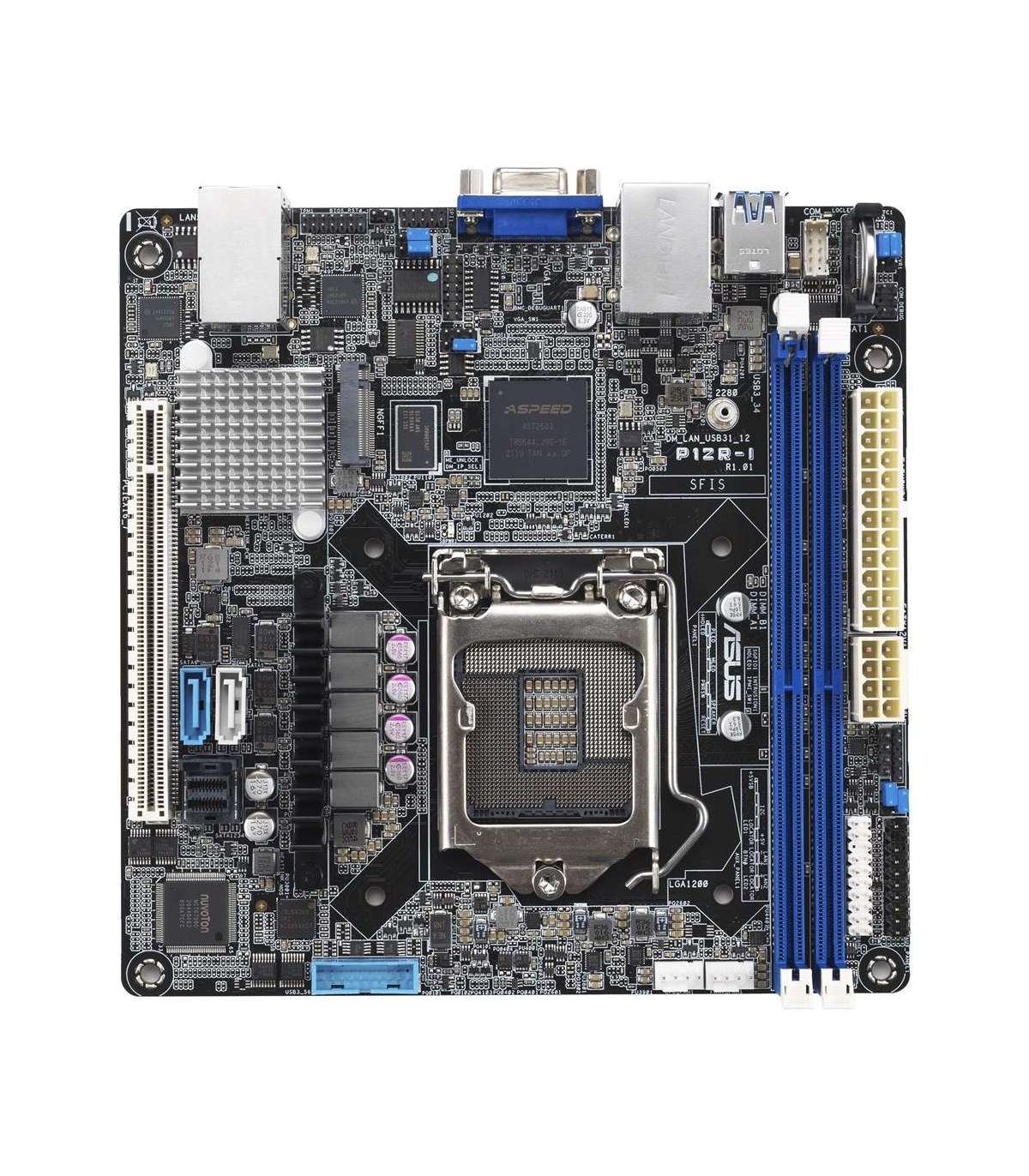

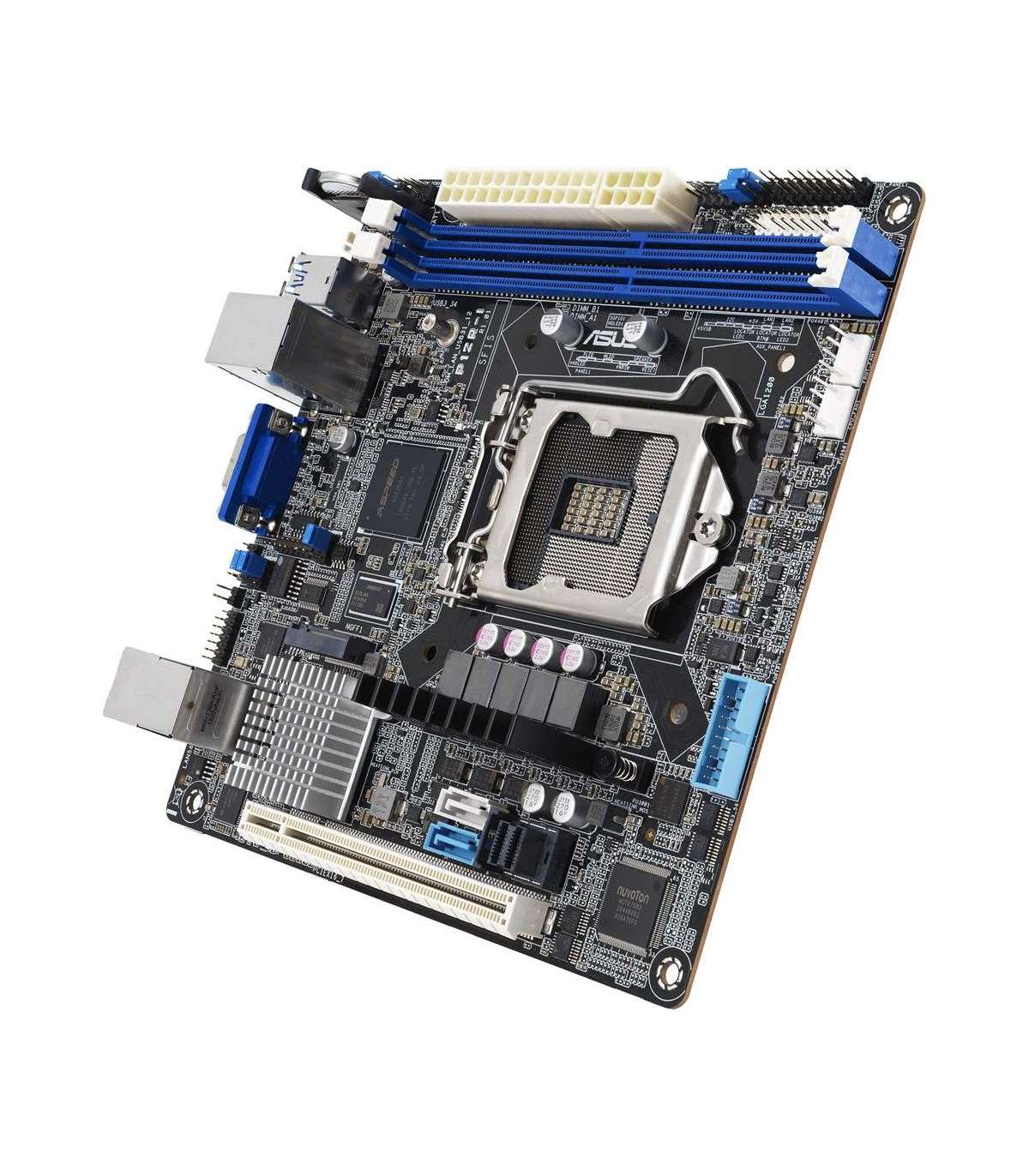

ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX

Lisainfo

Videokaardi mudel

AST2600

Depth

170 mm

Kaal

500 g

Laius

170 mm

Package weight

1.2 kg

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Package width

311 mm

Package depth

281 mm

Package height

78 mm

Harmonized System (HS) code

84733020

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

No

Component for

Server

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel C252

Memory channels

Dual-channel

Graphics card family

ASPEED

Processor socket

LGA 1200 (Socket H5)

On-board graphics card memory

64 MB

Compatible processor series

Intel Xeon E
Intel® Pentium®

Motherboard form factor

ATX

Motherboard chipset family

Intel

Supported memory clock speeds

2666
2933
3200 MHz

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I210-AT

Number of chassis fan connectors

2

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

6

Chassis intrusion connector

Yes

TPM connector

Yes

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

PCI Express x16 slots

1

Supported memory module capacities

4GB
8GB
16GB
32GB

Serial port headers

1

Number of SAS ports

2
