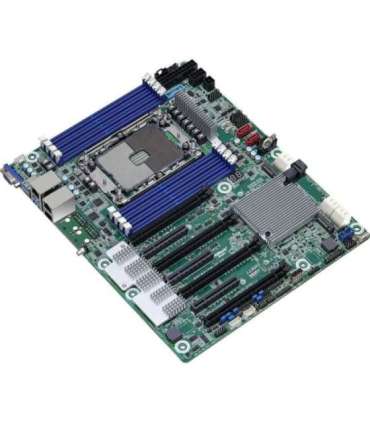

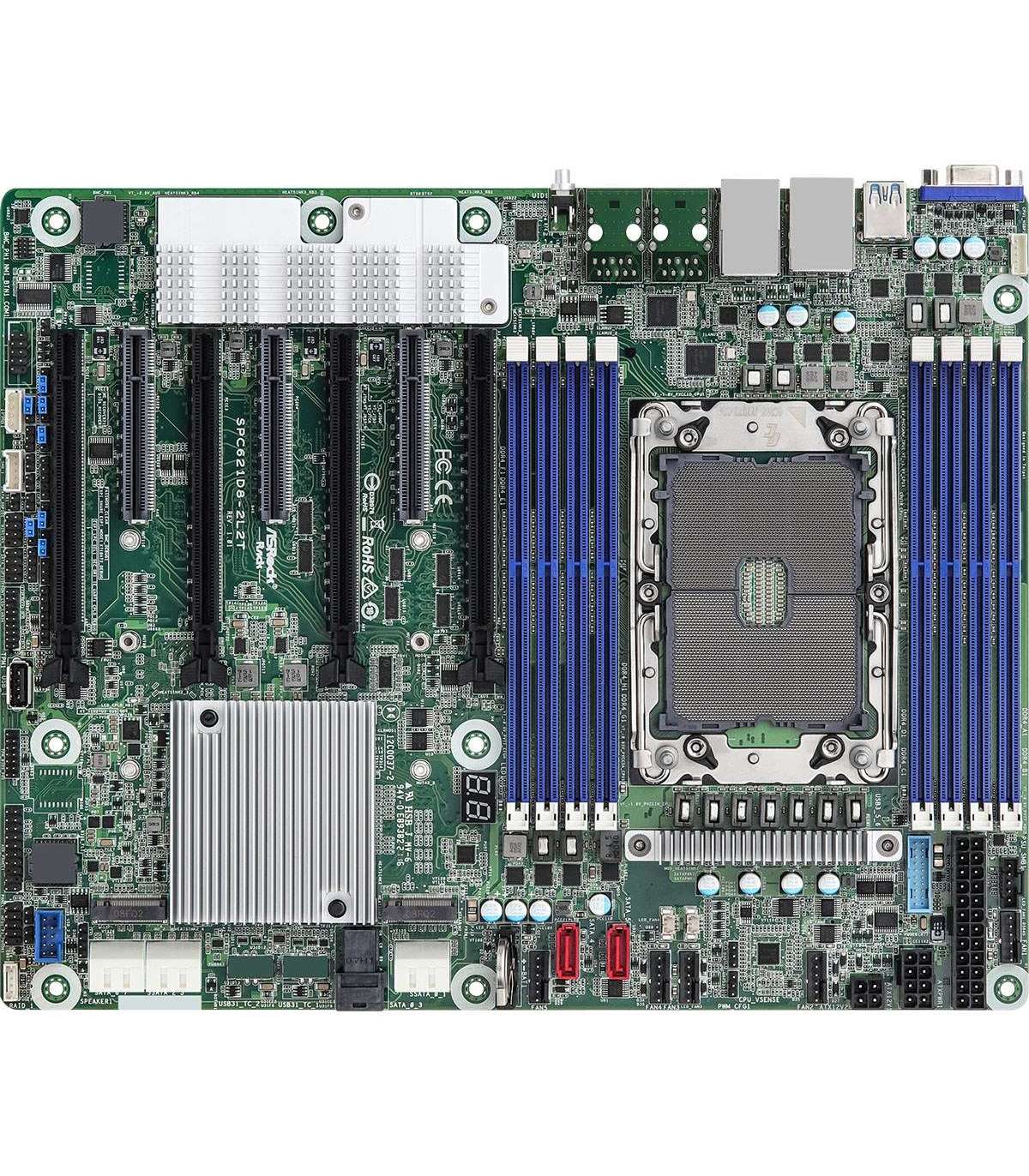

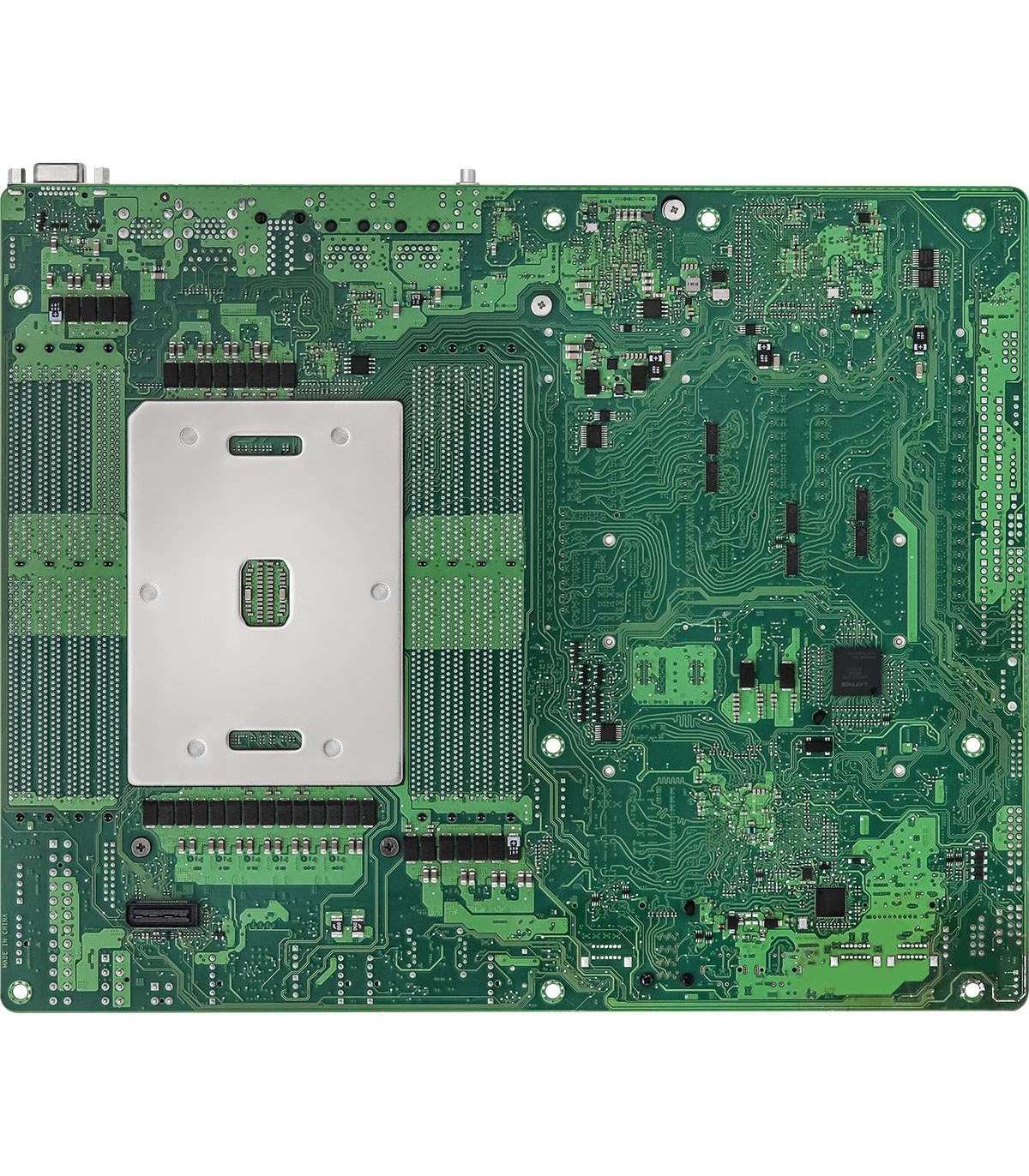

Asrock SPC621D8 motherboard Intel C621A LGA 4189 ATX

Lisainfo

Depth

243.8 mm

Laius

304.8 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

No

Component for

Server

Processor manufacturer

Intel

On-board graphics card model

Aspeed AST2500

Motherboard chipset

Intel C621A

USB 2.0 connectors

1

Processor socket

LGA 4189

On-board graphics card memory

16 MB

Compatible processor series

Intel® Xeon®

Motherboard form factor

ATX

Motherboard chipset family

Intel

Memory slots type

DIMM

Number of memory slots

8

Supported memory types

DDR4-SDRAM

LAN controller

Intel I210
Realtek RTL8211E

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Maximum number of SMP processors

1

PC health monitoring

Fan
Temperature
Voltage

Number of SATA III connectors

13

TPM connector

Yes

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

4

EPS power connector (8-pin)

Yes

RAID support

Yes

BIOS memory size

256 Mbit

Memory voltage

1.2 V

Maximum RDIMM memory

64 GB

IPMI LAN (RJ-45) port

Yes
