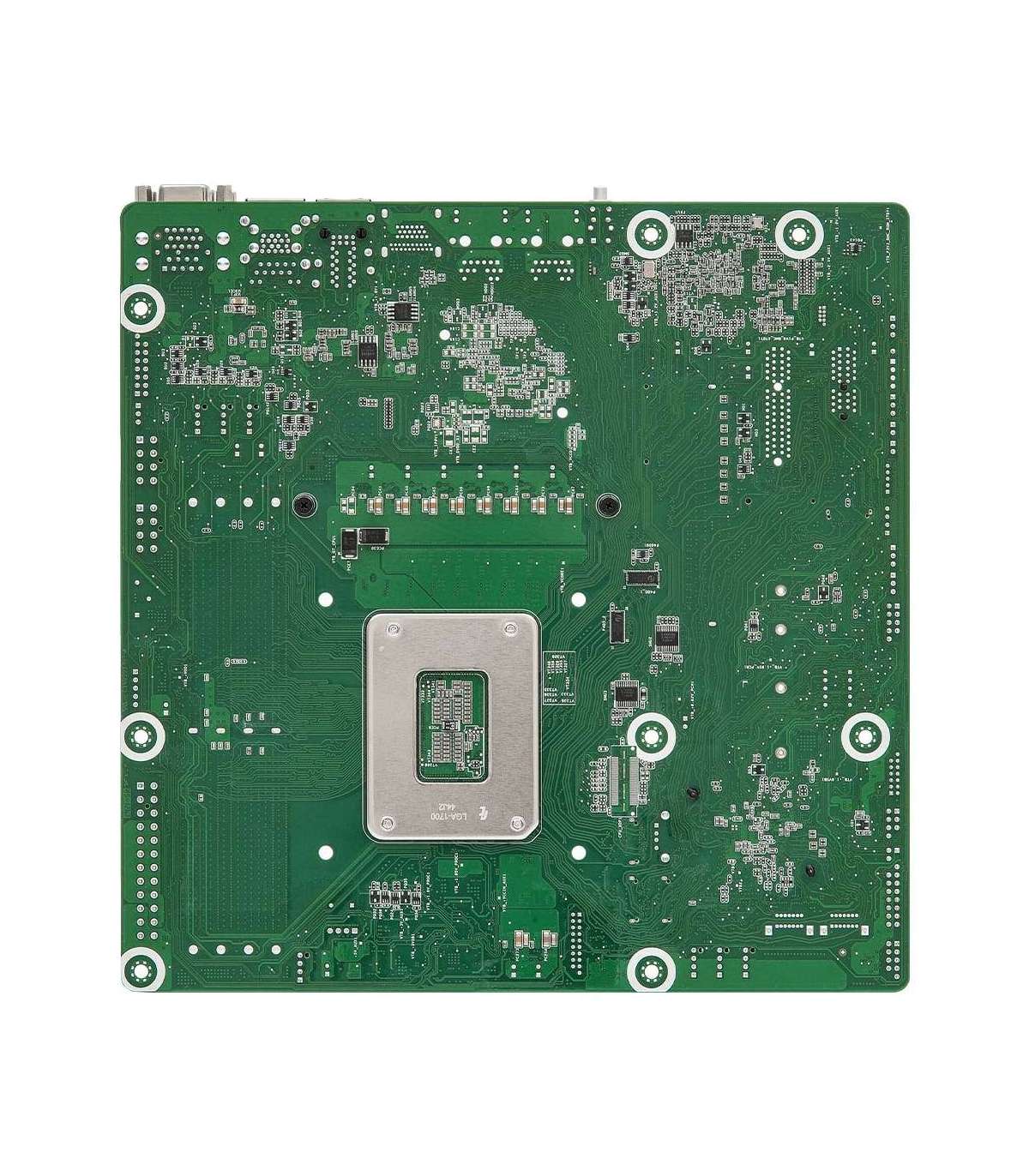

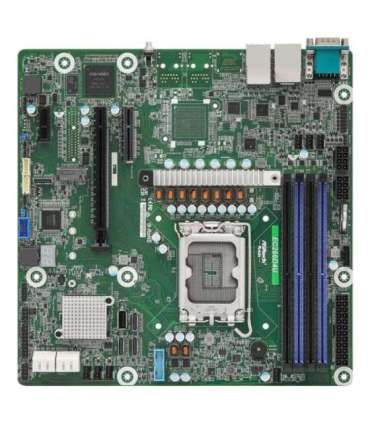

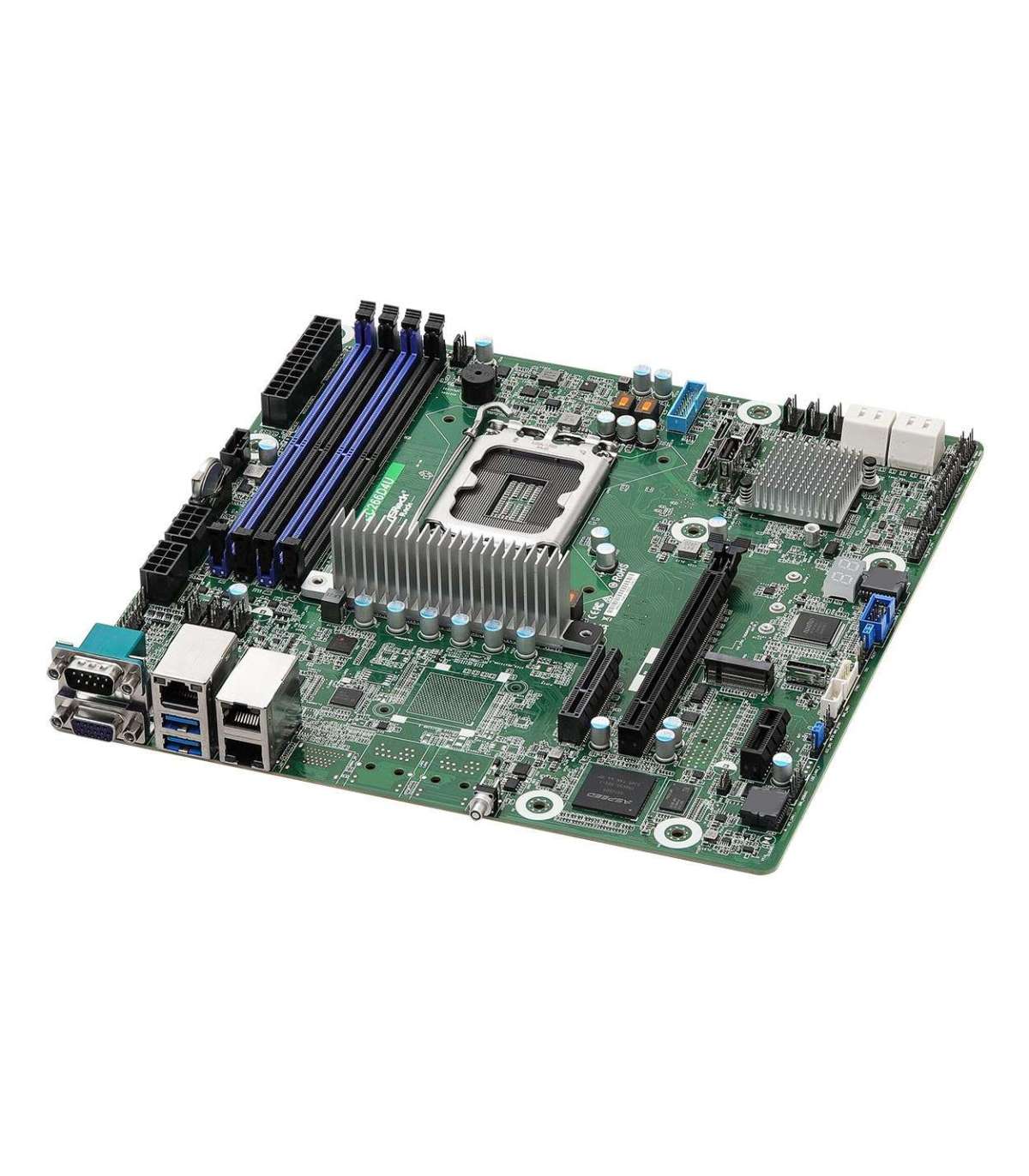

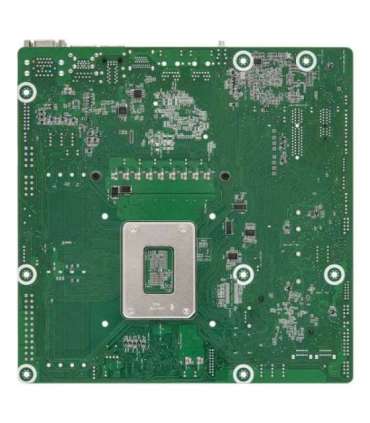

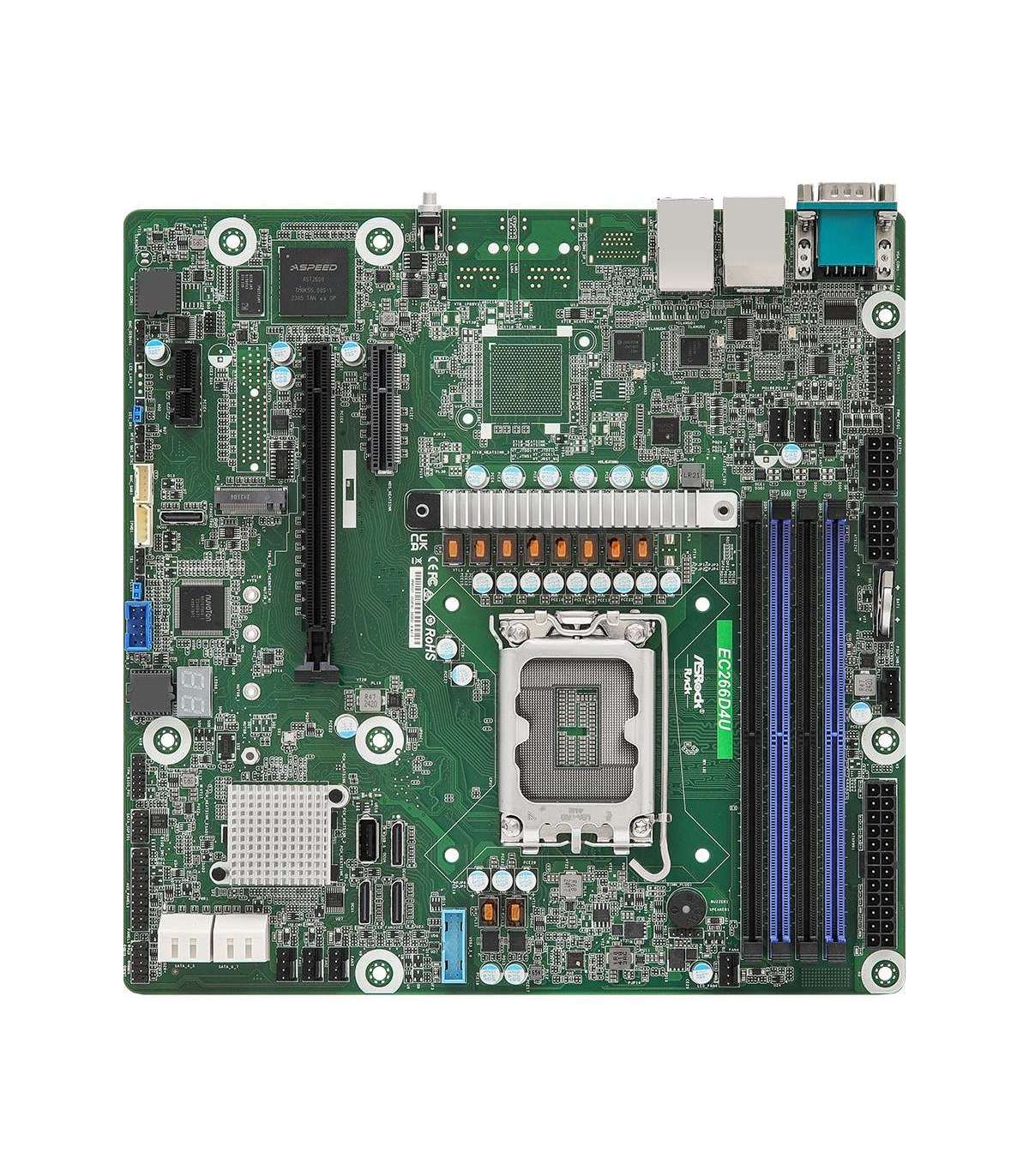

Asrock EC266D4U motherboard Intel C266 LGA 1700 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

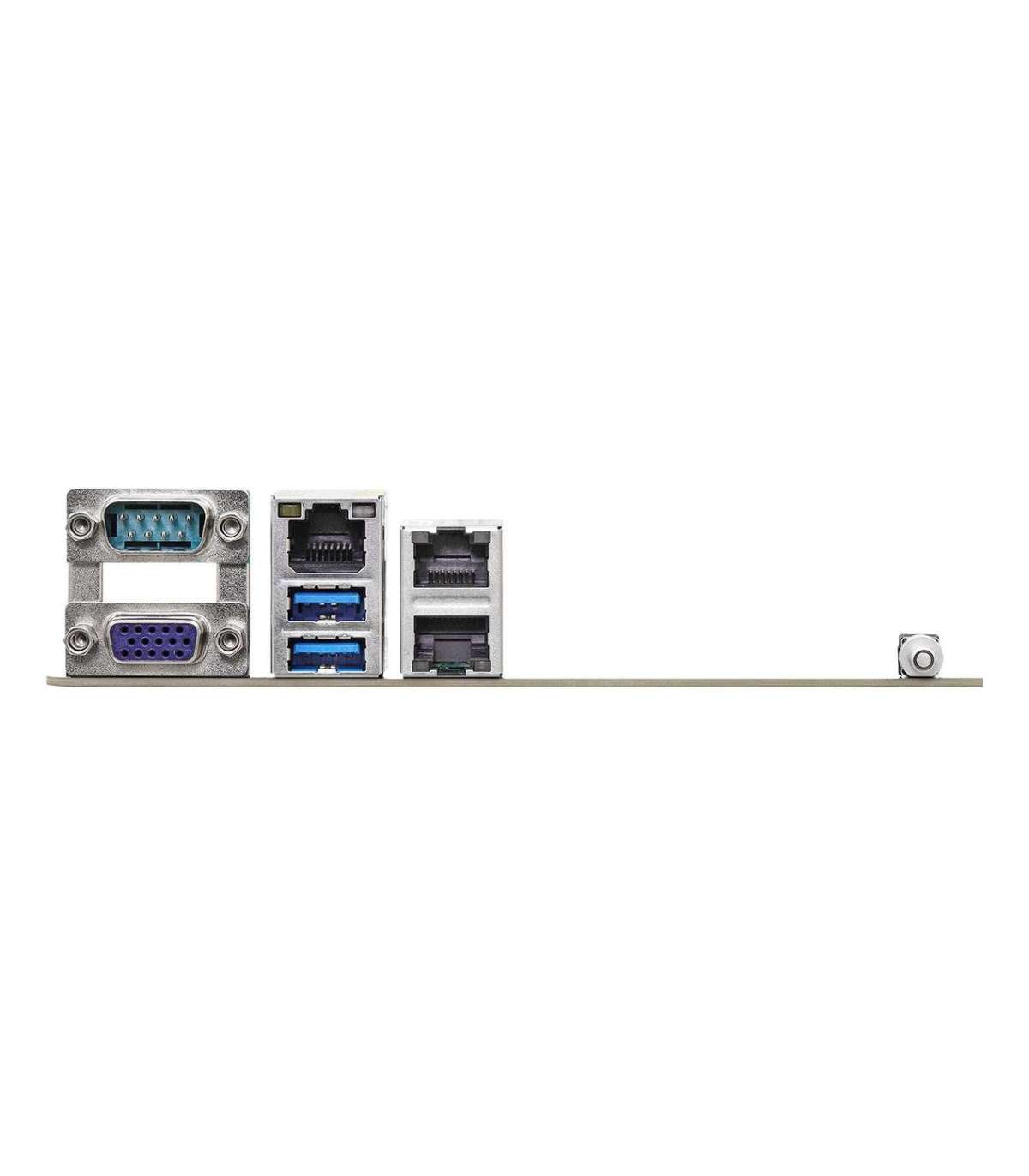

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Processor manufacturer

Intel

On-board graphics card model

Aspeed AST2600

Maximum internal memory

32 GB

Motherboard chipset

Intel C266

USB 2.0 connectors

3

Processor socket

LGA 1700

Compatible processor series

Intel Xeon E
Intel® Pentium® Gold
Intel® Xeon®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Number of memory slots

4

Supported memory types

DDR5-SDRAM

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

AMI

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

PC health monitoring

CPU
Fan

Number of SATA III connectors

8

TPM connector

Yes

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

4400 MHz

PCI Express x1 (Gen 4.x) slots

1

Peripheral (Molex) power connectors (4-pin)

1

Compatible operating systems

Microsoft® Windows:
- Windows® Server 2022
- Azure Stack HCI

Linux:
- RHEL 8.5
- SLES 15 SP3
- Ubuntu 21.04 LTS

Hypervisor:
- VMware ESXi 8.0 u1
- Linux KVM (Linux OSes)
- Hyper-V (Windows® Server)

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

BIOS memory size

256 Mbit

Memory voltage

1.1 V

Serial ports quantity

1

ACPI version

6.4

System Management BIOS (SMBIOS) version

2.8

PCI Express OCuLink connectors (NVMe support)

3
