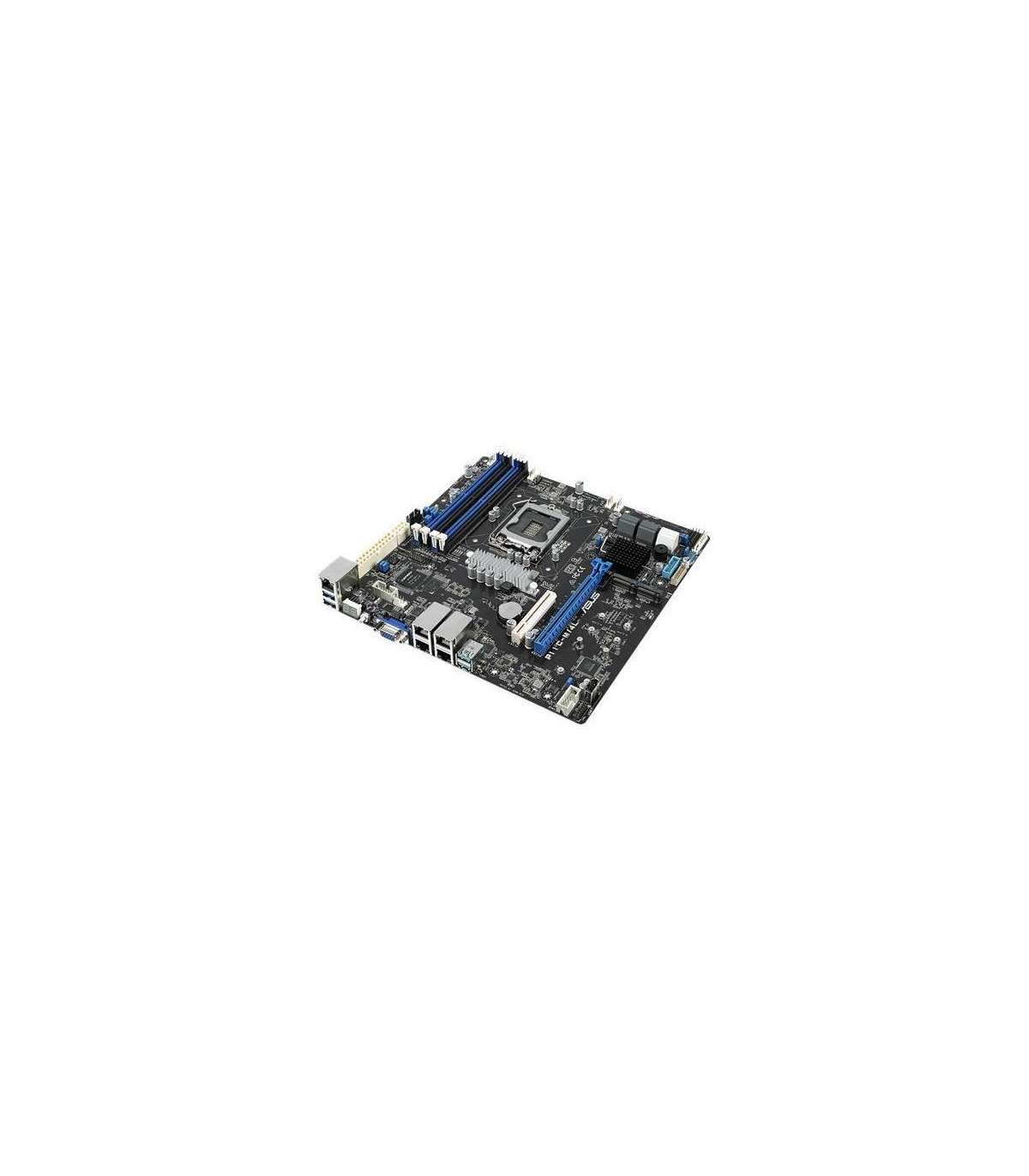

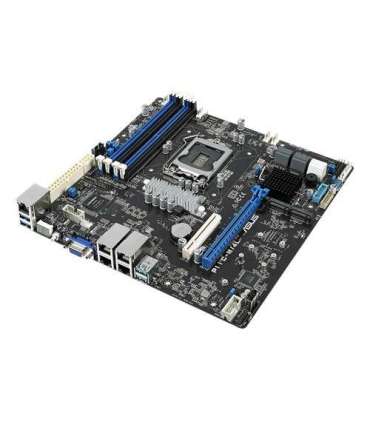

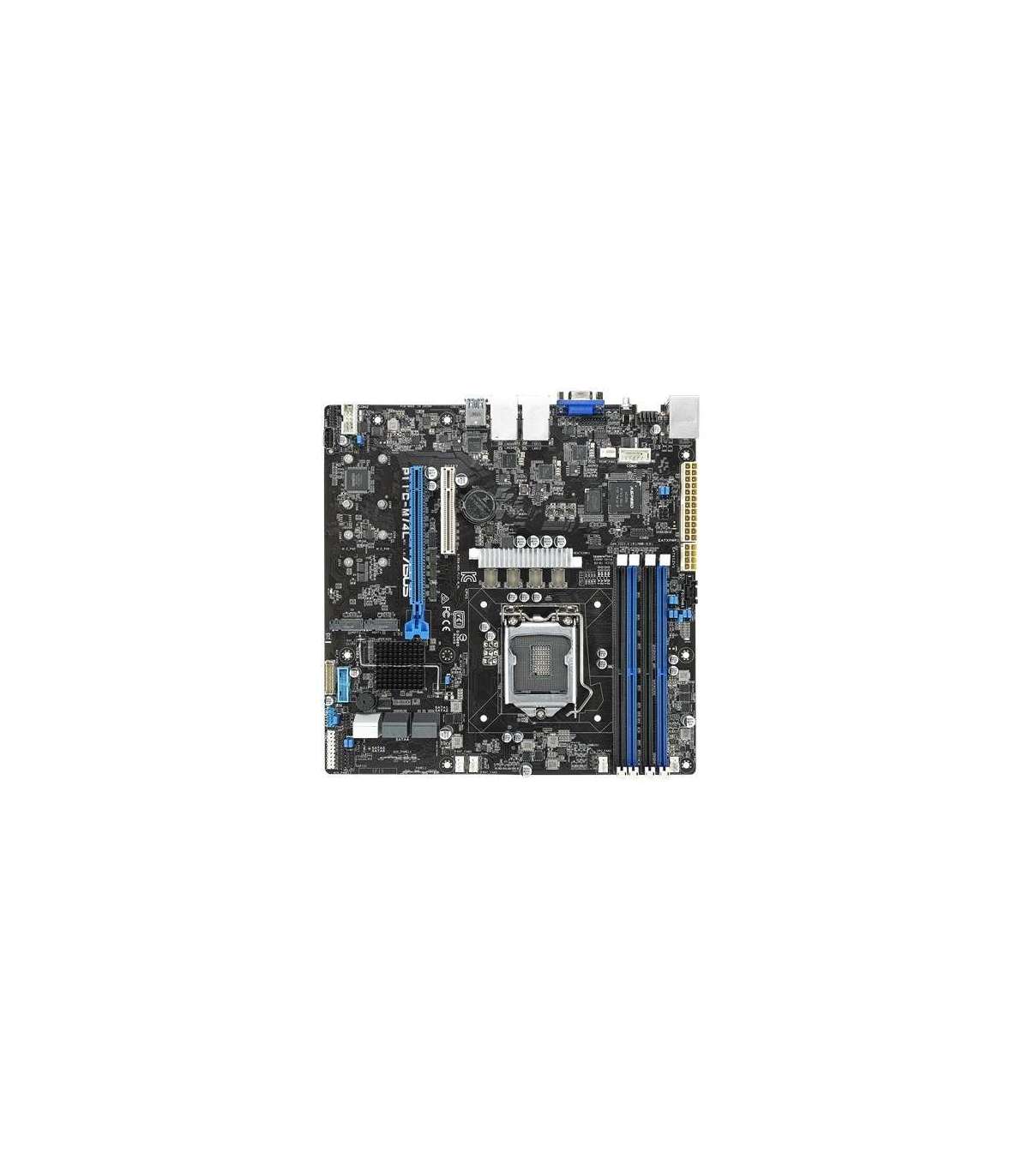

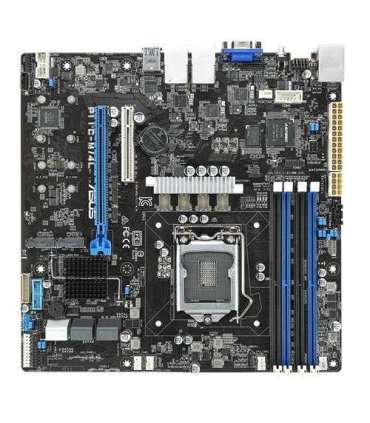

ASUS P11C-M/4L Intel C242 LGA 1151 (Socket H4) micro ATX

Lisainfo

Videokaardi mudel

AST2500

Depth

244 mm

Laius

244 mm

Storage temperature (T-T)

10 - 35 °C

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

4

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Component for

PC

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel C242

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Memory channels

Dual-channel

ECC

Yes

USB 2.0 connectors

1

Processor socket

LGA 1151 (Socket H4)

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Pentium®
Intel® Xeon®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Supported memory clock speeds

2400
2666

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I210-AT

Number of chassis fan connectors

5

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

6

Number of M.2 (M) slots

2

EPS power connector (8-pin)

Yes

PCI Express x16 slots

1

PCI Express x8 slots

1
