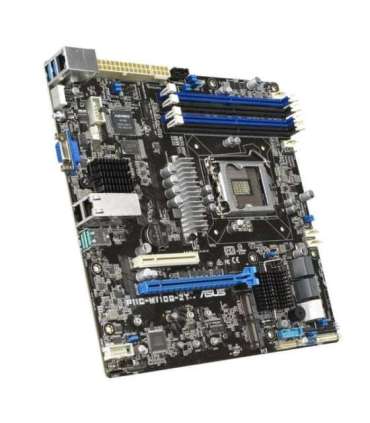

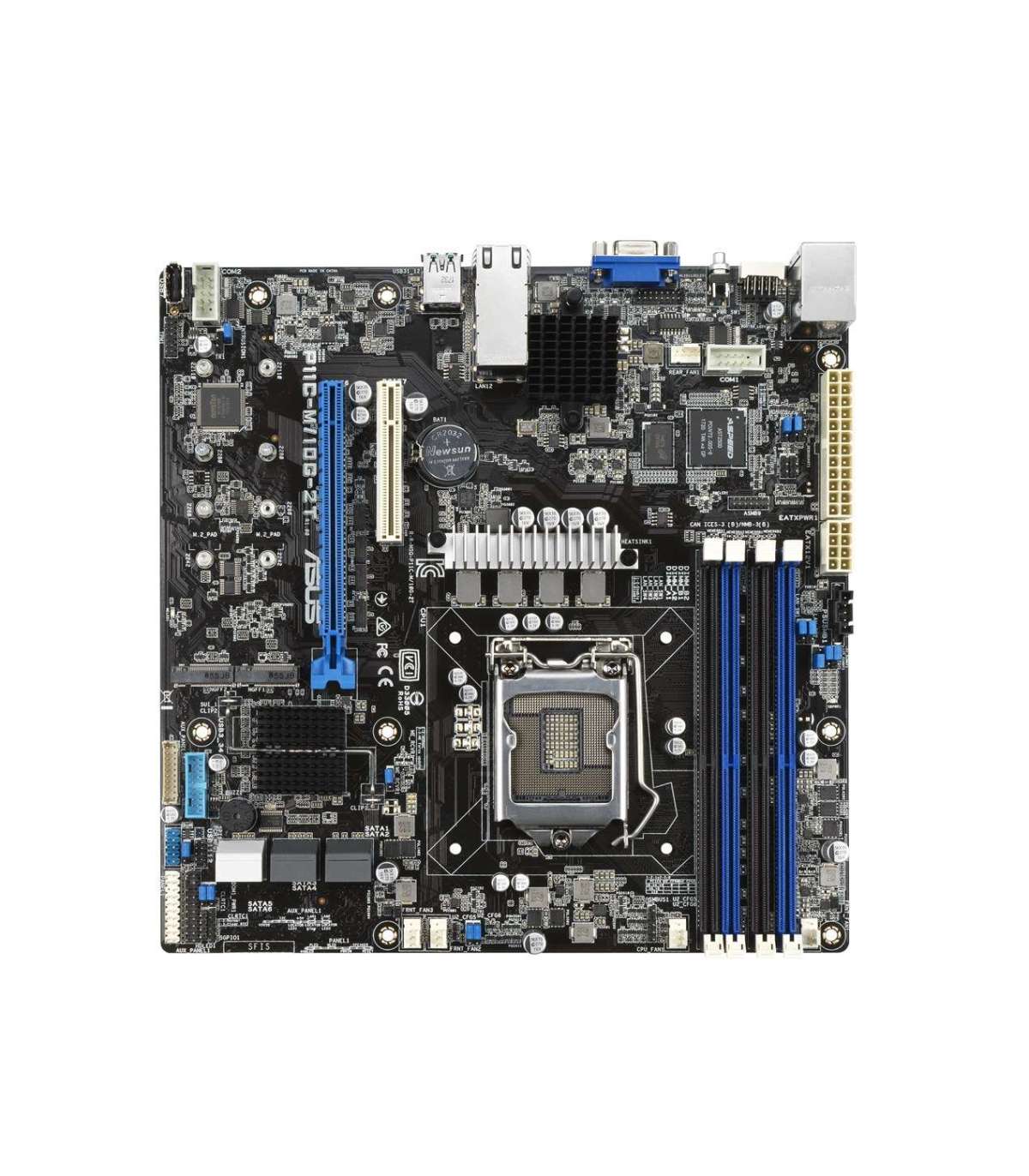

ASUS P11C-M/10G-2T Intel C242 LGA 1151 (Socket H4) Mini-ITX

Lisainfo

Depth

170 mm

Laius

170 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-10 - 35 °C

Operating relative humidity (H-H)

20 - 90%

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

No

Component for

PC

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Trusted Platform Module (TPM)

Yes

Motherboard chipset

Intel C242

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

Memory channels

Dual-channel

ECC

Yes

USB 2.0 connectors

1

Processor socket

LGA 1151 (Socket H4)

Compatible processor series

Intel Xeon E
Intel® Xeon®

Motherboard form factor

Mini-ITX

Supported memory clock speeds

2400
2666

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I210-AT

Number of chassis fan connectors

1

ATX Power connector (24-pin)

Yes

Number of HDDs supported

6

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

PCI Express x16 (Gen 3.x) slots

7

Parallel processing technology support

Not supported

Number of SATA III connectors

6

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

Number of M.2 (M) slots

2

Number of storage drives supported

7

RAID support

Yes

Supported memory module capacities

4GB
8GB
16GB
32GB

Peripheral (Molex) power connectors (4-pin)

3

Number of processors supported

1

Processor number of cores supported

8

Intel Xeon series

E-2100
E-2200

Number of DIMM slots

4
