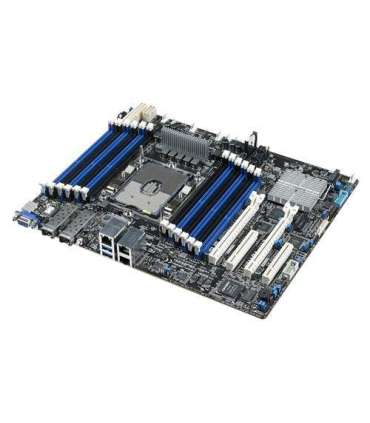

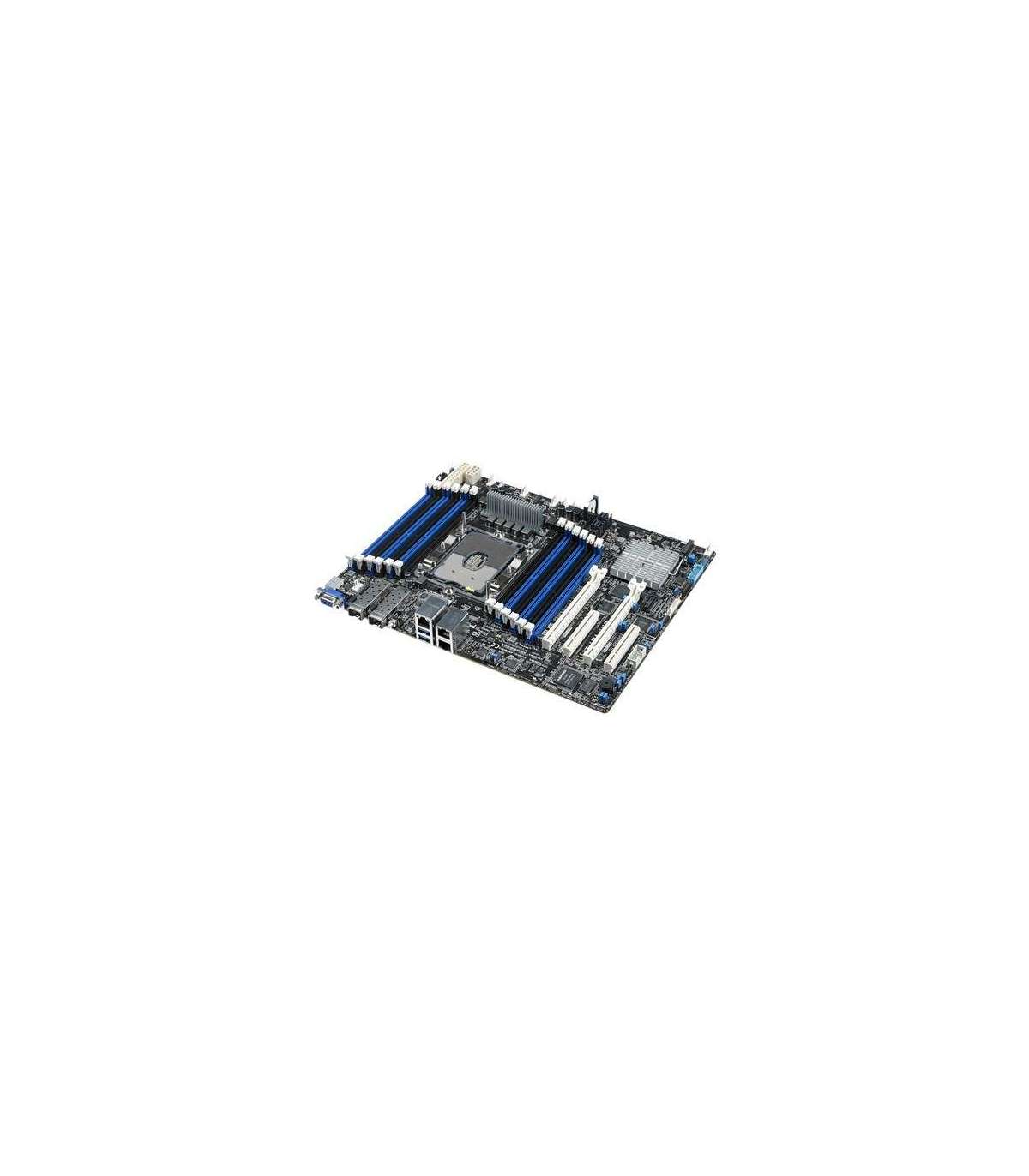

ASUS Z11PA-U12 Intel® C621 ATX

Lisainfo

Kaal

970 g

Laius

305 mm

Package weight

1.62 kg

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Harmonized System (HS) code

84733020

Wi-Fi

No

Component for

Server

Processor manufacturer

Intel

On-board graphics card model

Aspeed AST2500

Maximum internal memory

1.54 TB

Motherboard chipset

Intel® C621

Memory channels

Hexa-channel

System bus rate

10.4 GT/s

On-board graphics card memory

64 MB

Motherboard form factor

ATX

Supported memory clock speeds

2400
2666

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I210-AT

ATX Power connector (24-pin)

Yes

Supported storage drive interfaces

Serial Attached SCSI (SAS)

VGA (D-Sub) ports quantity

1

PCI Express x16 (Gen 3.x) slots

2

Parallel processing technology support

Not supported

Number of SATA III connectors

13

TPM connector

Yes

RAID levels

0
1
5
10

EPS power connector (8-pin)

Yes

RAID support

Yes

Power fan connector

Yes

Serial port headers

1

Supported DIMM module capacities

4GB
8GB
16GB
32GB
64GB

Number of processors supported

1

Integrated SAS ports

2

Maximum RDIMM memory

384 GB

Supported RDIMM module capacity

4GB
8GB
16GB
32GB

Supported LRDIMM clock speeds

2400
2666 MHz

PCI Express x8 (Gen 3.x) slots

2

Supported RDIMM clock speeds

2400
2666 MHz

Number of DIMM slots

12

Supported LRDIMM module capacity

32GB
64GB

Discrete graphics support

Yes

Maximum UDIMM memory

768 GB
