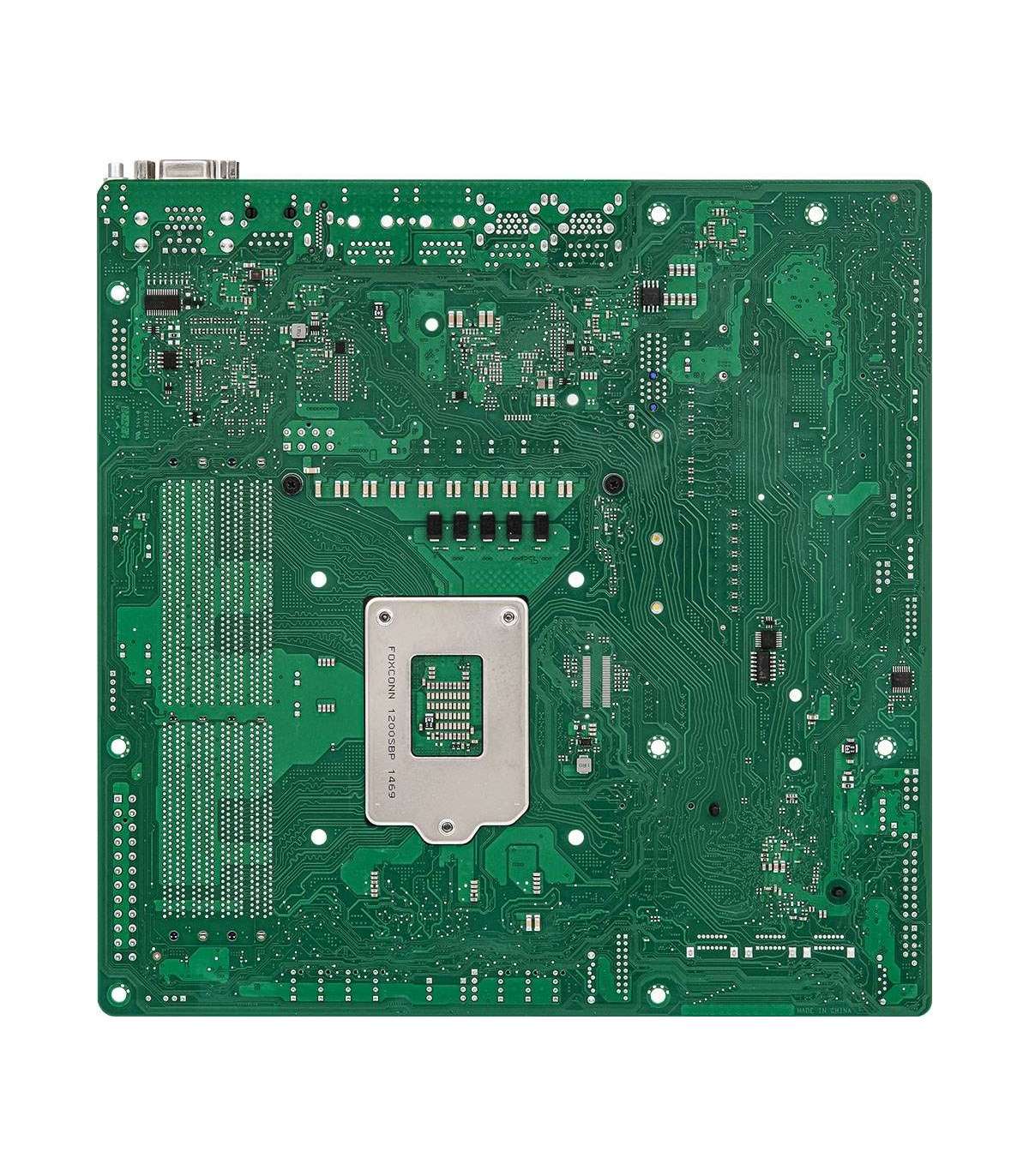

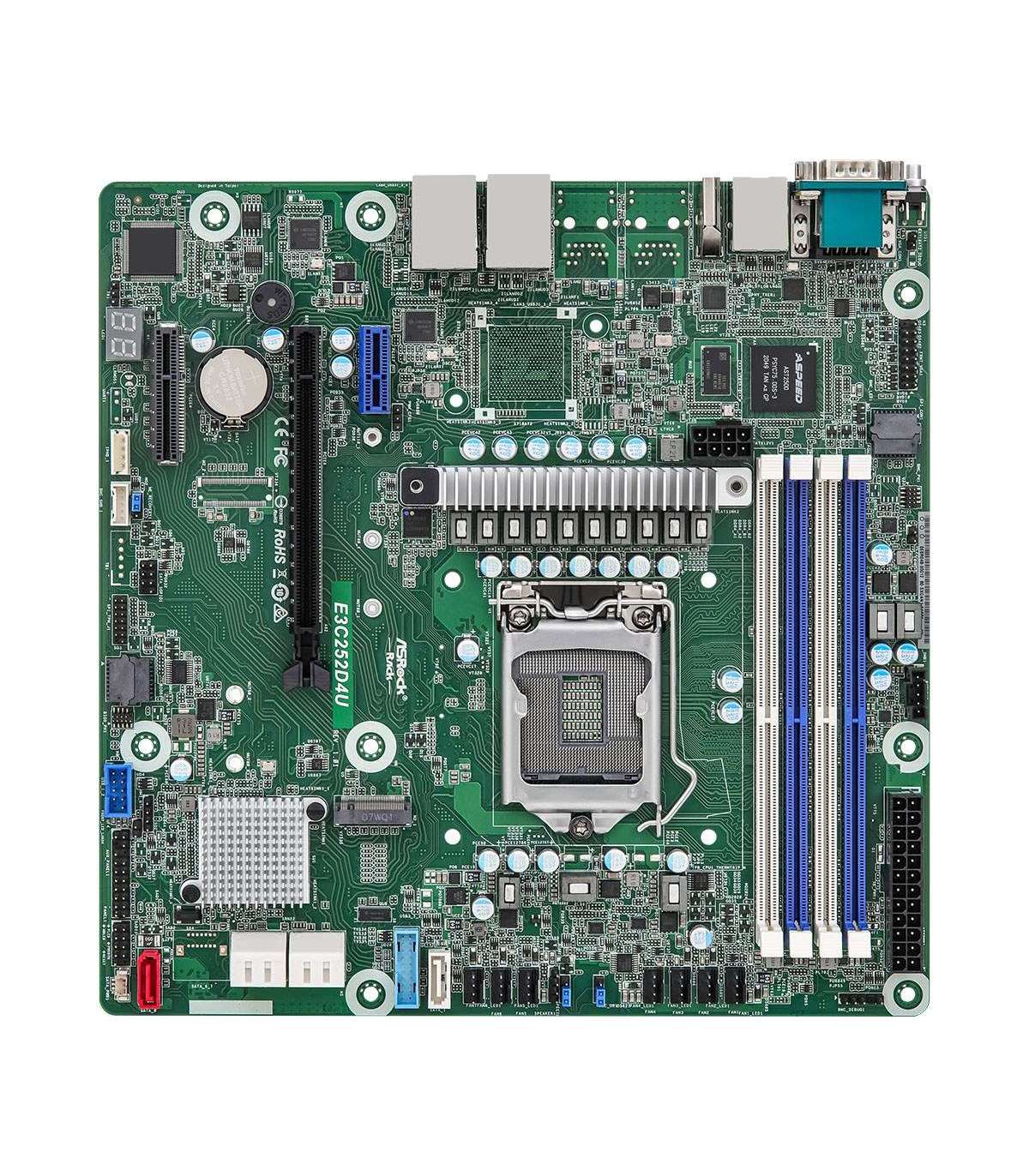

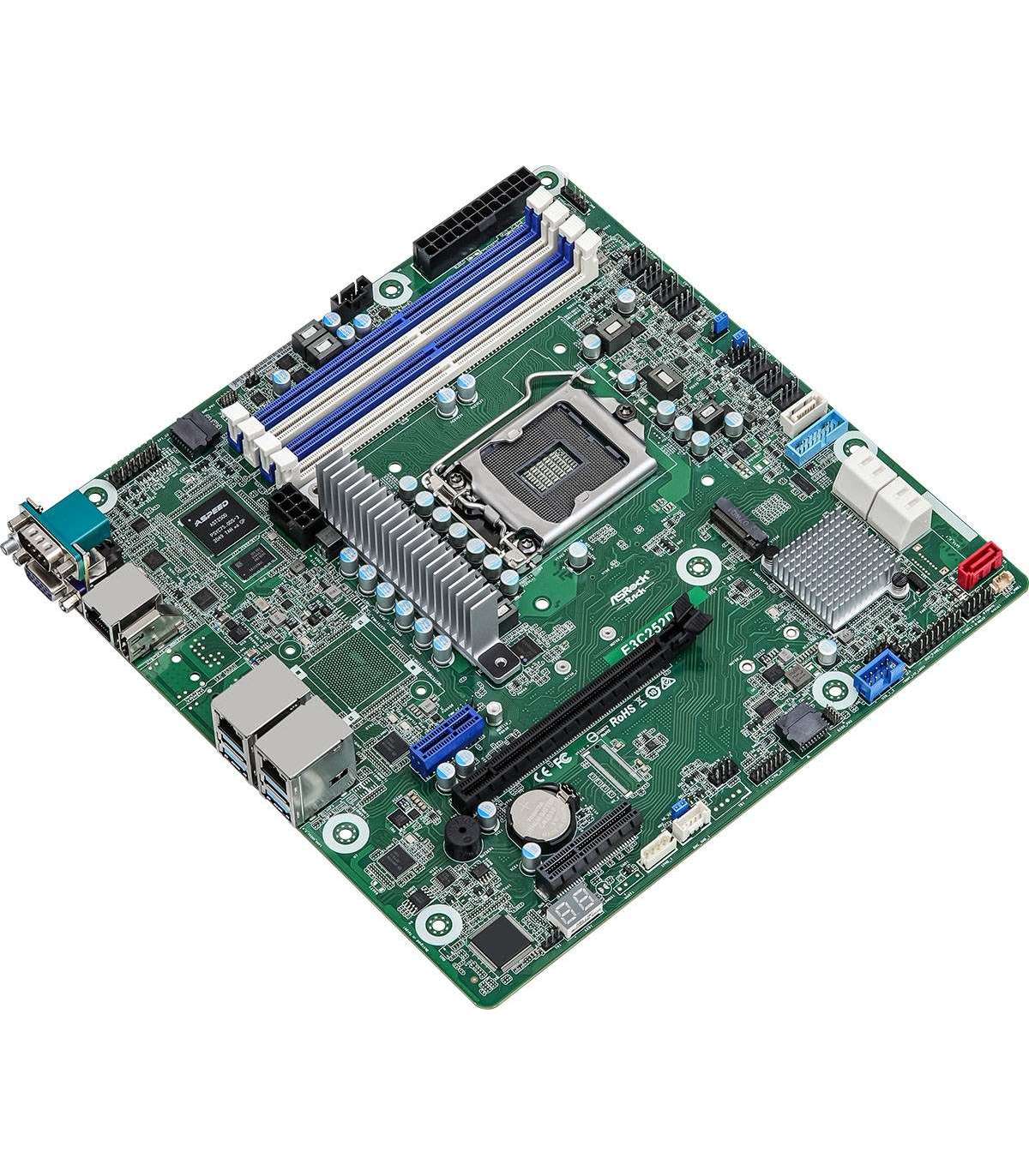

Asrock E3C252D4U motherboard Intel C252 LGA 1200 (Socket H5) micro ATX

Lisainfo

Videokaardi mudel

AST2500

Ethernet LAN

Yes

Wi-Fi

No

Component for

PC

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card model

Aspeed AST2500

Maximum internal memory

32 GB

Motherboard chipset

Intel C252

ECC

Yes

Graphics card family

ASPEED

Processor socket

LGA 1200 (Socket H5)

On-board graphics card memory

256 MB

Compatible processor series

Intel® Xeon®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Intel I210

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Supported memory clock speed (max)

2666 MHz

RAID support

Yes

PCI Express x4 (Gen 4.x) slots

1

Memory voltage

1.2 V

ACPI version

6.2

System Management BIOS (SMBIOS) version

3.3

Intel Xeon series

E-2300
