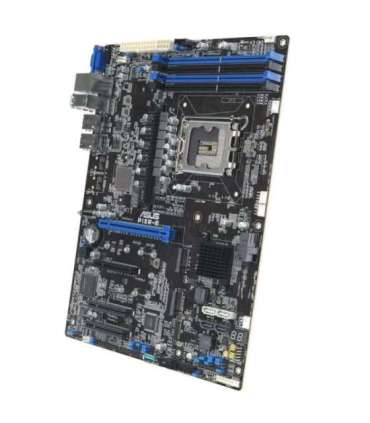

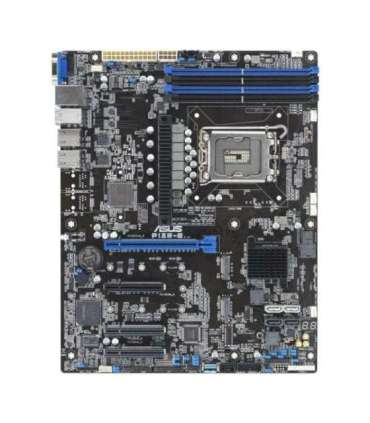

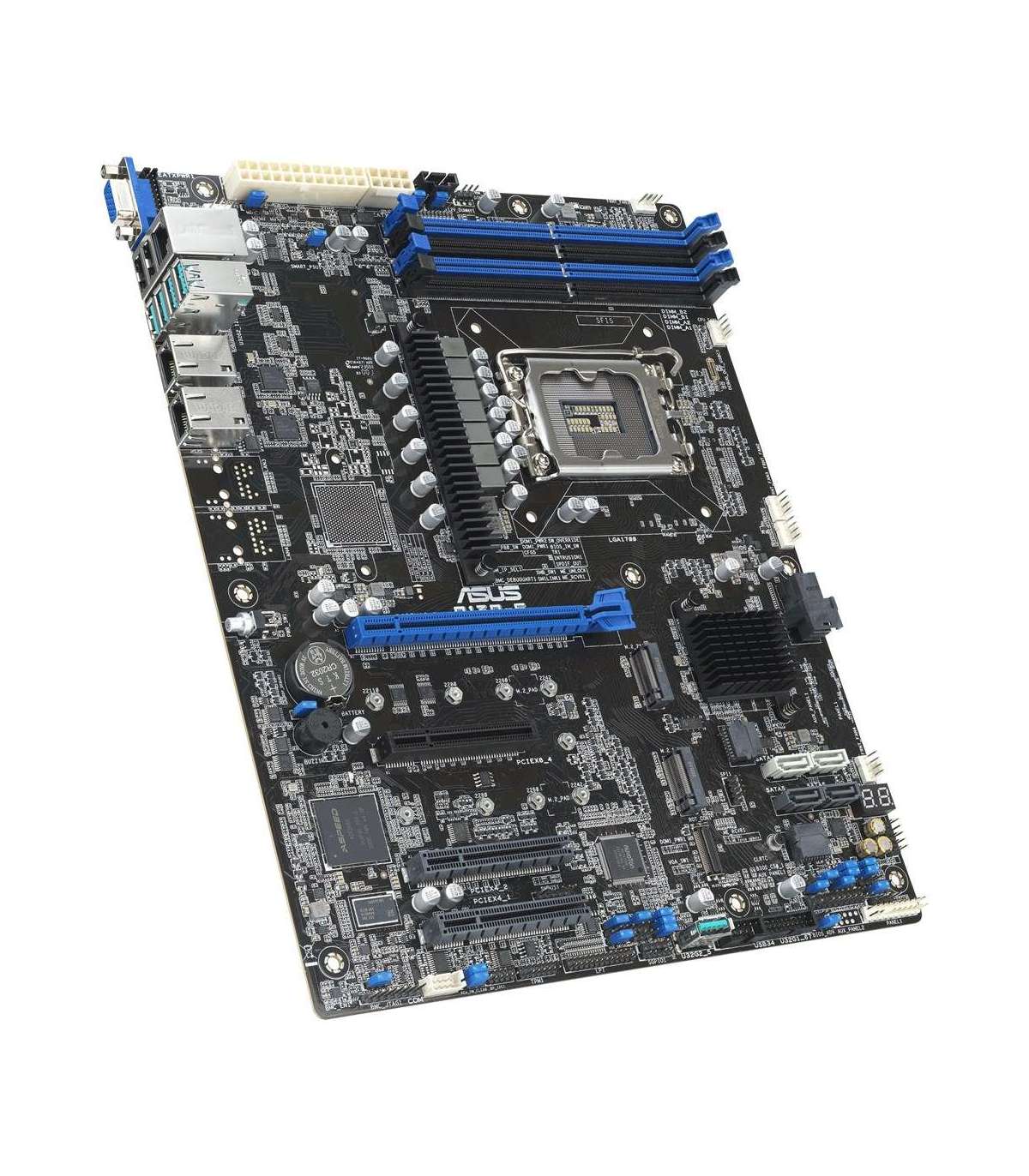

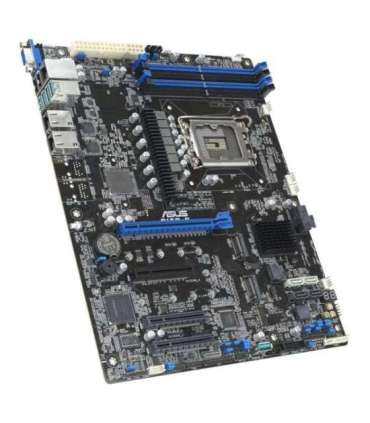

Asus P13R-E 1x motherboard

Lisainfo

Depth

244 mm

Laius

305 mm

Product colour

Must

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

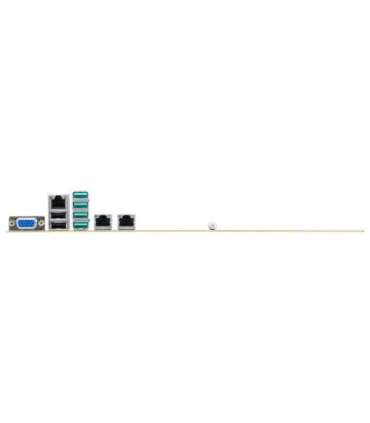

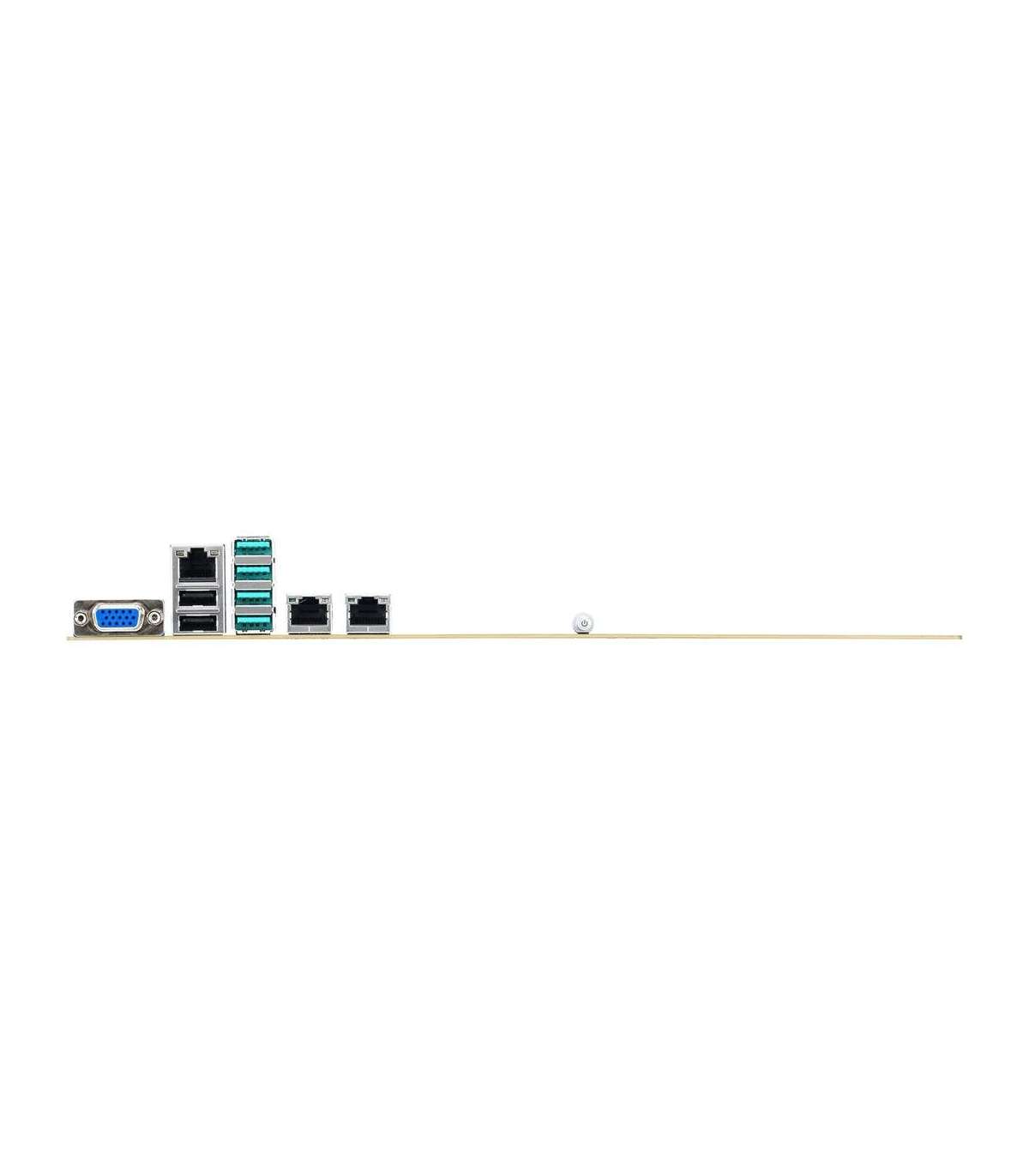

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

3

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel C262

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Memory channels

Dual-channel

USB 2.0 Type-A ports quantity

2

Processor socket

LGA 1700

Compatible processor series

Intel Xeon 6300 series
Intel® Pentium®
Intel® Xeon®

Motherboard form factor

ATX

Motherboard chipset family

Intel

Supported memory clock speeds

3600
4000 MHz
4400

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Number of COM connectors

1

CPU fan connector

Yes

Number of HDDs supported

8

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

8

TPM connector

Yes

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

4400 MHz

Cooling type

Passive

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

PCI Express x16 (Gen 5.x) slots

1

PCI Express x8 (Gen 4.x) slots

2
