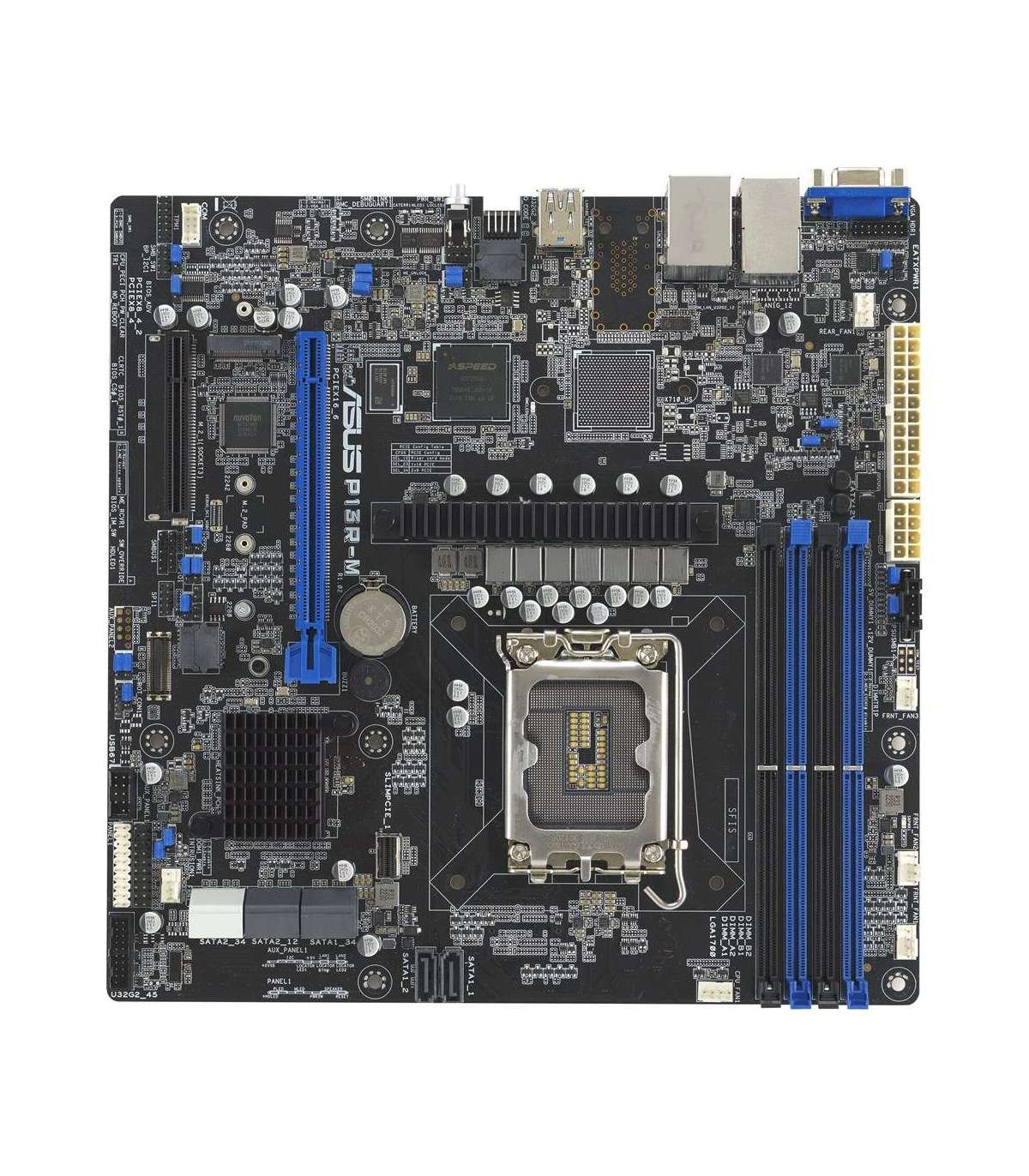

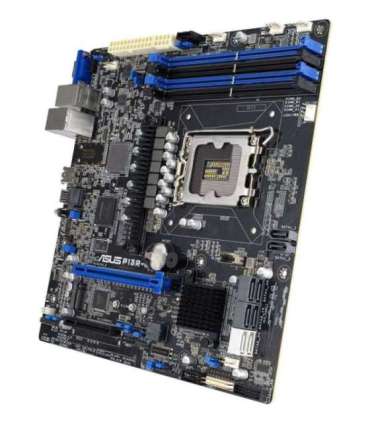

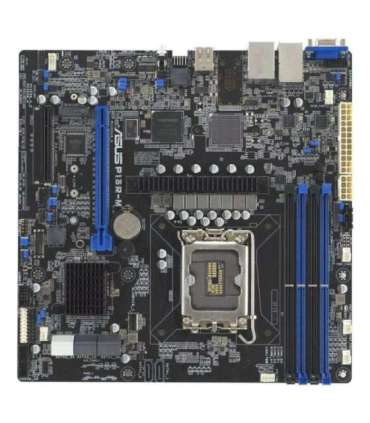

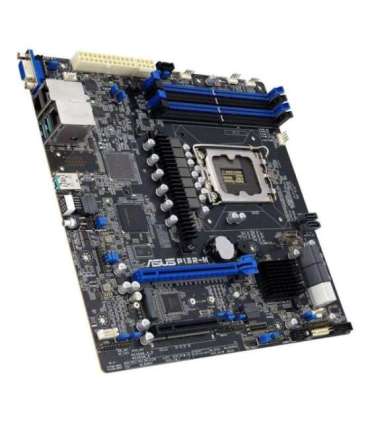

ASUS P13R-M Intel C262 LGA 1700 micro ATX

Lisainfo

Videokaardi mudel

AST2600

Depth

244 mm

Kaal

760 g

Laius

244 mm

Package weight

1.3 kg

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Warnings

Adjust adequate ventilation to avoid overheating and potential damage.
Avoid contact with liquids and moisture to prevent damage to equipment.
The product contains electrical components - take care during installation to avoid injury.

Component for

Server

Ethernet interface type

Fast Ethernet
Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel C262

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Memory channels

Dual-channel

USB 2.0 connectors

1

Graphics card family

ASPEED

Processor socket

LGA 1700

Compatible processor series

Intel Xeon E
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Supported memory clock speeds

3600
4000 MHz
4400

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of HDDs supported

8

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Number of SATA III connectors

8

TPM connector

Yes

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

Supported memory module capacities

8GB
16GB
32GB

Serial port headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

3

PCI Express x16 (Gen 5.x) slots

1
