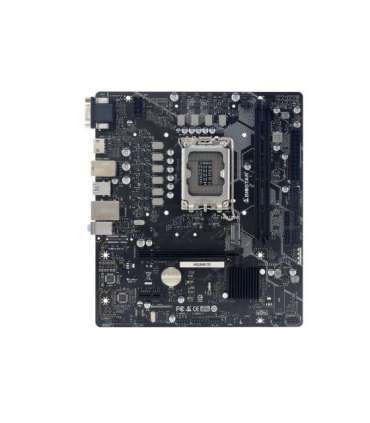

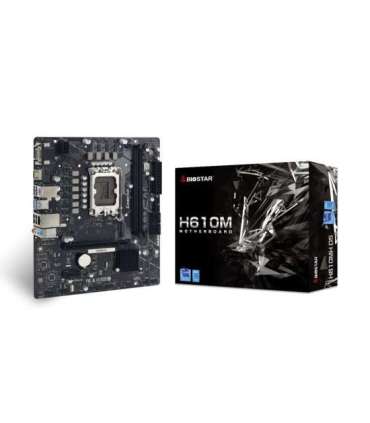

BIOSTAR H610MH D5 motherboard

Lisainfo

Depth

236 mm

Laius

208 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Harmonized System (HS) code

84733020

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

96 GB

Motherboard chipset

Intel H610

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Intel® I219-V

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Maximum number of SMP processors

1

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

TPM connector

Yes

PCI Express x16 (Gen 4.x) slots

1

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

DirectX version

12.0

Supported memory module capacities

8GB
16GB
24GB
32GB
48GB

Power fan connector

Yes
