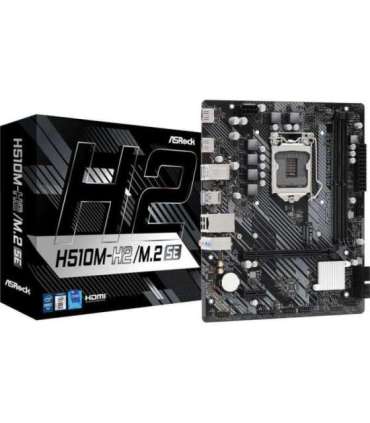

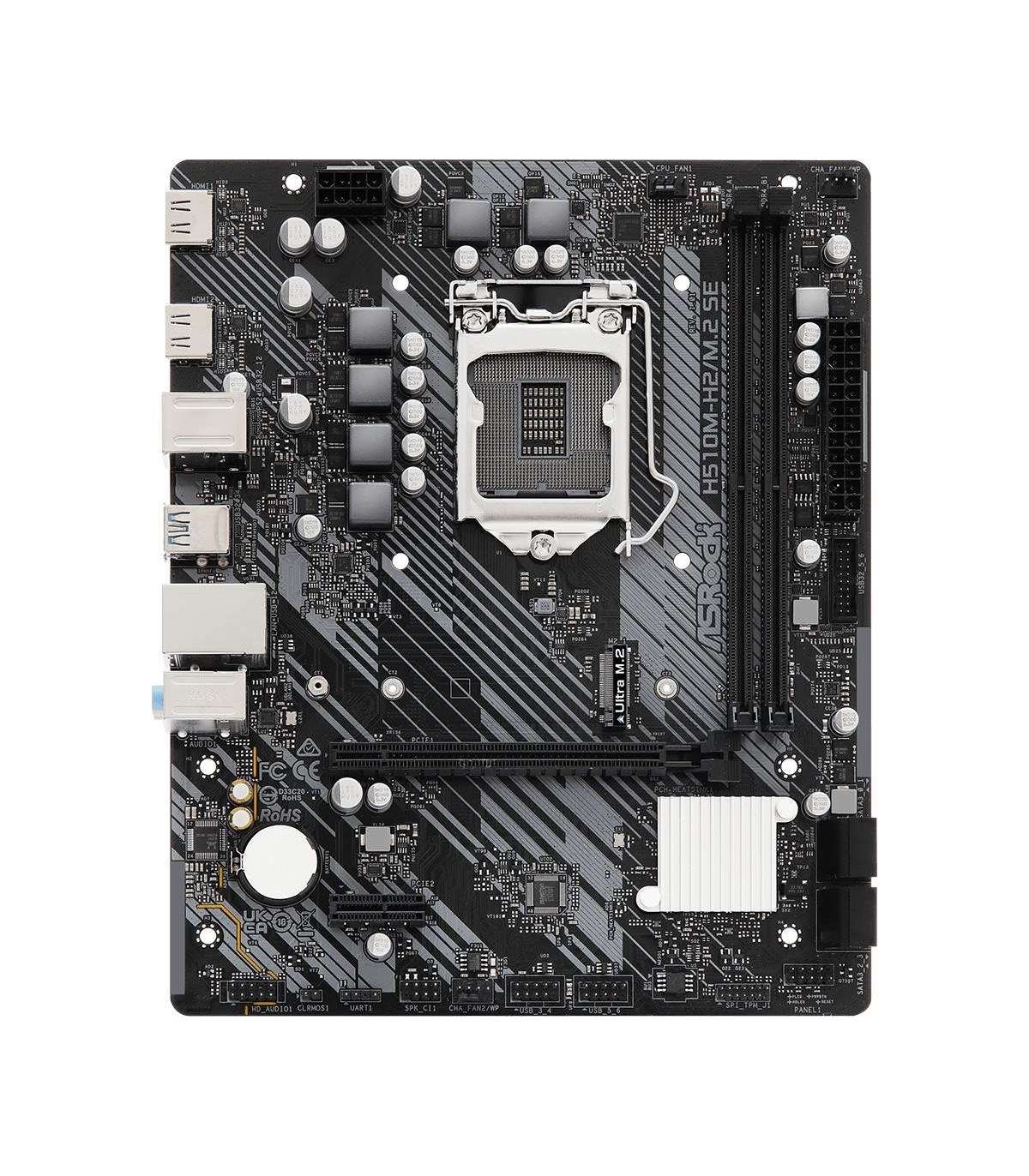

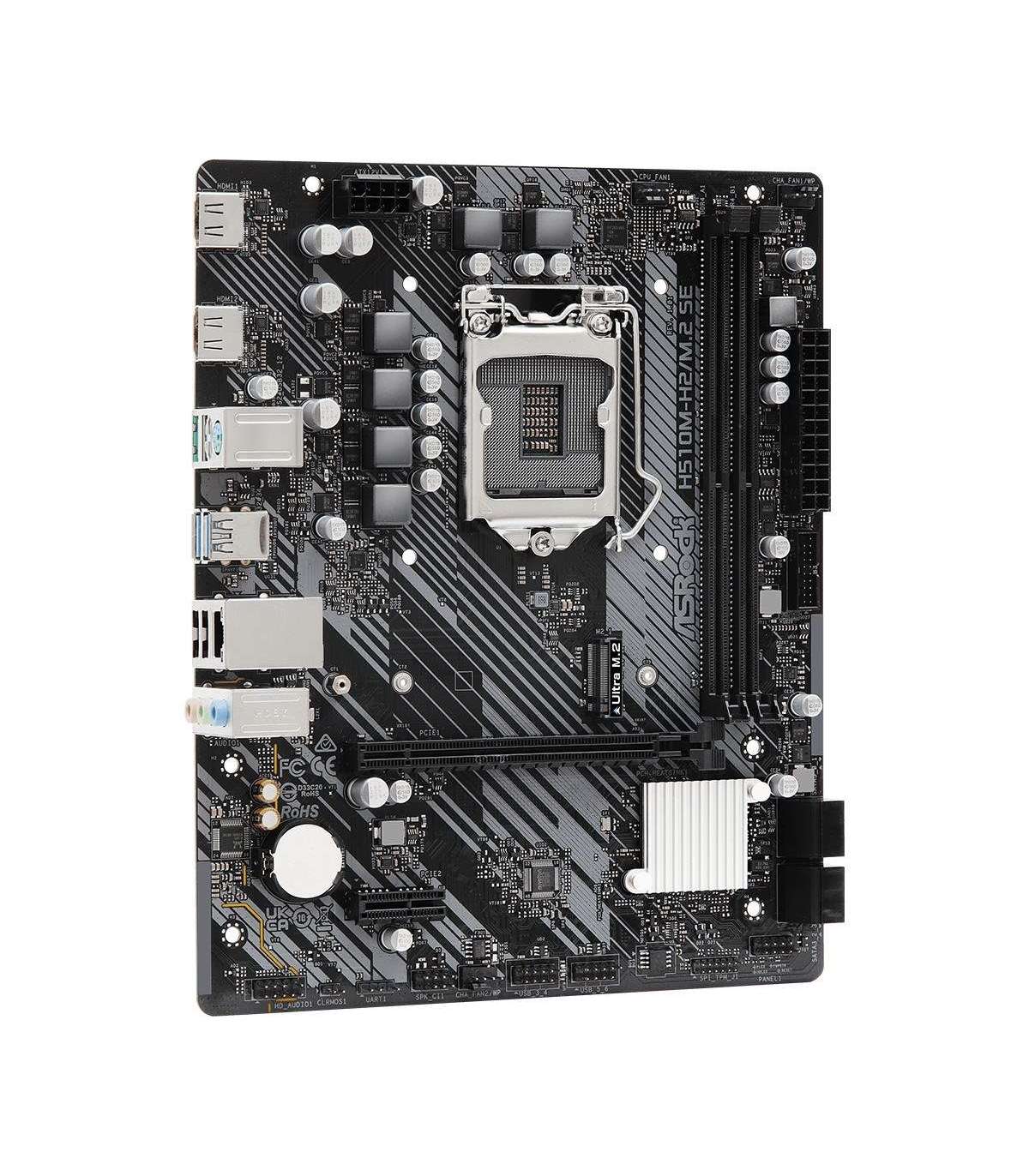

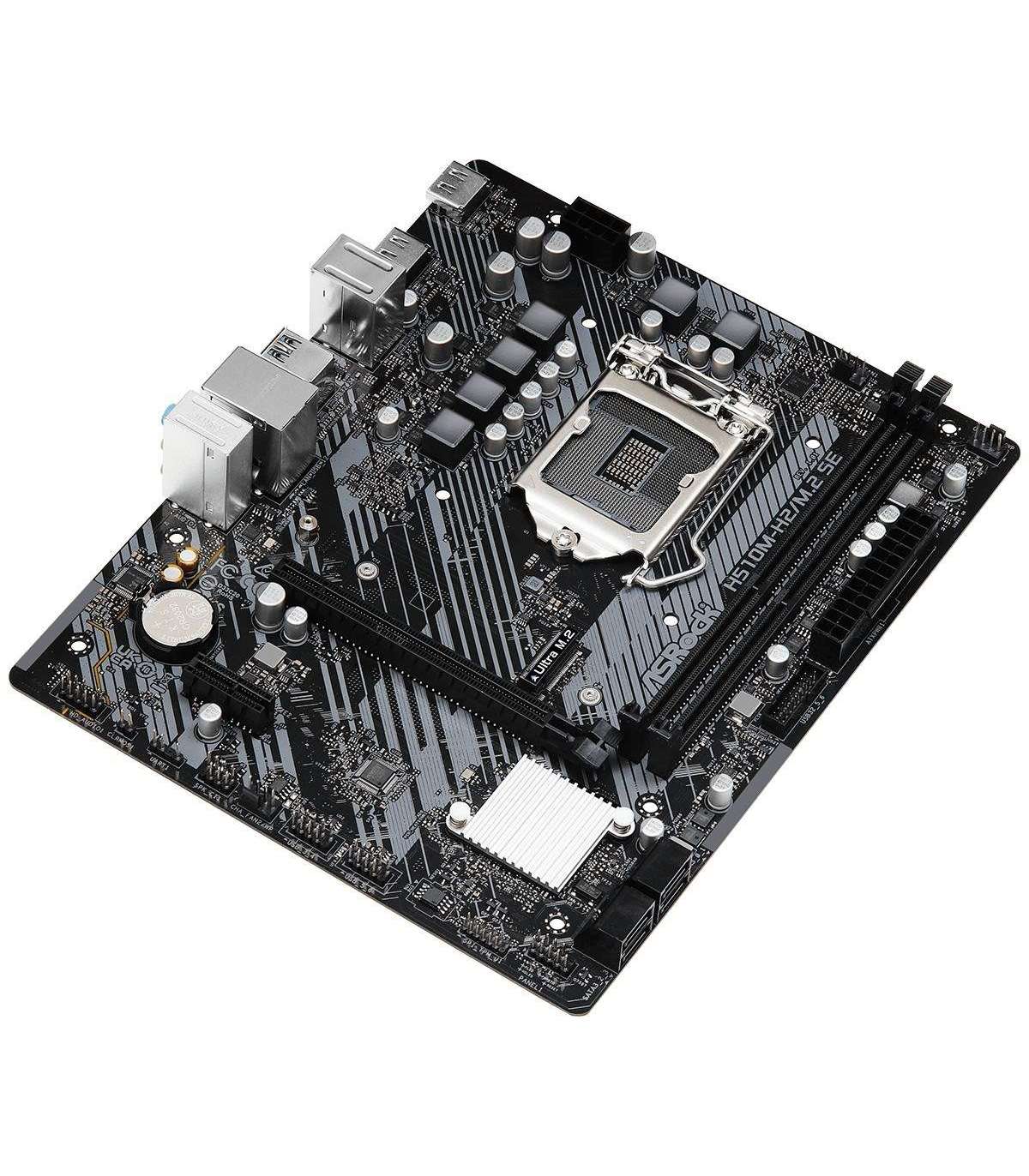

ASRock H510M-H2/M.2 SE motherboard

Lisainfo

Depth

187 mm

Laius

231 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H470

HDMI ports quantity

2

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1200

Compatible processor series

Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Supported memory clock speeds

2133
2400
2666 MHz
2800
2933
3200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek 8111H

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

HDCP

Yes

RAID support

Yes

Number of audio jack connectors

3
