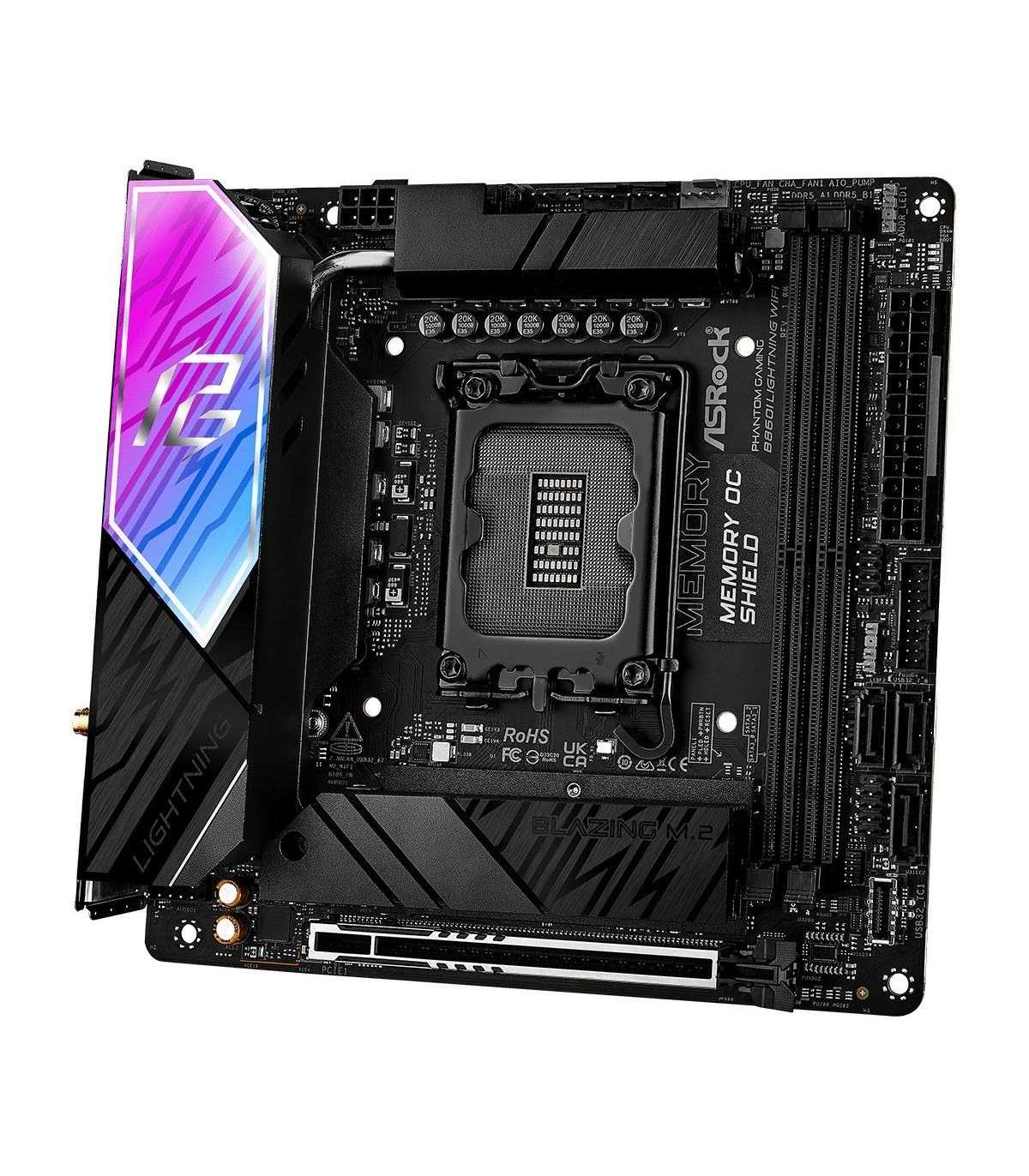

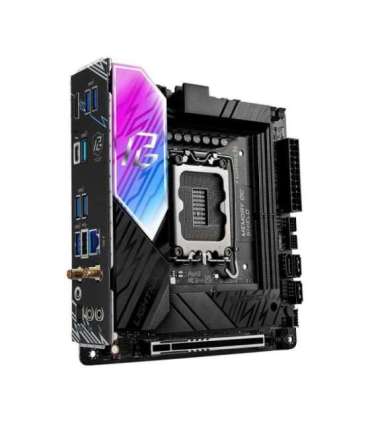

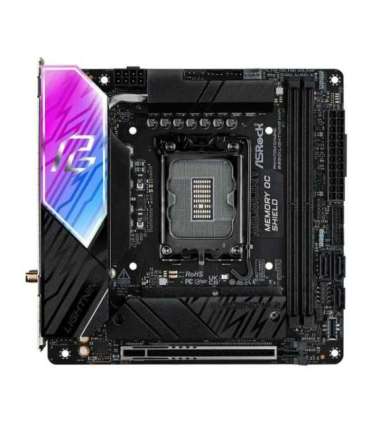

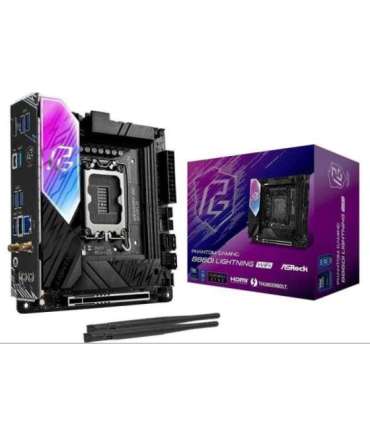

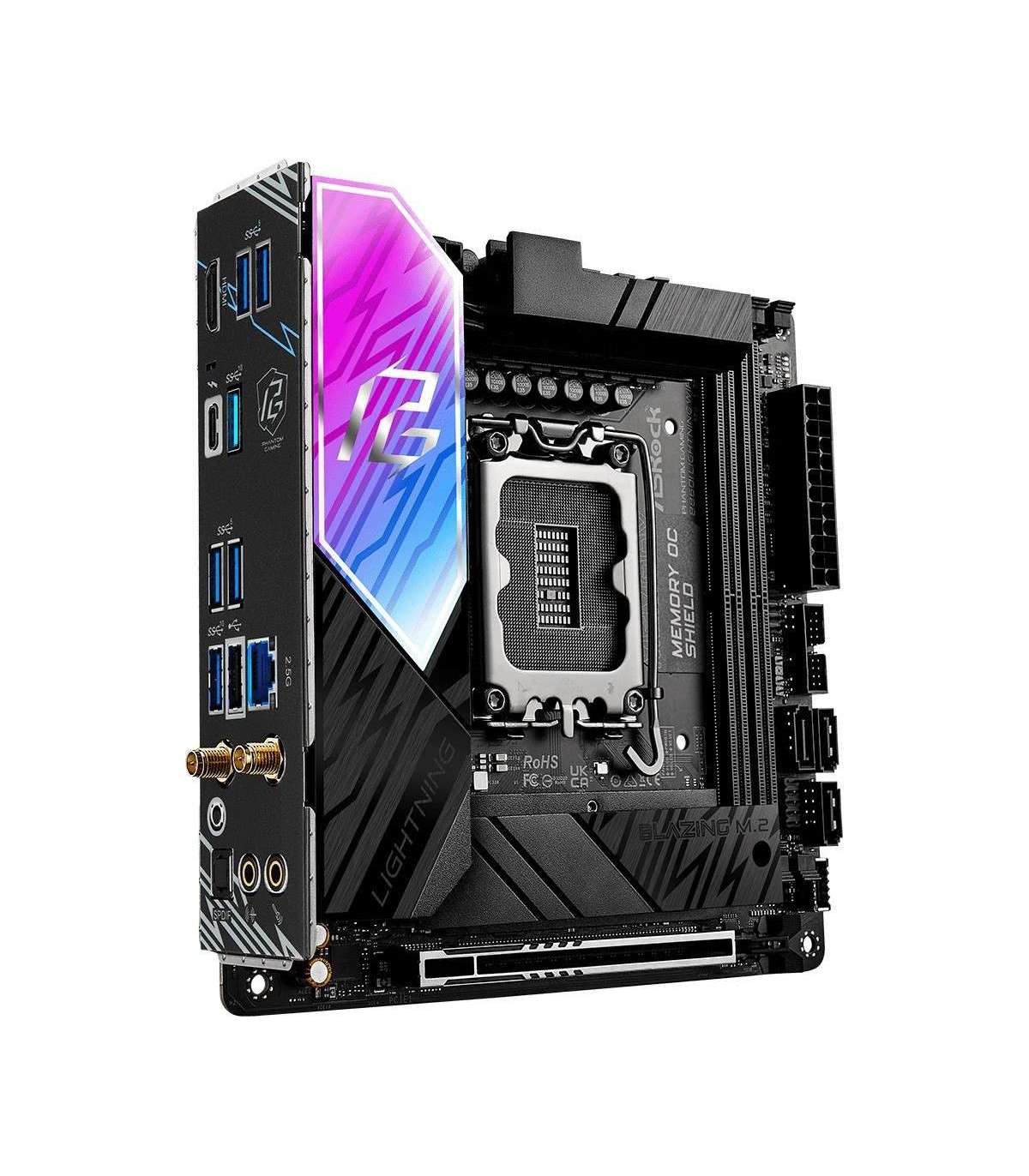

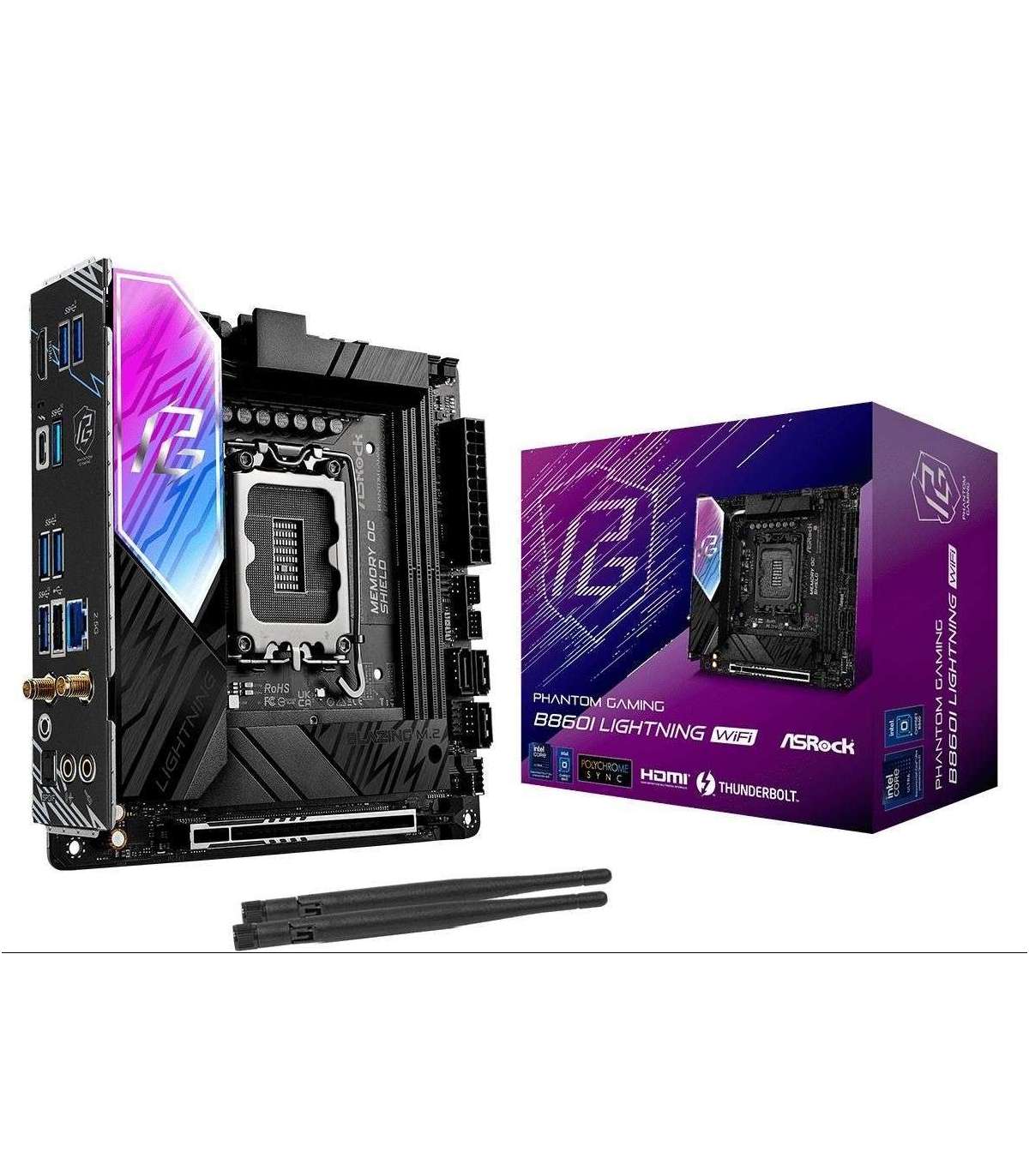

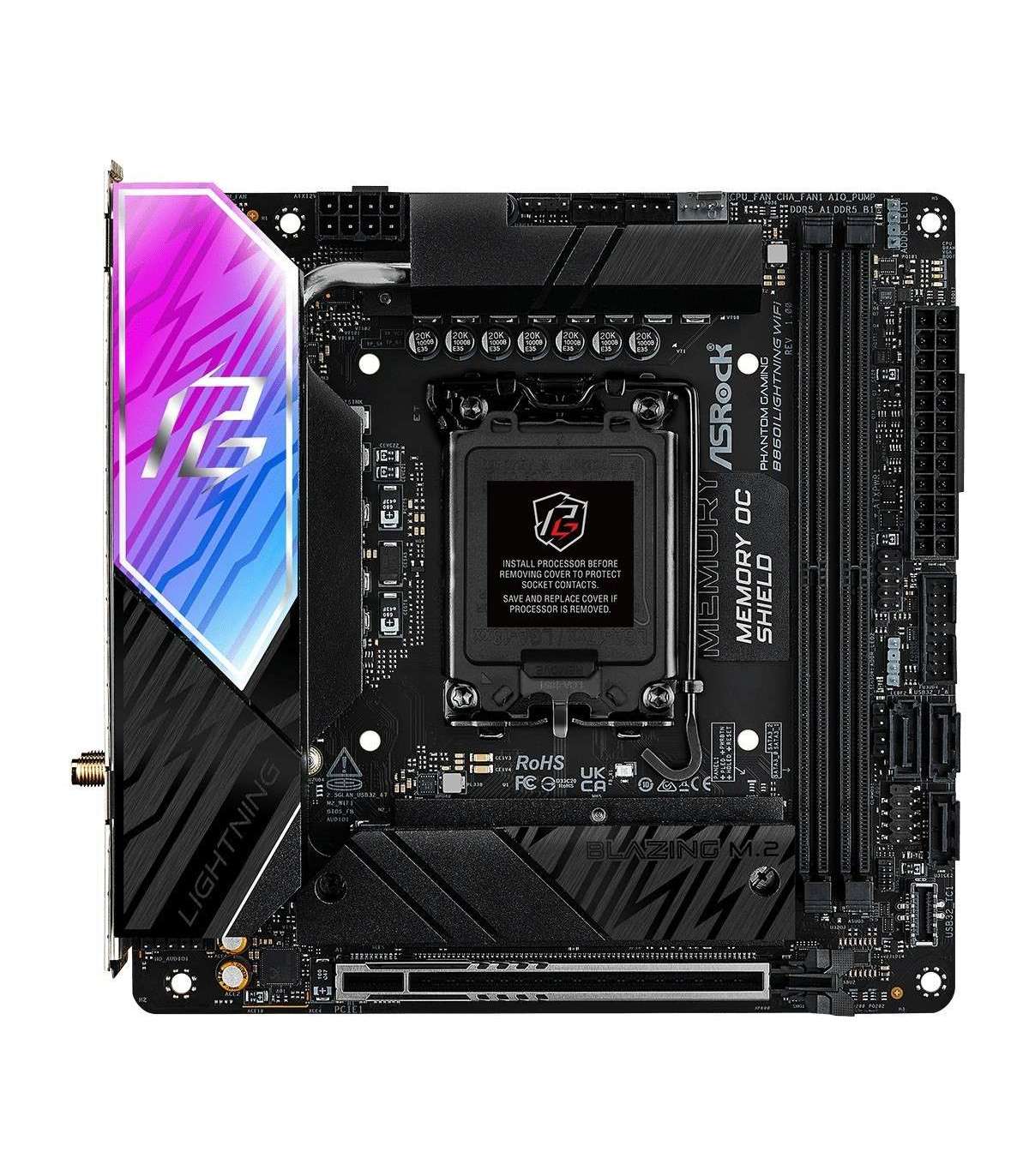

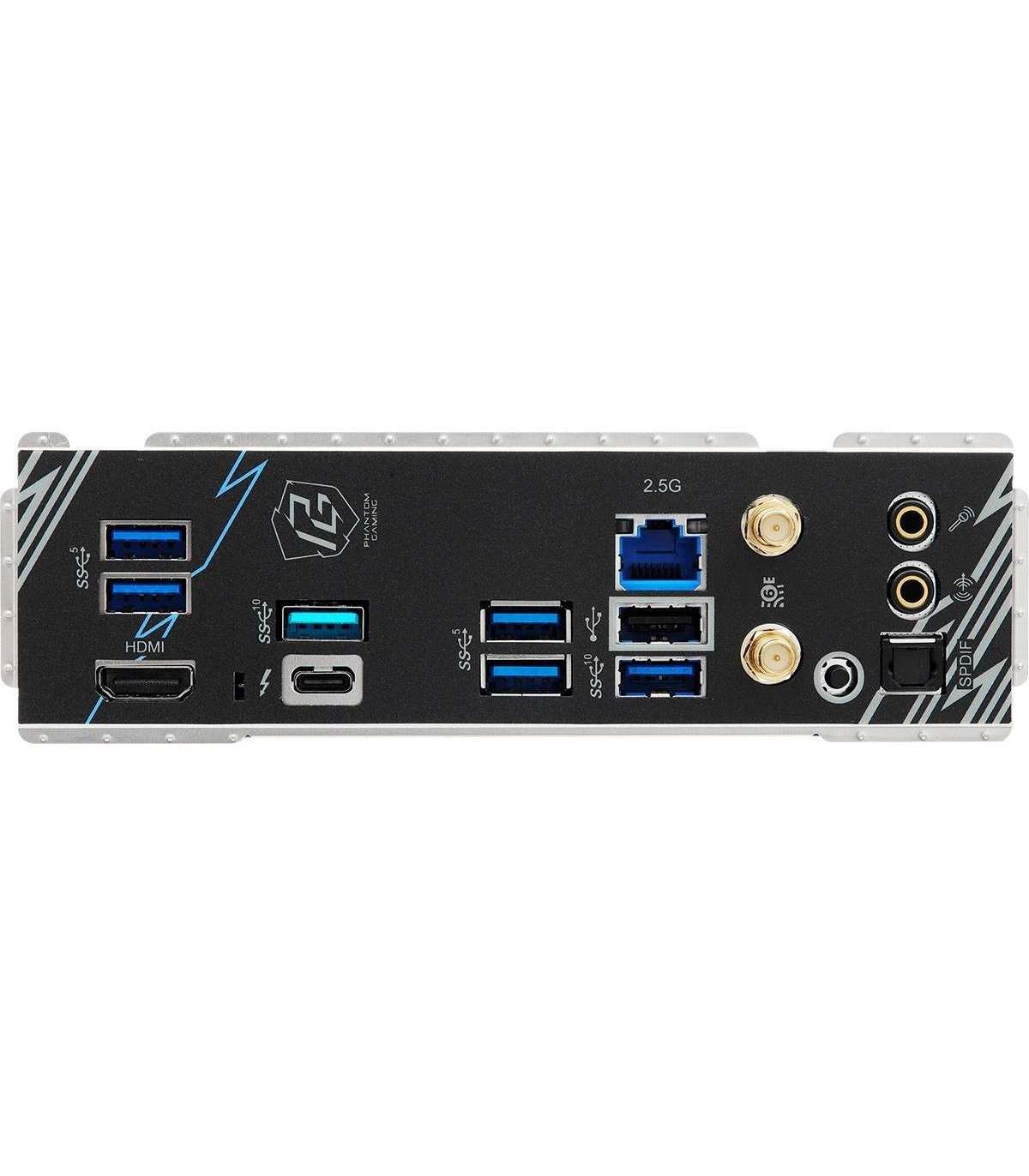

ASRock B860I Lightning WiFi Motherboard

Lisainfo

Antennas quantity

2

USB 2.0 ports quantity

1

Bluetooth

Jah

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

USB 2.0 connectors

2

Motherboard chipset family

Intel

Unbuffered memory

Yes

Memory slots type

DIMM

Number of chassis fan connectors

1

Front panel audio connector

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

ECC сompatibility

Non-ECC

12V power connector

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

4

HDCP

Jah

Number of CPU fan connectors

1

Number of water pump connectors

1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

Number of USB 3.2 Gen 2 Type-C ports

1

MU-MIMO

Yes

MIC input

1

Number of USB 3.2 Gen 1 ports

4

Thunderbolt ports quantity

1

Flashback BIOS button

Yes

Bluetoothi versioon

5,3

Traadita võrk

Jah

Wi-Fi standardid

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Etherneti kohalik võrk

Jah

Laius

170 mm

USB-pistiku tüüp

USB Type-A
USB Type-C

Sügavus

170 mm

Ethernet-liidese tüüp

2.5 Gigabit Ethernet

Maksimaalne eraldusvõime

7680 x 4320 pixels

Etherneti LAN (RJ-45) pordid

1

Sertifitseerimine

FCC, CE, ErP/EuP

Toetatud Windowsi operatsioonisüsteemid

Windows 11 x64

RAID-tugi

Jah

Protsessori pesa

LGA 1851 (Socket V1)

Ühilduvad protsessorisarjad

Intel Core Ultra (Series 2)

Emaplaadi vormitegur

Mini-ITX

Toetatud mälutüübid

DDR5-SDRAM

Maksimaalne sisemine mälu

128 GB

ATX toitepistik (24-kontaktiline)

Yes

Etherneti LAN-i andmeedastuskiirused

10,100,1000,2500 Mbit/s

Heli väljundkanalid

7.1 channels

Toetatavate salvestusseadmete arv

5

Toetatud salvestusketaste liidesed

PCI Express 4.0, PCI Express 5.0, SATA III

RAID-tasemed

0
1
5

Toetatud salvestusketaste tüübid

HDD & SSD

Mälupesade arv

2

Toote värv

White

Hoiatused

Do not open or modify the motherboard to prevent damage.
In case of installation problems, contact a qualified service technician.
When disposing of the product, follow local regulations for the recycling of electronics.

Parim Wi-Fi standard

Wi-Fi 6E (802.11axe)

Toetatud protsessori pistikupesad

LGA 1851

Mälu kanalid

Dual-channel

Protsessori tootja

Intel

Integreeritud graafikakaartide perekond

Intel Iris Xe Graphics

LAN kontroller

Dragon RTL8125BG

Helikiip

Realtek ALC1220

Emaplaadi kiibistik

Intel B860

SATA III ühenduste arv

3

PCI Express x16 (Gen 5.x) pesad

1

S/PDIF väljundport

Yes
