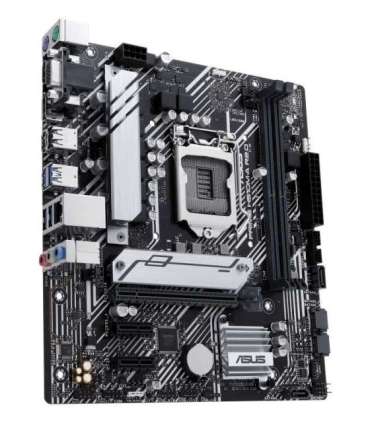

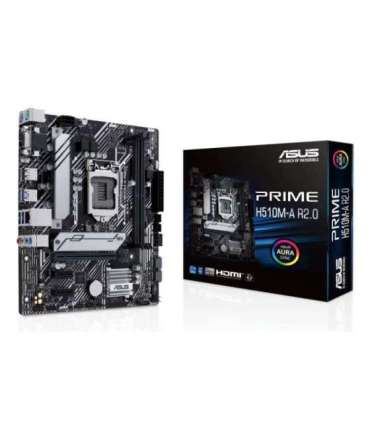

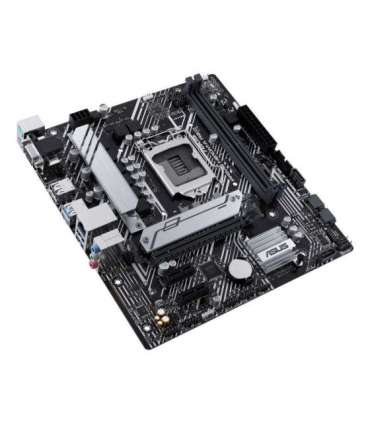

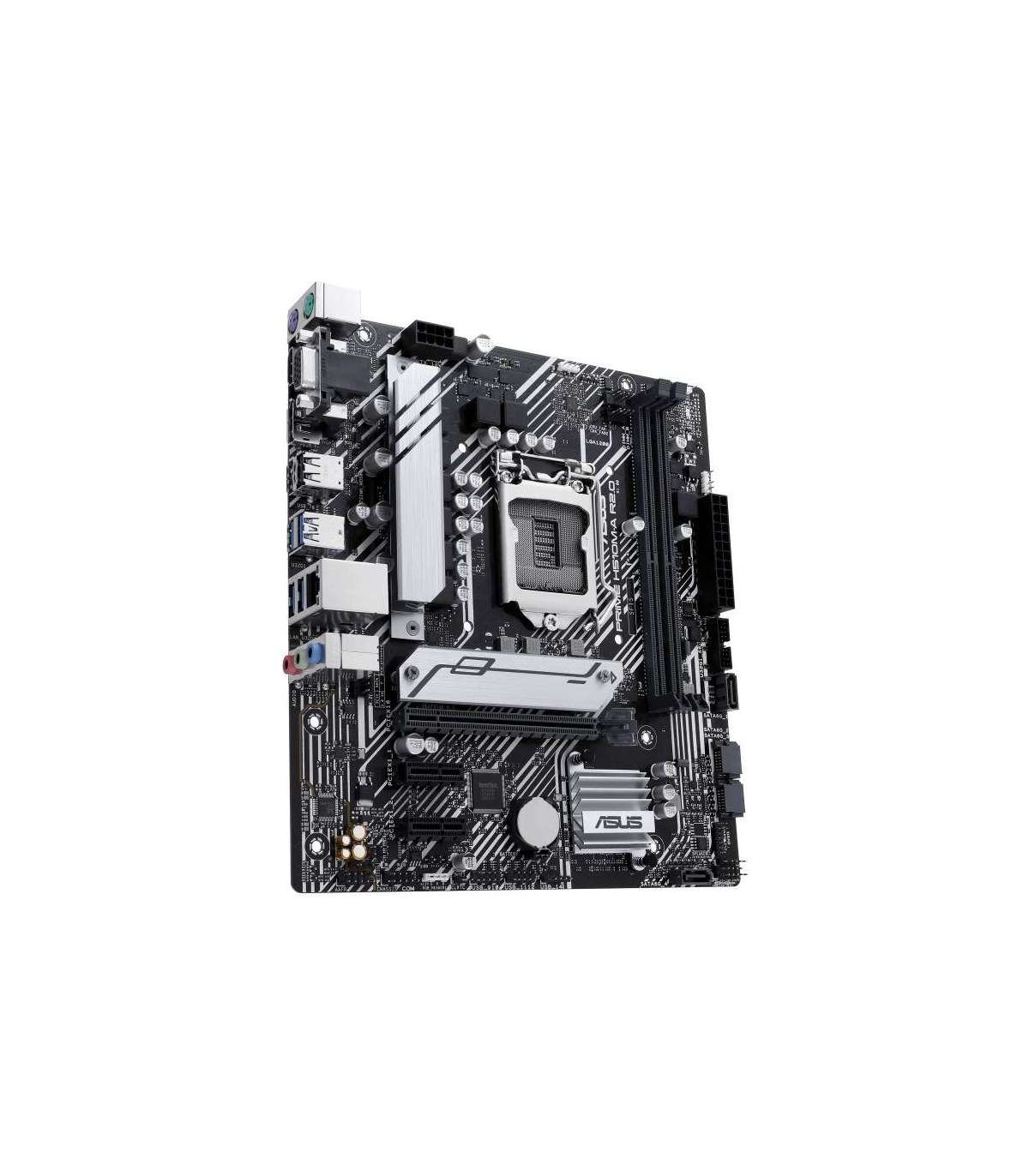

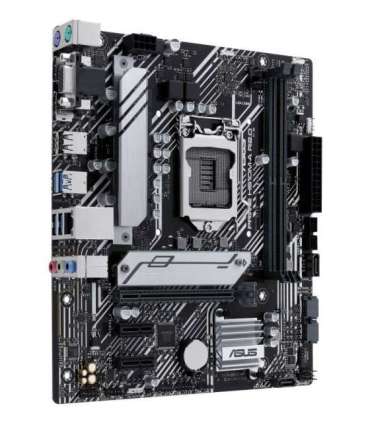

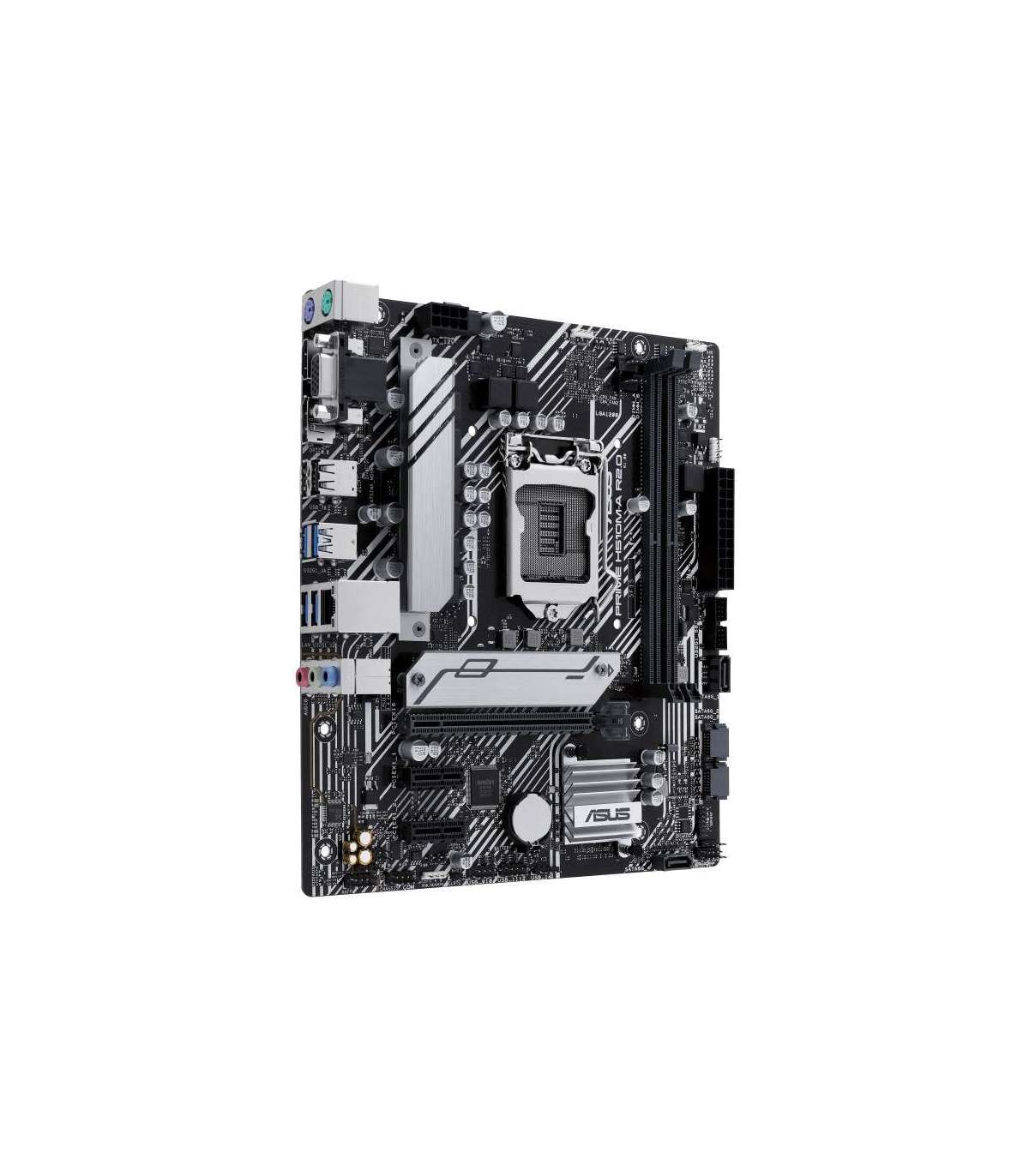

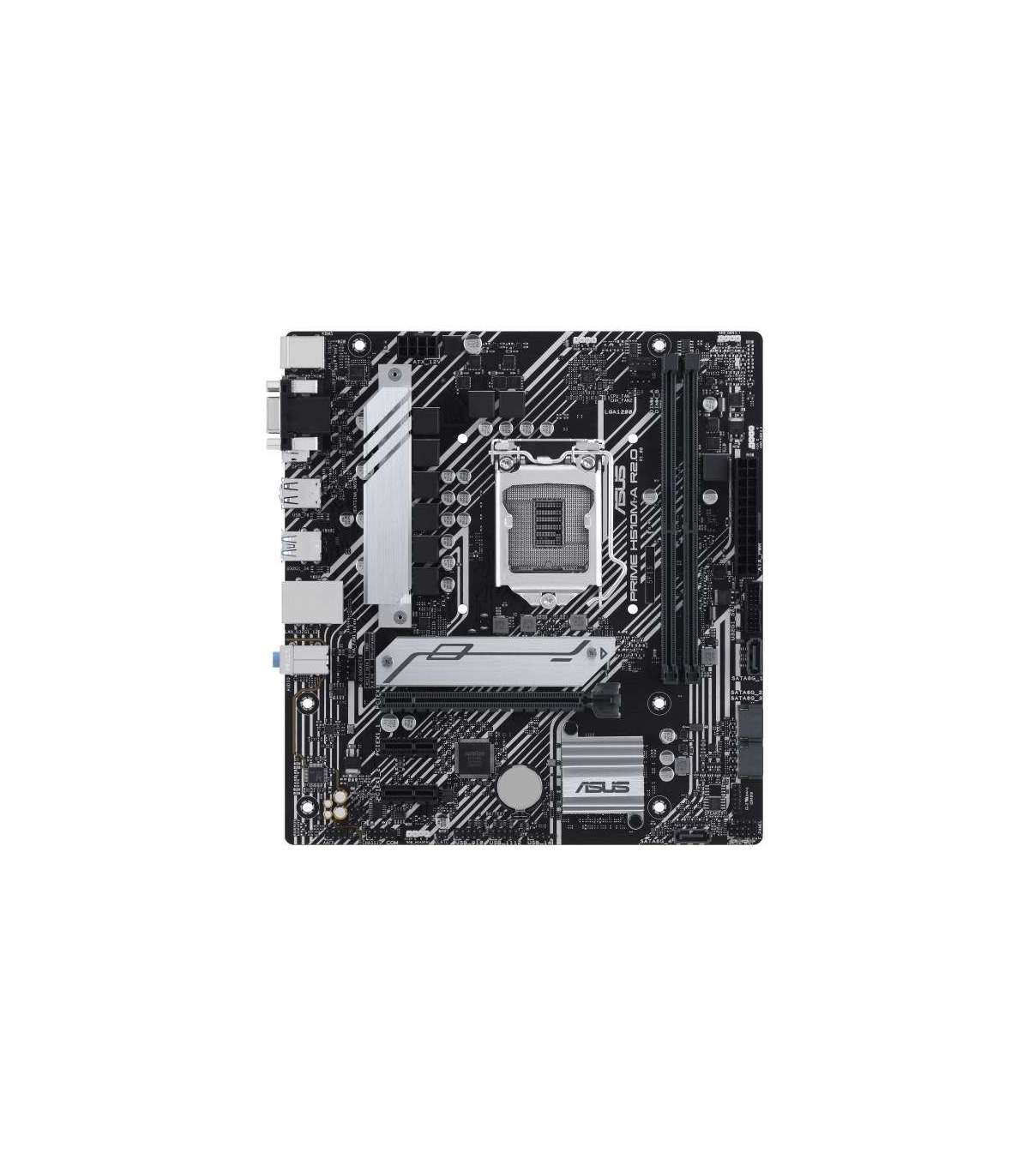

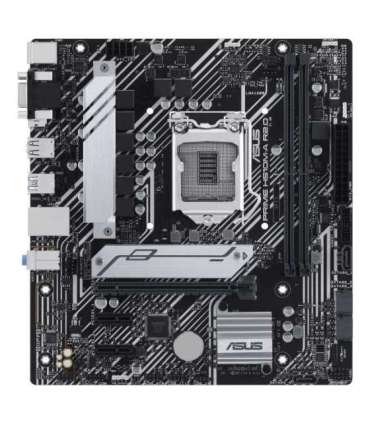

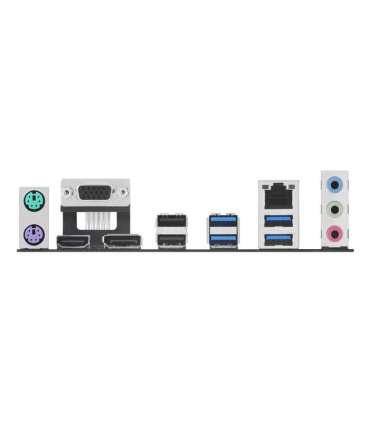

ASUS PRIME H510M-A R2.0 Intel H510 LGA 1200 (Socket H5) micro ATX motherboard

Lisainfo

Depth

211 mm

Laius

226 mm

Package weight

1.03 kg

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64

Package width

260 mm

Package depth

270 mm

Package height

51.5 mm

Warnings

Avoid contact with liquids to prevent damage to electronic components.
Be careful when assembling to avoid damage to electronic components caused by electrostatic discharge.
Do not make changes or modifications to the appliance, which may void the warranty or cause damage.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H510

HDMI ports quantity

1

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

3

Processor socket

LGA 1200 (Socket H5)

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2800
2933
3000
3200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1200 (Socket H5)

Supported memory clock speed (max)

3200 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

5

Audio connector

Yes

Line-in

Yes

S/PDIF out connector

Yes
