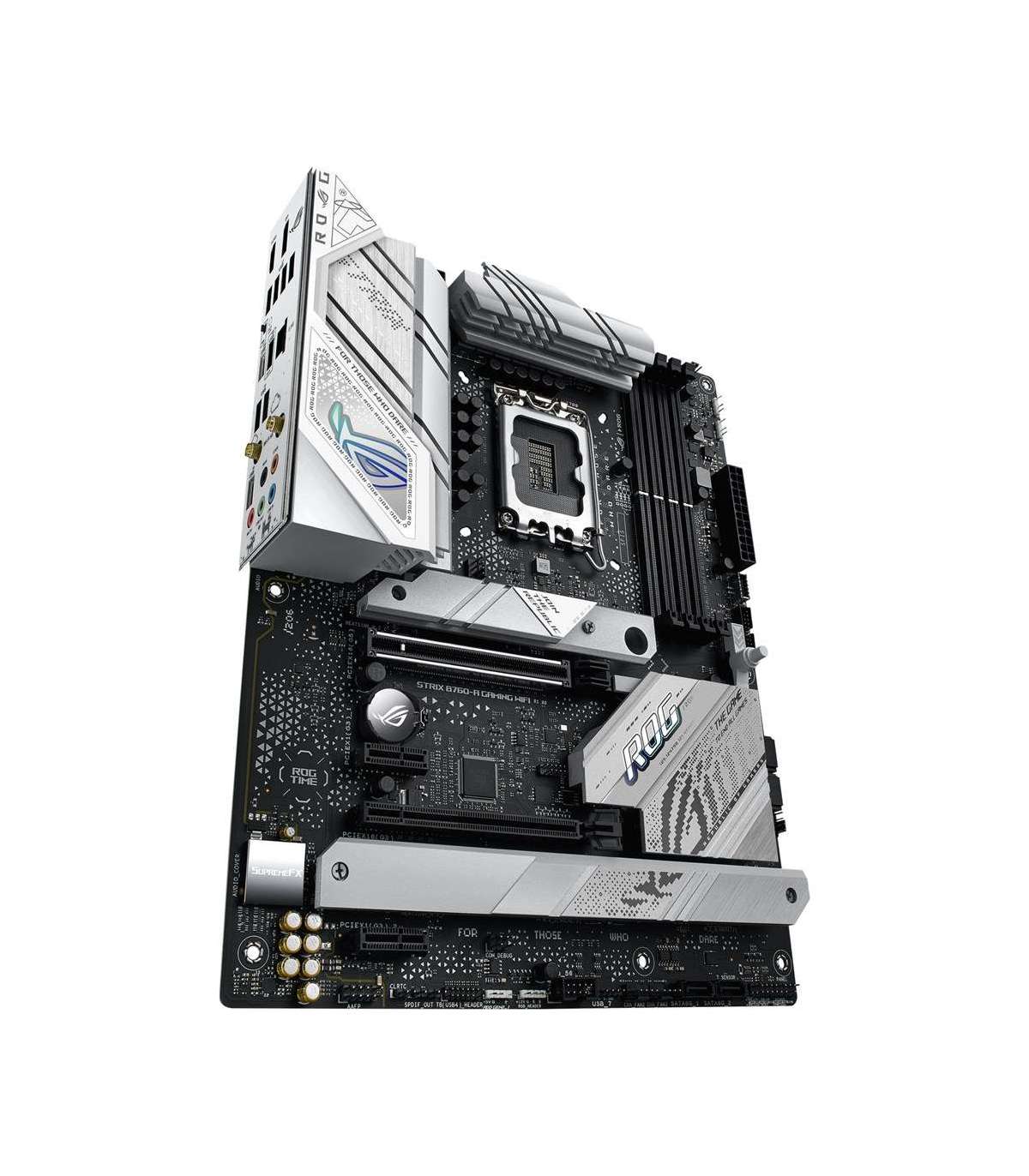

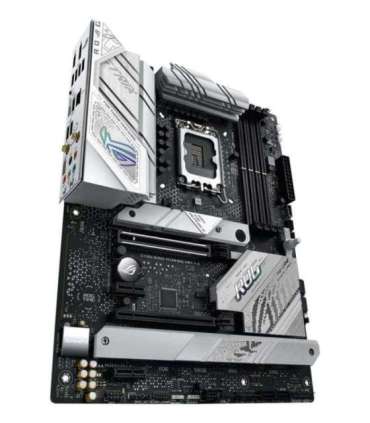

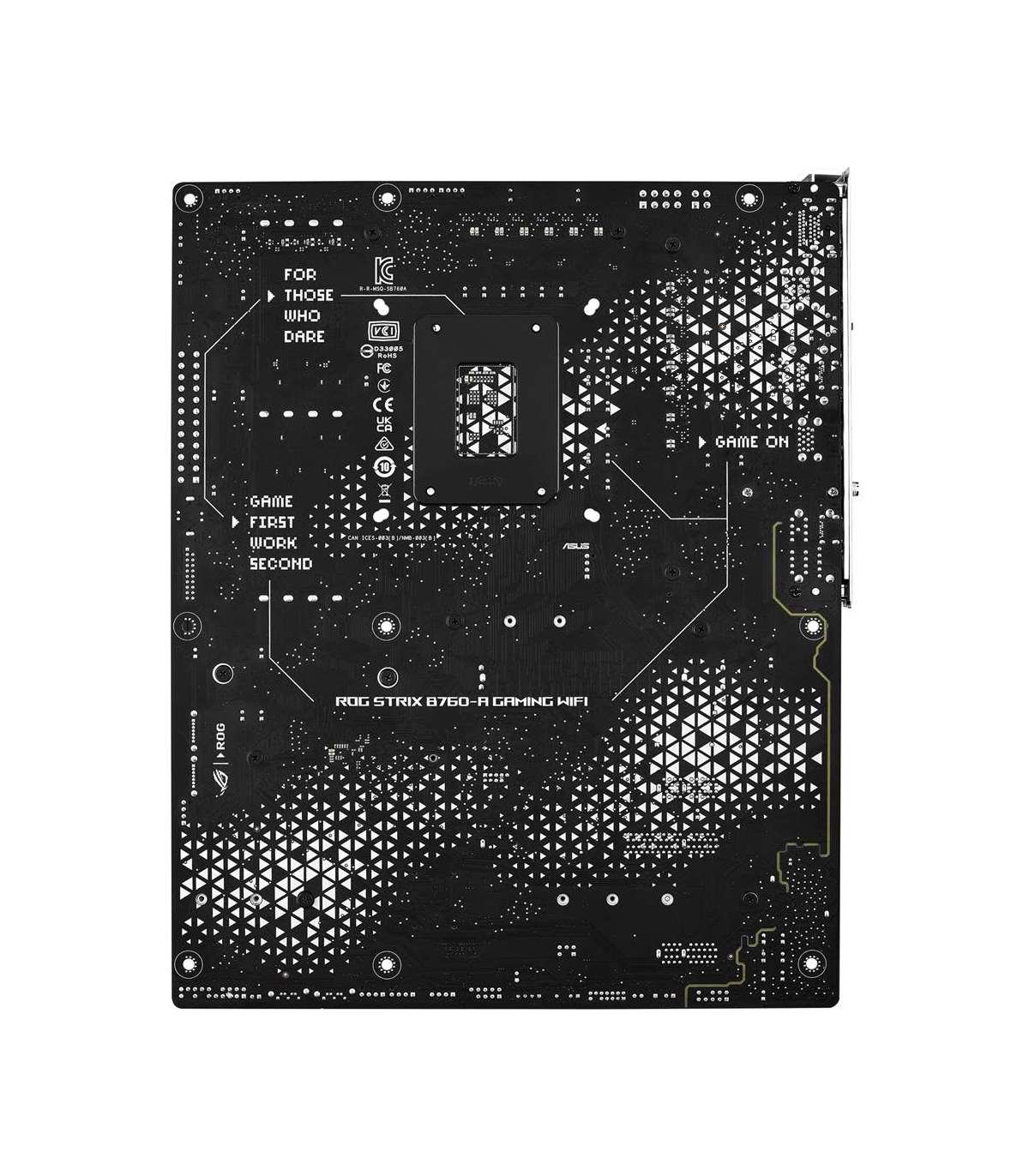

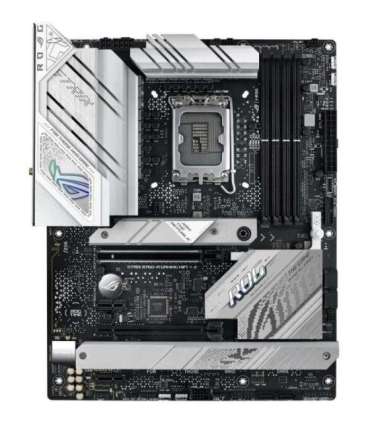

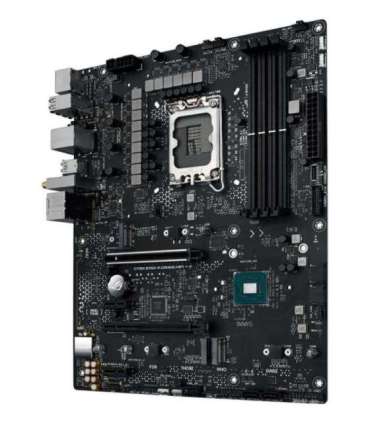

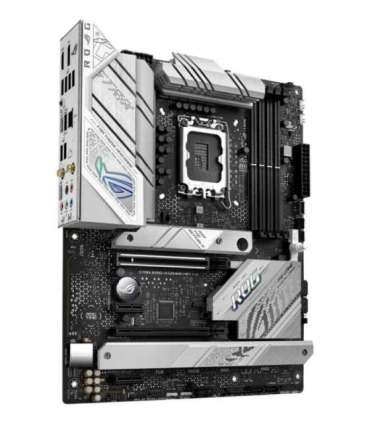

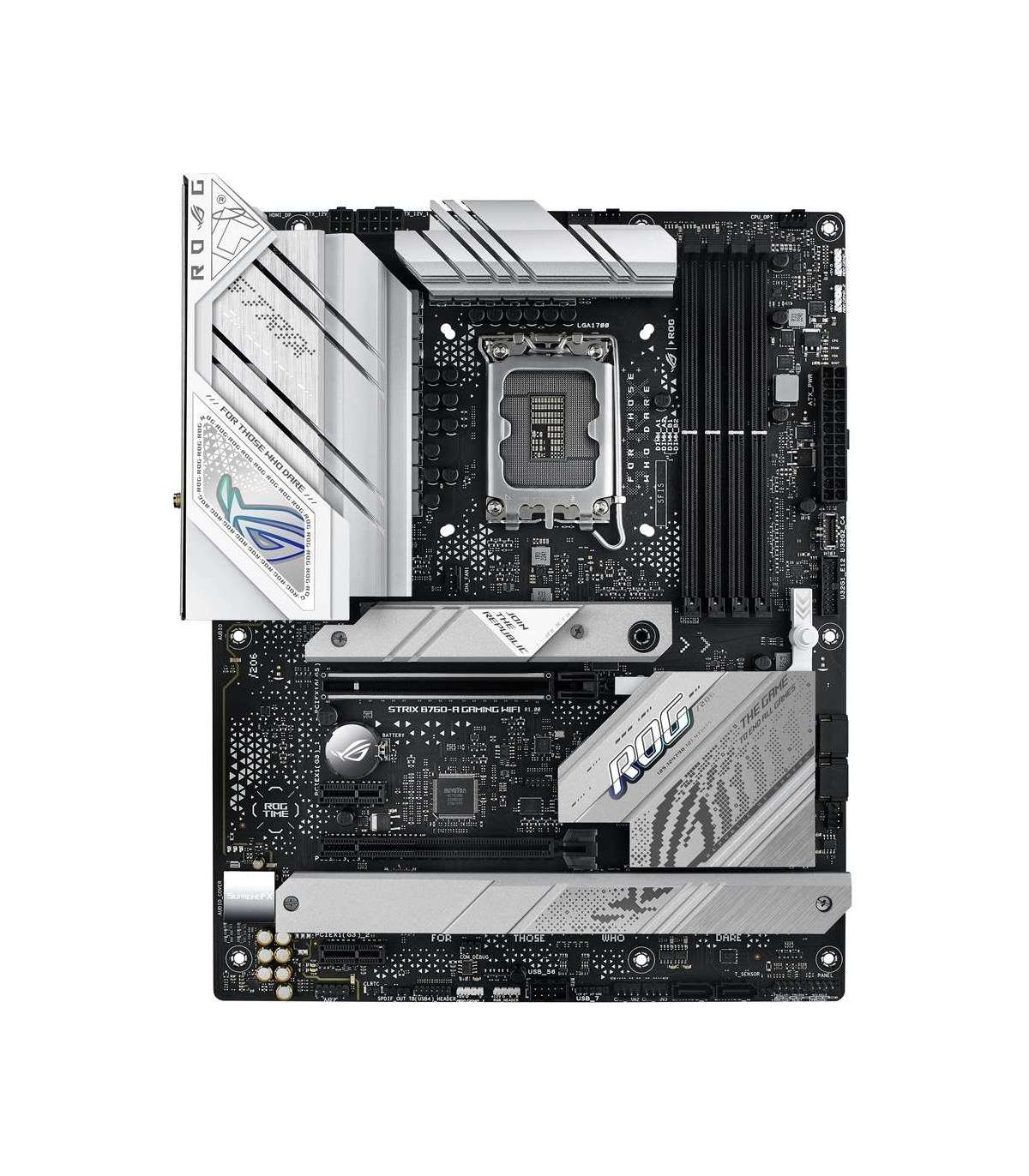

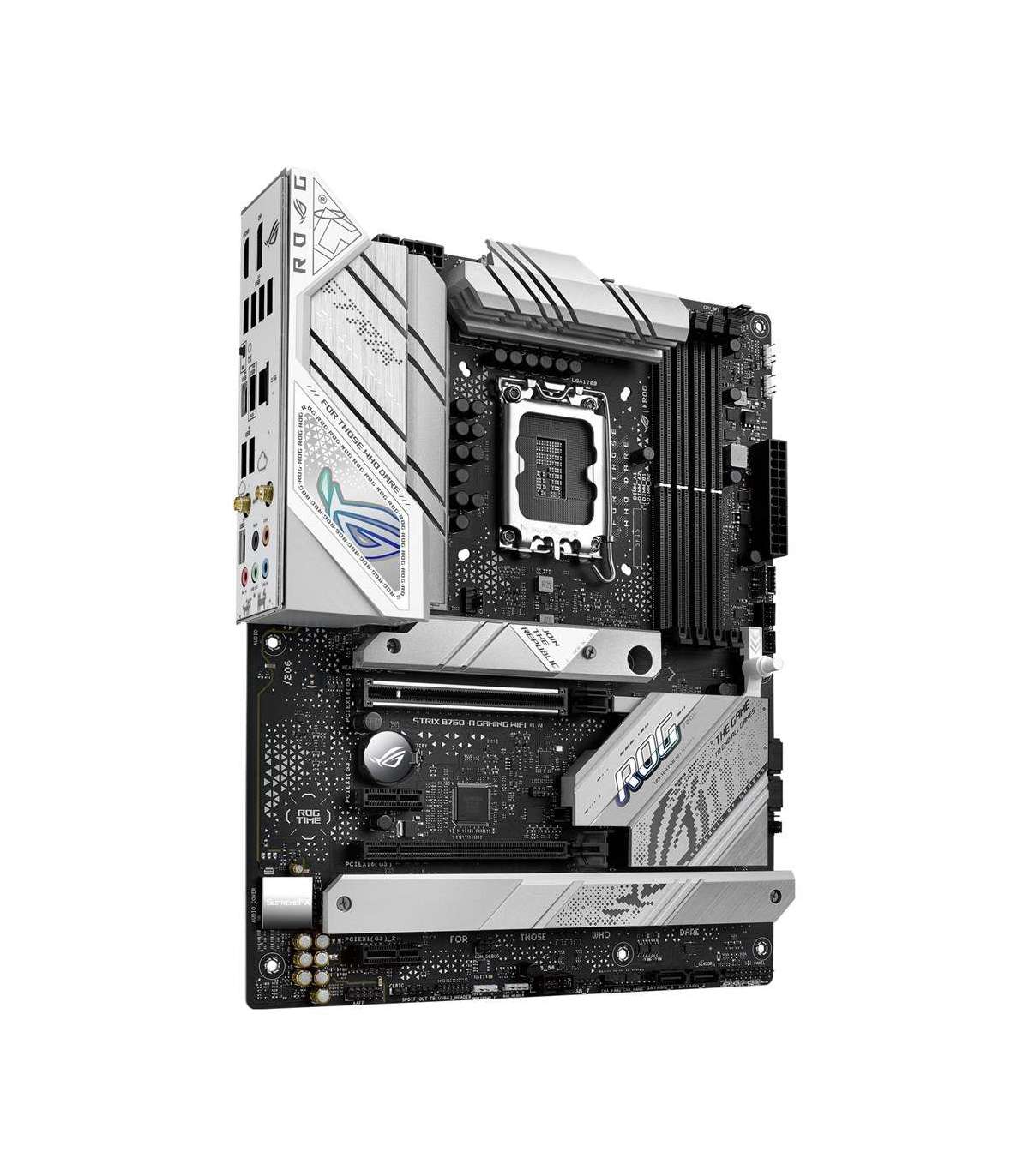

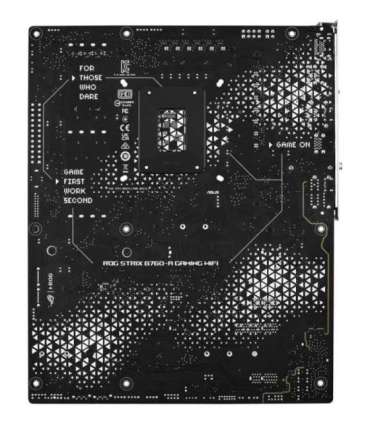

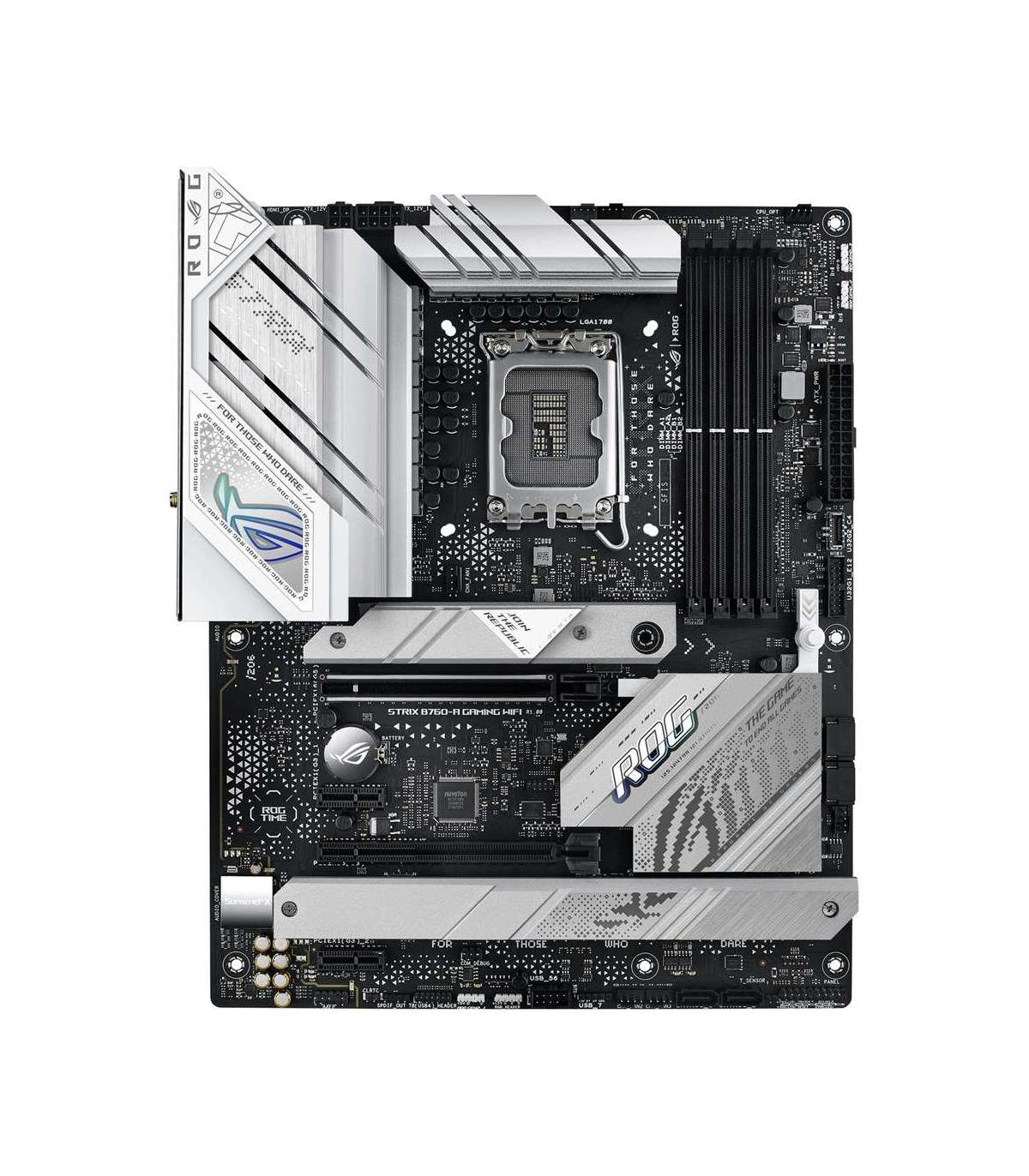

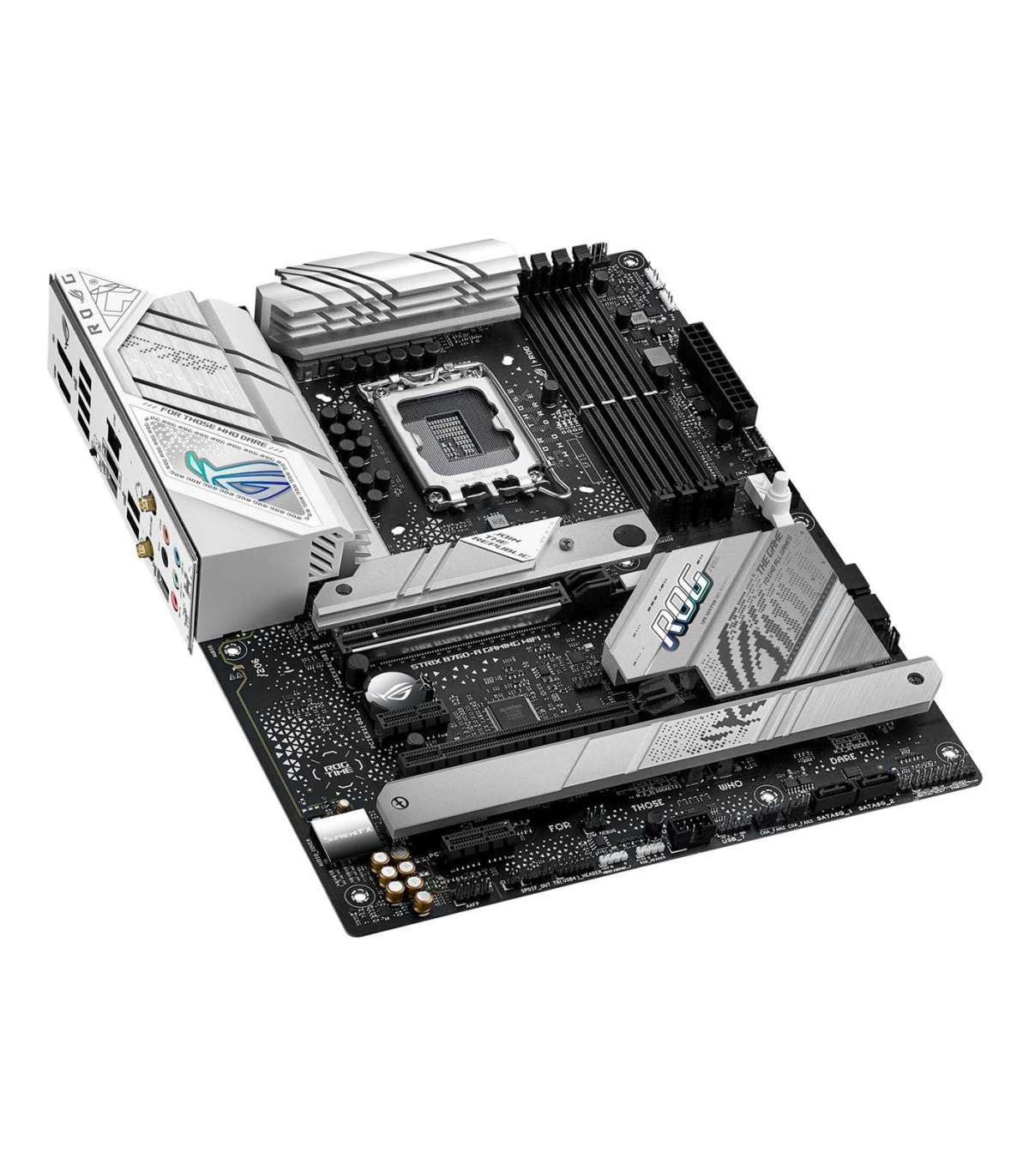

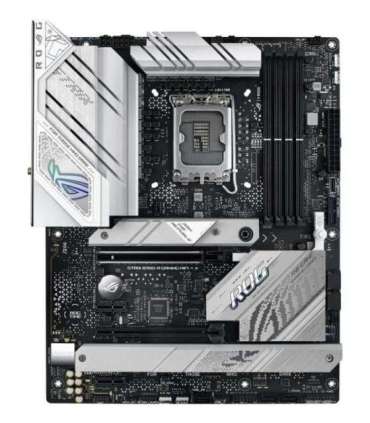

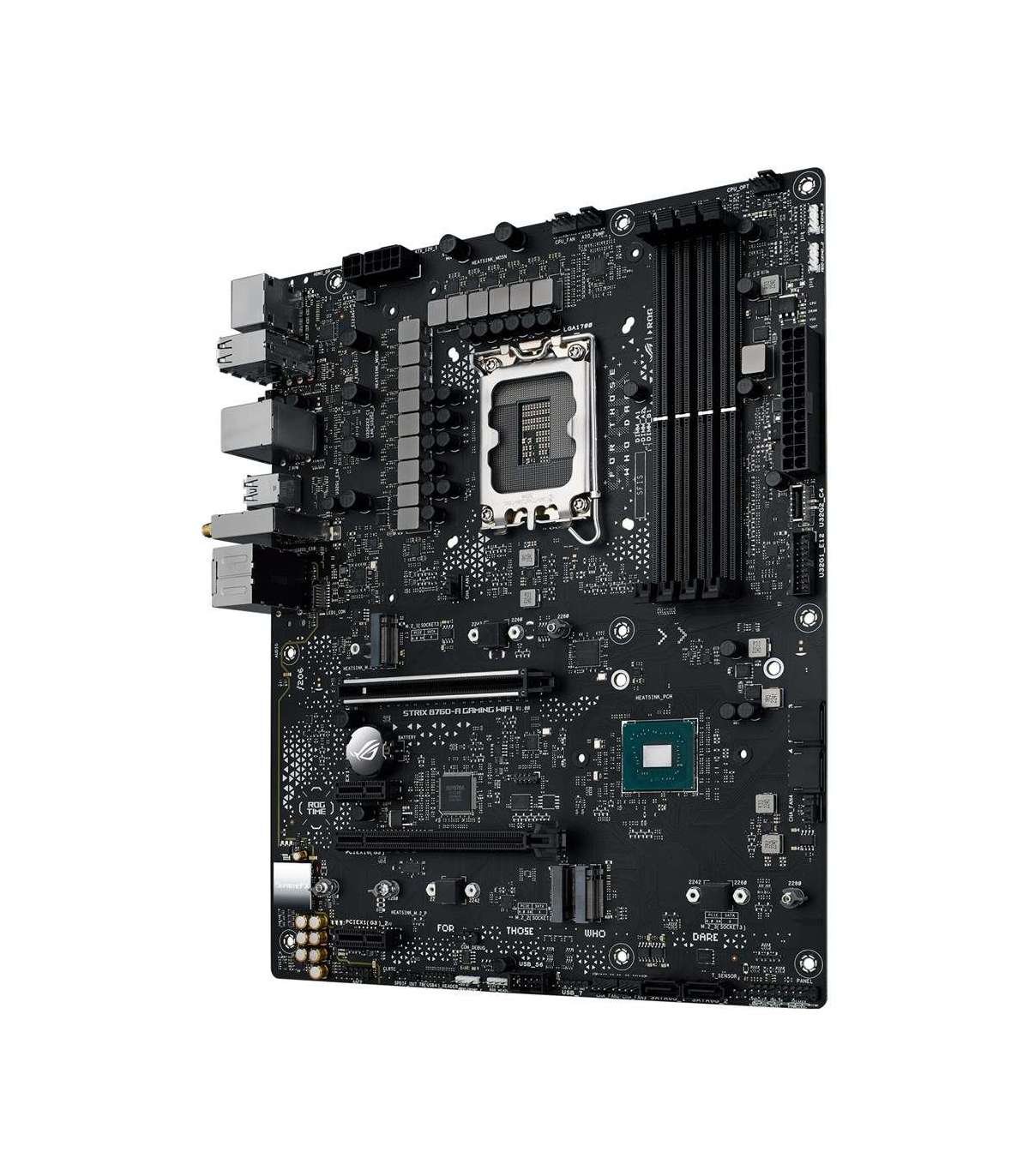

ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Component for

PC

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B760

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4080

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

1

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400
6600
6800
7000
7200
7400
7600 MHz
7800

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7800 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

7

RAID support

Yes

Line-in

Yes

S/PDIF out connector

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Peripheral (Molex) power connectors (4-pin)

1

Thunderbolt headers

1

BIOS memory size

256 Mbit
