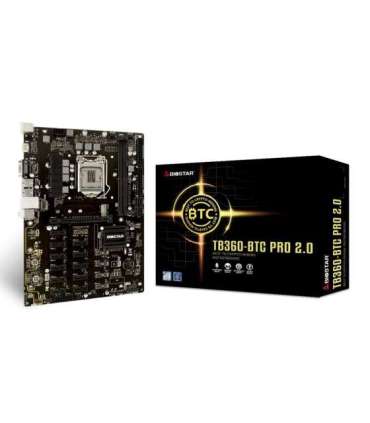

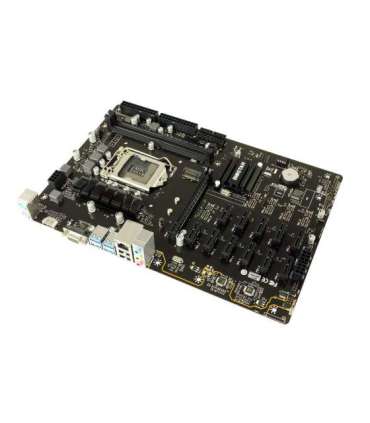

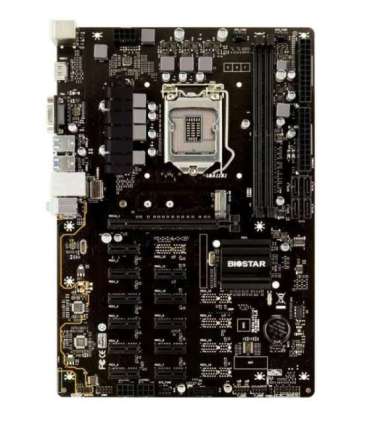

Biostar TB360-BTC PRO 2.0 motherboard Intel® B360 LGA 1151 (Socket H4) ATX

Lisainfo

Depth

210 mm

Laius

295 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A

Maximum internal memory

32 GB

Motherboard chipset

Intel® B360

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC887

Bundled software

BullGuard

Headphone outputs

3

USB 2.0 connectors

2

Processor socket

LGA 1151 (Socket H4)

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

1866
2133
2400
2666

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

11

ECC сompatibility

Non-ECC

Drivers included

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1151 (Socket H4)

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

5

DirectX version

12.0

Supported memory module capacities

4GB
8GB
16GB
