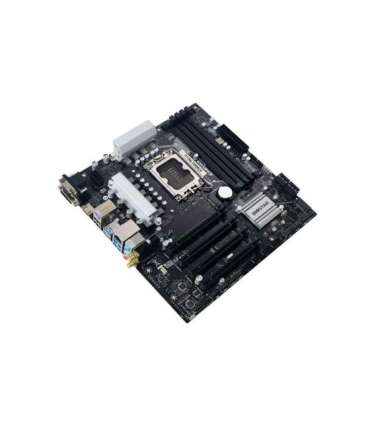

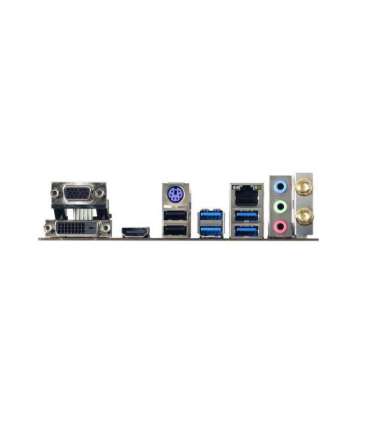

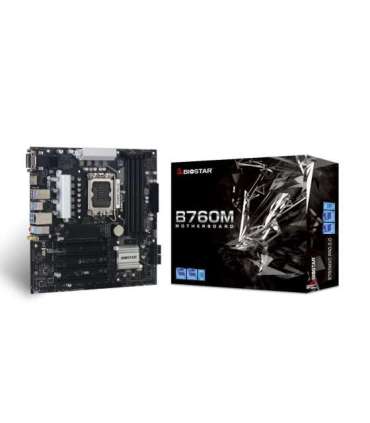

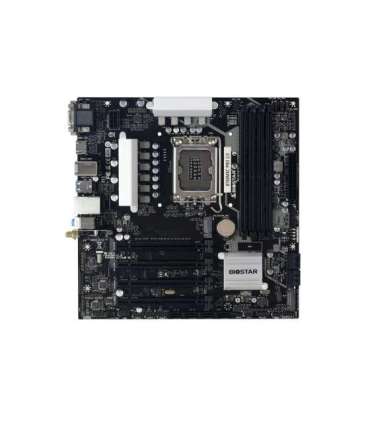

BIOSTAR B760MXC PRO 2.0 motherboard

Lisainfo

Depth

244 mm

Laius

244 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Yes

USB 2.0 ports quantity

2

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Quad-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

8

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

1866
2133
2400
2666
2800
2933
3200
3600 MHz
3733
3800
3866
4600

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I219-V

Number of chassis fan connectors

1

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

PCI Express x16 (Gen 3.x) slots

3

Drivers included

Yes

Number of SATA III connectors

8

TPM connector

Yes

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

1

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Cooling type

Passive

USB 3.2 Gen 2 (3.1 Gen 2) connectors

4

Number of Wi-Fi antenna ports

2

Yes (no WiFi card included)

Yes (no WiFi card included)

Number of M.2 (E) slots

1

LED connector

Y

Number of audio jack connectors

3
