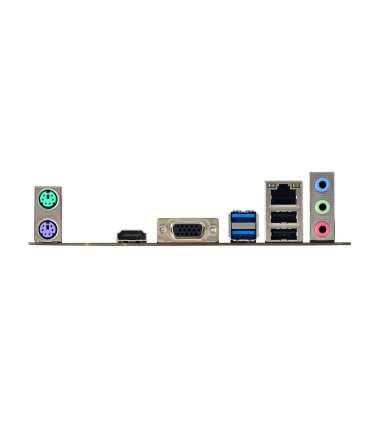

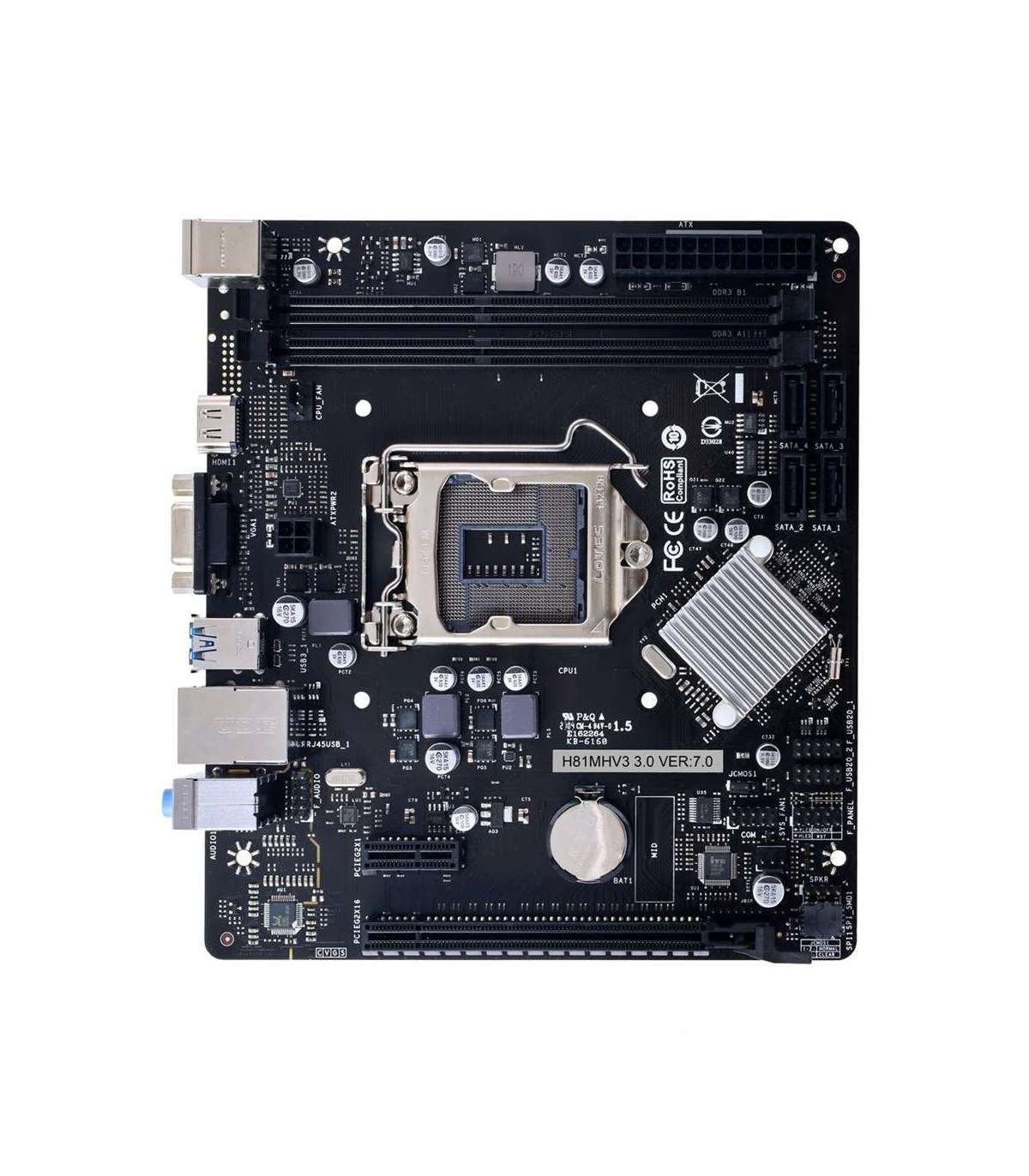

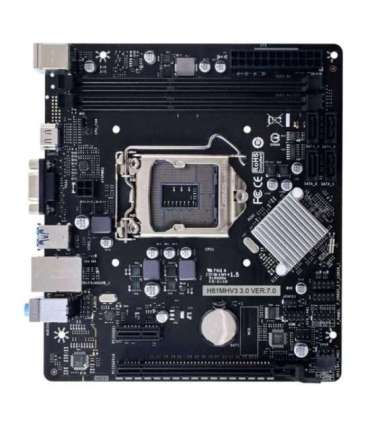

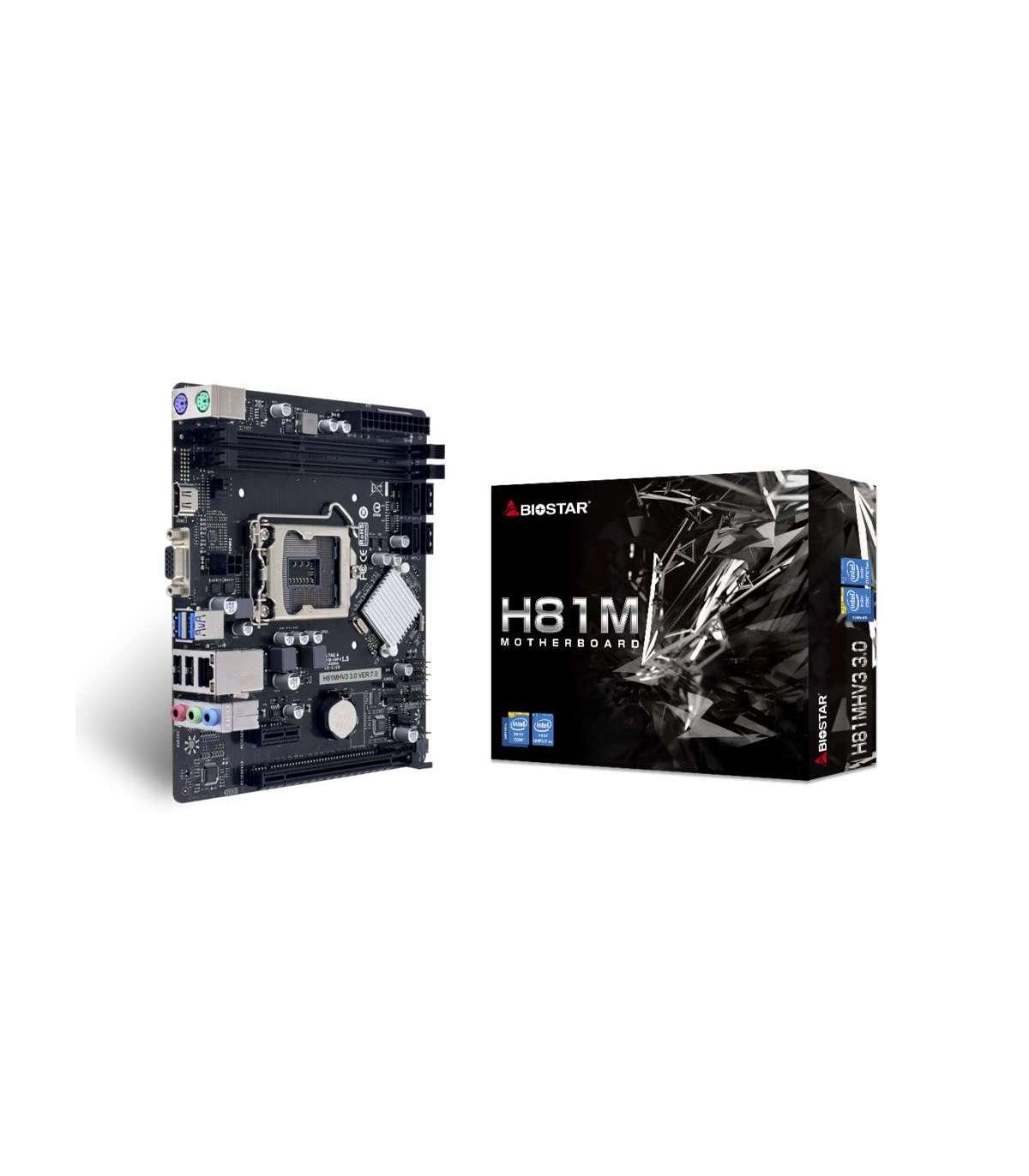

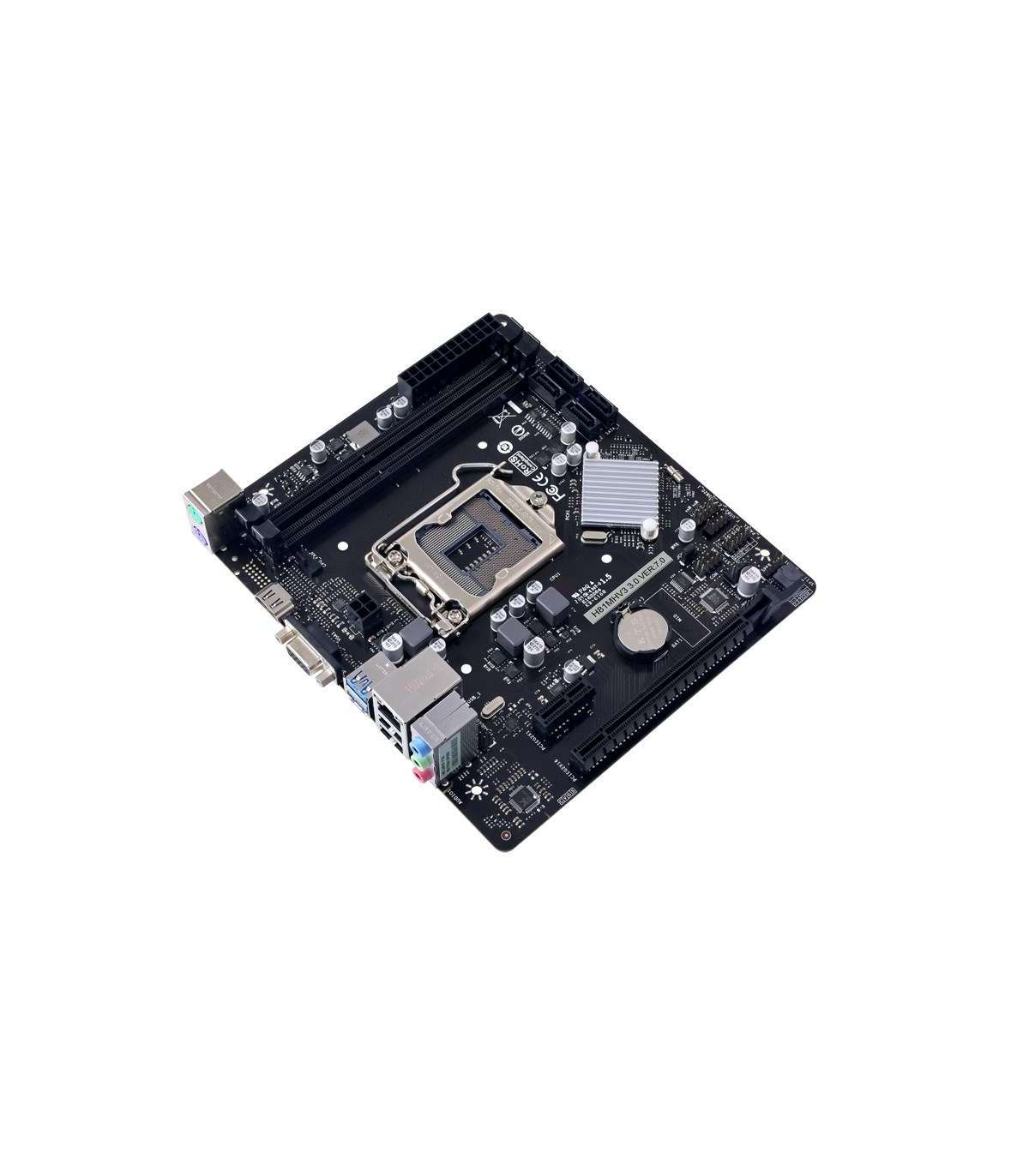

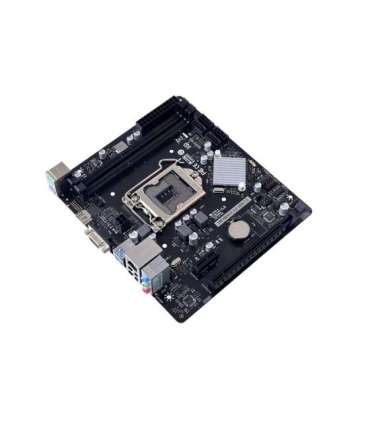

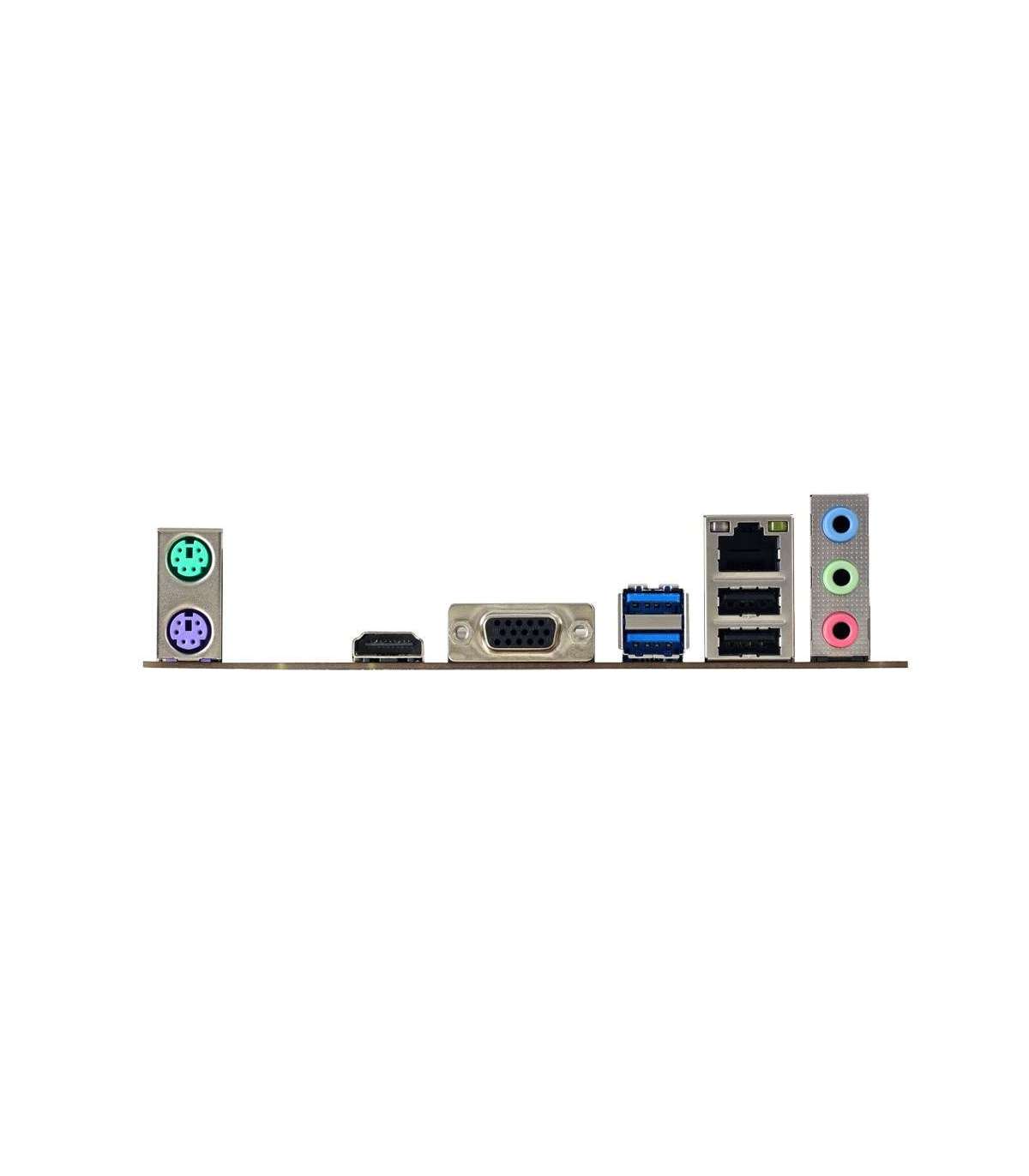

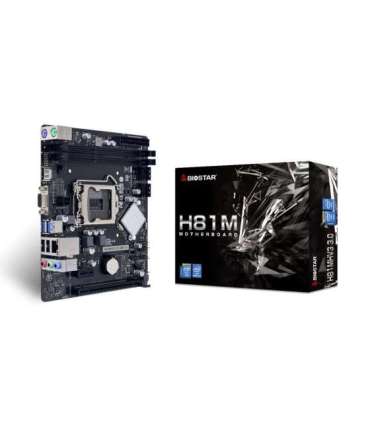

Biostar H81MHV3 3.0 H81 Intel® H81 LGA 1150 (Socket H3) micro ATX

Lisainfo

Depth

190 mm

Laius

170 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 7
Windows 8
Windows 8.1
Windows 10

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

16 GB

Motherboard chipset

Intel® H81

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC887

Headphone outputs

3

USB 2.0 connectors

2

Processor socket

LGA 1150 (Socket H3)

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

5.1 channels

Supported memory clock speeds

1066
1333
1600

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR3-SDRAM

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Supported storage drive interfaces

SATA II, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

2

Clear CMOS jumper

Yes

HDCP

Yes

Front panel connector

Yes

DirectX version

11.1

PCI Express x1 (Gen 2.x) slots

1

Peripheral (Molex) power connectors (4-pin)

1

PCI Express x16 (Gen 2.x) slots

1

Number of SATA II connectors

2
