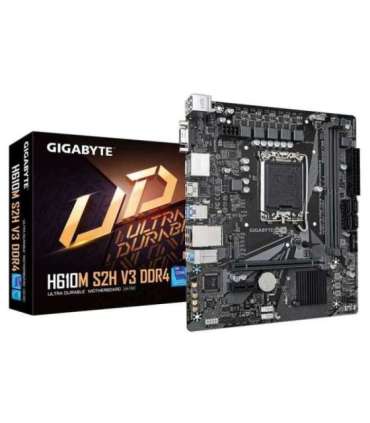

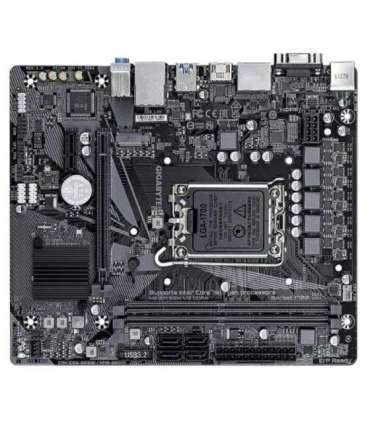

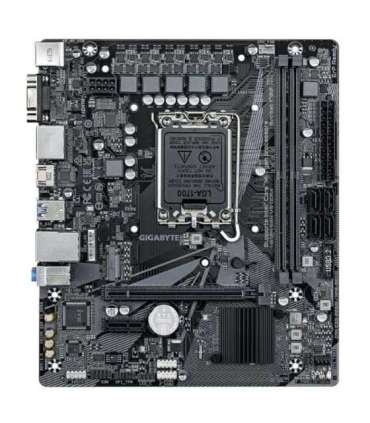

Gigabyte H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4,

Lisainfo

Depth

215 mm

Kõrgus

35 mm

Laius

230 mm

Package weight

703 g

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Package width

265 mm

Package depth

235 mm

Package height

52 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Maximum internal memory

64 GB

Country of origin

China

Motherboard chipset

Intel H610 Express

HDMI ports quantity

1

Number of battery cells

1

Memory channels

Dual-channel

Battery weight

3 g

Audio chip

Realtek ALC897

Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software

Warranty period

3 year(s)

Headphone outputs

3

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2933
3000
3200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

1

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

2

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

HDCP

Yes

Supported memory clock speed (max)

3200 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Batteries included

Yes

Number of storage drives supported

5

PCI Express x16 slots

1

PCI Express x1 slots

1

Battery type

CR2032

Lithium weight per battery

0.07 g

Products per shipping (inner) case

1 pc(s)

DVI-D ports quantity

1

Supported memory module capacities

1GB
2GB
4GB
8GB
12GB
16GB
32GB

Cooling type

Active

Maximum internal memory supported by processor

64 GB

Clear CMOS button

Yes

Serial port headers

1
