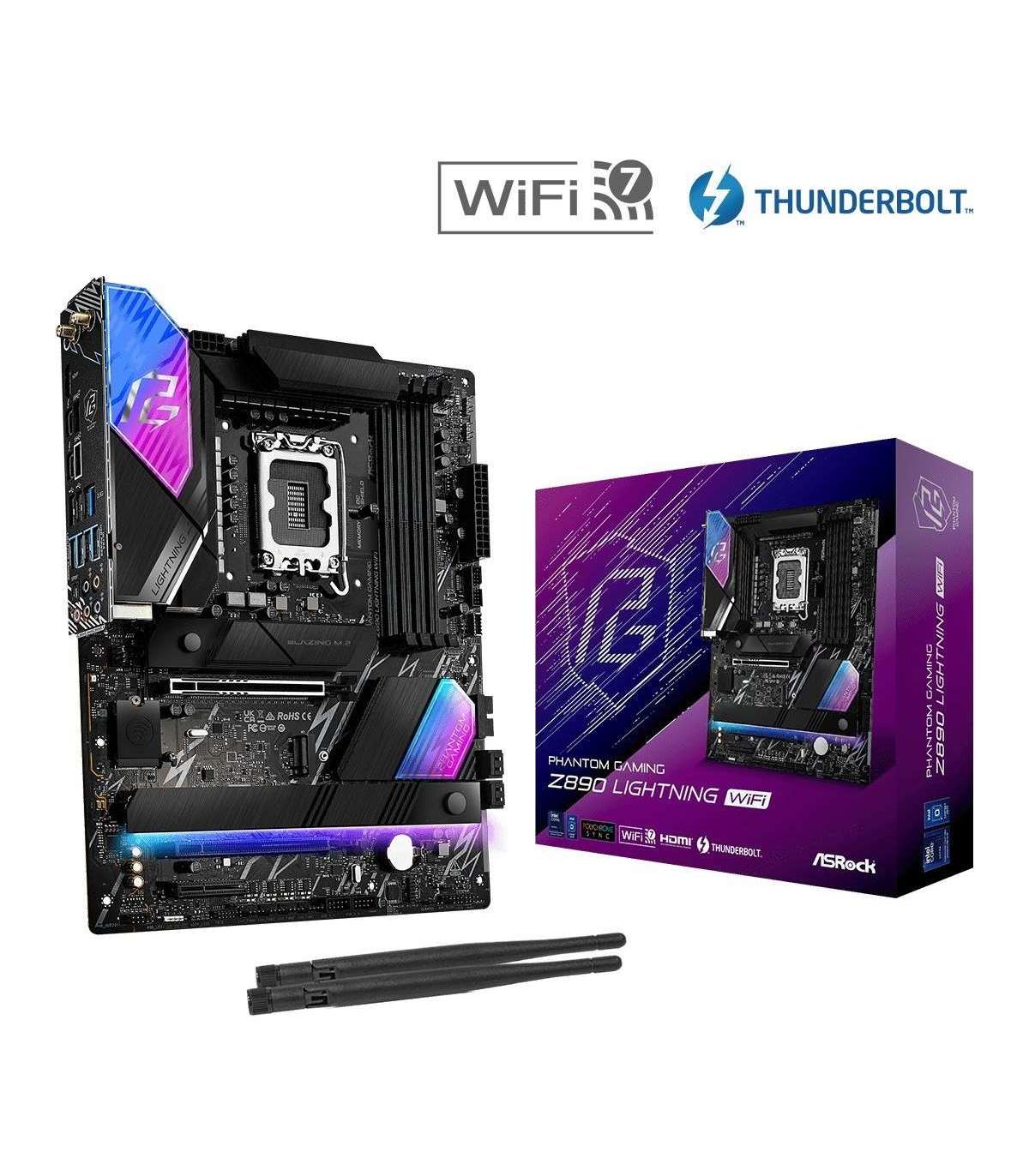

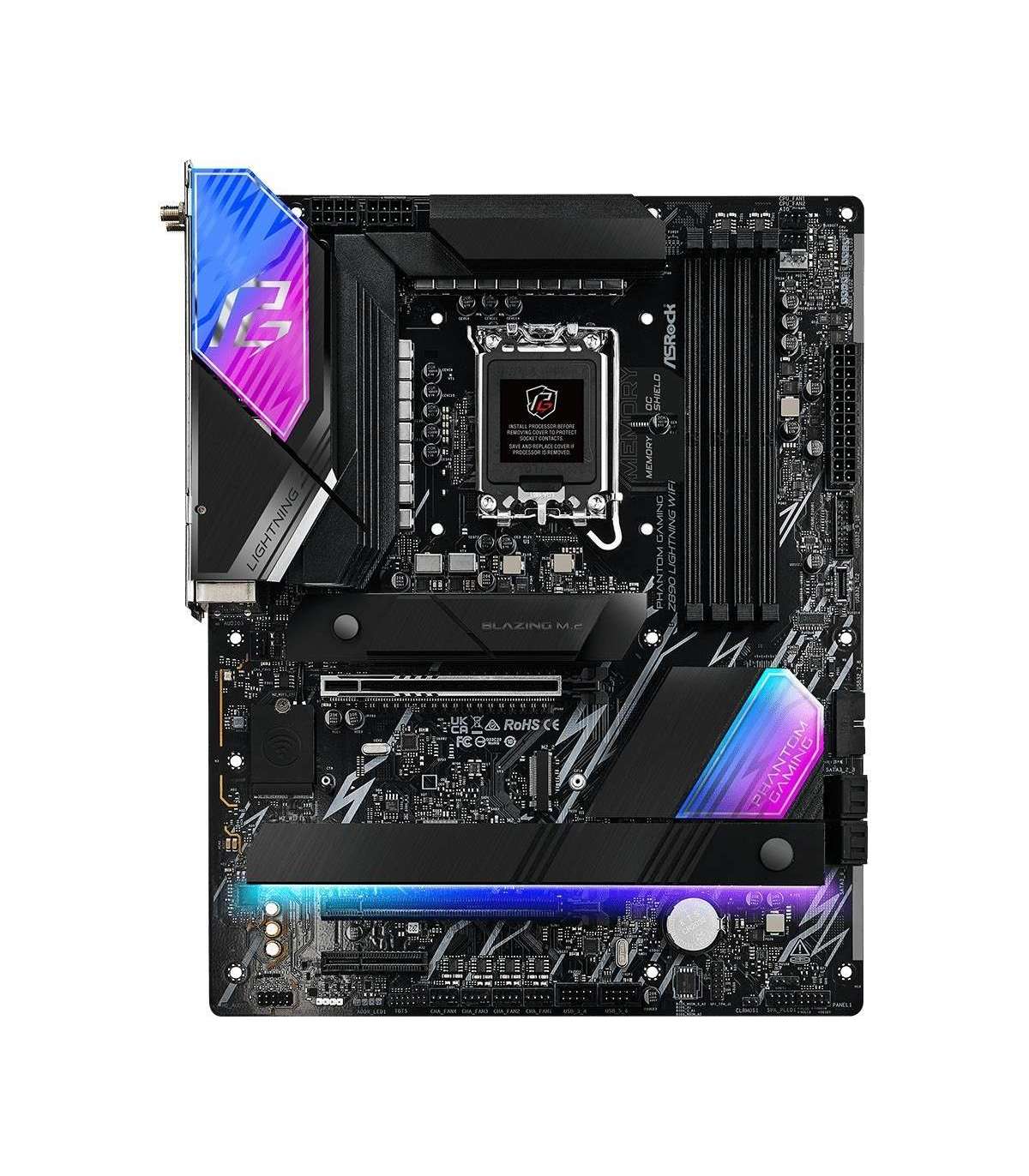

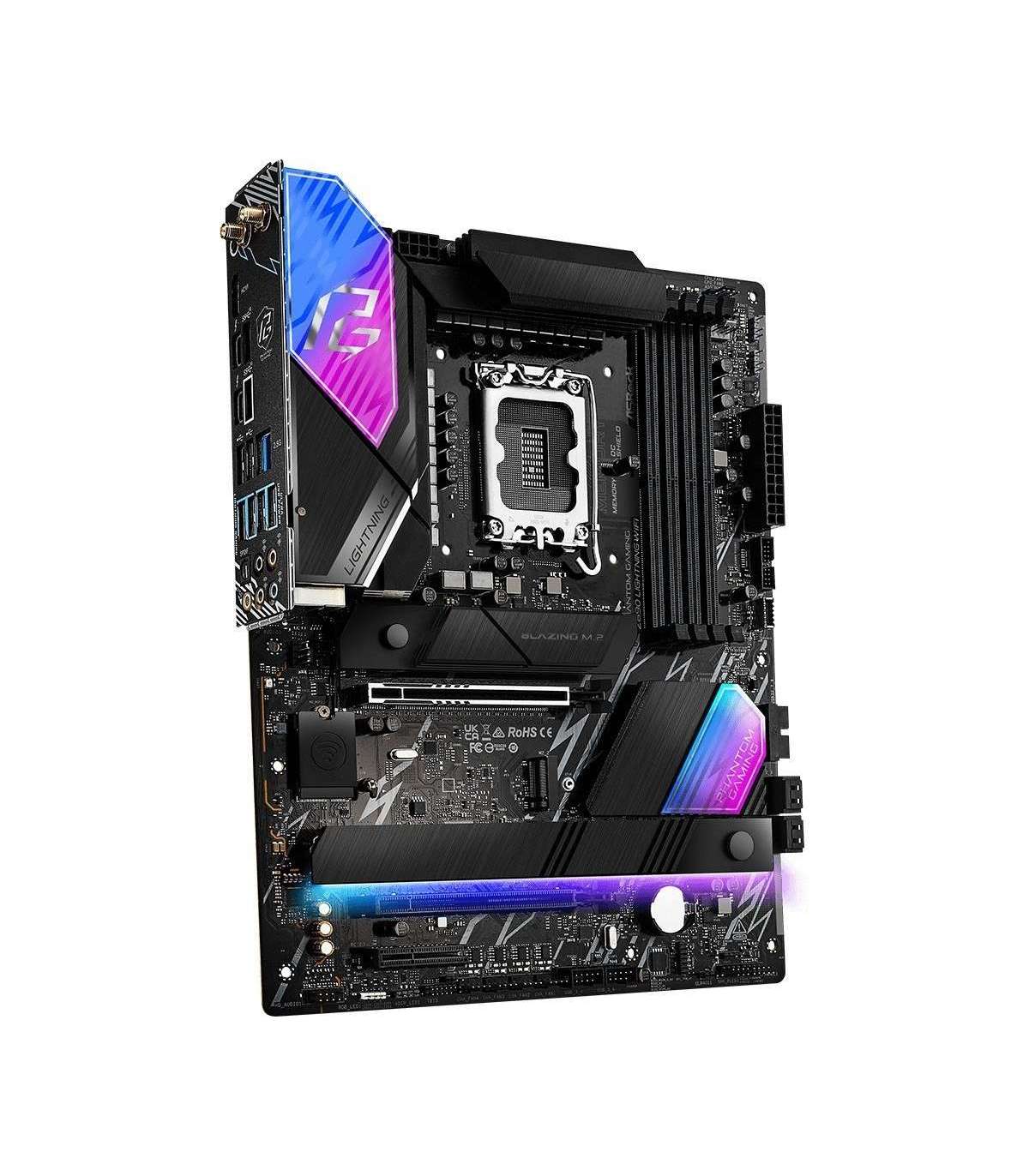

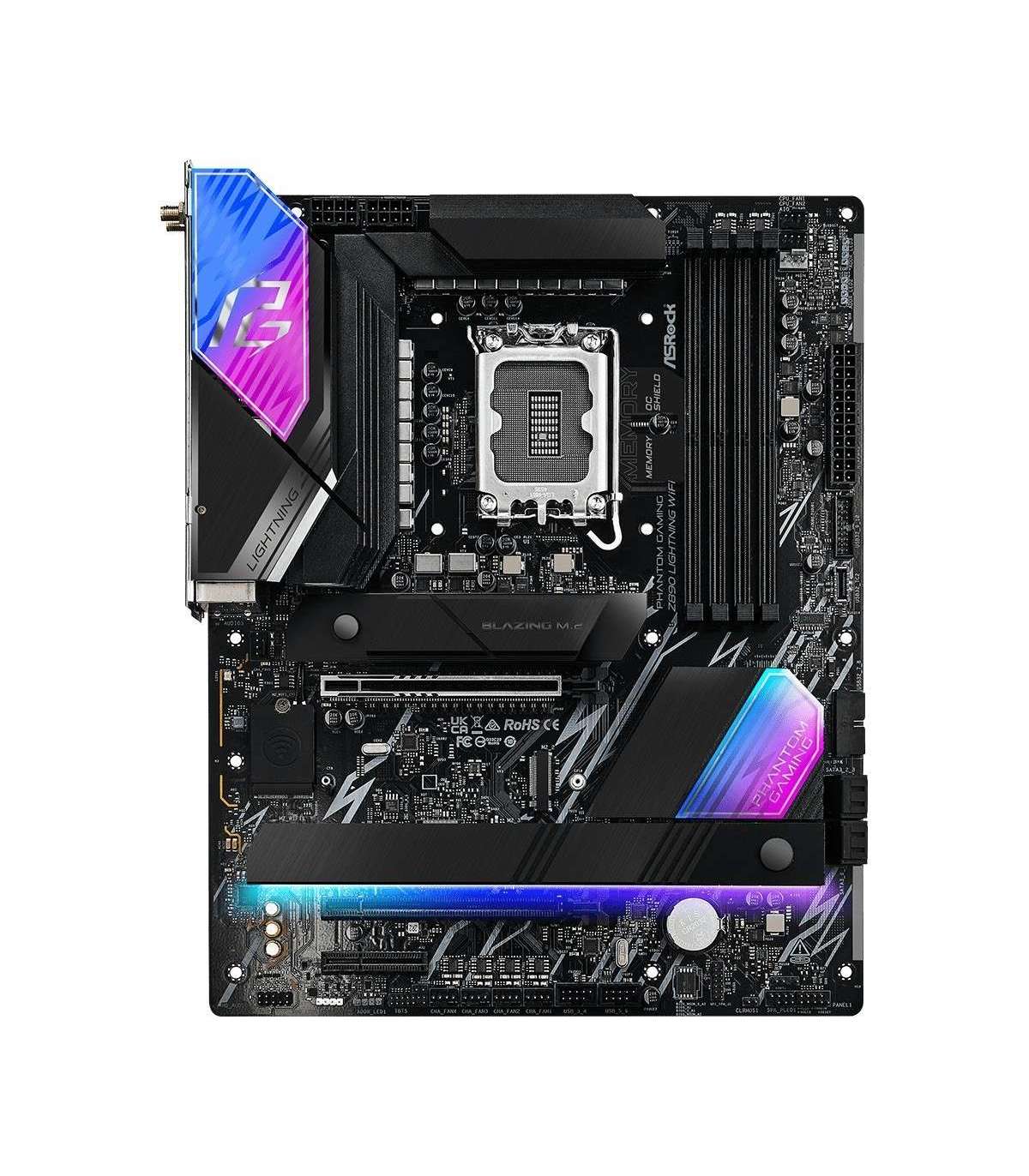

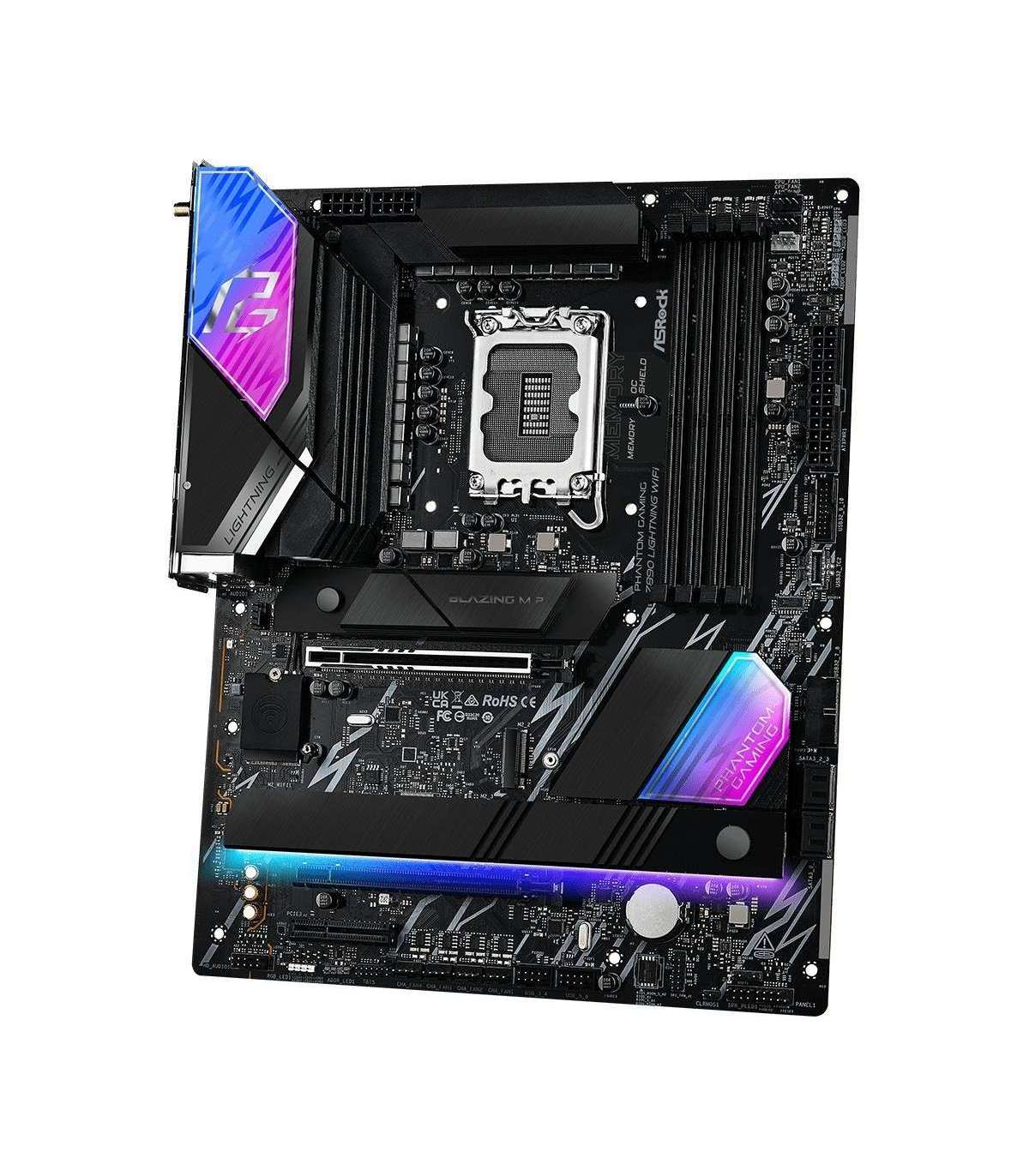

ASRock Z890 Z890 Lightning WiFi Motherboard

Lisainfo

Antennas quantity

2

Wireless statistics

Yes

Wi-Fi antenna

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi frequency

2,4 Ghz / 5 GHz / 6 GHz

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

USB 2.0 connectors

2

Number of Thunderbolt 4 USB-C ports

2

USB 2.0 Type-A ports quantity

2

Motherboard chipset family

Intel

Unbuffered memory

Yes

Memory slots type

DIMM

Front panel audio connector

Yes

CPU fan connector

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

RGB LED pin header

Yes

TPM connector

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

Thunderbolt headers

1

Number of antenna connectors

2

Certificates

CE
ErP/EuP ready
FCC

SPDIF optical output

Y

Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports

1

Intel Extreme Memory Profile (XMP) version

3.0

AIO pump fan connector

1

8-pin power connector 12 V

2

Pump connector

1

Chassis fan connector (4-pin)

4

Motherboard

Yes

Traadita võrk

Jah

Wi-Fi standardid

802.11 axe
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11be
IEEE 802.11g
IEEE 802.11n

Etherneti kohalik võrk

Jah

Laius

305 mm

Sügavus

244 mm

Ethernet-liidese tüüp

2.5 Gigabit Ethernet

Etherneti LAN (RJ-45) pordid

1

Kõrvaklappide väljundid

1

Mikrofoni sisend

Jah

Kaablid kaasas

ARGB Splitter Cable x 1
SATA III 2 pcs.
Thermistor Cable x 1

Toetatud Windowsi operatsioonisüsteemid

Windows 10 x64
Windows 11 x64

RAID-tugi

Jah

Protsessori pesa

LGA1851

Ühilduvad protsessorisarjad

Intel Core Ultra (Series 2)

Emaplaadi vormitegur

ATX

Toetatud mälutüübid

DDR5-SDRAM

Maksimaalne sisemine mälu

256 GB

ATX toitepistik (24-kontaktiline)

Yes

Heli väljundkanalid

7.1 channels

Toetatud salvestusketaste liidesed

M.2, SATA III

RAID-tasemed

0
1
5
10

Toetatud salvestusketaste tüübid

HDD & SSD

Mälupesade arv

4

Parim Wi-Fi standard

Wi-Fi 7 (802.11be)

Mälu kanalid

Dual-channel

Protsessori tootja

Intel

LAN kontroller

Killer E3100G

Helikiip

Realtek ALC1220

Emaplaadi kiibistik

Intel Z890

SATA III ühenduste arv

4

PCI Express x16 (Gen 5.x) pesad

1
