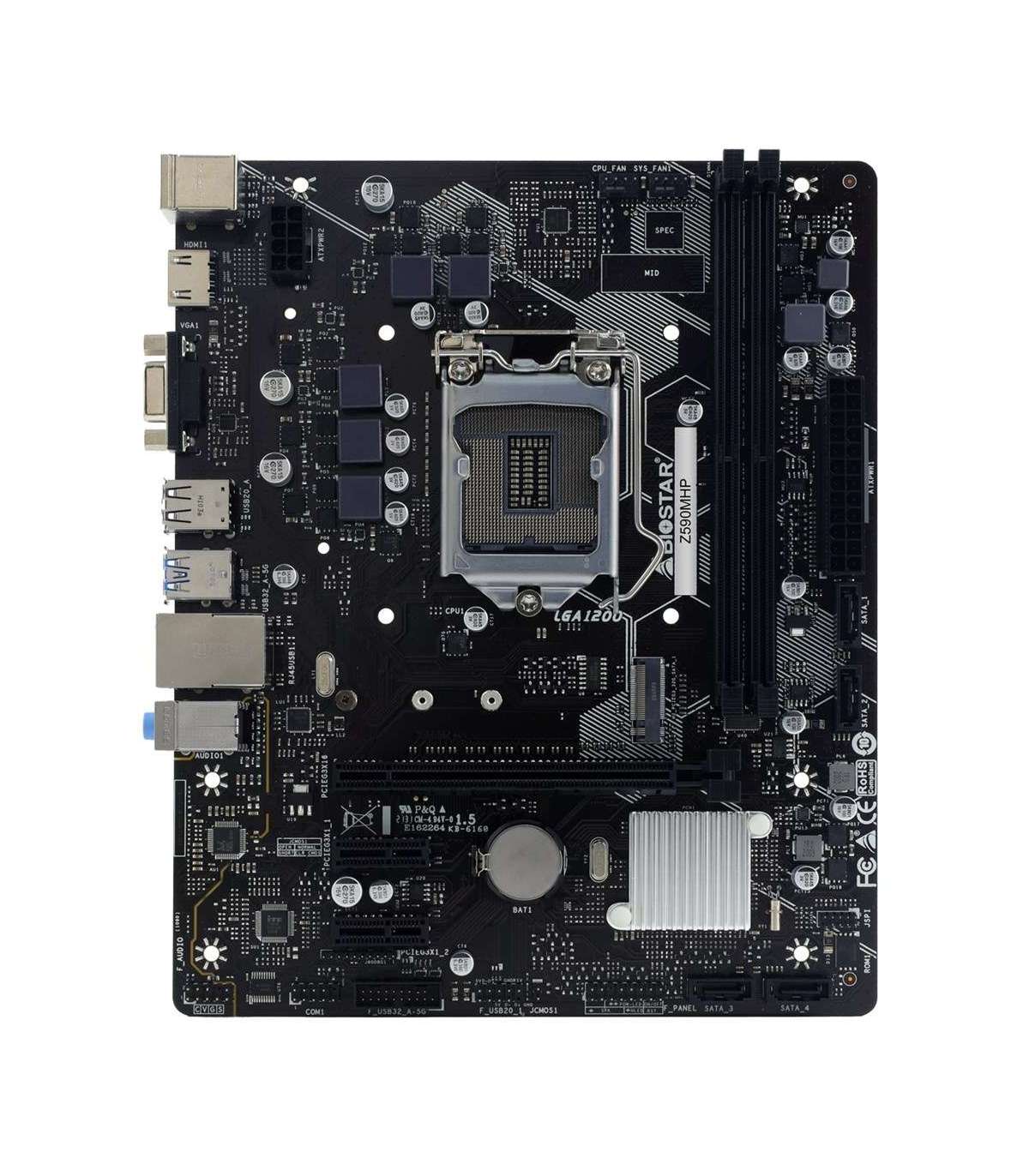

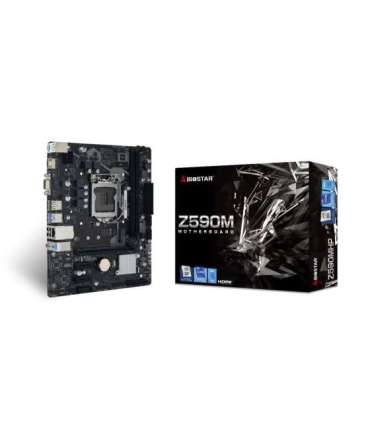

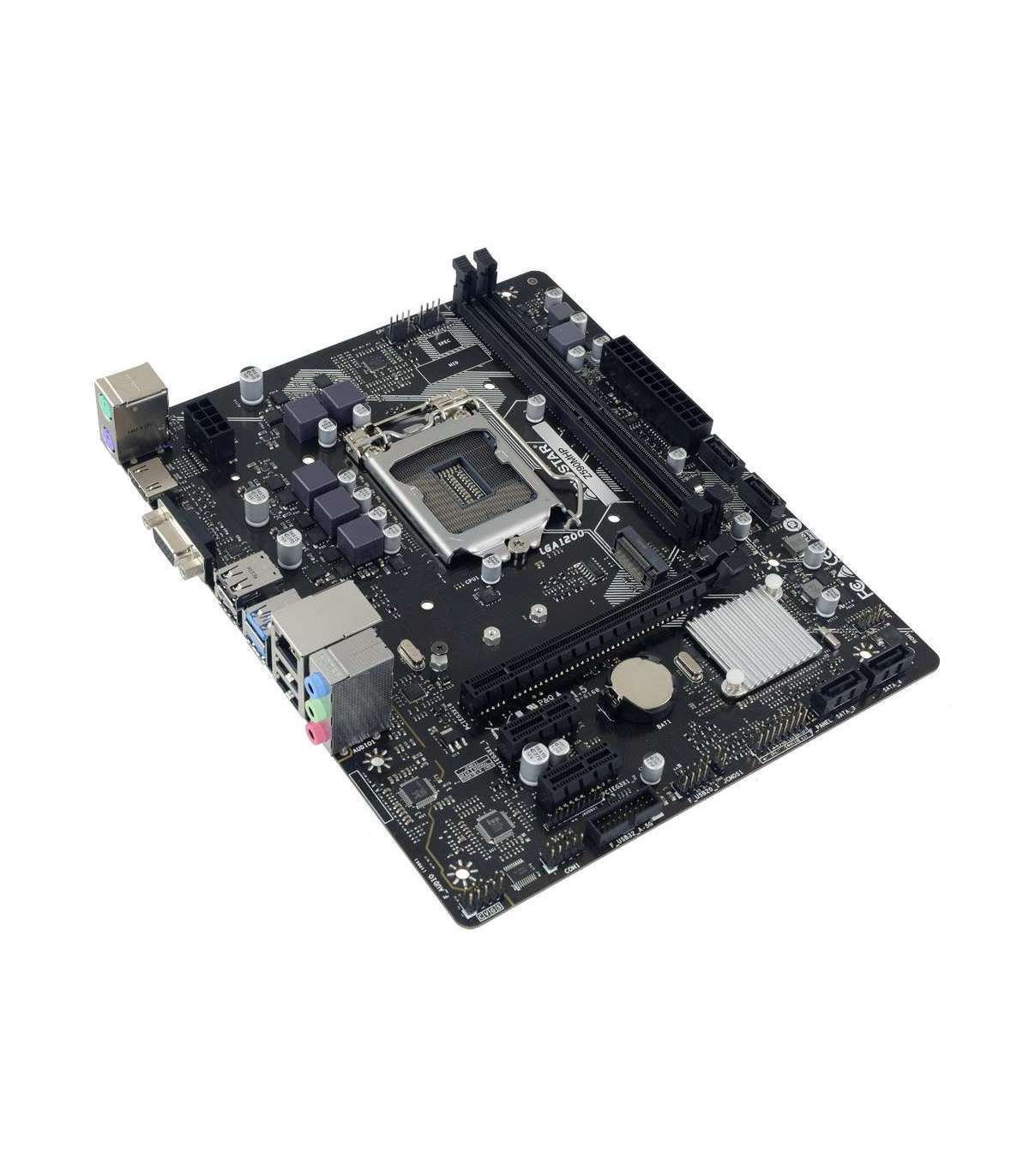

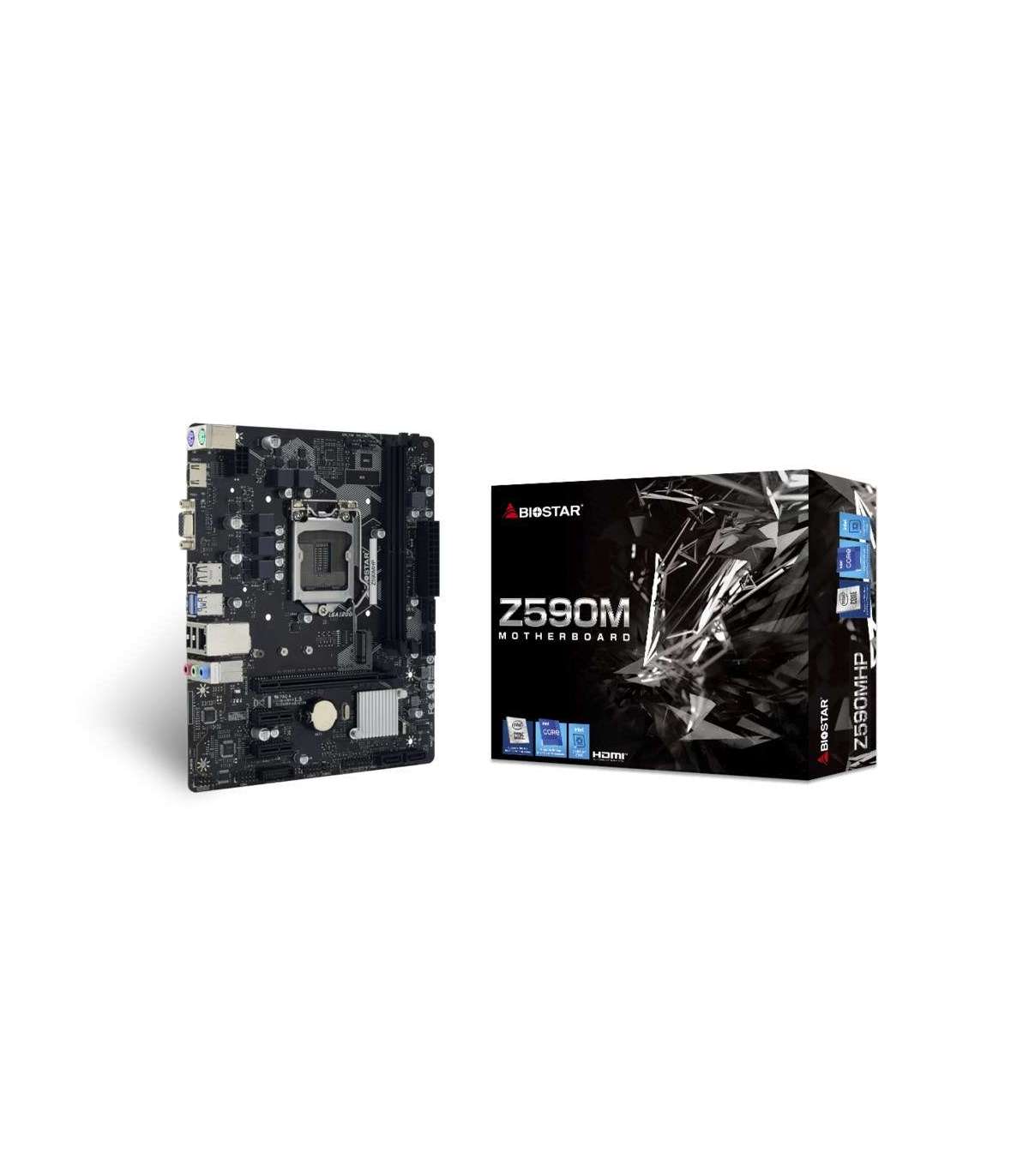

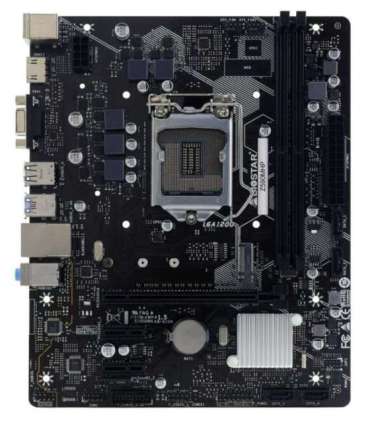

Biostar Z590MHP Intel Z590 LGA 1200 (Socket H5) micro ATX

Lisainfo

Depth

226 mm

Laius

185 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Fast Ethernet
Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel Z590

HDMI version

1.4

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Bundled software

BullGuard

USB 2.0 connectors

1

Processor socket

LGA 1200 (Socket H5)

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2800
2933
3200
3600
3733
3800
3866
4000

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I219-V

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Drivers included

Yes

Maximum number of SMP processors

1

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

Number of M.2 (M) slots

1

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

RAID support

Yes

DirectX version

12.0

Power fan connector

Yes
