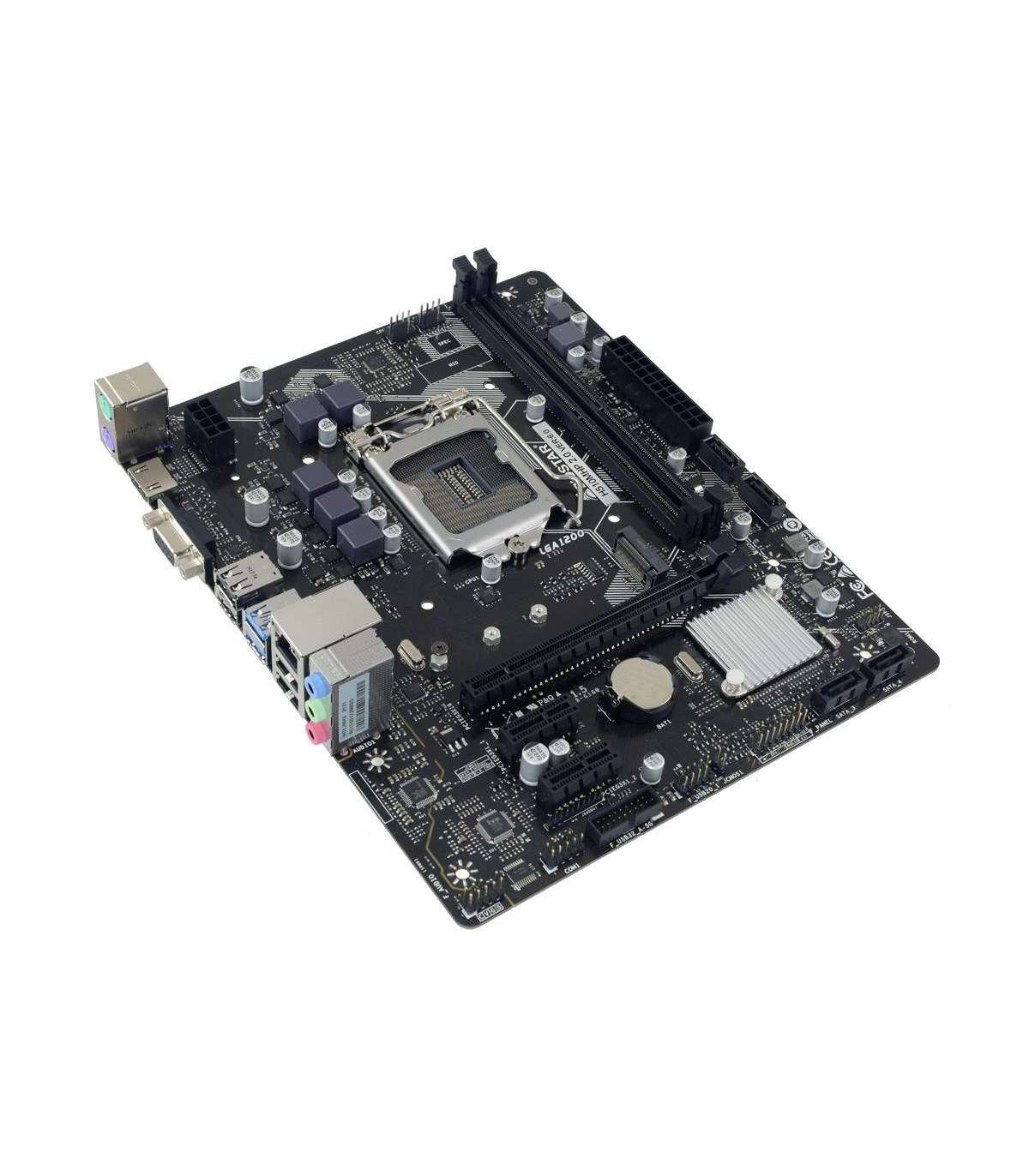

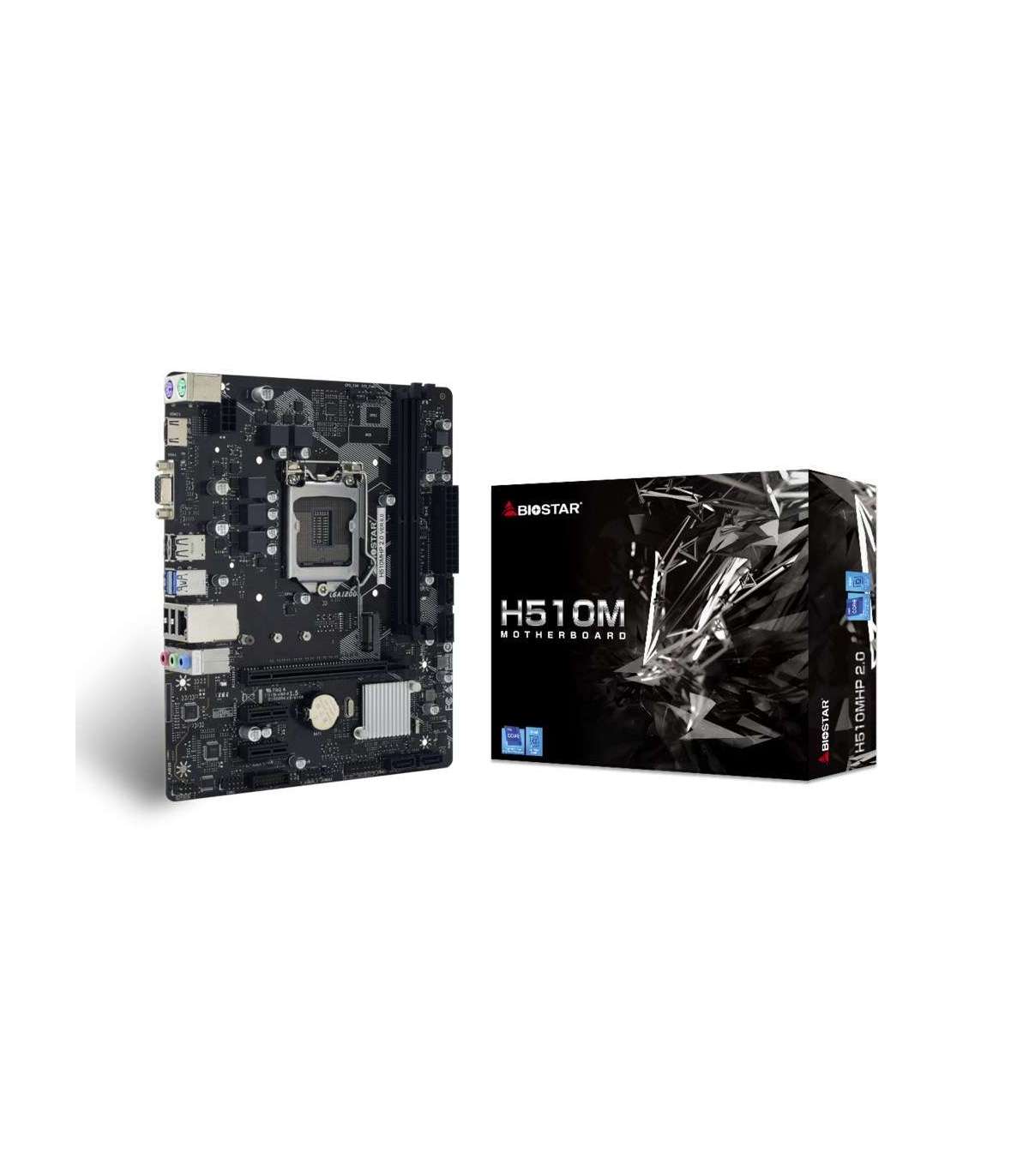

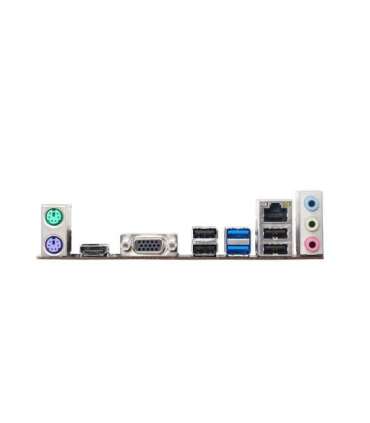

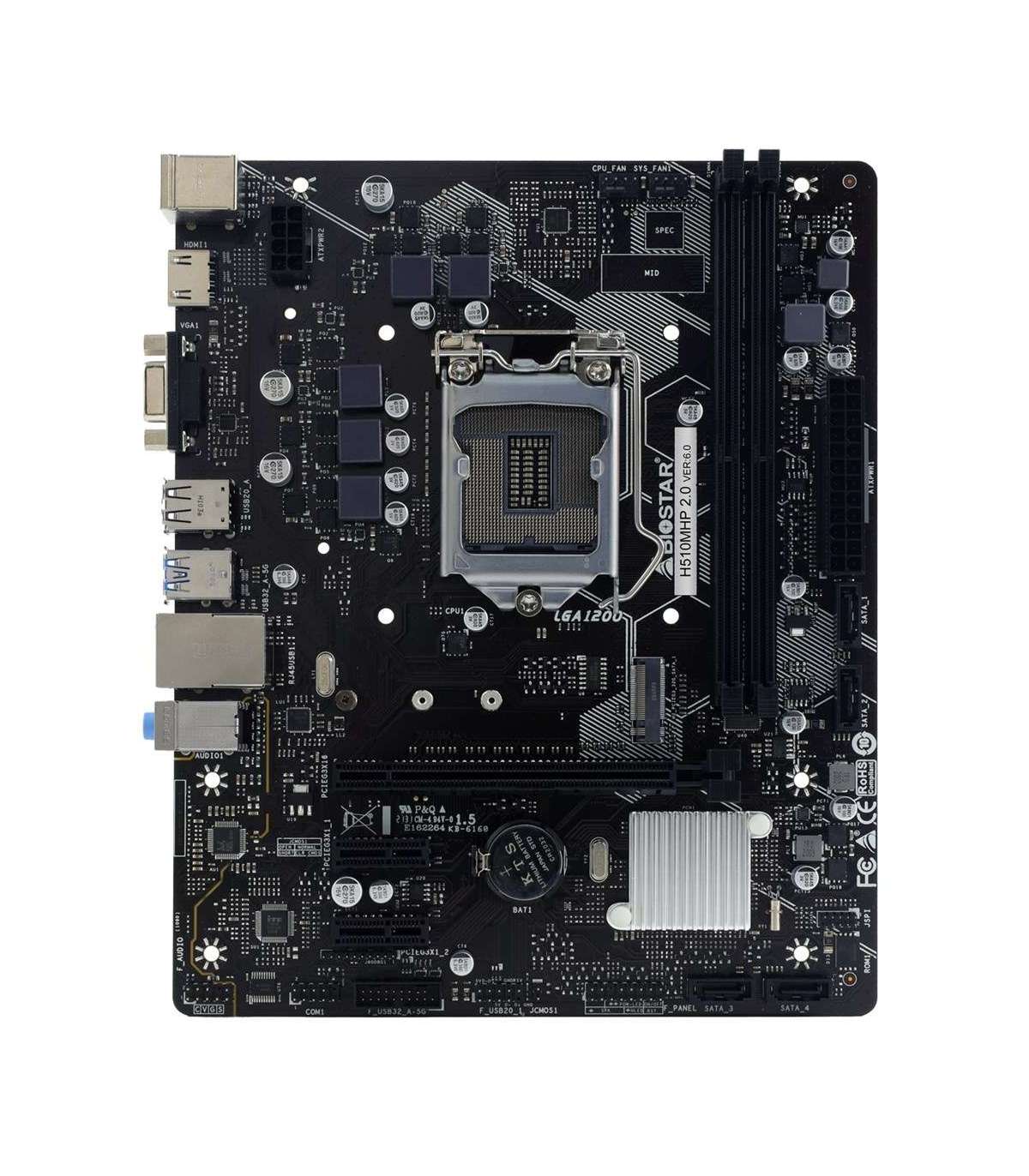

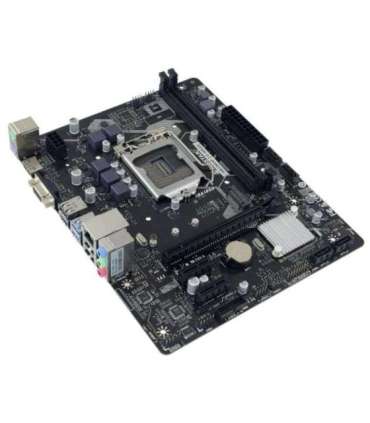

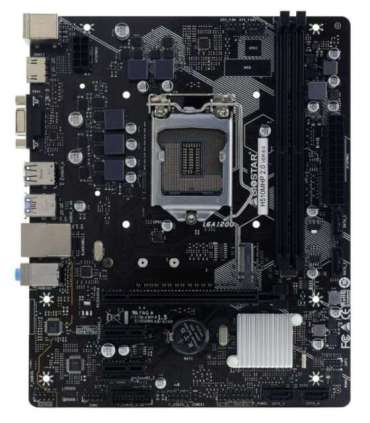

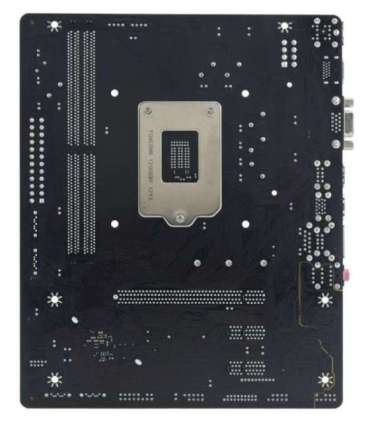

Biostar H510MHP 2.0 motherboard Intel H510 LGA 1200 (Socket H5) micro ATX

Lisainfo

Depth

226 mm

Laius

185 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H510

HDMI ports quantity

1

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

1

Processor socket

LGA 1200 (Socket H5)

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

1866
2133
2400
2666 MHz
2933
3200

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Intel® I219-V

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

Drivers included

Yes

Number of SATA III connectors

4

Clear CMOS jumper

Yes

Number of M.2 (M) slots

1

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

DirectX version

12.0

Supported memory module capacities

4GB
8GB
16GB
32GB

User guide

Yes
