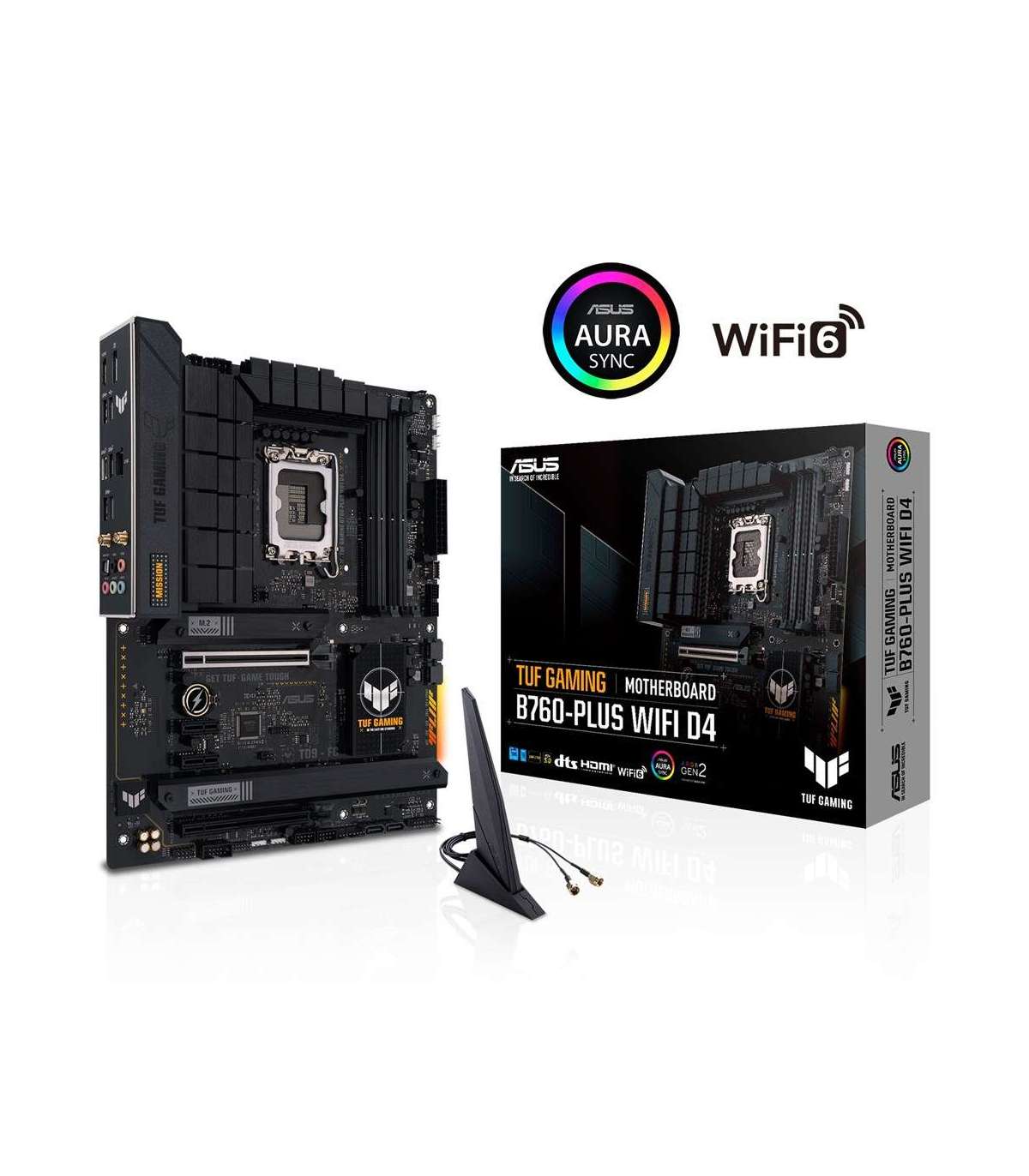

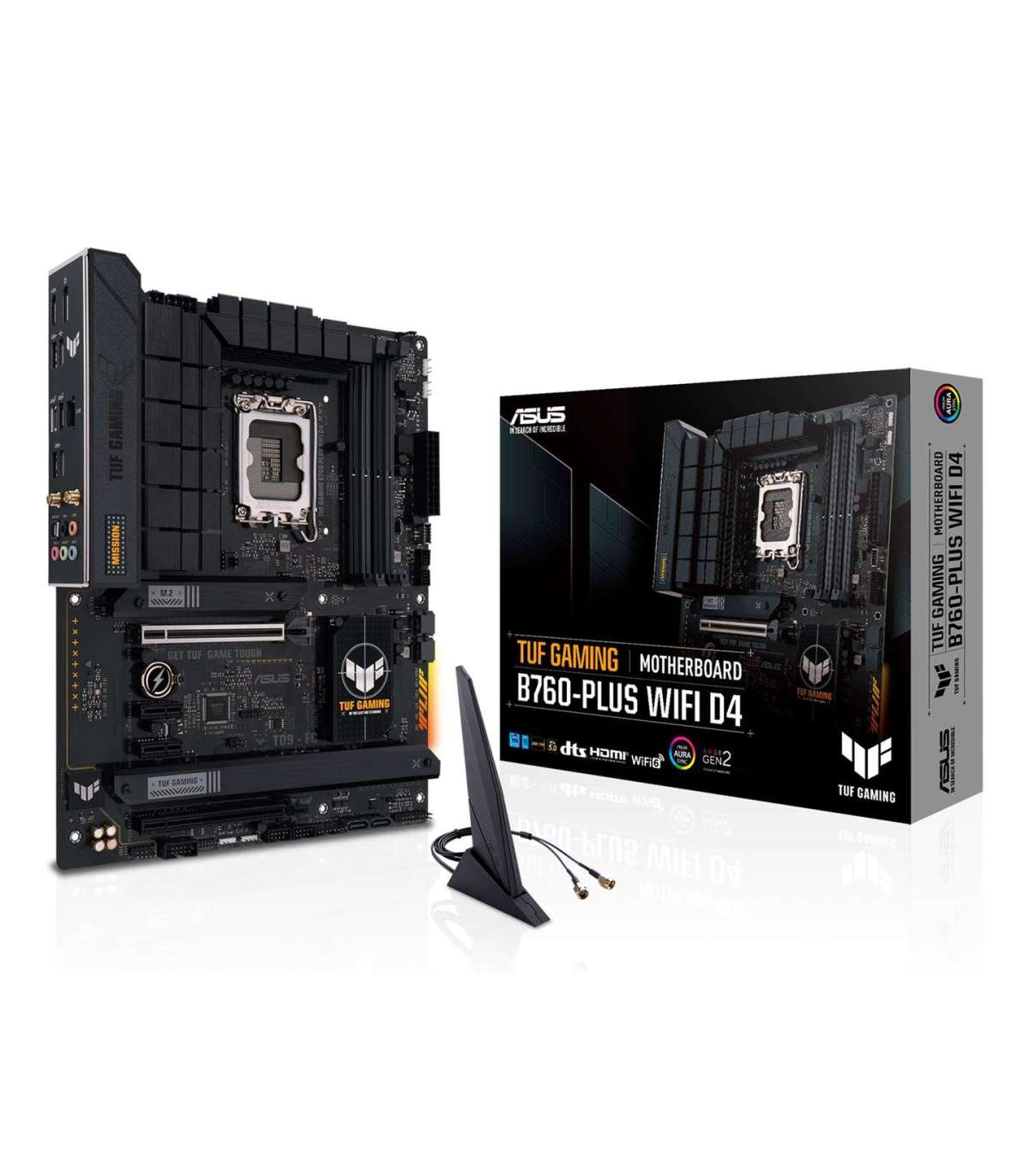

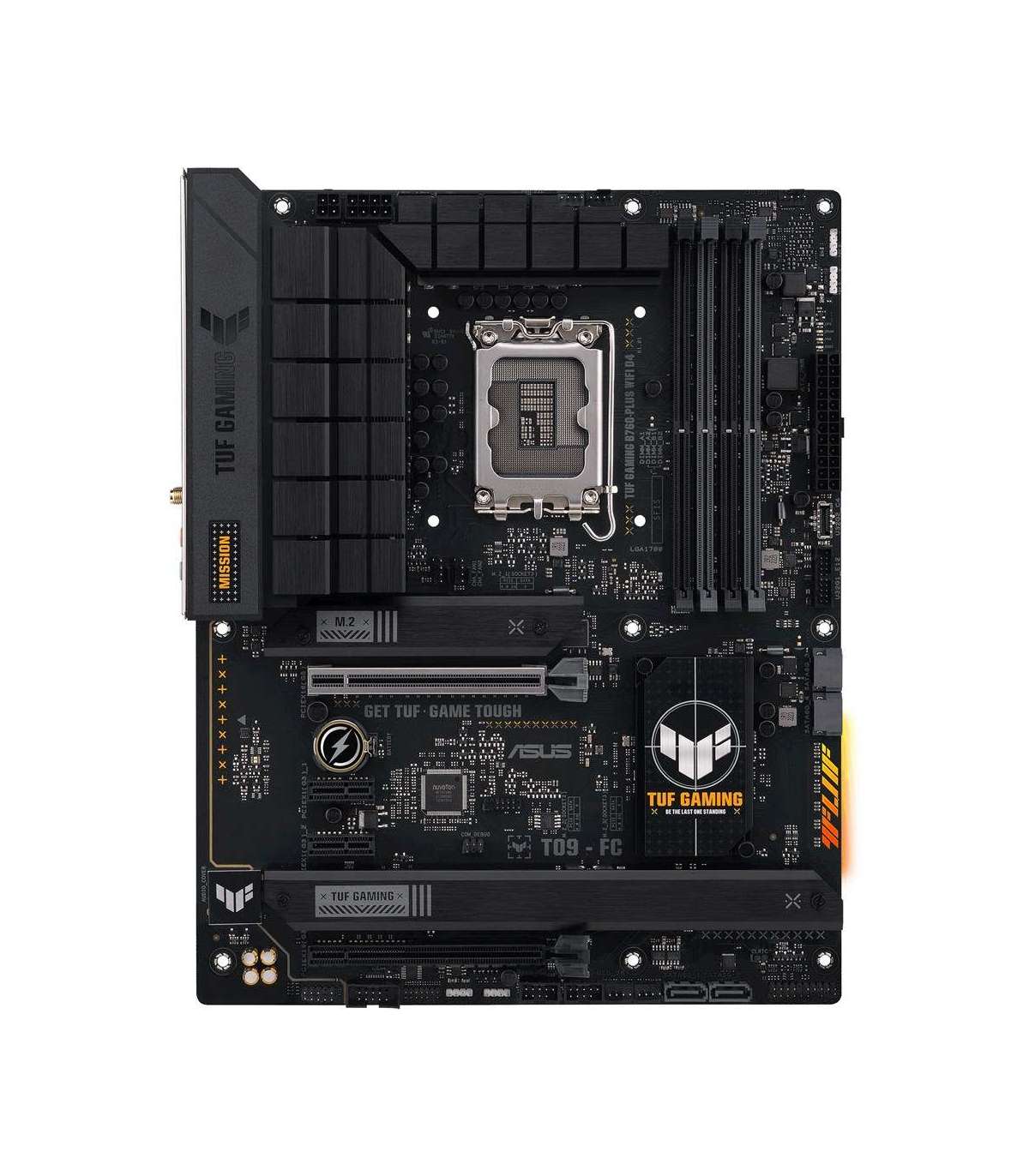

ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA 1700 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Package weight

1.98 kg

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Package width

331 mm

Package depth

76 mm

Package height

266 mm

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

1

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

Intel B760

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

7

RAID support

Yes

Line-in

Yes

Cooling type

Passive

DisplayPort version

1.4

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Peripheral (Molex) power connectors (4-pin)

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1

User guide

Yes
