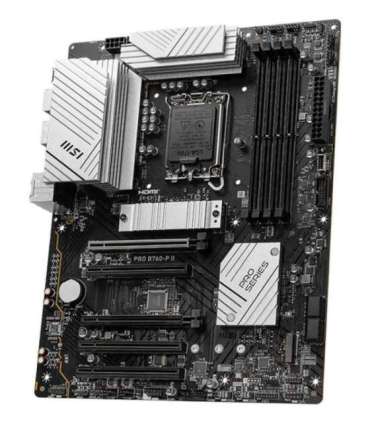

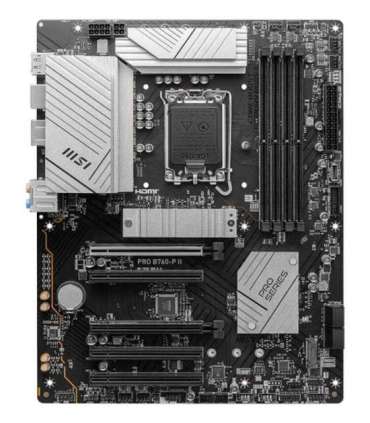

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600 MHz
5800
6000
6200
6400
6600
6800
7000

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

PCI Express 4.0, SATA III

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Drivers included

Yes

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

Clear CMOS jumper

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported memory clock speed (max)

7000 MHz

Front panel connector

Yes

Number of storage drives supported

6

RAID support

Yes

Power fan connector

Yes

S/PDIF out connector

Yes

DisplayPort version

1.4

Maximum internal memory supported by processor

256 GB

Clear CMOS button

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

2

PCI Express x4 (Gen 4.x) slots

1
