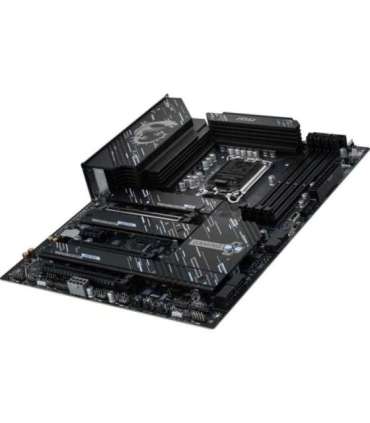

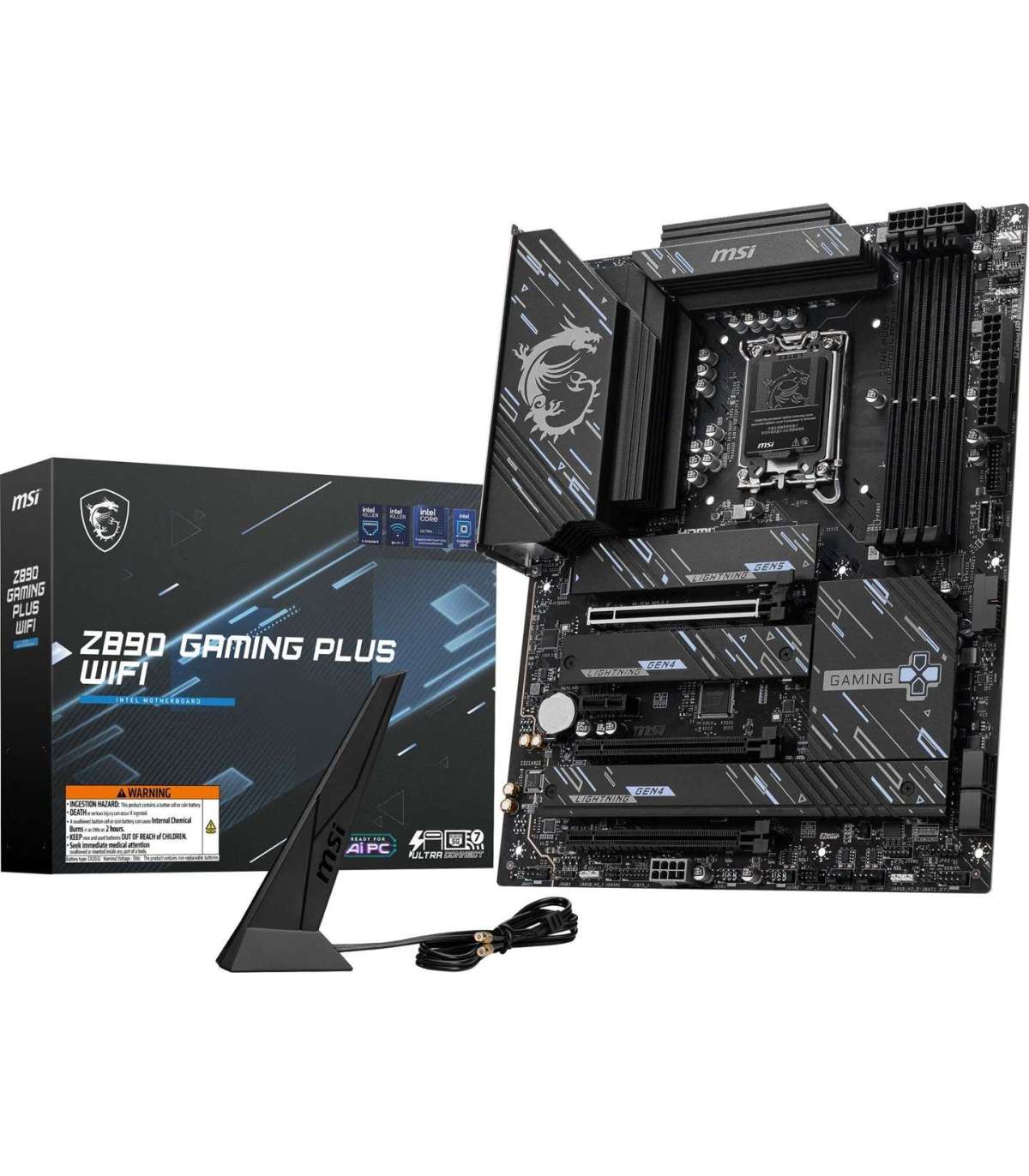

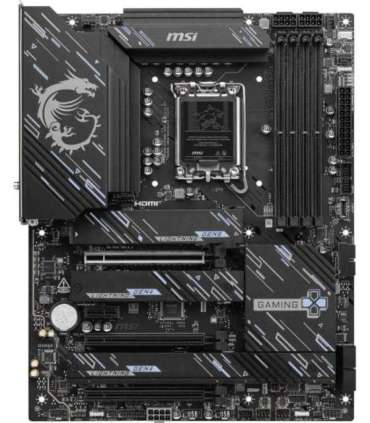

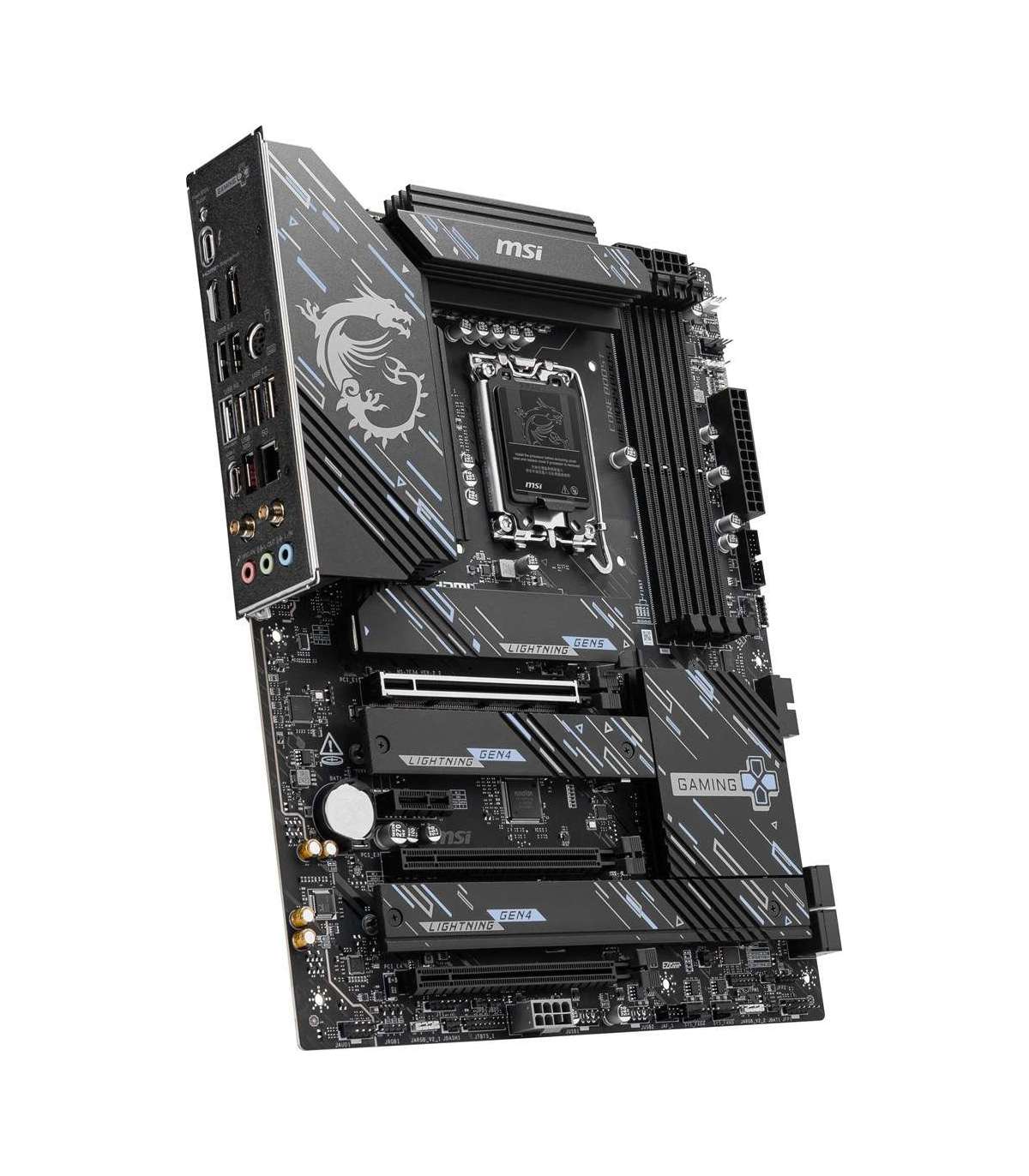

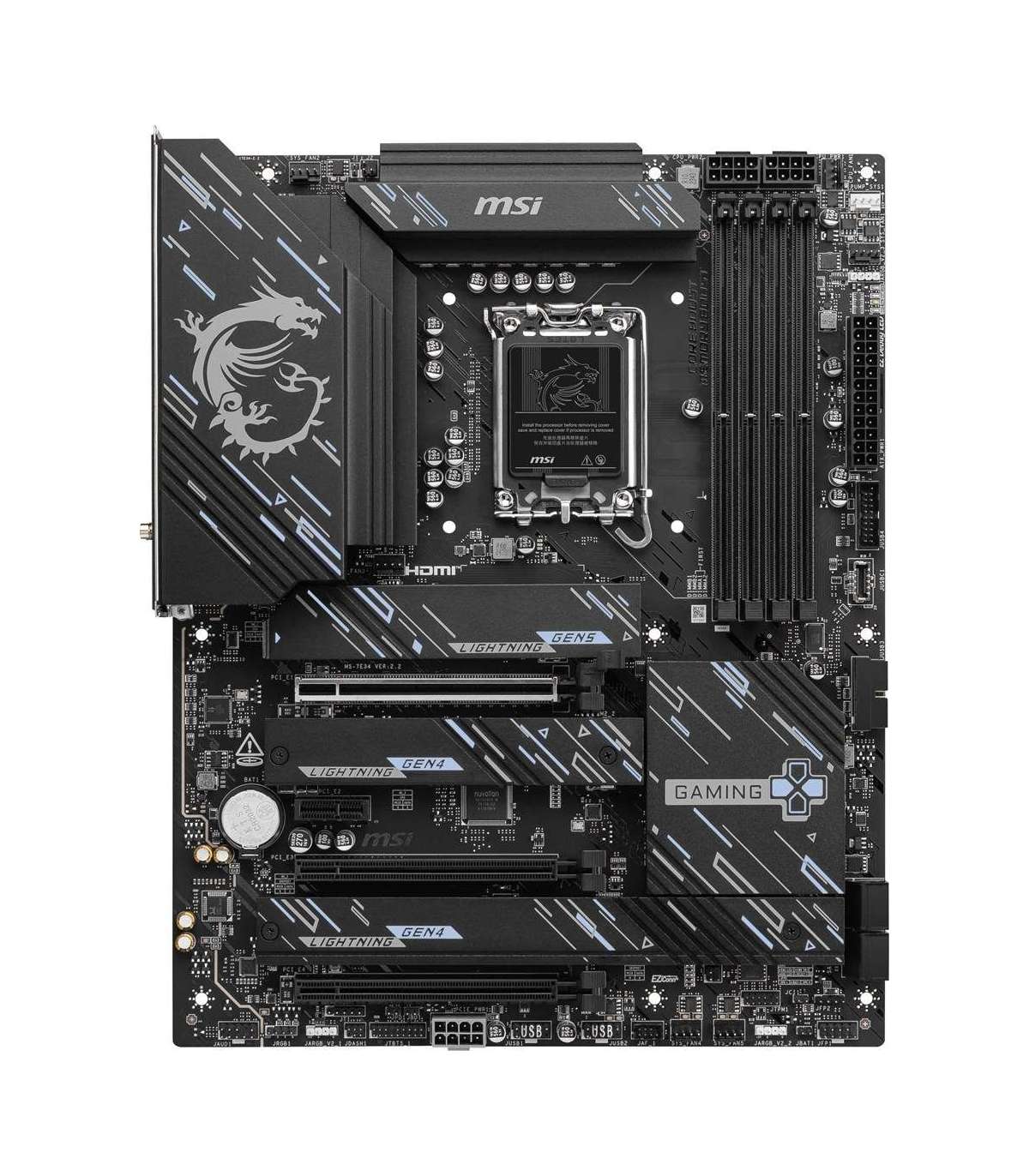

MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

No

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

Intel Z890

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

WLAN controller model

Killer Wi-Fi 7 BE1750

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

6400
9200 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Number of HDDs supported

8

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

4

Supported processor sockets

Intel LGA1851

Supported memory clock speed (max)

9200 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

4

RAID support

Yes

Number of EPS power connectors (8-pin)

1

DisplayPort version

1.4

Total number of SATA connectors

4

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

2

Thunderbolt ports quantity

1
