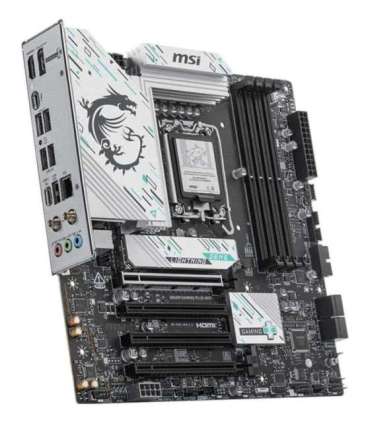

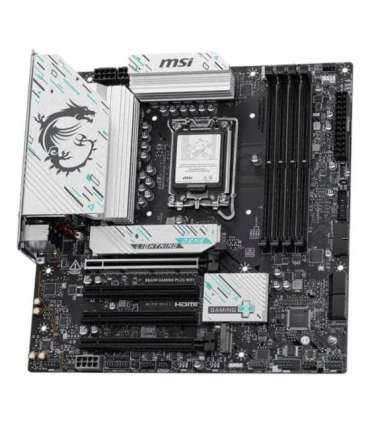

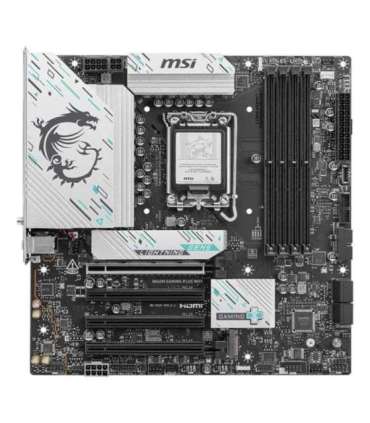

MSI B860M GAMING PLUS WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX

Lisainfo

Depth

243.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

Warnings

Do not open or modify the motherboard to prevent damage.
In case of installation problems, contact a qualified service technician.
When disposing of the product, follow local regulations for the recycling of electronics.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

Intel B860

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

WLAN controller model

Killer Wi-Fi 7 1750x

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
6400
8800 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, Micro SATA III

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

3

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1851

Supported memory clock speed (max)

8800 MHz

Number of storage drives supported

7

RAID support

Yes

Number of CPU fan connectors

1

Number of RGB LED pin headers

3

Number of water pump connectors

1

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

Total number of SATA connectors

4

Maximum internal memory supported by processor

256 GB

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280
