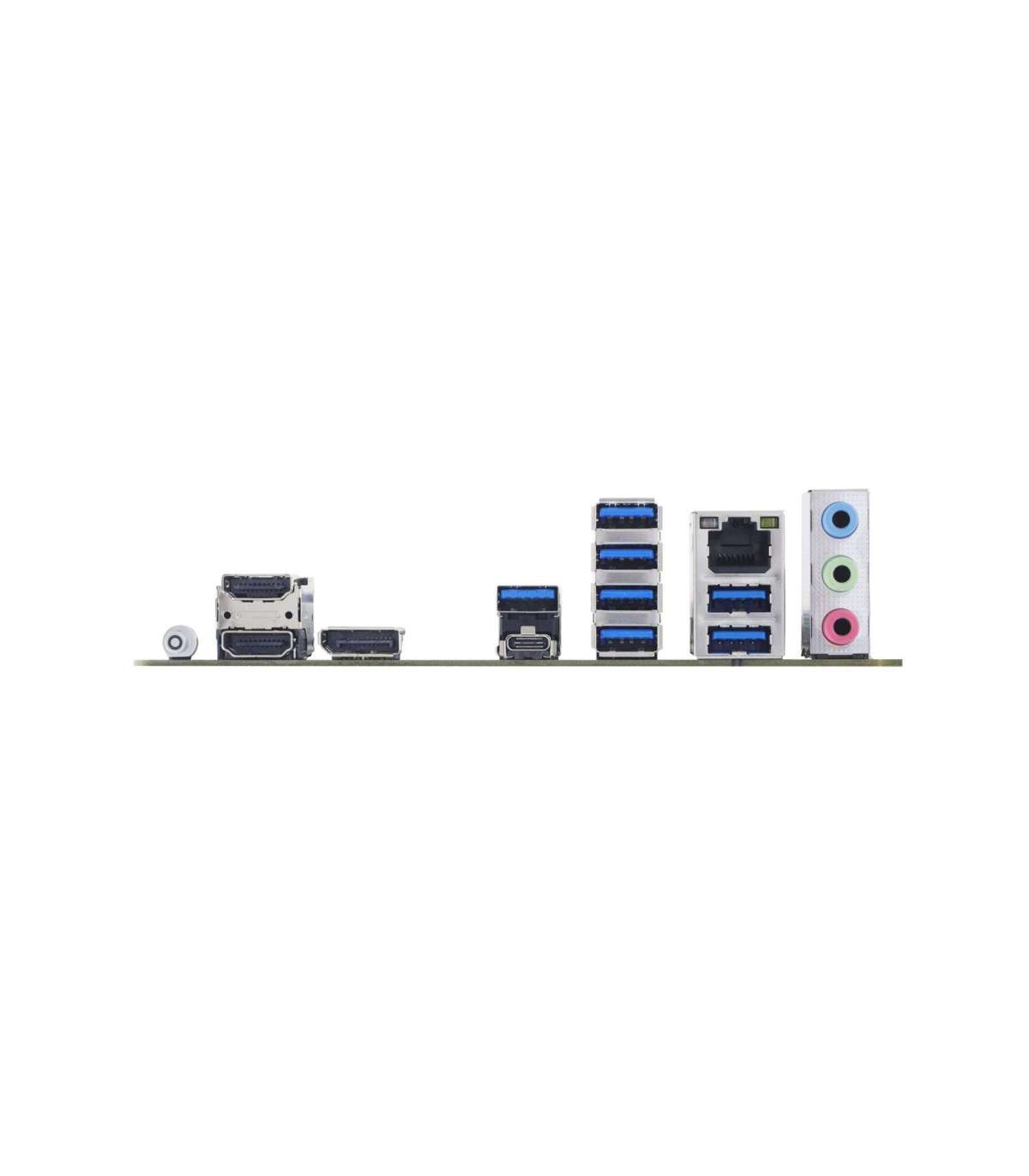

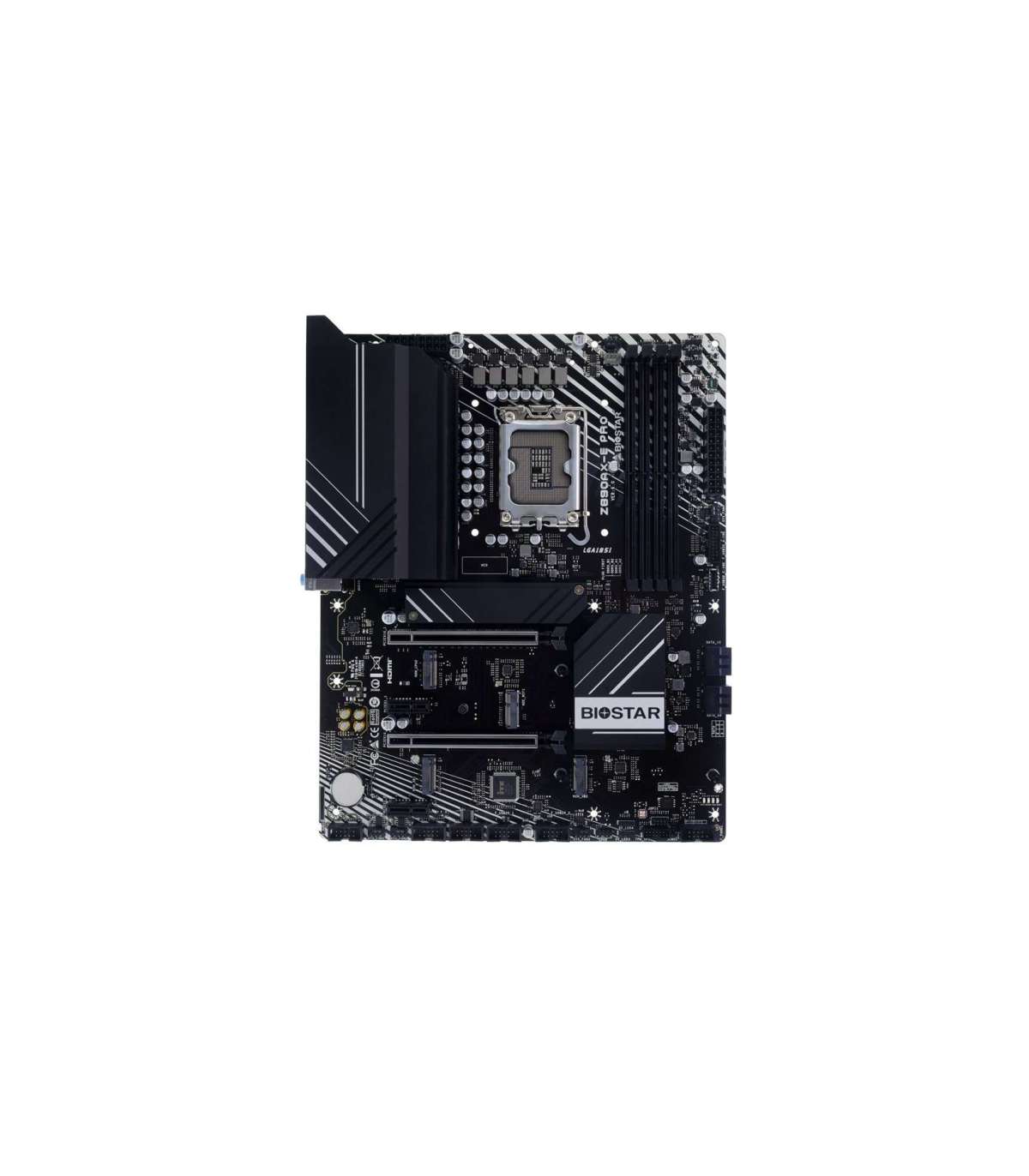

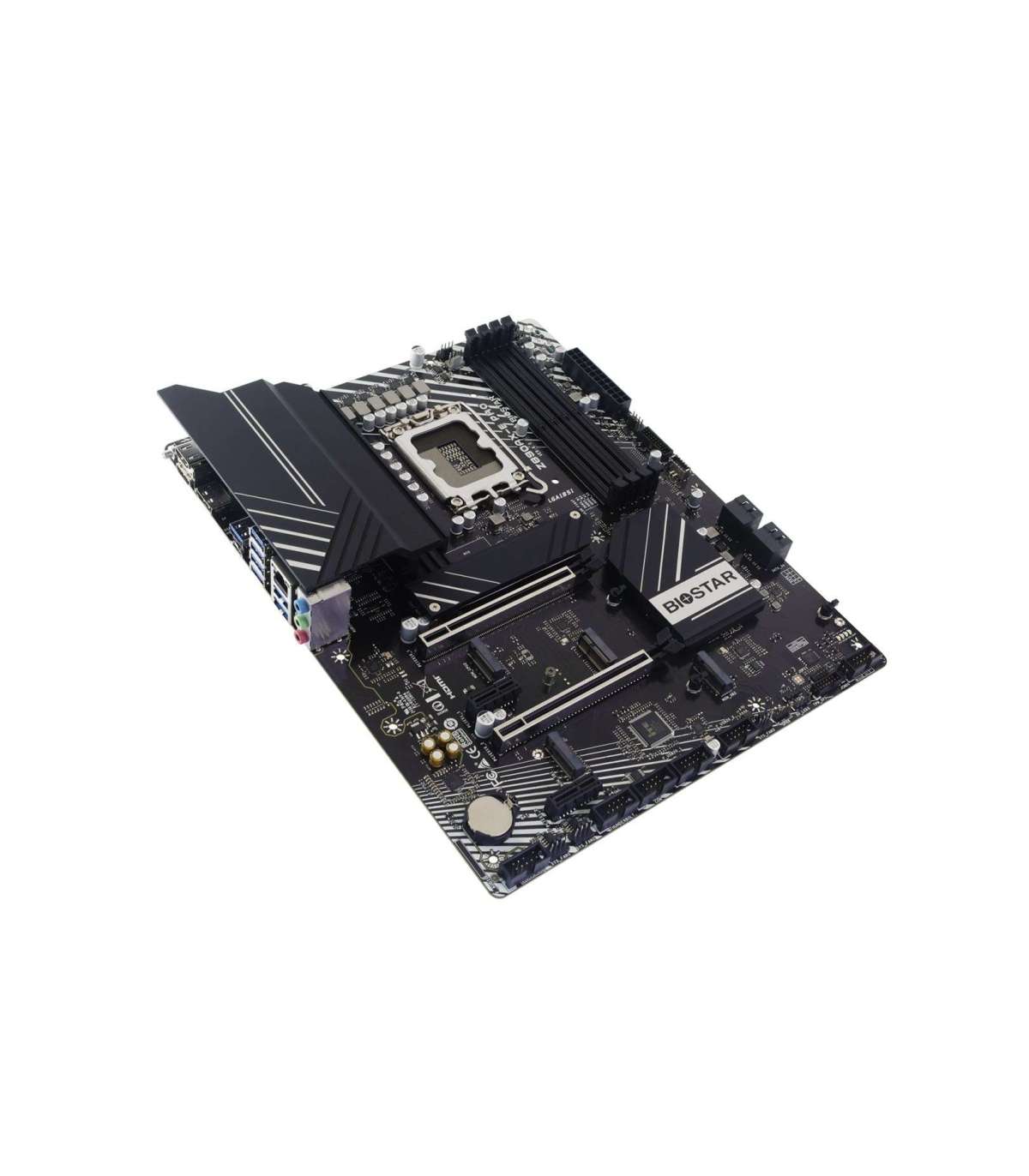

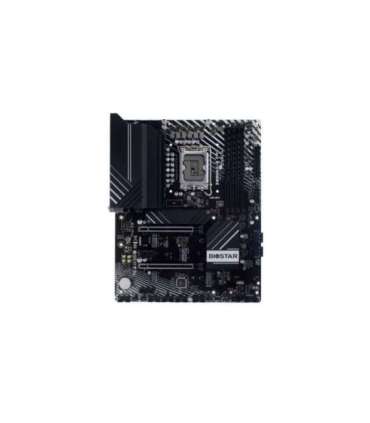

BIOSTAR Z890AX-E PRO

Lisainfo

Depth

244 mm

Kõrgus

35 mm

Laius

244 mm

Package weight

1.12 kg

Product colour

Must

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Package width

265 mm

Package depth

265 mm

Package height

54 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A
USB Type-C

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Maximum internal memory

192 GB

Motherboard chipset

Intel Z890

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI ports quantity

2

Number of battery cells

1

Memory channels

Dual-channel

Battery weight

3 g

Headphone outputs

1

USB 2.0 connectors

4

Processor socket

LGA1851

Motherboard form factor

ATX

Motherboard chipset family

Intel

Unbuffered memory

No

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

3840 x 2160 pixels

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

No

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

4

Supported processor sockets

Intel LGA1851

HDCP

No

Supported memory clock speed (max)

7600 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

PCI Express x16 slots

1

PCI Express x1 slots

4

Battery type

CR2032

Lithium weight per battery

0.07 g

DirectX version

12.0

Supported memory module capacities

192GB

S/PDIF out connector

No

Maximum internal memory supported by processor

256 GB

Parallel connector

No
