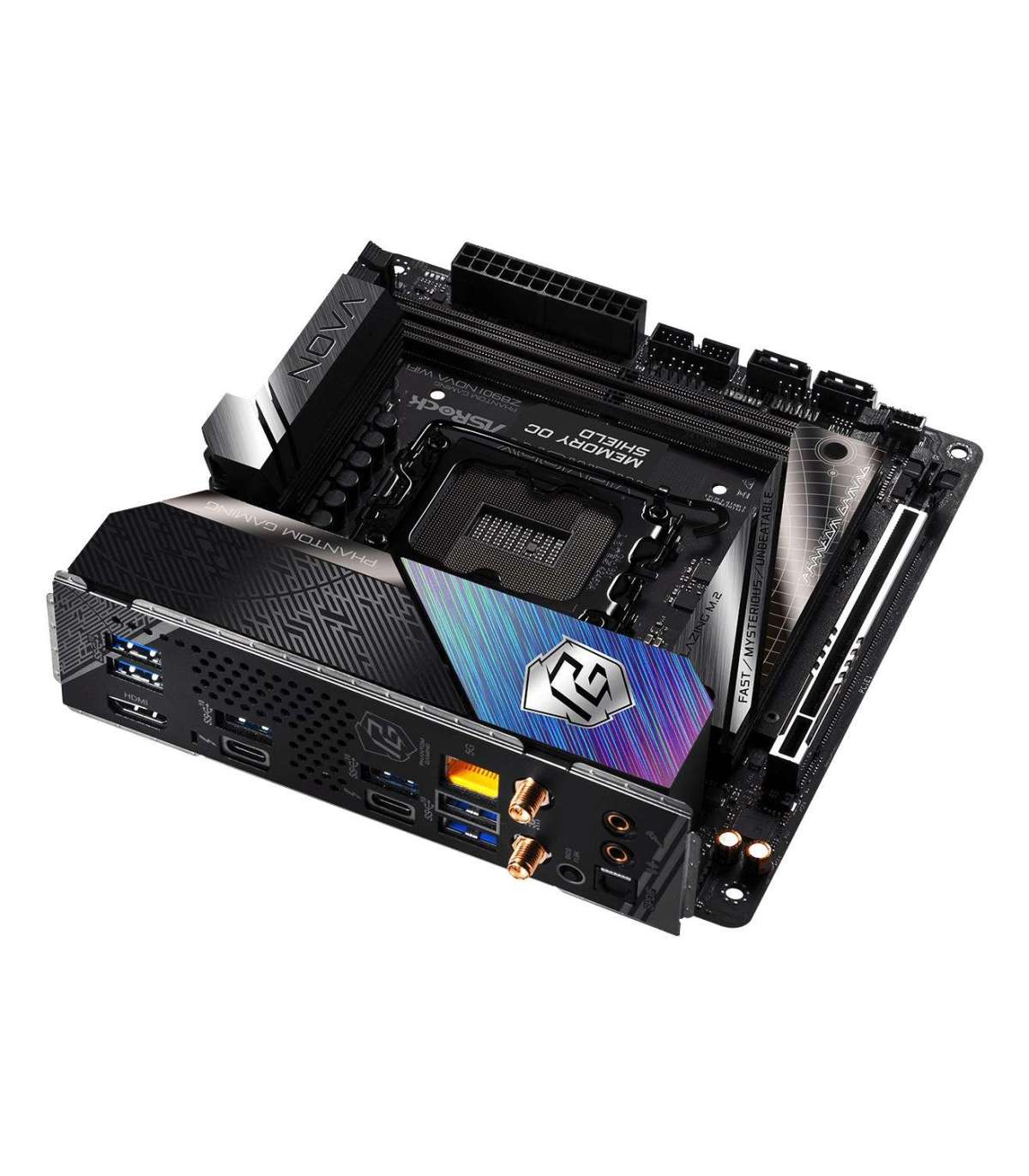

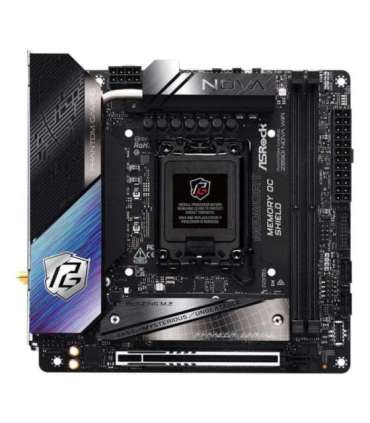

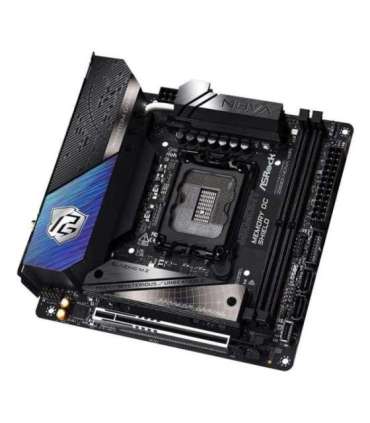

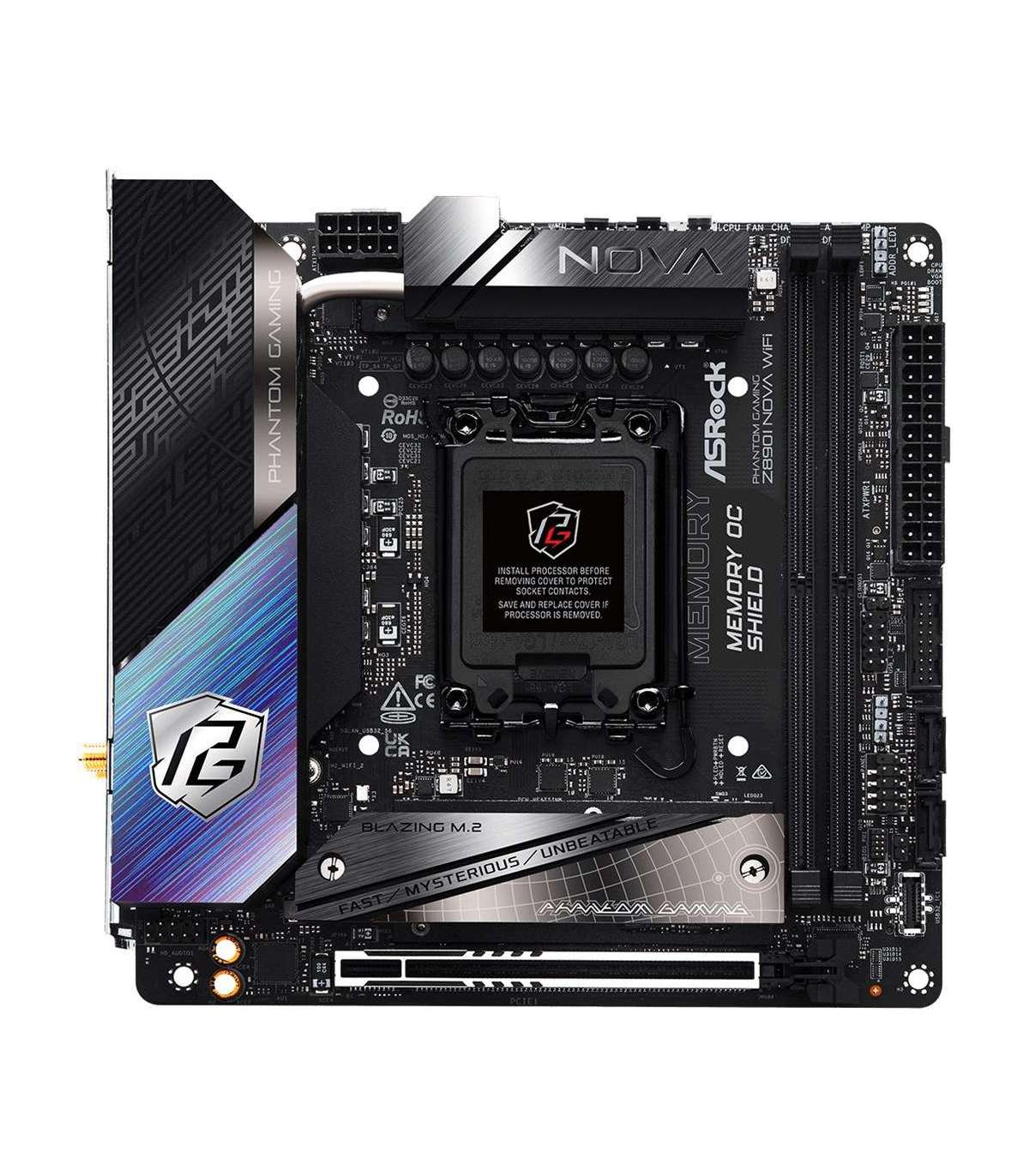

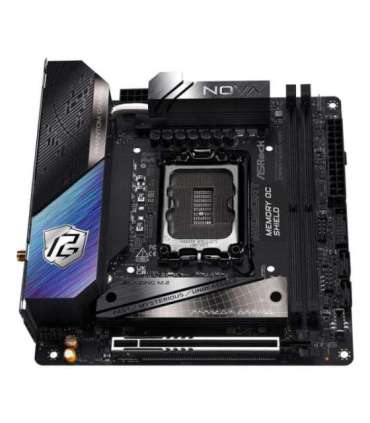

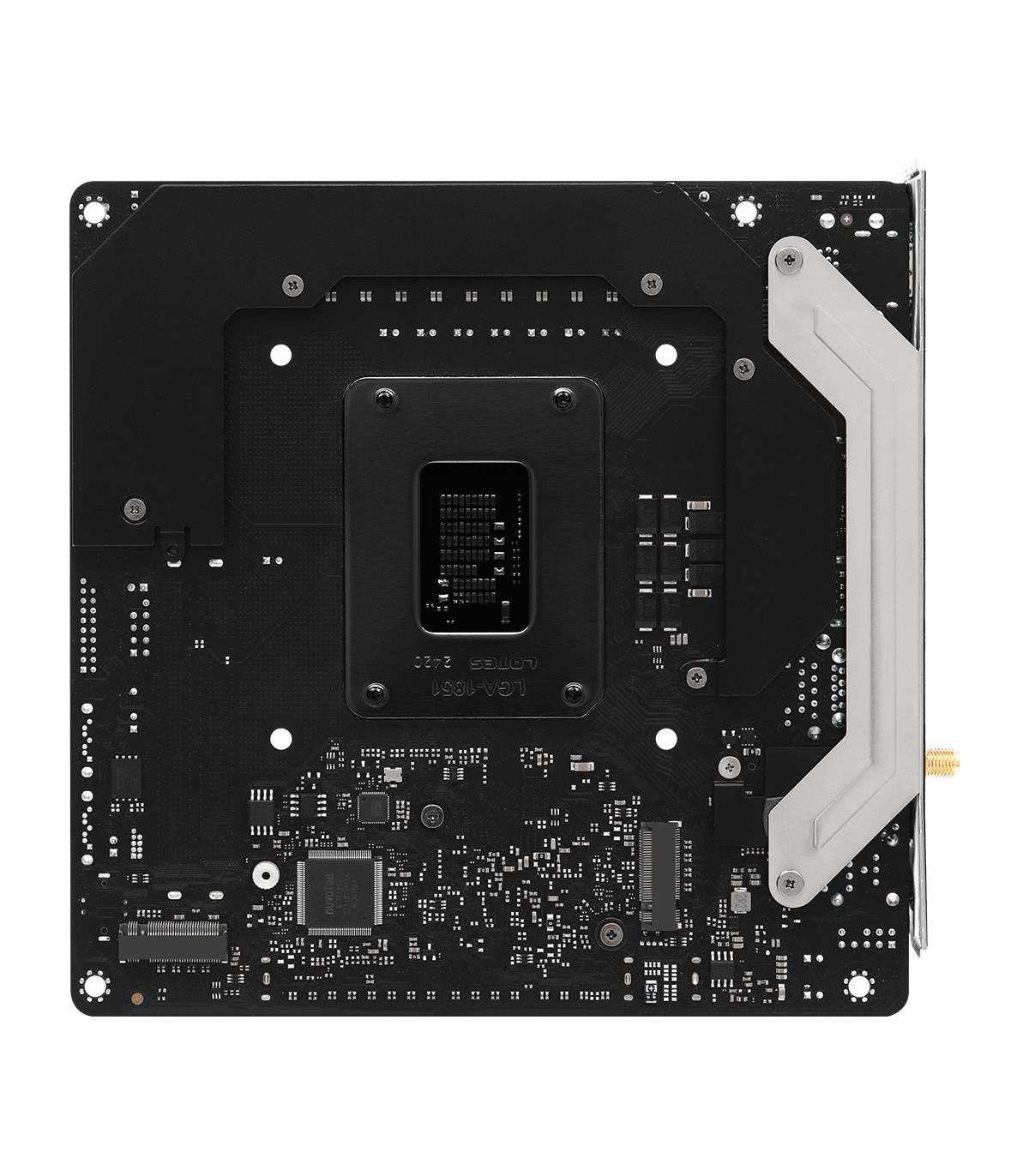

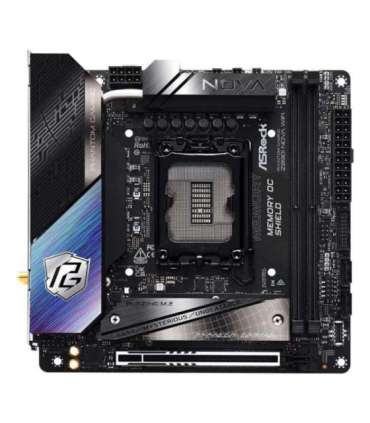

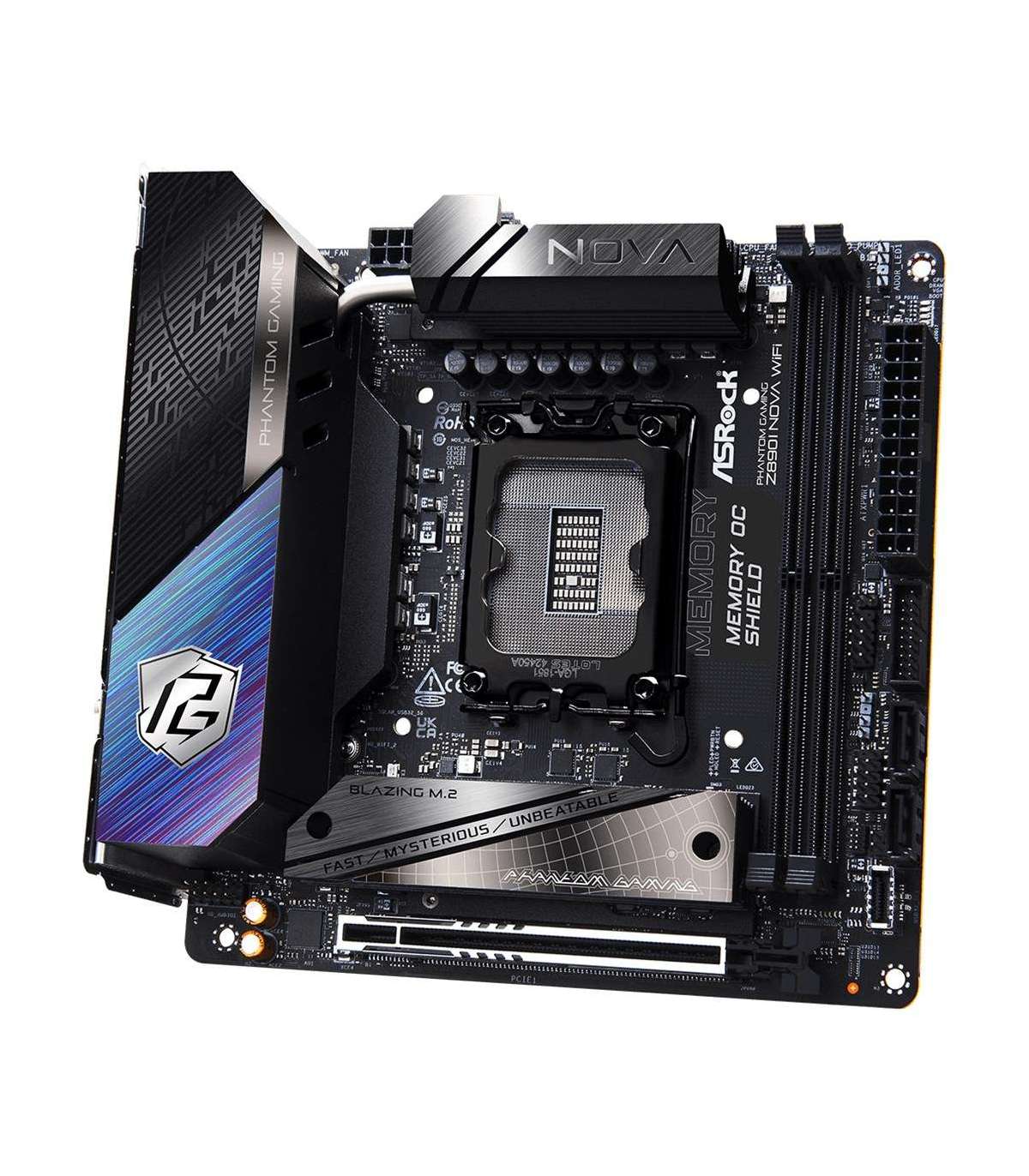

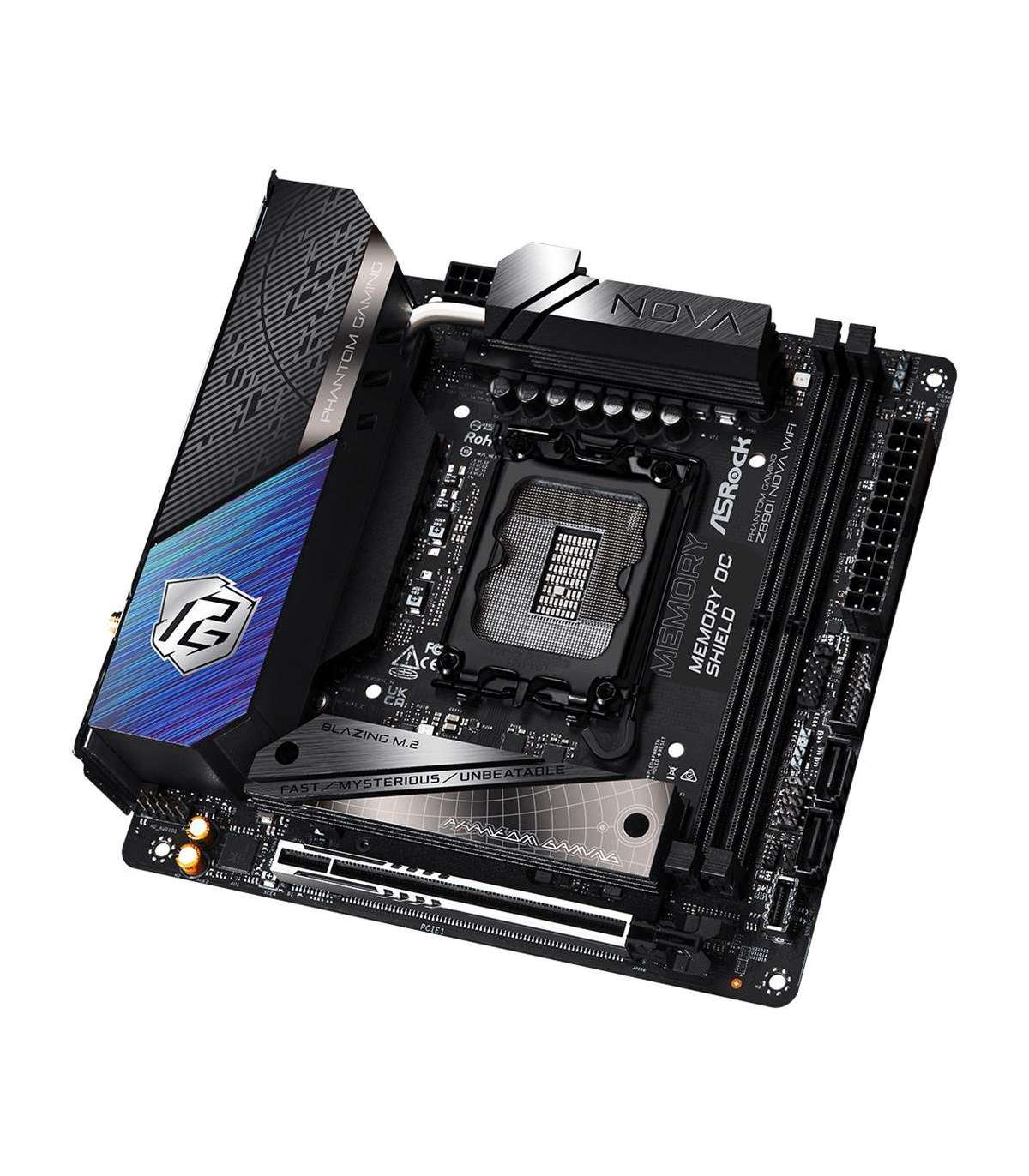

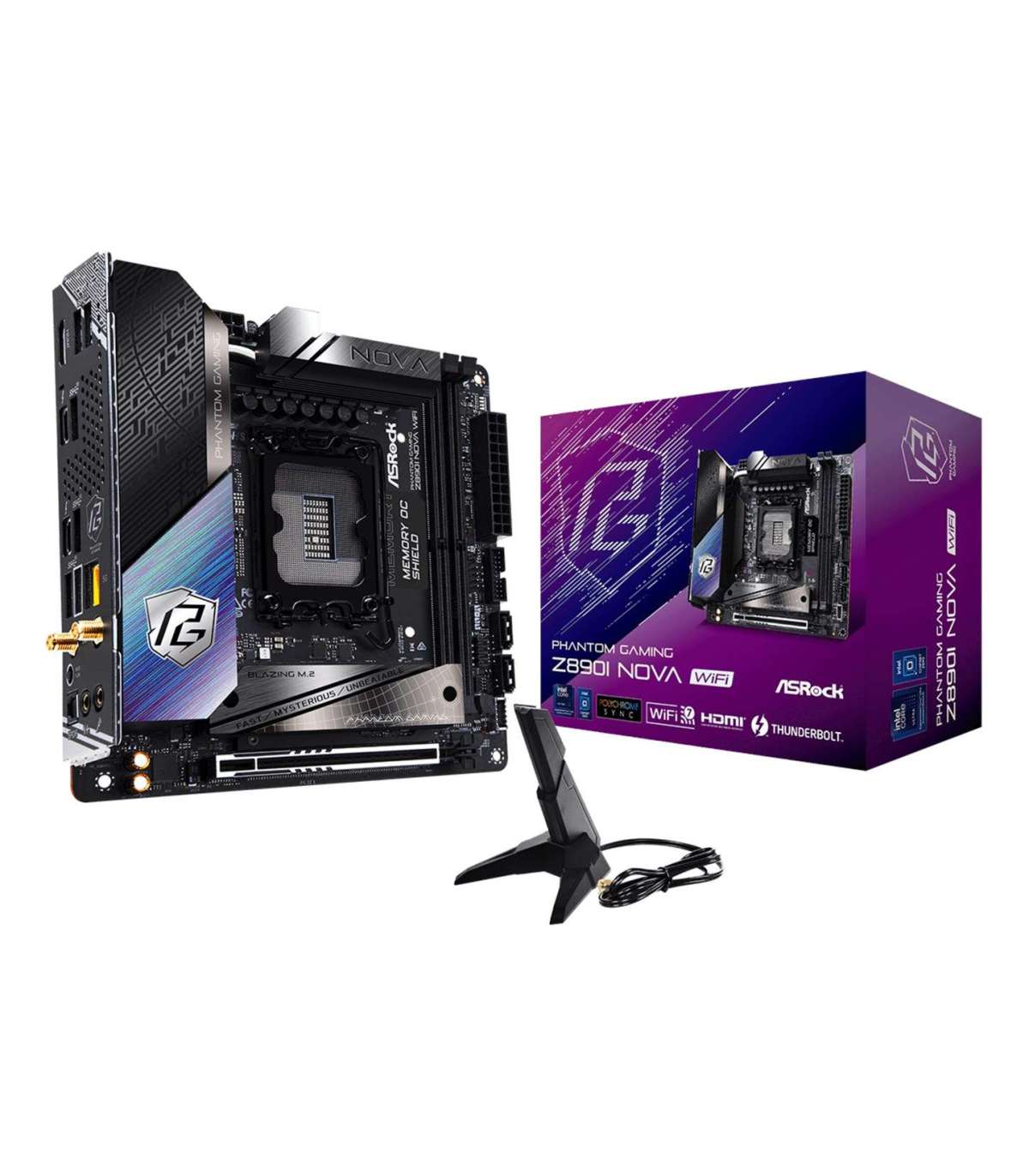

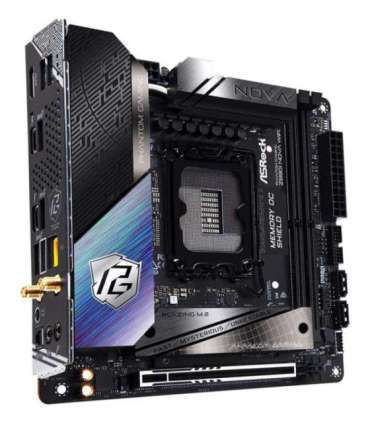

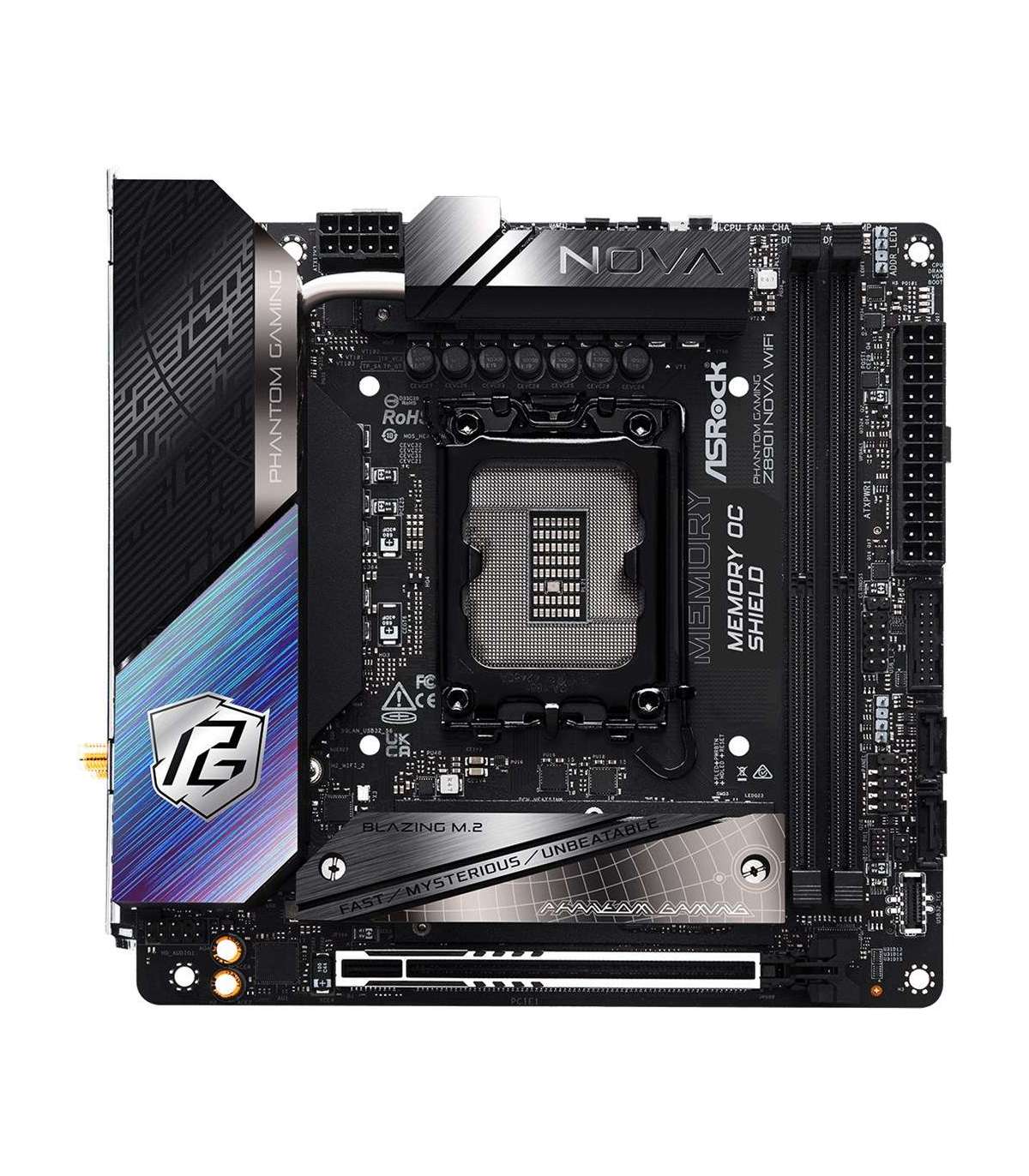

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX

Lisainfo

Depth

170 mm

Laius

170 mm

Product colour

Must

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

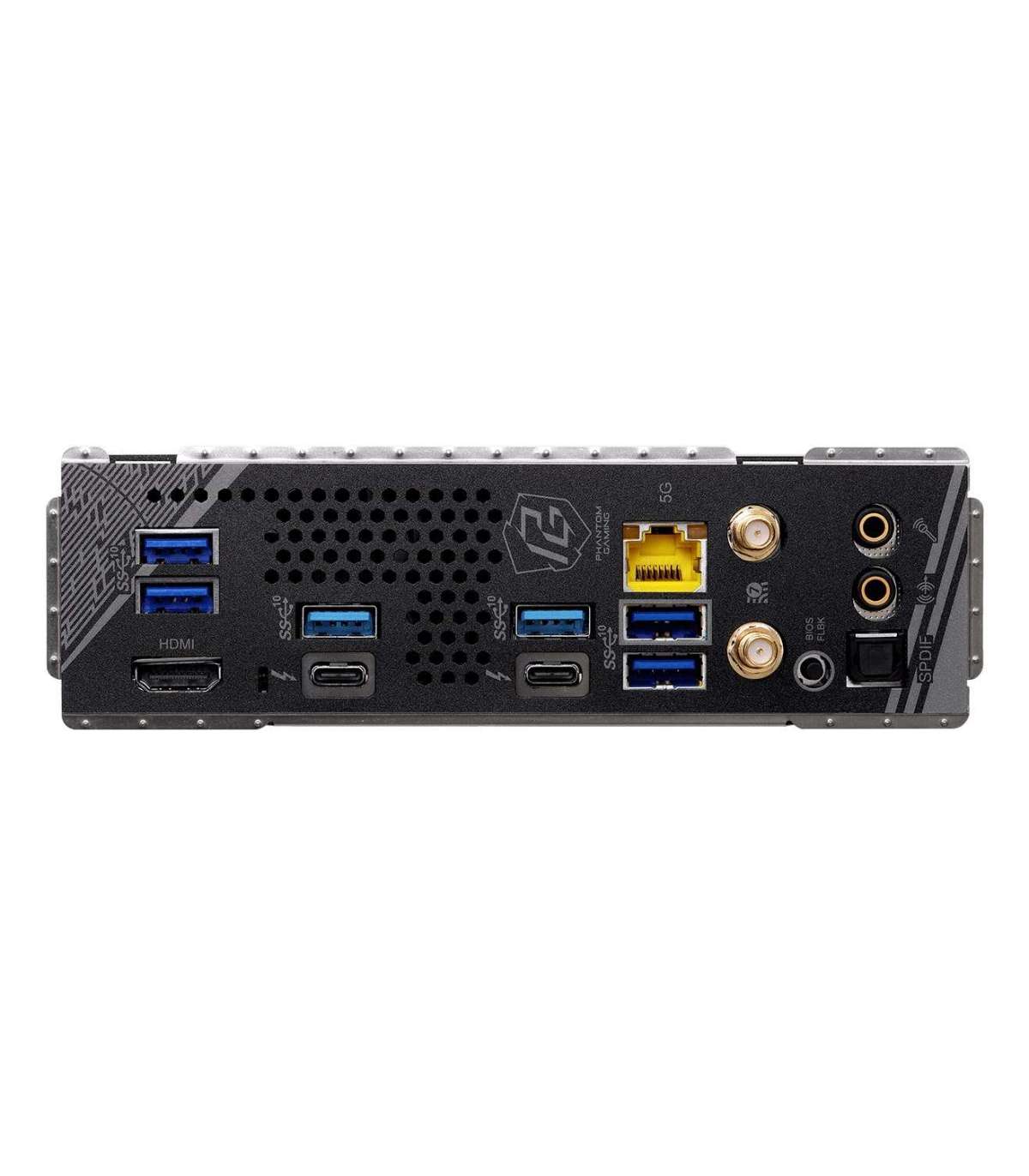

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

Antenna included

Yes

Certification

FCC, CE, ErP/EuP

Wi-Fi

Yes

Ethernet interface type

5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

128 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

Intel Z890

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4082

Headphone outputs

1

USB 2.0 connectors

1

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8126

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

PCI Express 4.0, PCI Express 5.0, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

Number of SATA III connectors

2

12V power connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

S/PDIF out port

Yes

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1851

HDCP

Yes

EPS power connector (8-pin)

Yes

Number of storage drives supported

5

RAID support

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of water pump connectors

1

Screws included

Yes

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

WiFi-AP antenna jack

2

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

1

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

Thunderbolt ports quantity

2
