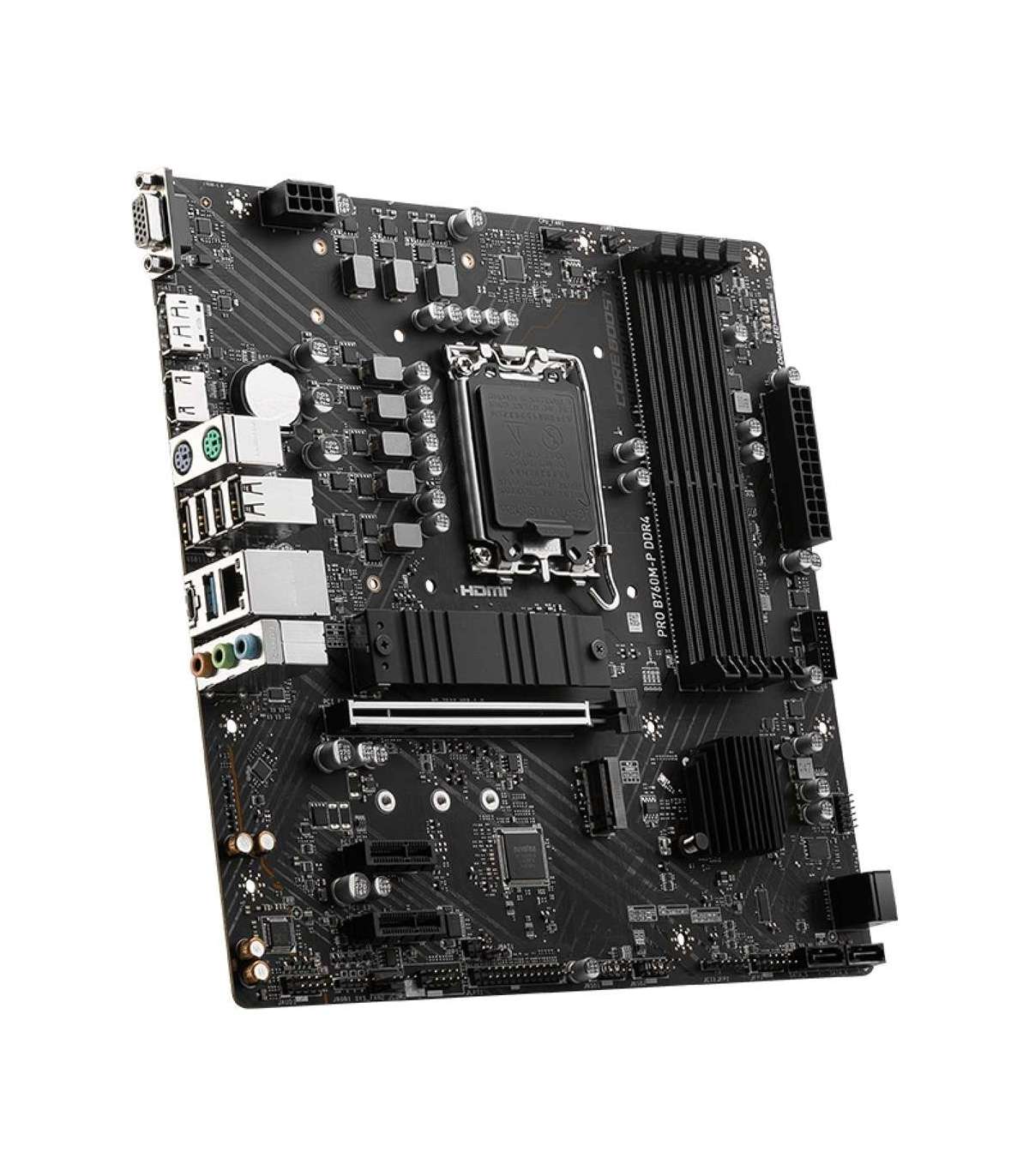

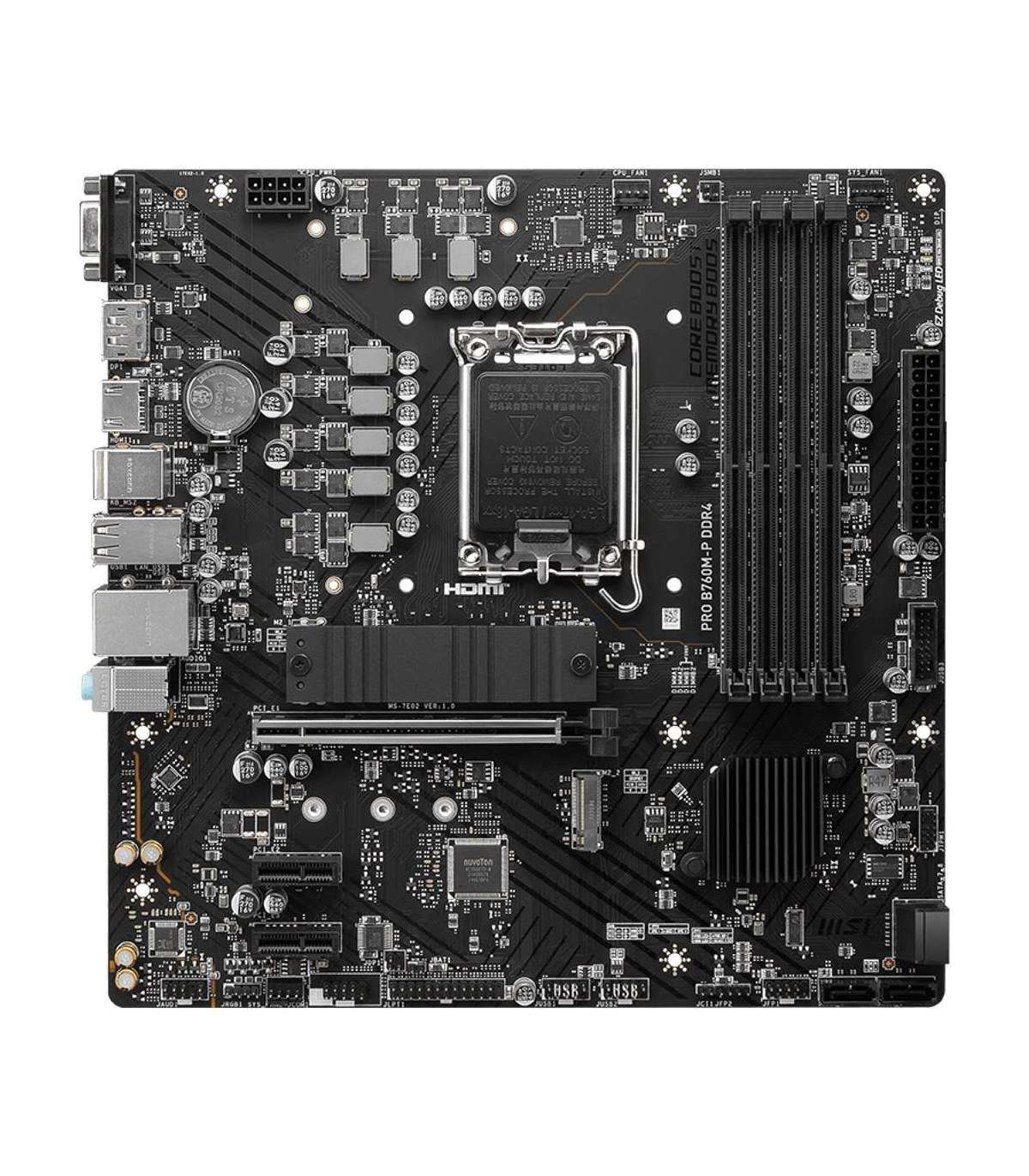

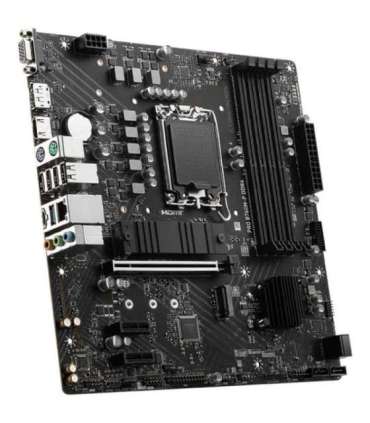

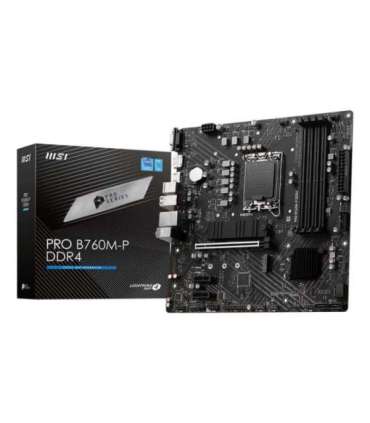

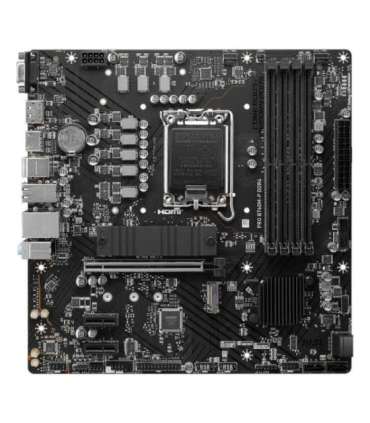

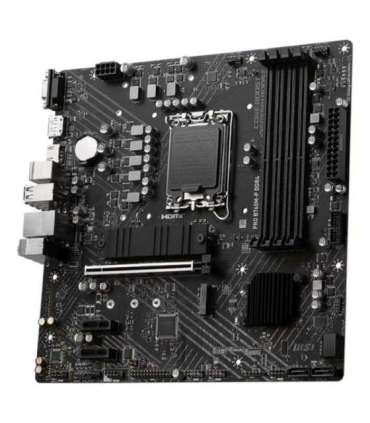

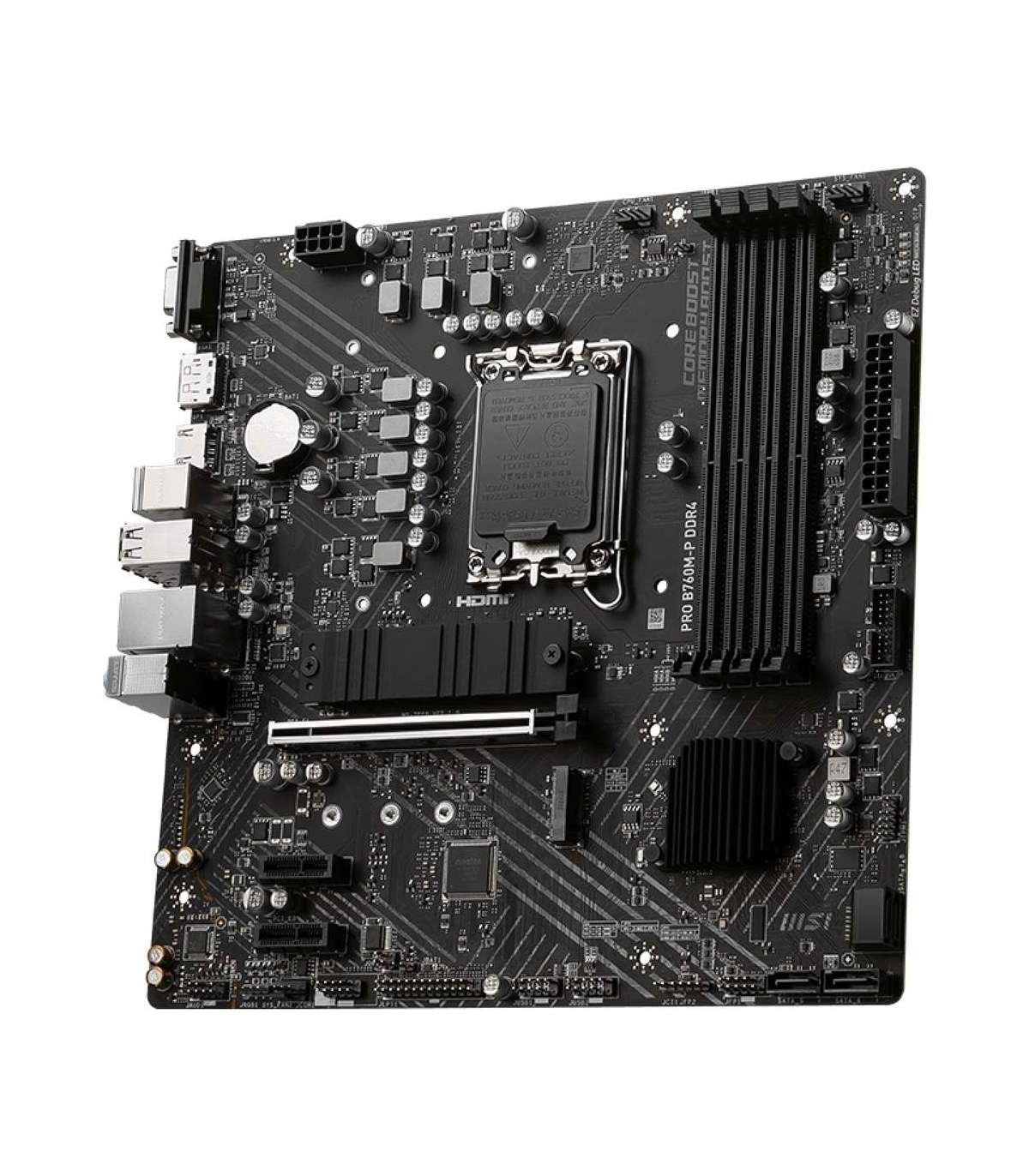

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

243.8 mm

Laius

243.8 mm

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

No

Maximum internal memory

128 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

1.4

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2933
3200
3333
3400
3466
3600
3733
3800
4000
4200
4266
4400
4600
4800 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

4800 MHz

Front panel connector

Yes

RAID support

Yes

PCI Express x16 slots

2

DisplayPort version

1.4
