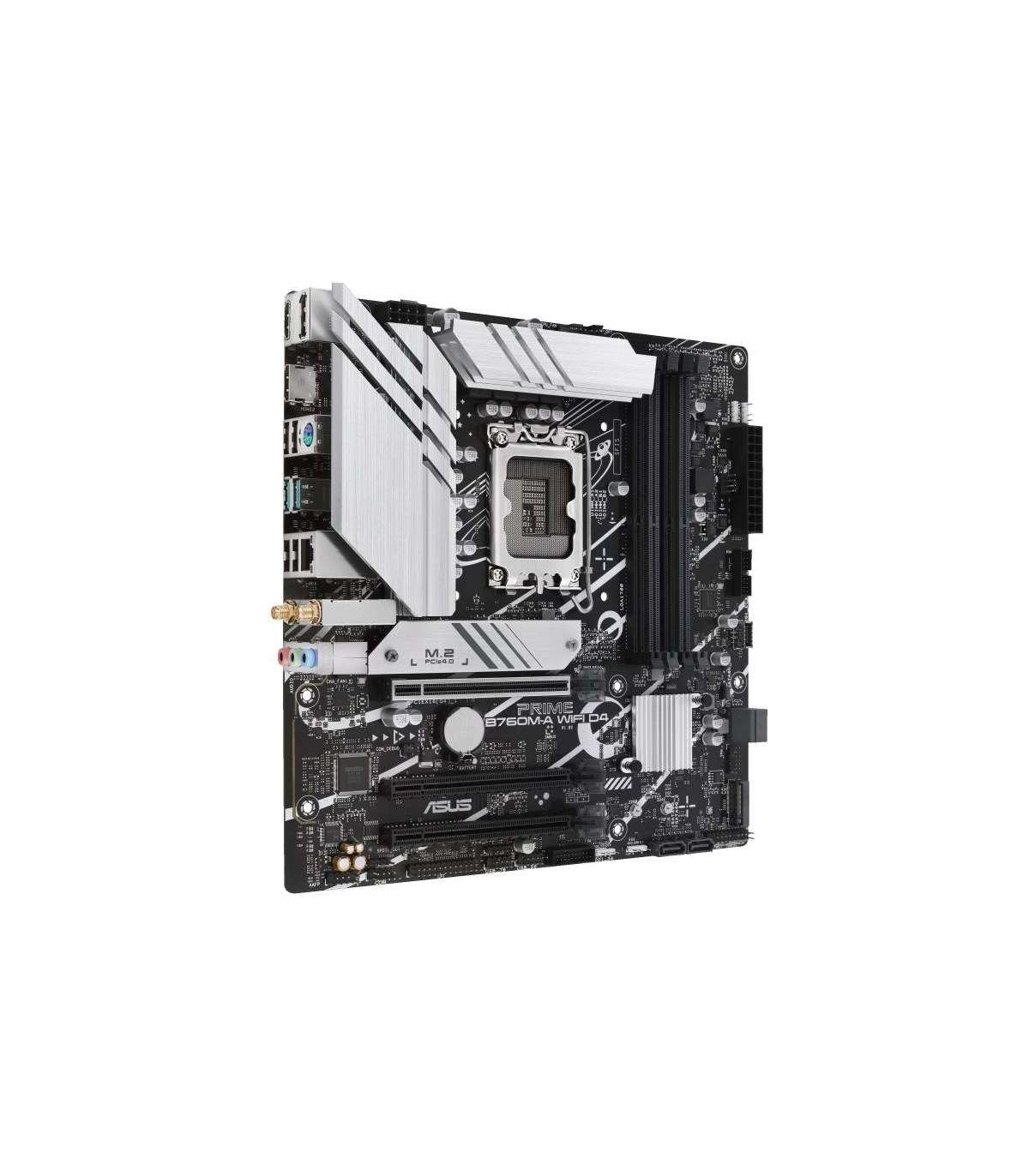

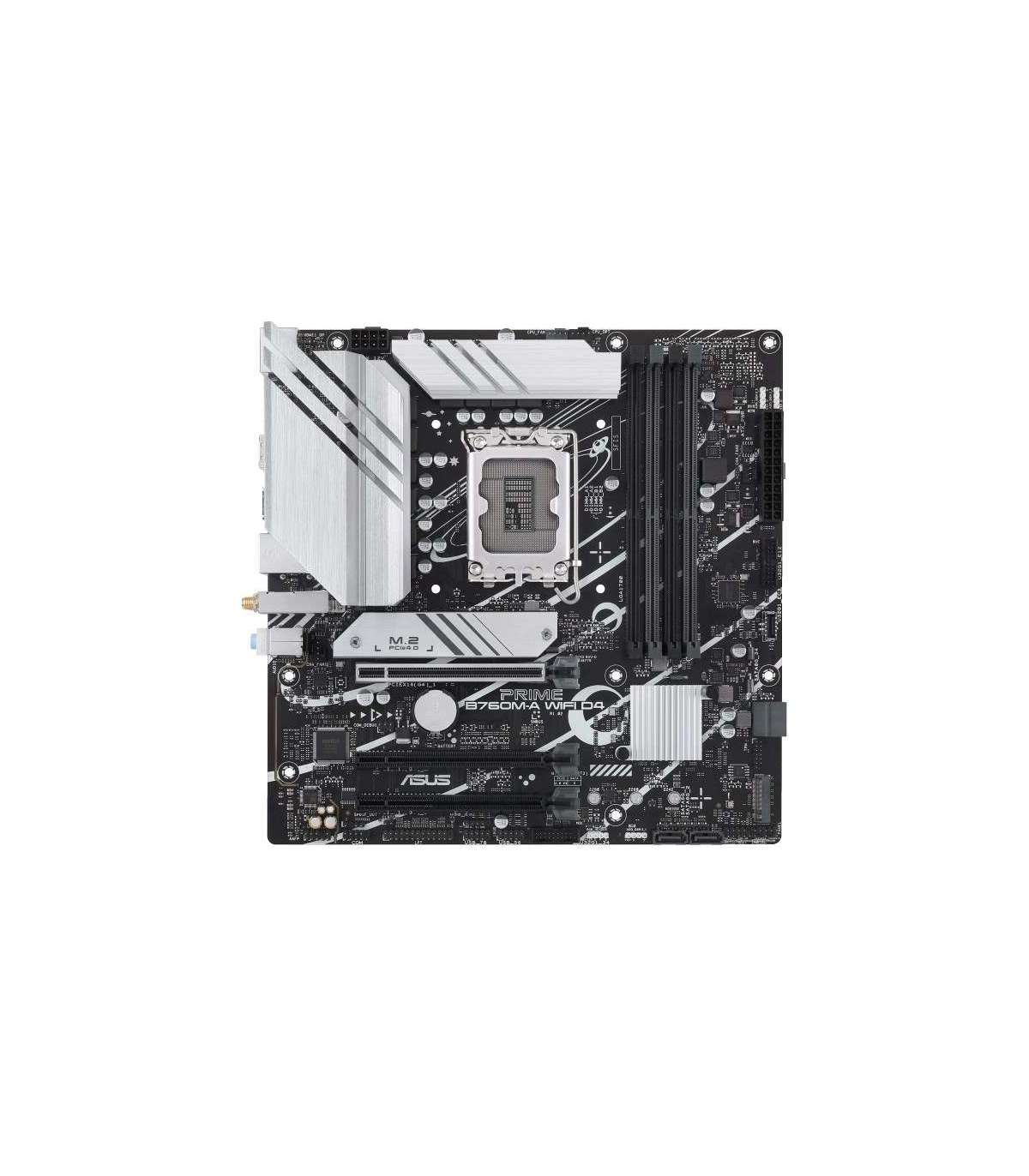

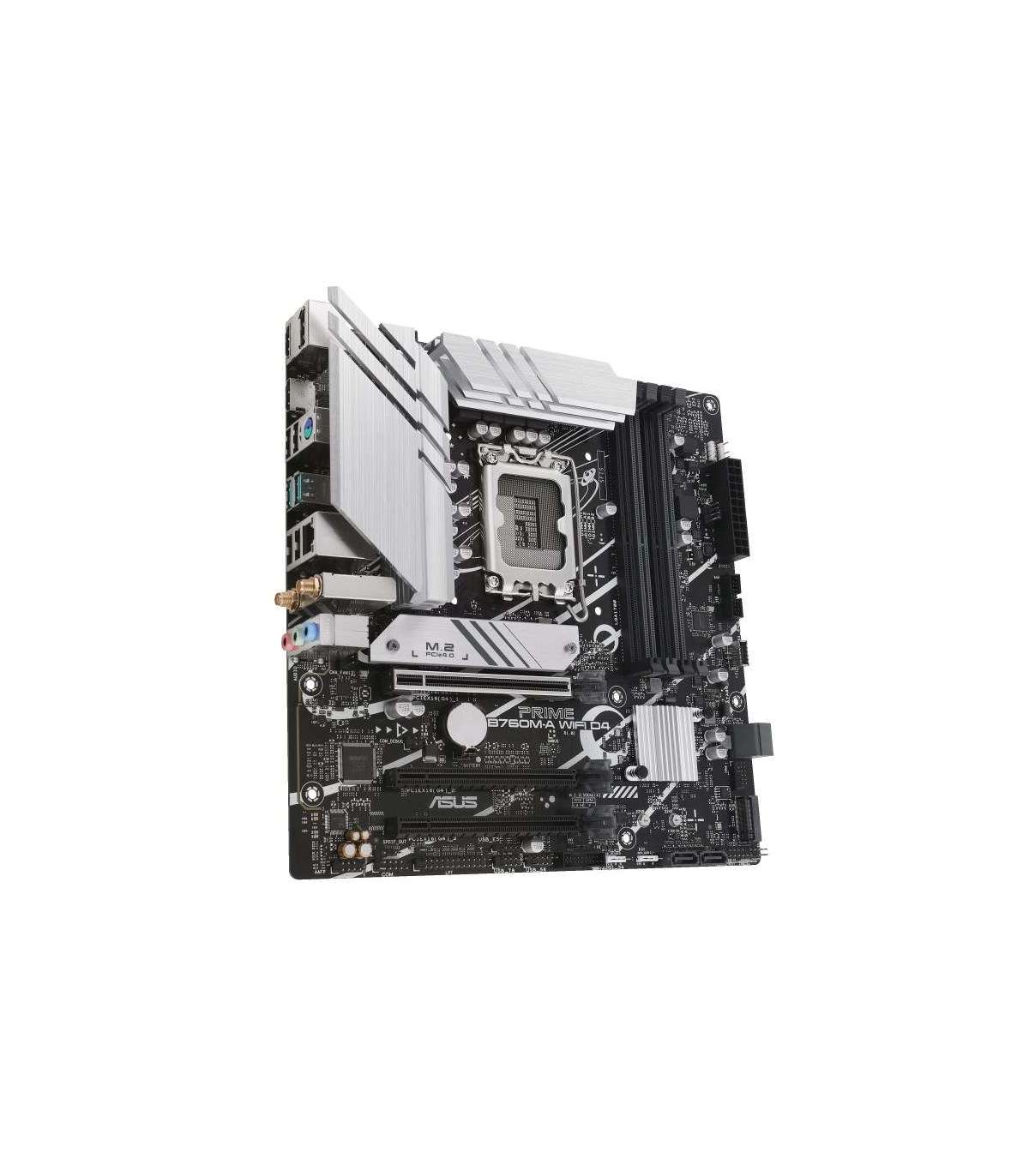

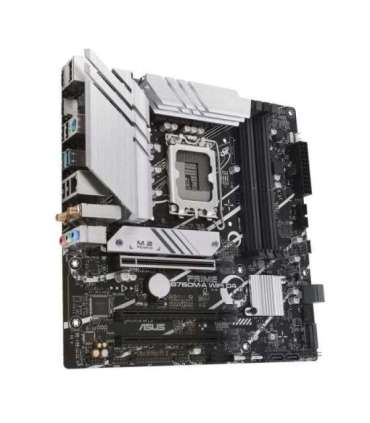

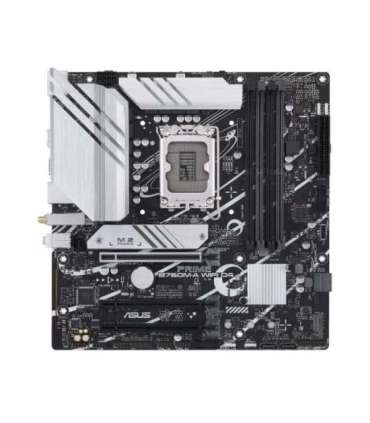

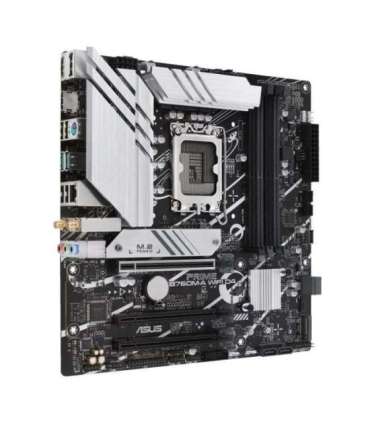

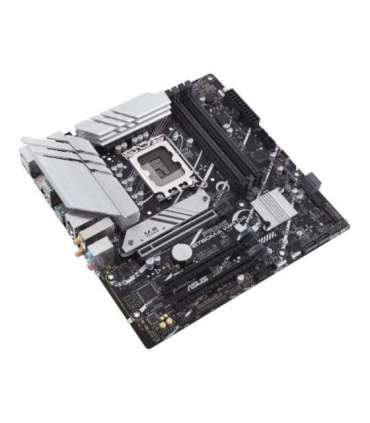

ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Package weight

1.4 kg

Ethernet LAN

Yes

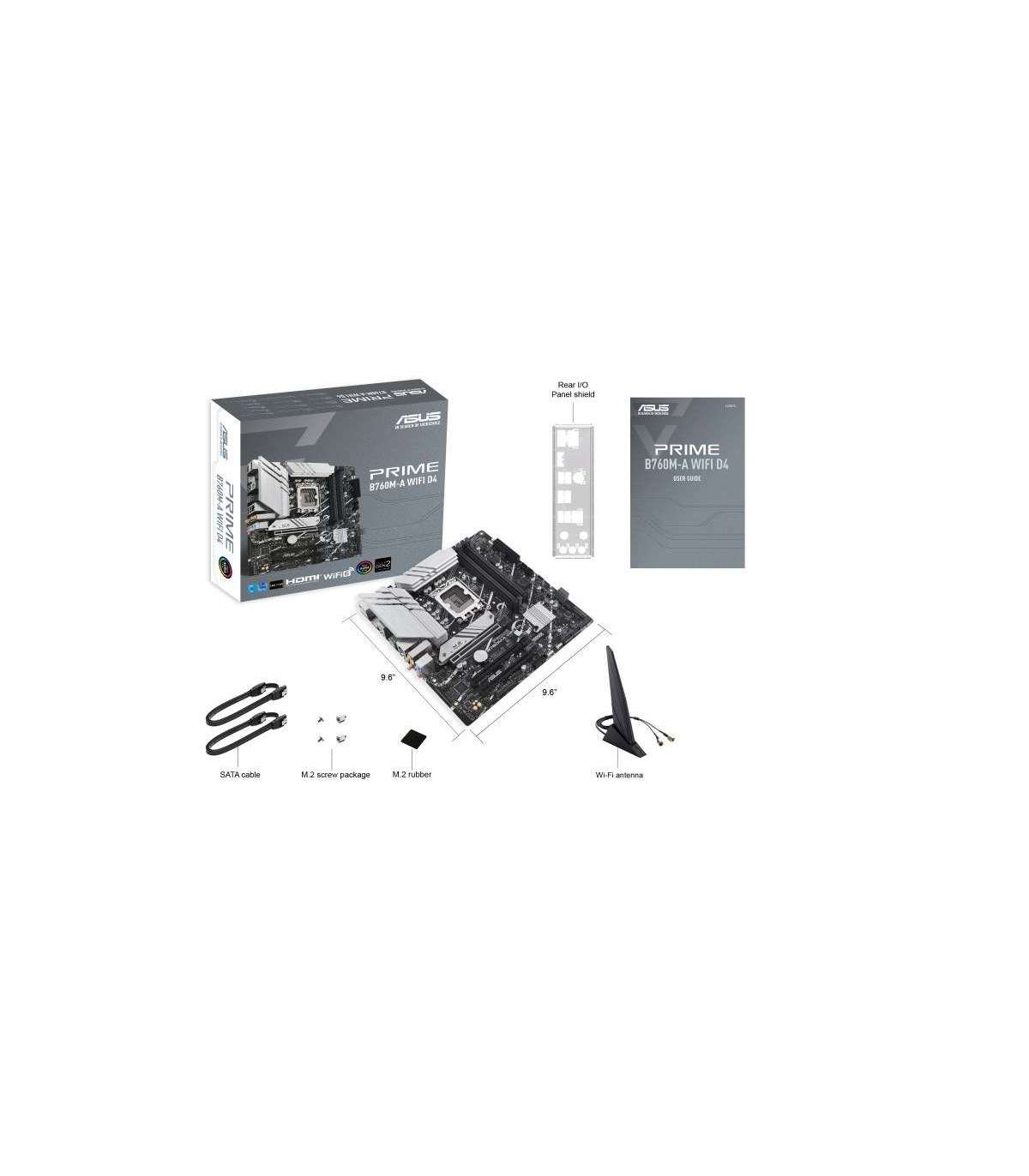

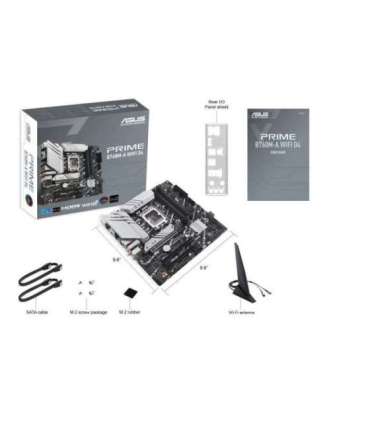

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

Intel B760

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

2

Memory channels

Dual-channel

Headphone outputs

3

USB 2.0 connectors

3

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2800
2933
3000
3200
3333
3400
3466
3600
3733
4000
4266
4400
4600
4800 MHz
5000
5066
5333 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Microphone in

Yes

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

3

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5333 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

6

RAID support

Yes

Line-in

Yes

S/PDIF out connector

Yes

DisplayPort version

1.4

Clear CMOS button

Yes
