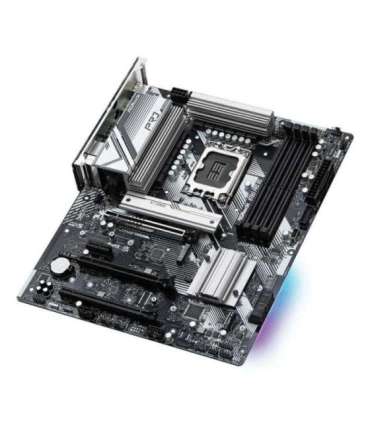

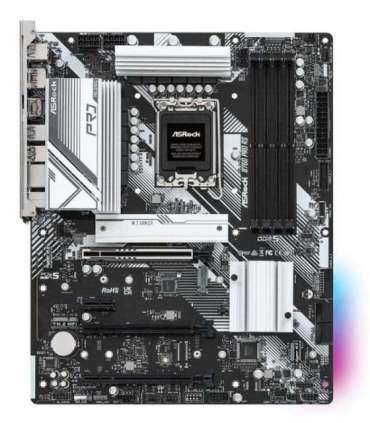

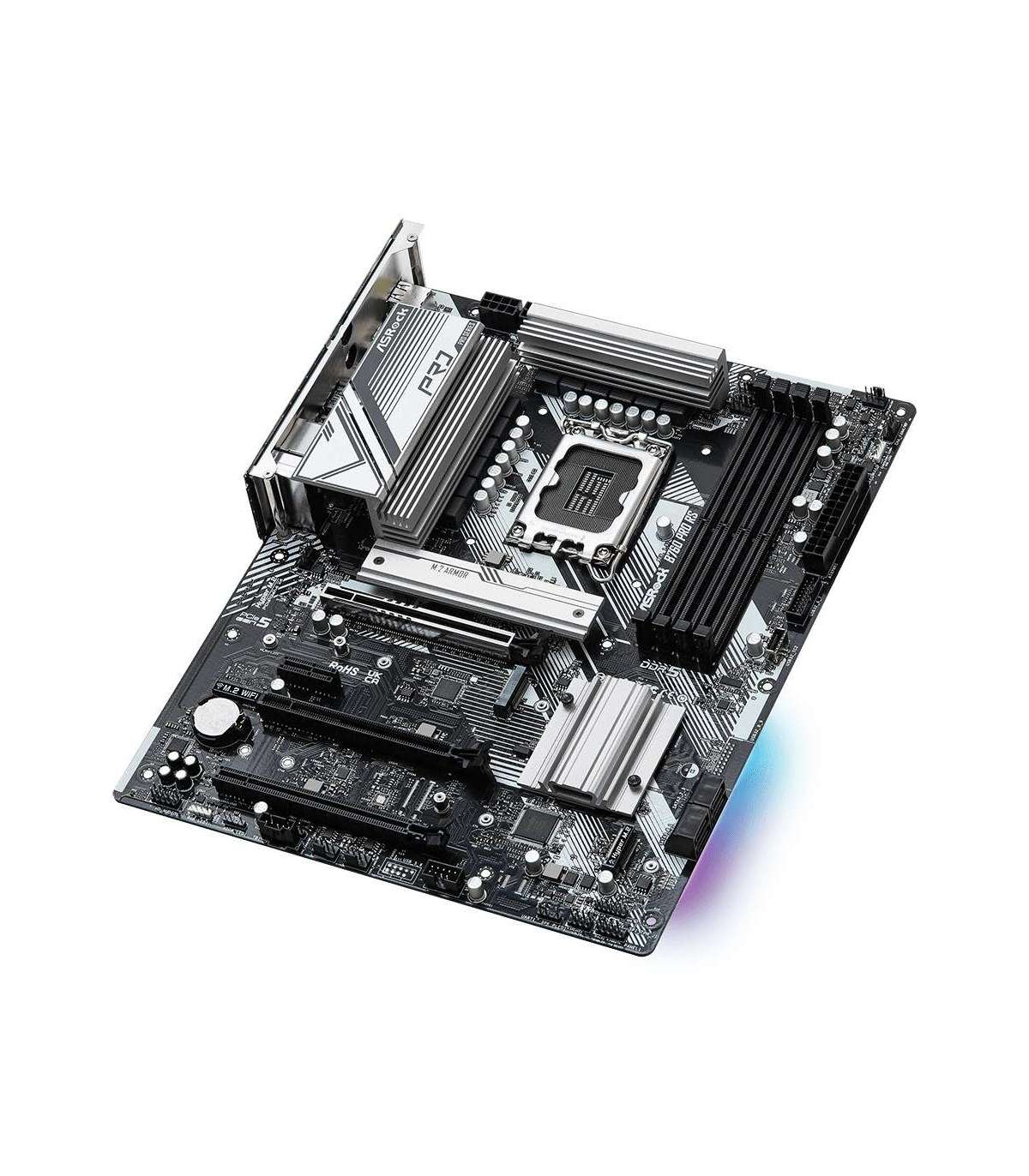

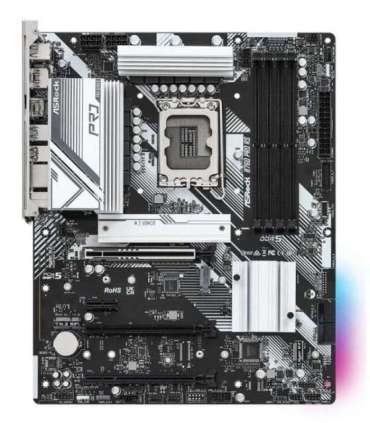

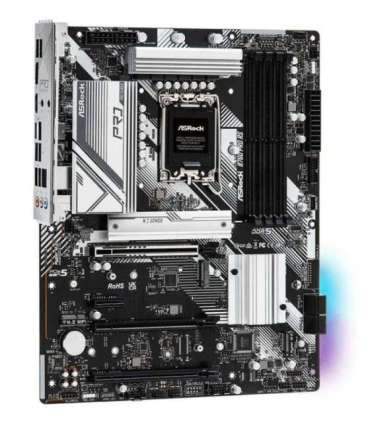

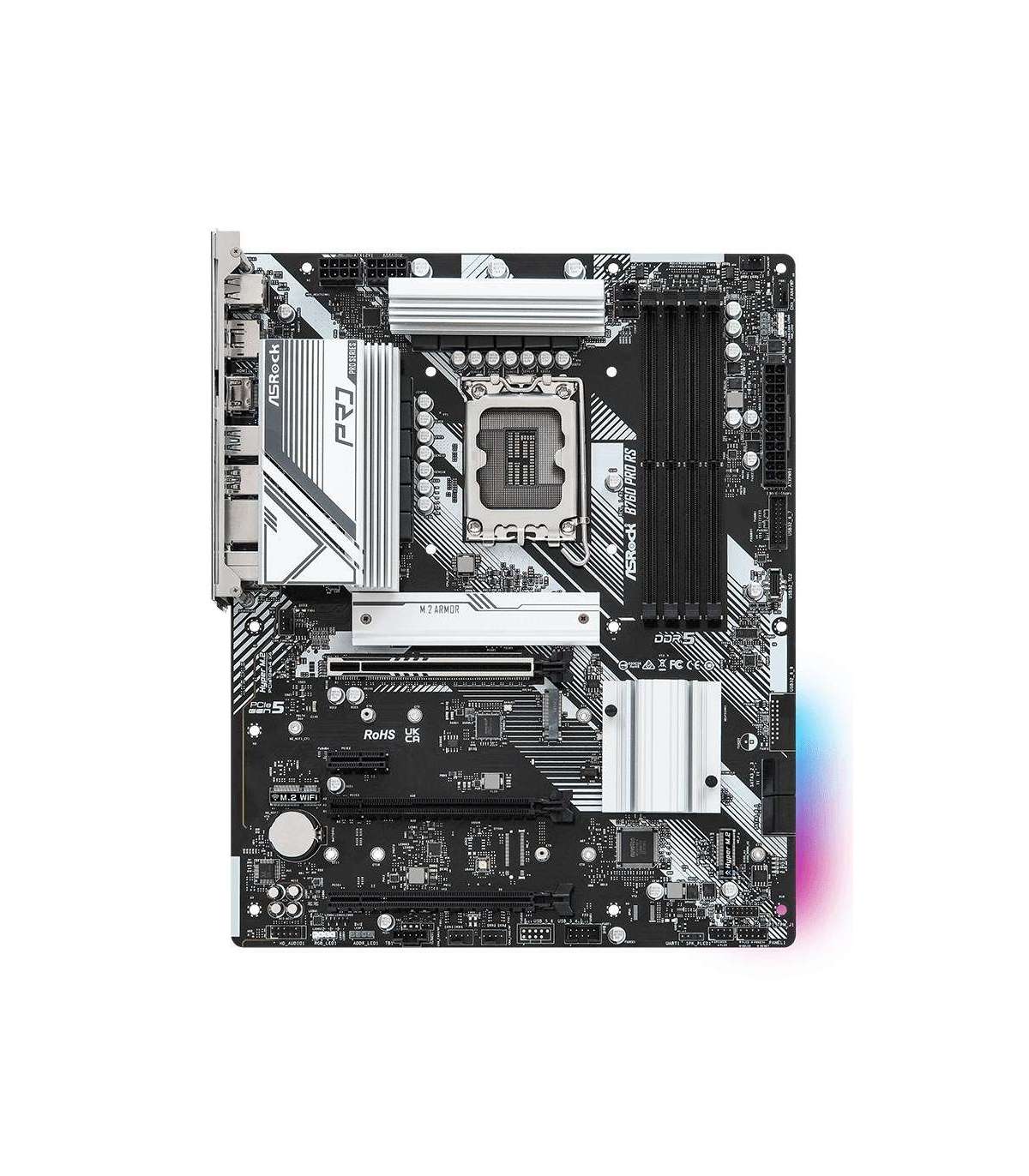

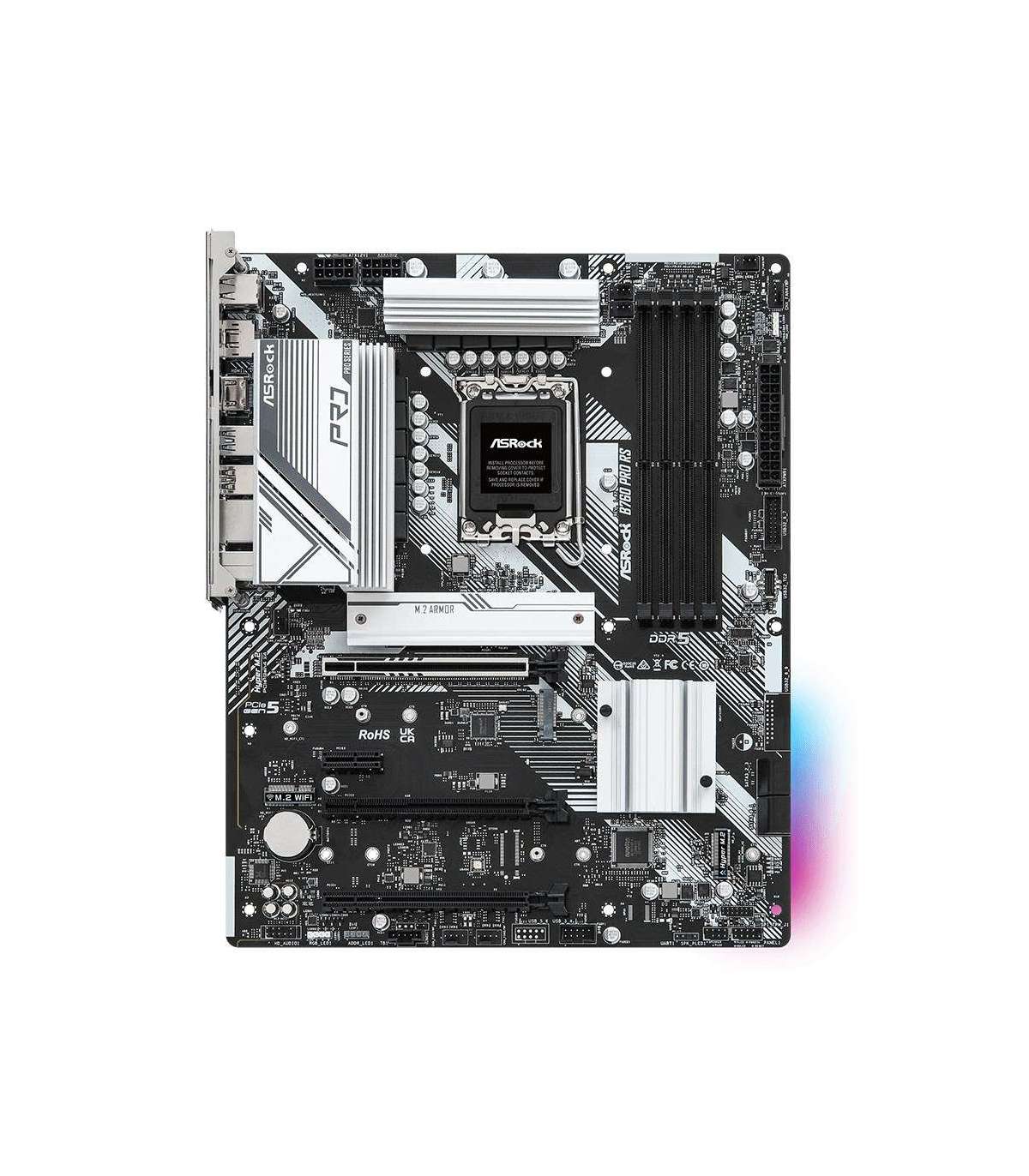

Asrock B760 PRO RS Intel B760 LGA 1700 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Power source type

ATX

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Compliance certificates

CE
Federal Communications Commission (FCC)

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

Sustainability certificates

ErP

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

Yes

On-board graphics card model

Intel Iris Xe Graphics

Maximum internal memory

128 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Graphics card family

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

3600
4000
4400
4800 MHz
5600
6000
7200

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

6

BIOS type

UEFI AMI

Number of HDDs supported

1

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

Supported storage drive types

SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Supported processor sockets

LGA 1700

HDCP

Yes

Supported memory clock speed (max)

7200 MHz

Front panel connector

Yes

RAID support

Yes

Power fan connector

Yes

Audio connector

Yes

Line-in

Yes

S/PDIF out connector

Yes

DisplayPort version

1.4

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

3

Number of displays supported

1

Thunderbolt headers

1

Rack-Friendly board

Yes
