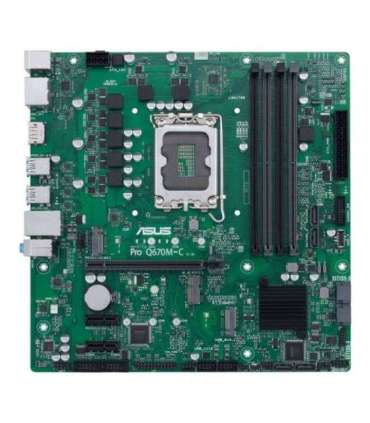

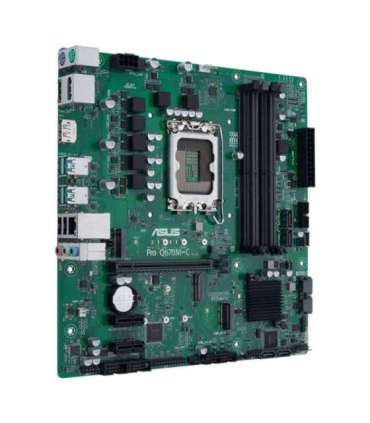

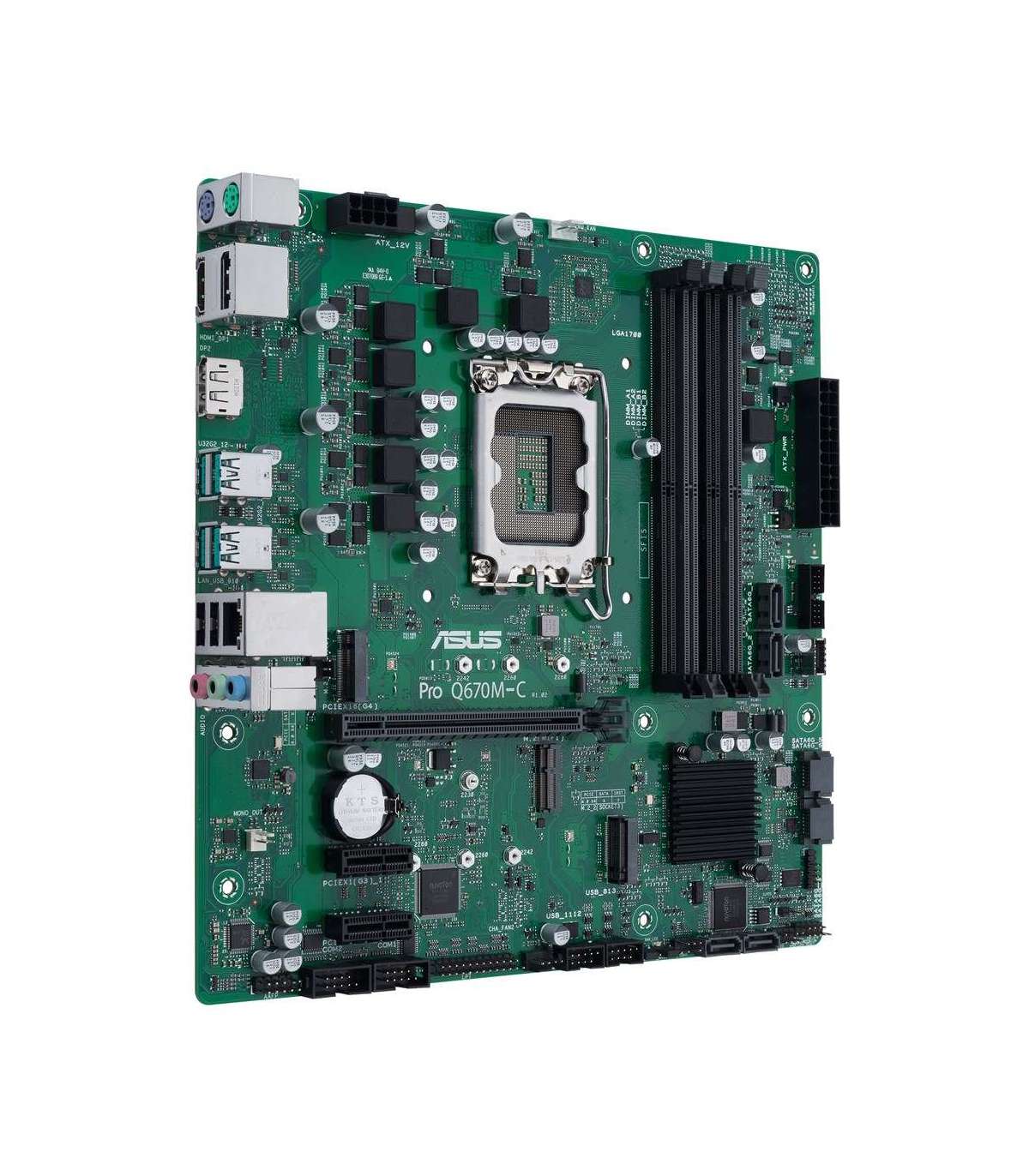

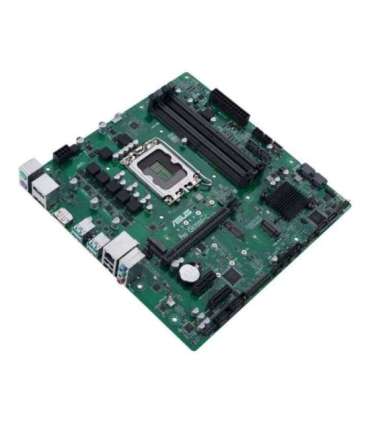

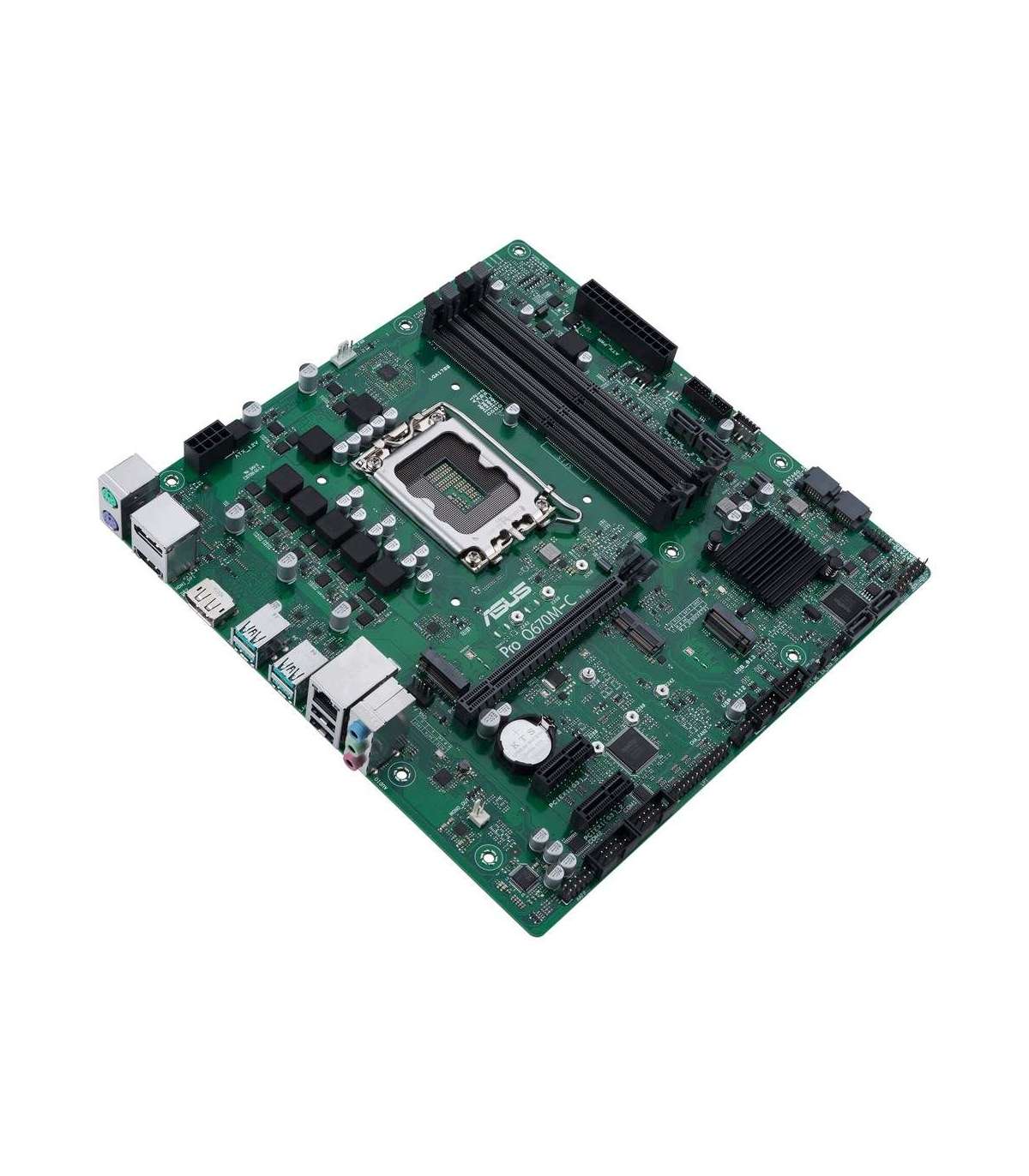

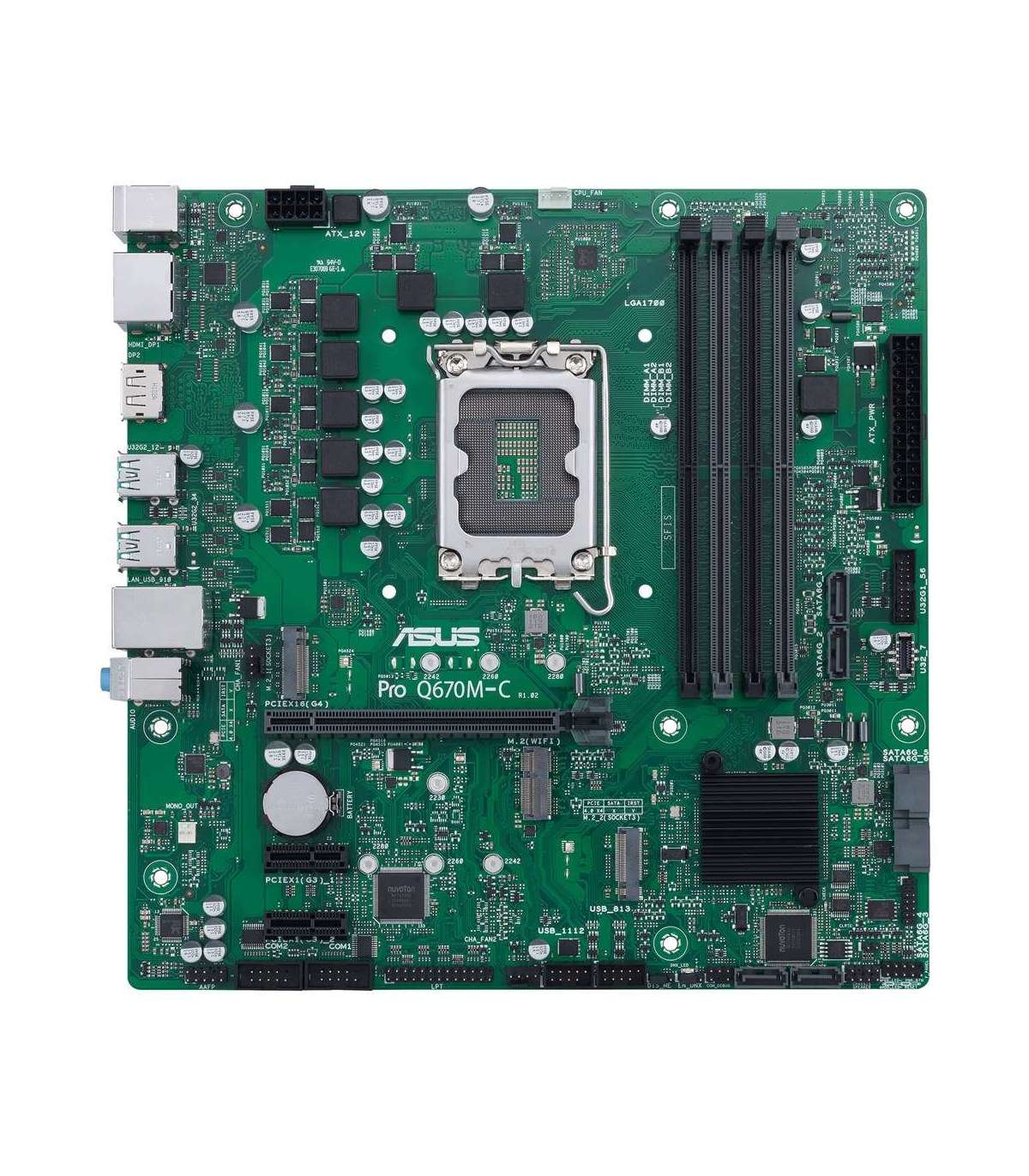

ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX

Lisainfo

Depth

244 mm

Kaal

634 g

Kõrgus

51 mm

Laius

244 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Harmonized System (HS) code

84733020

Warnings

Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel Q670

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Dual-channel

Headphone outputs

2

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel Pentium G
Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of HDDs supported

6

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Drivers included

Yes

Number of mounting holes

8

Number of SATA III connectors

6

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Number of storage drives supported

8

RAID support

Yes

Supported memory module capacities

4GB
8GB
16GB
32GB

Audio connector

Yes

Cooling type

Active

DisplayPort version

1.4

Maximum internal memory supported by processor

128 GB

Compatible operating systems

Windows® 11 64-bit, Windows® 10 64-bit
