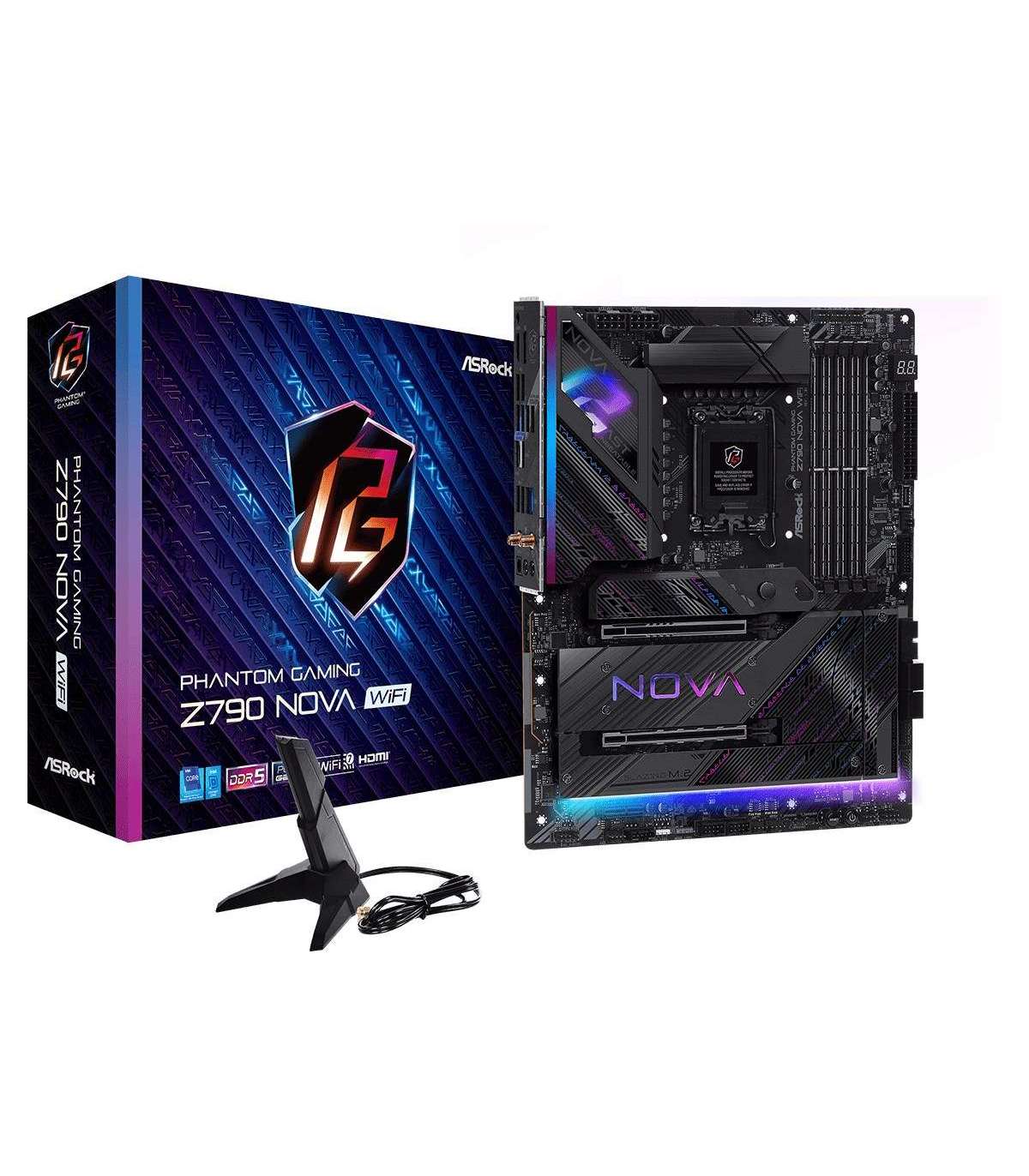

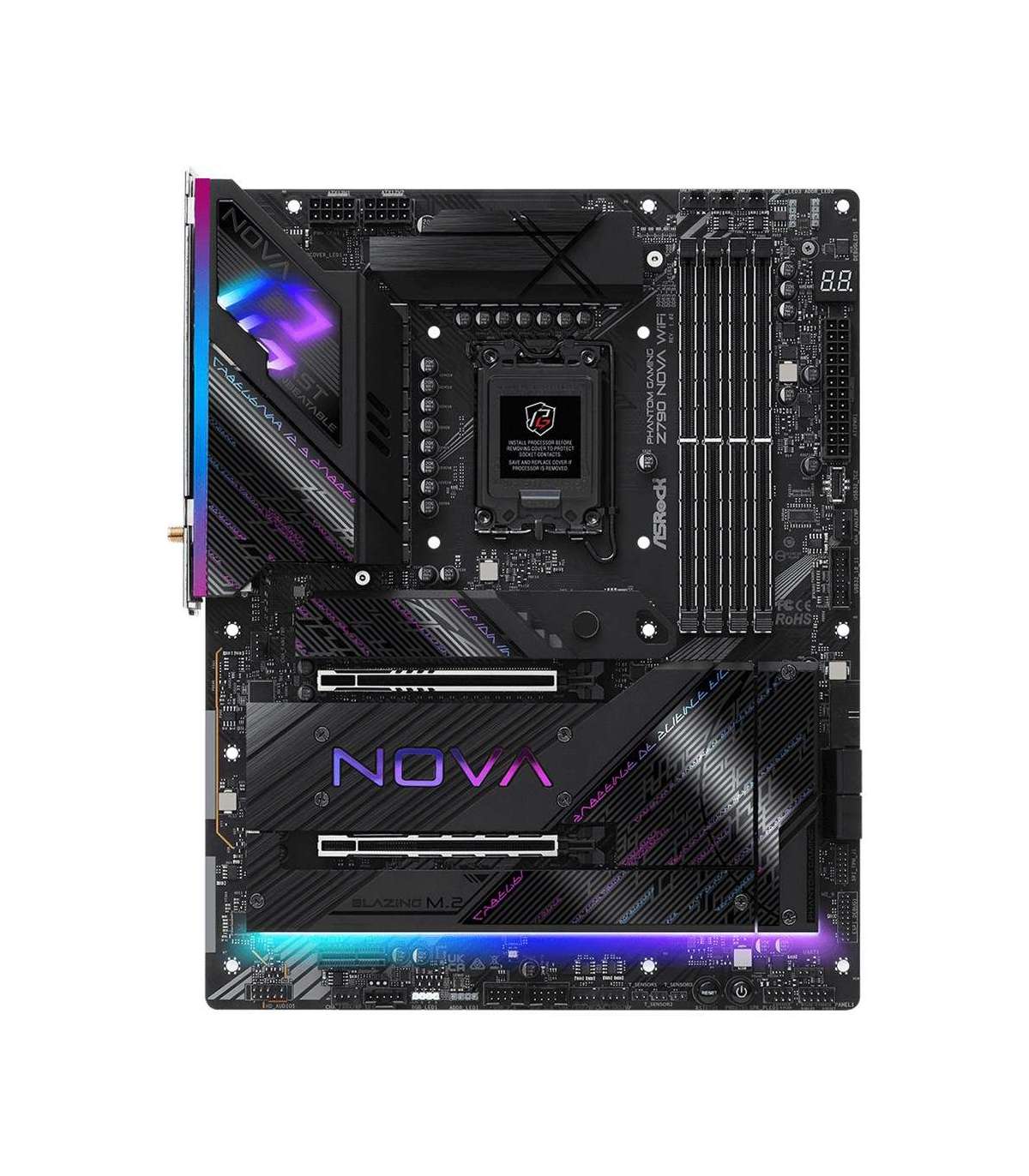

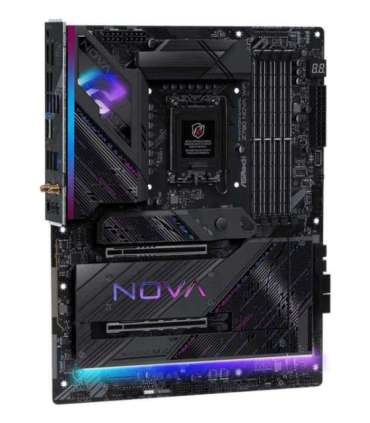

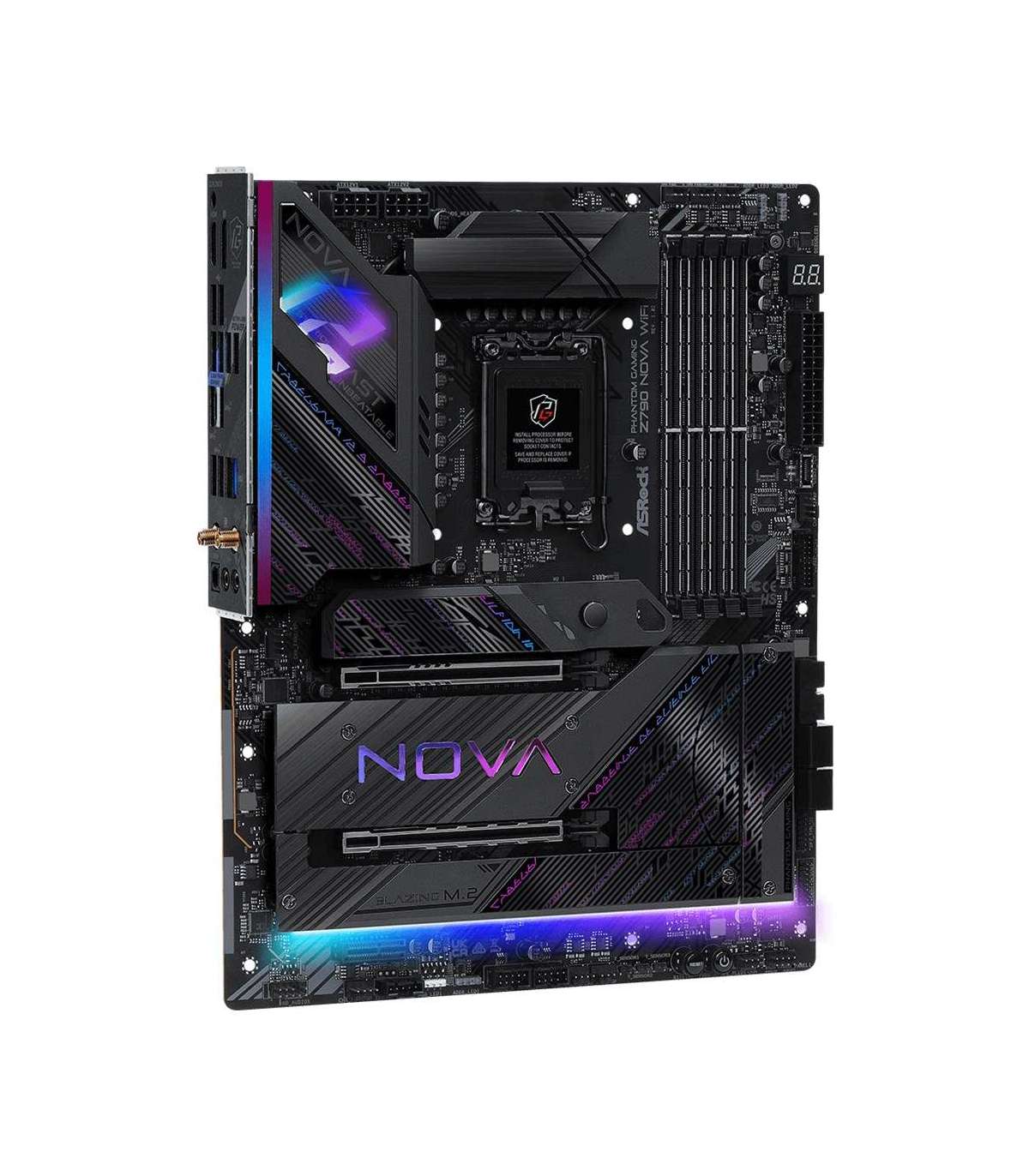

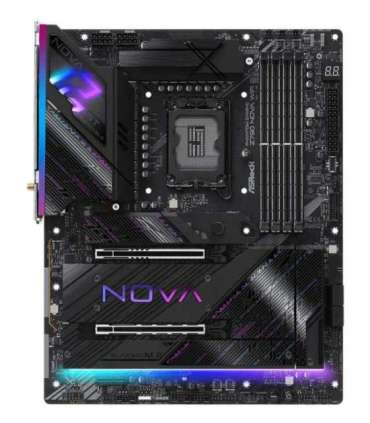

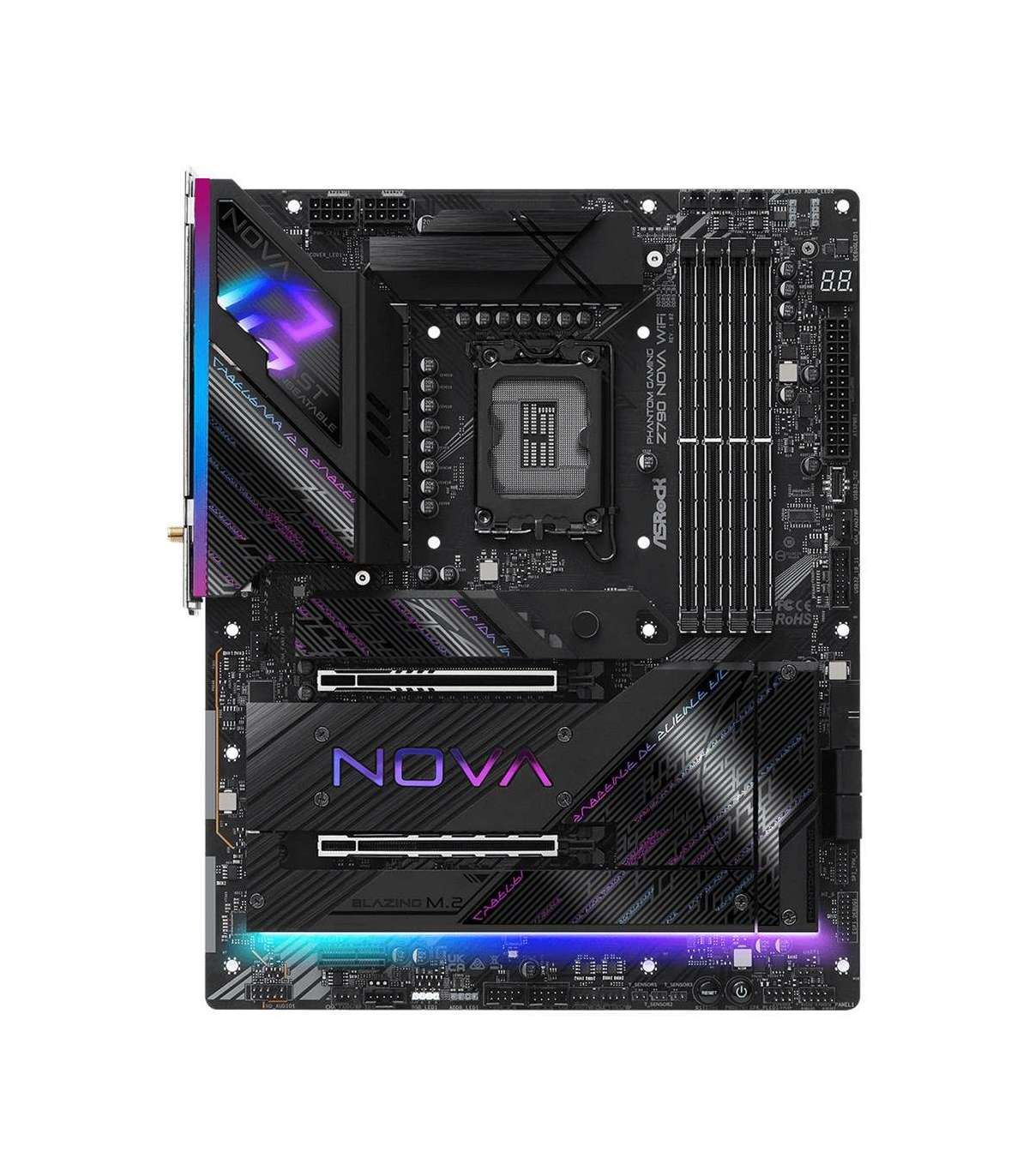

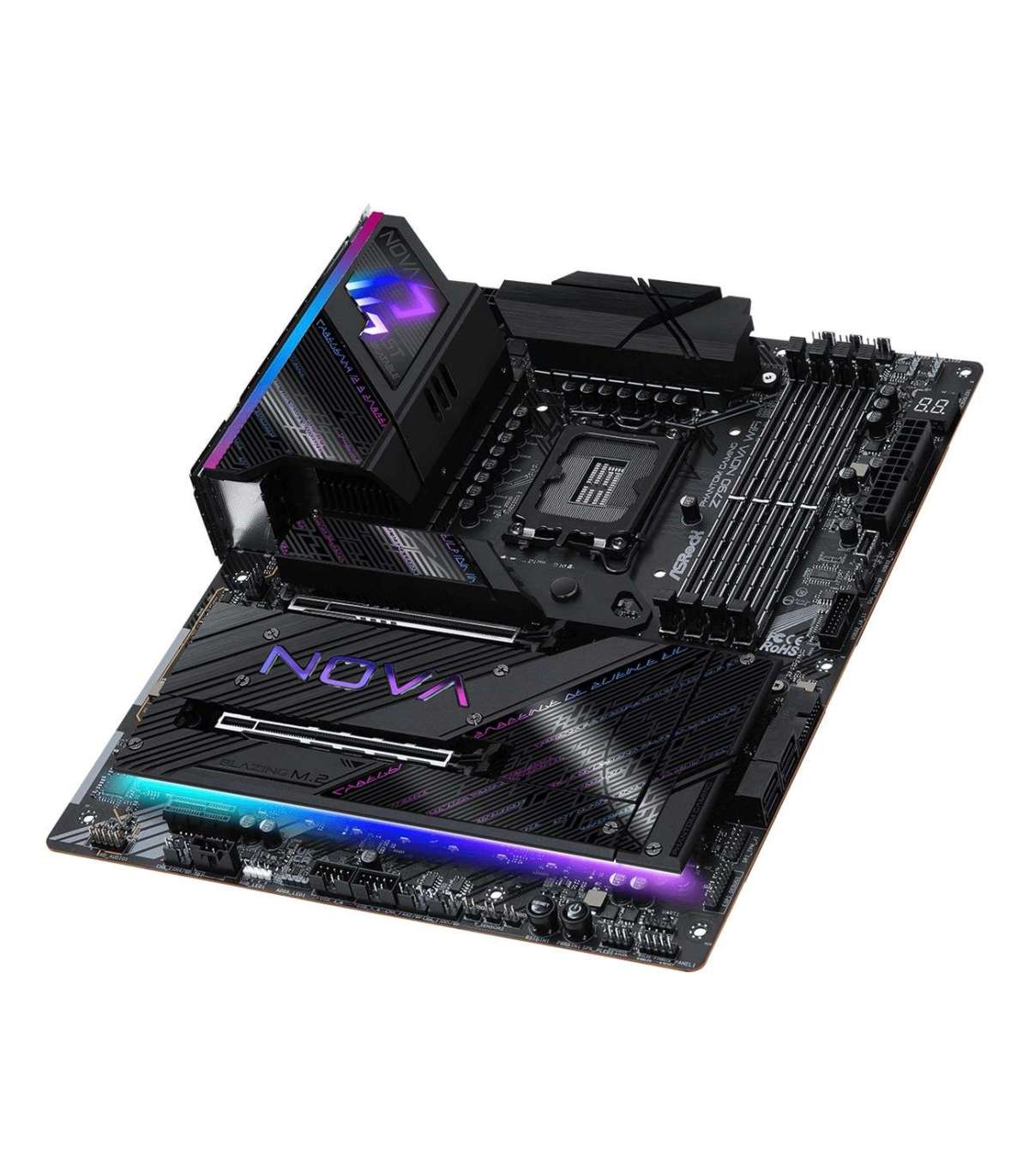

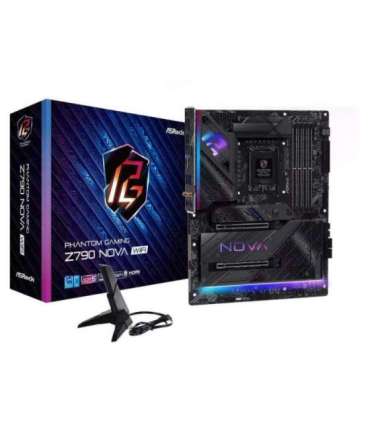

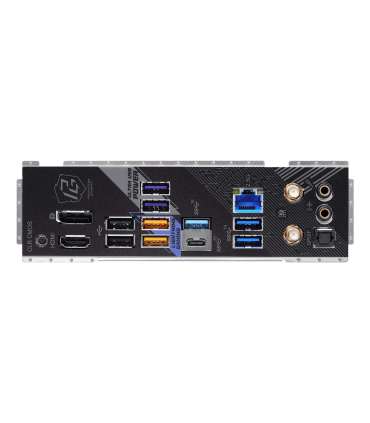

Asrock Z790 Nova WiFi Intel Z790 LGA 1700 ATX

Lisainfo

Videokaardi mudel

Intel Iris Xe Graphics

Depth

244 mm

Laius

305 mm

Product colour

Must

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 7 (802.11be)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Compliance certificates

CE
EuP
Federal Communications Commission (FCC)

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

Sustainability compliance

Yes

Sustainability certificates

ErP

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

192 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

Intel Z790

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4082

Bundled software

- ASRock Motherboard Utility (Phantom Gaming Tuning)
- Killer Control Center
- ASRock Polychrome SYNC

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

2

Graphics card family

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron® G
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Killer E3100G

Number of chassis fan connectors

5

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Parallel processing technology support

CrossFire

Maximum resolution

7680 x 4320 pixels

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

Supported processor sockets

LGA 1700

HDCP

Yes

Supported memory clock speed (max)

8000 MHz

Number of storage drives supported

6

RAID support

Yes

Screws included

Yes

DisplayPort version

1.4

Clear CMOS button

Yes

WiFi-AP antenna jack

2

Thunderbolt headers

1

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

1

M.2 standoff included

Yes
