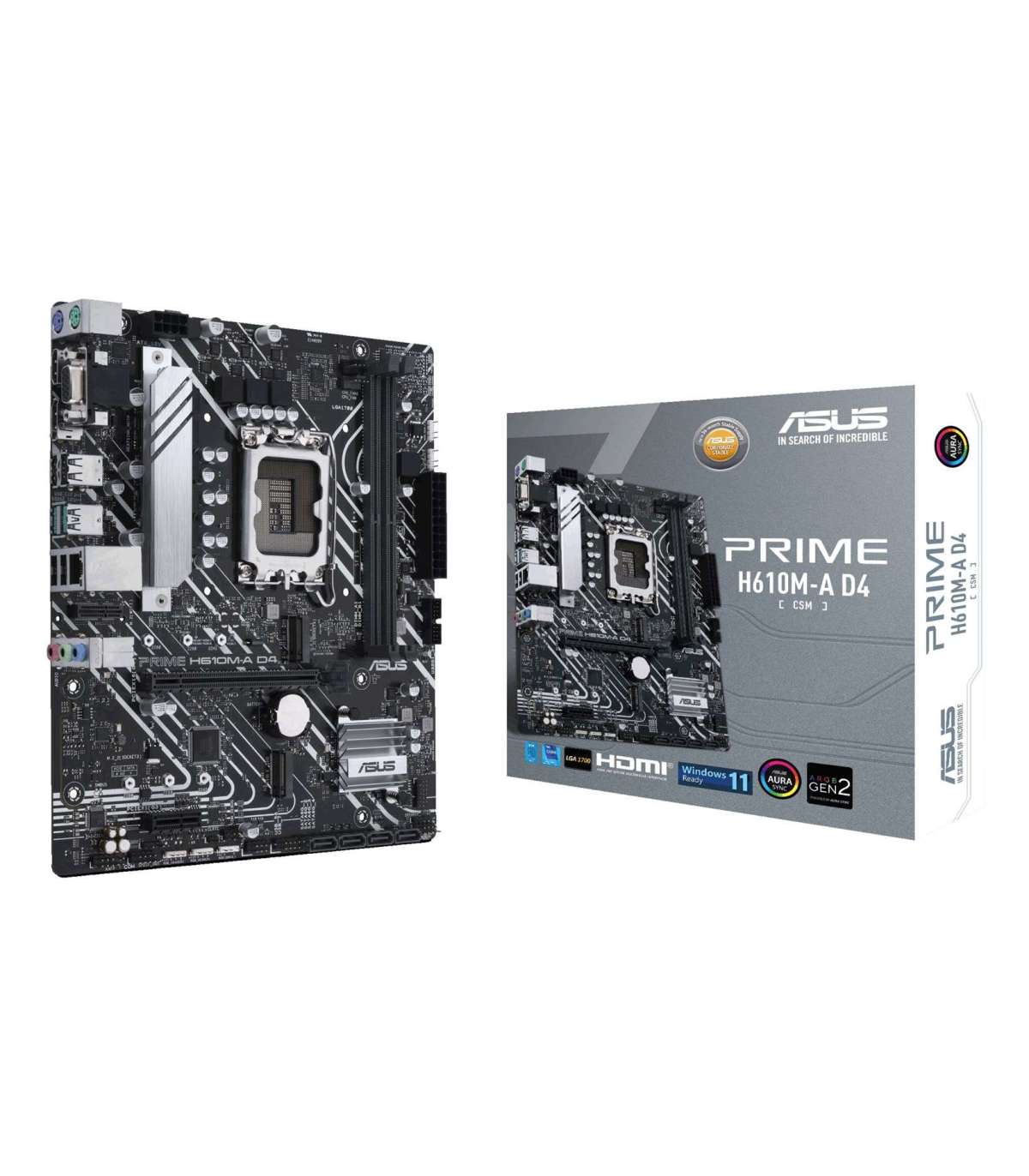

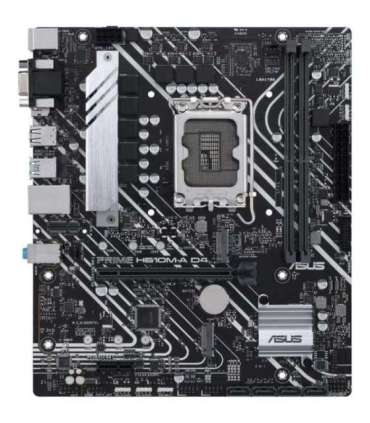

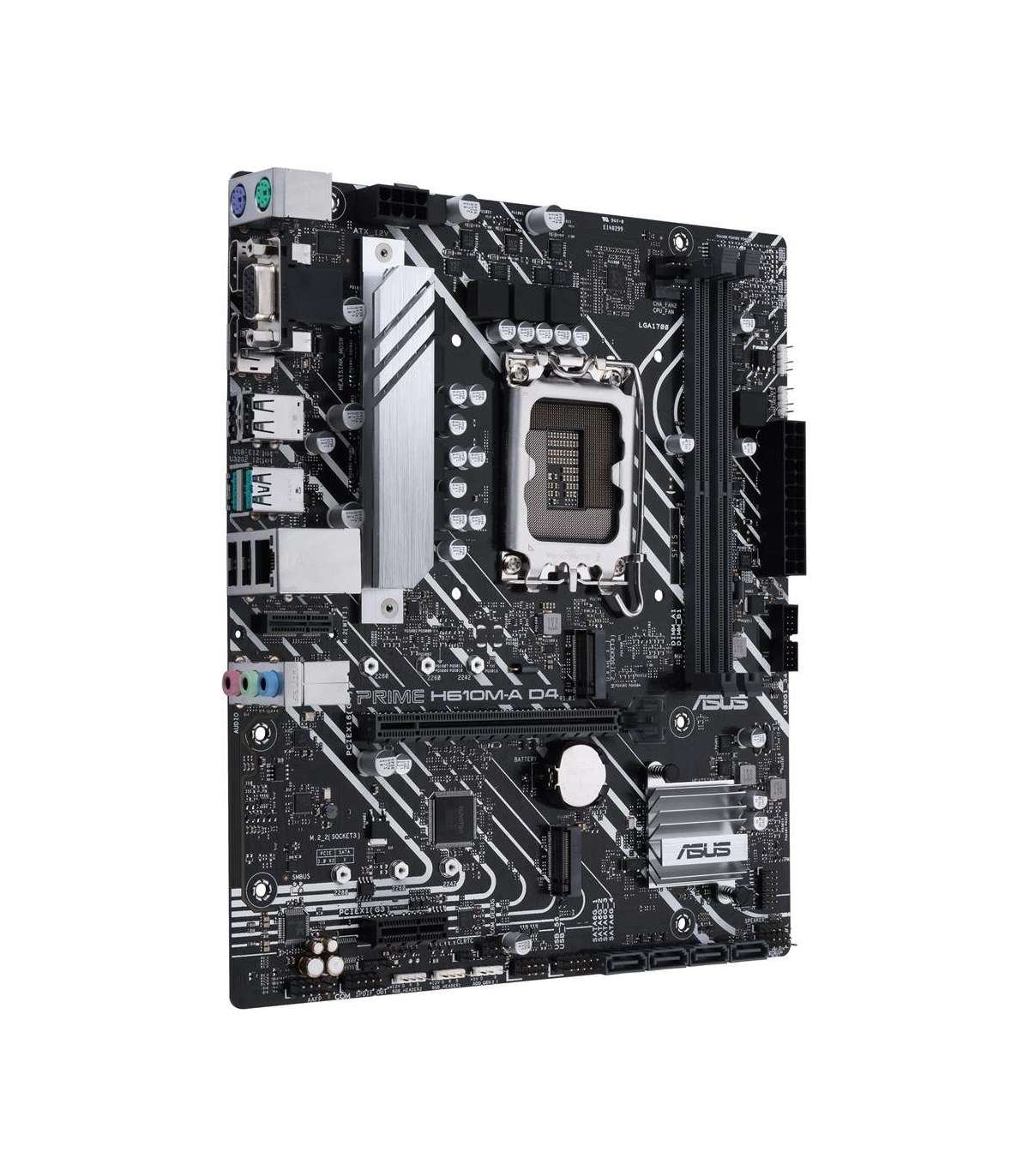

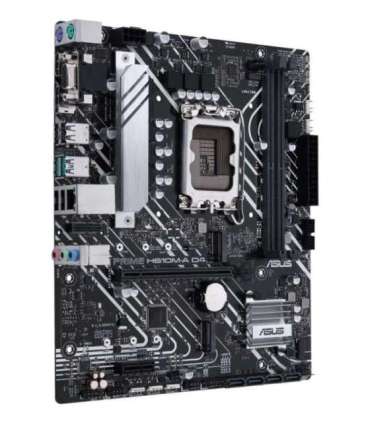

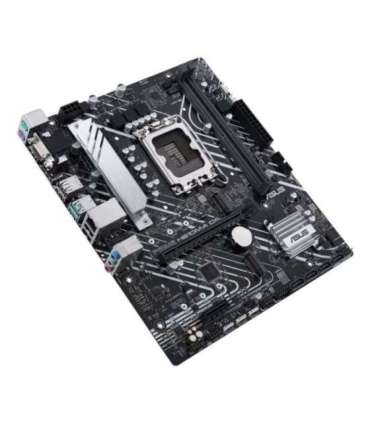

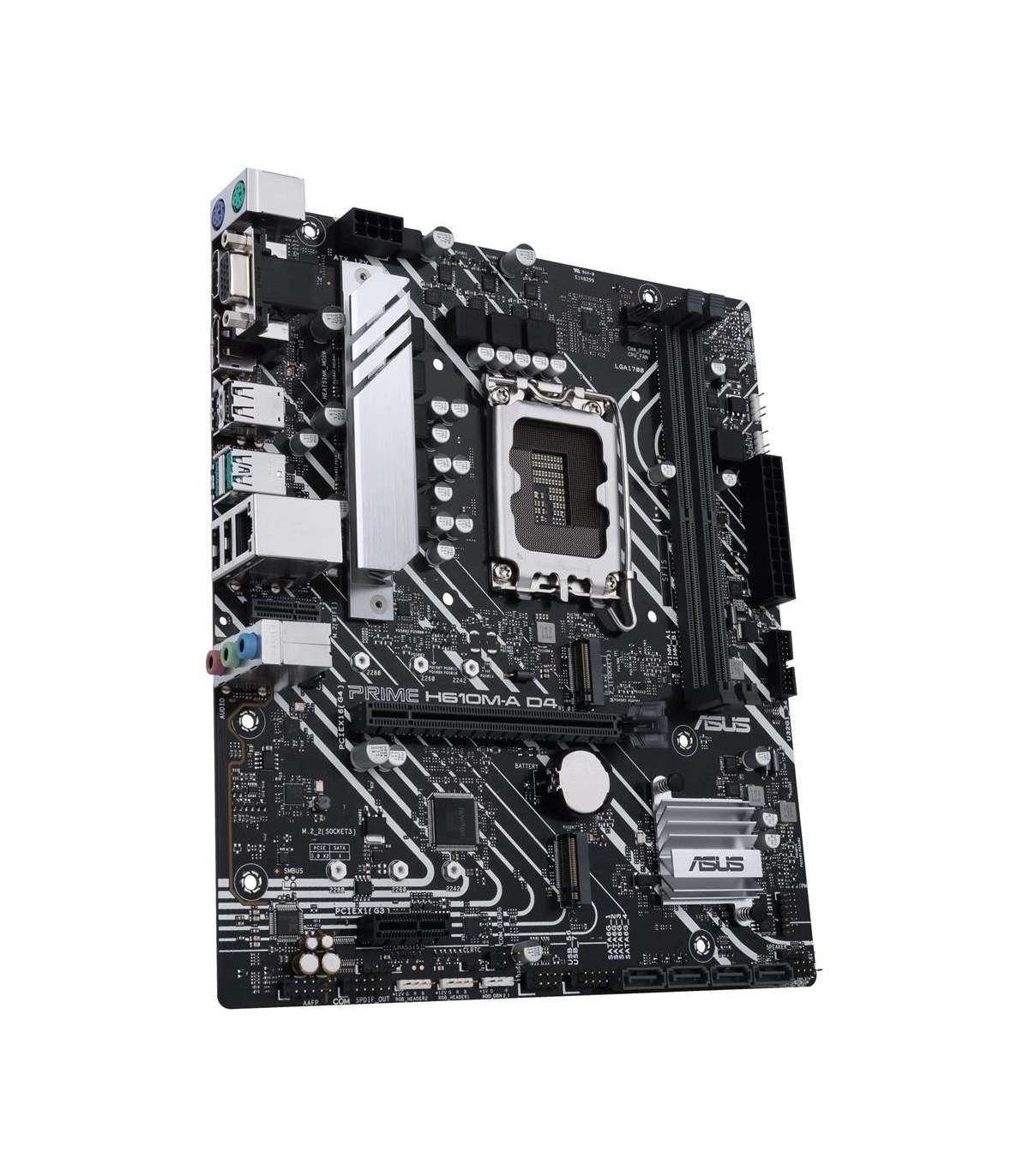

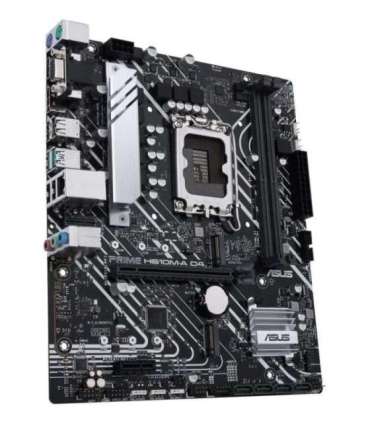

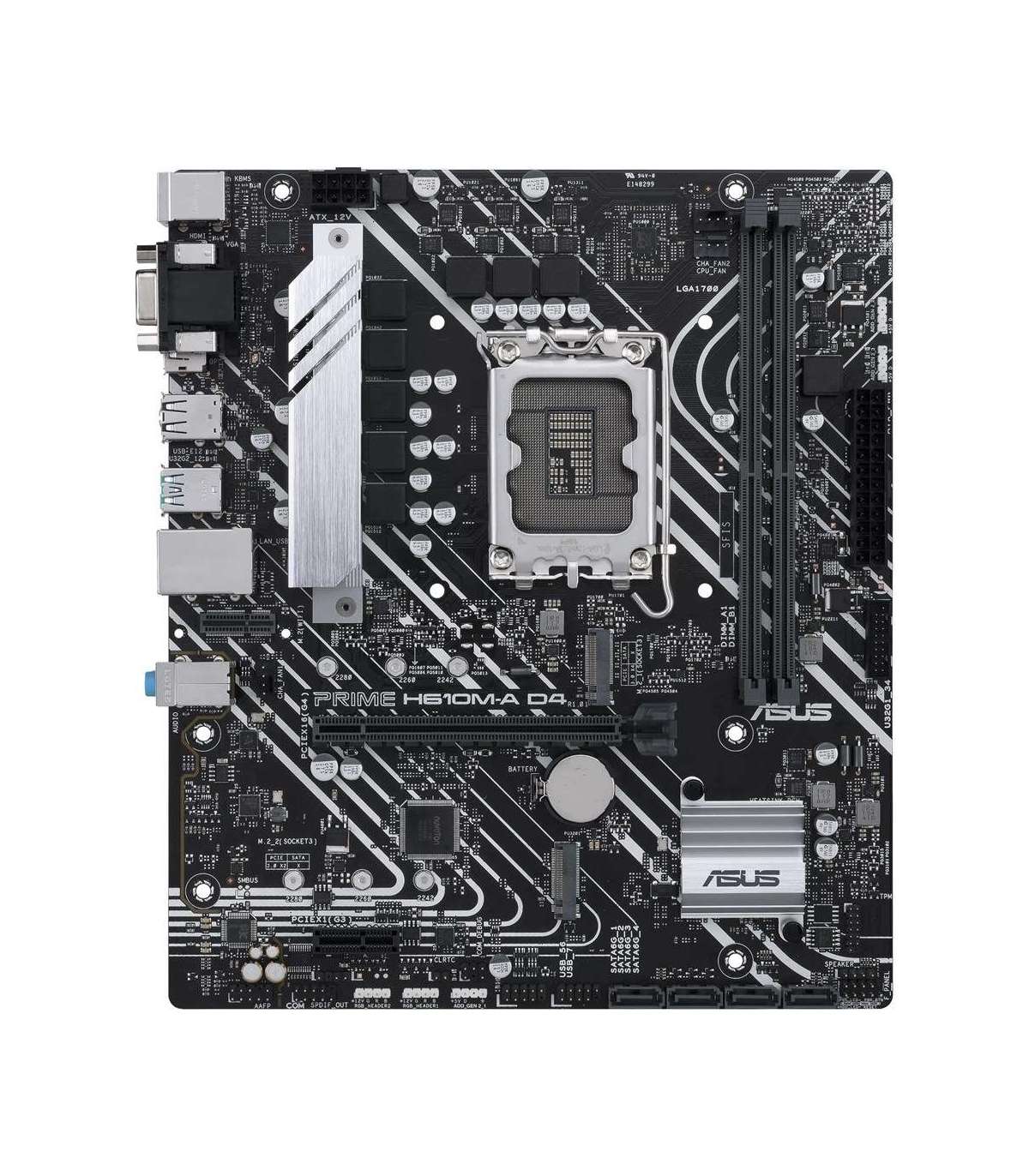

ASUS PRIME H610M-A D4-CSM Intel H610 LGA 1700 micro ATX

Lisainfo

Depth

211 mm

Kaal

382 g

Kõrgus

221 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Harmonized System (HS) code

84733020

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 2.0 ports quantity

4

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H610

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

1

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2800
2933
3000
3200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM, LPDDR3-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

S/PDIF out connector

Yes

DisplayPort version

1.4
