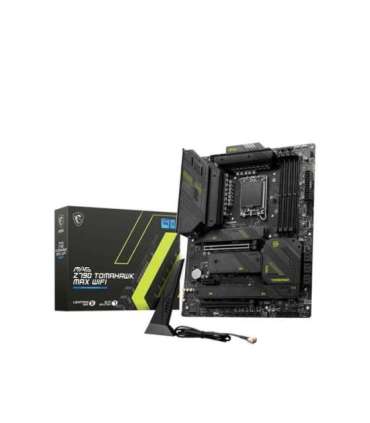

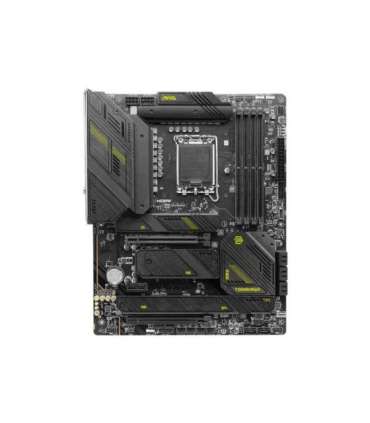

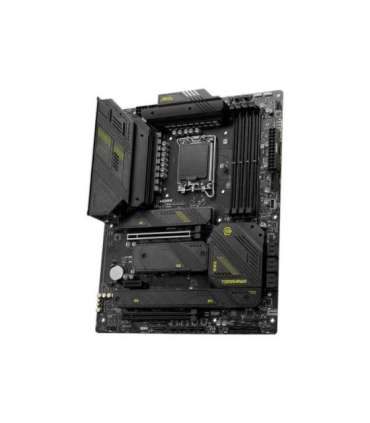

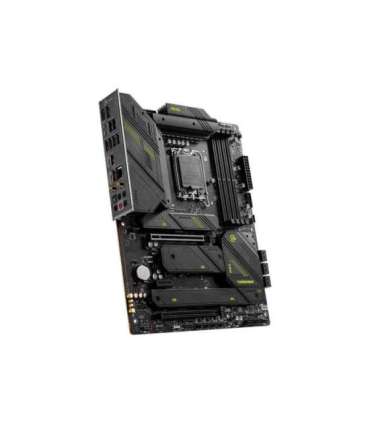

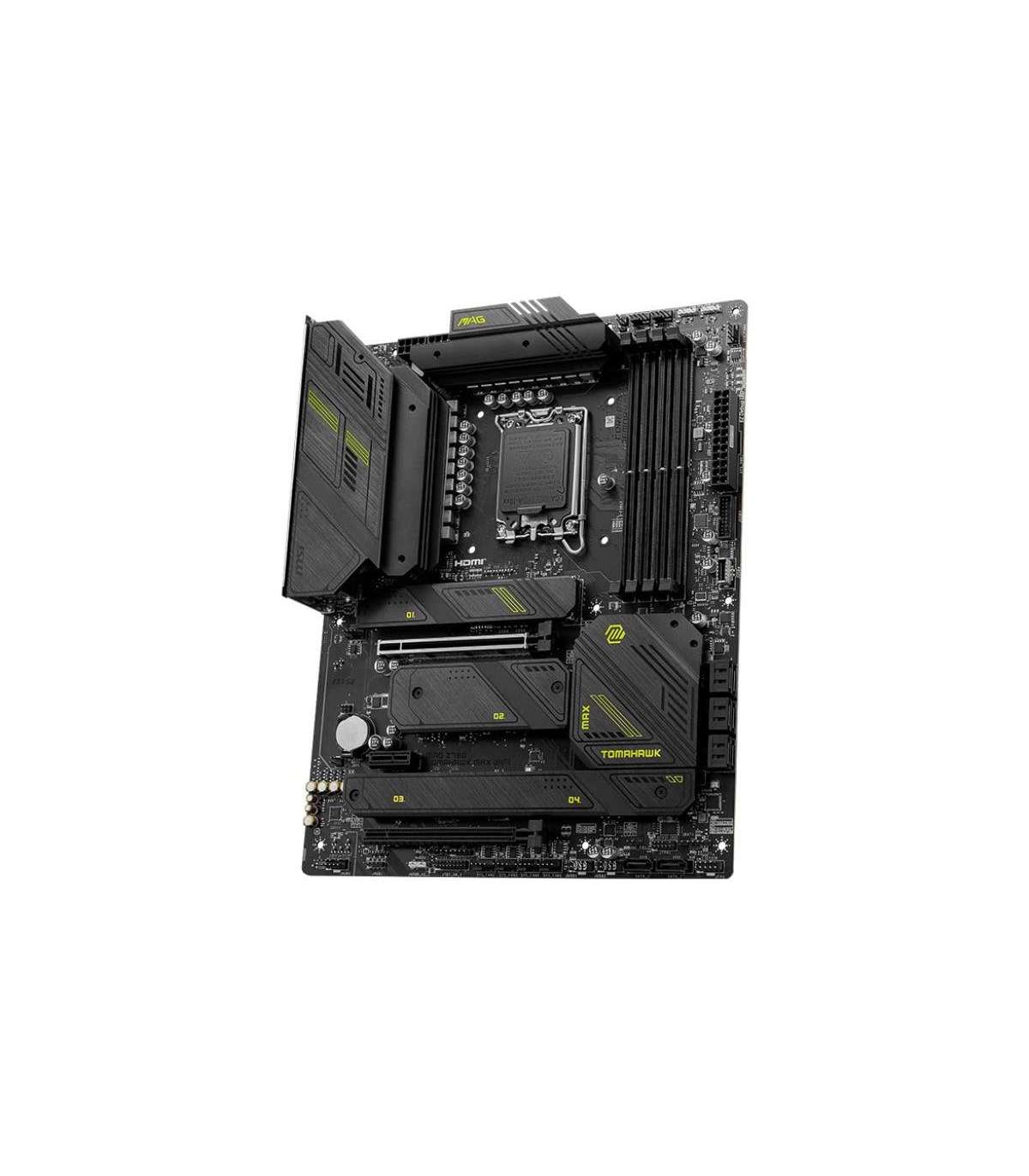

MSI Z790 TOMAHAWK MAX WIFI Intel Z790 LGA 1700 ATX Motherboard

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Product colour

Must

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Internal storage capacity

10 GB

Maximum internal memory

128 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel Z790

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Dual-channel

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

4

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
5200
5400
5600
5800
6000
6200
6400
6600 MHz
6800
7000 MHz
7200

Unbuffered memory

Yes

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Front panel audio connector

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

EFI AMI

Supported storage drive interfaces

M.2, PCI Express

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

8

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

Number of M.2 (M) slots

4

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5333 MHz

Front panel connector

Yes

RAID support

Yes

Cooling type

Passive

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
