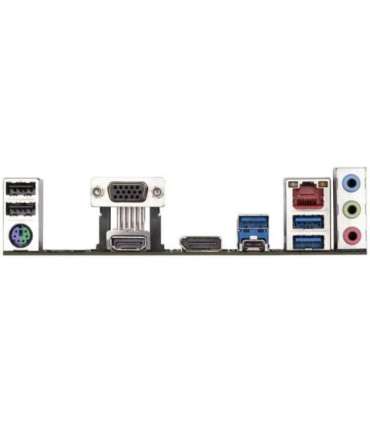

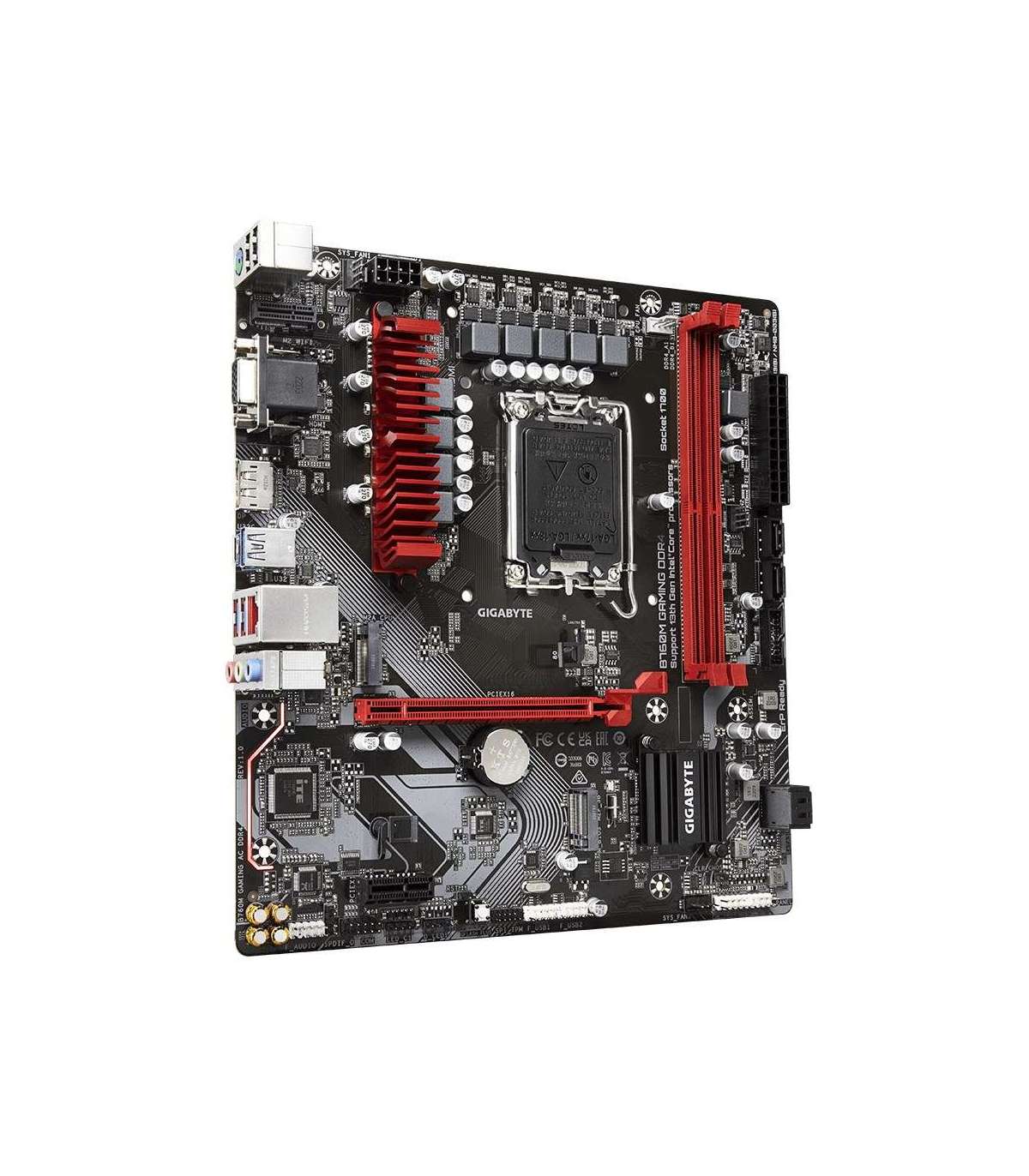

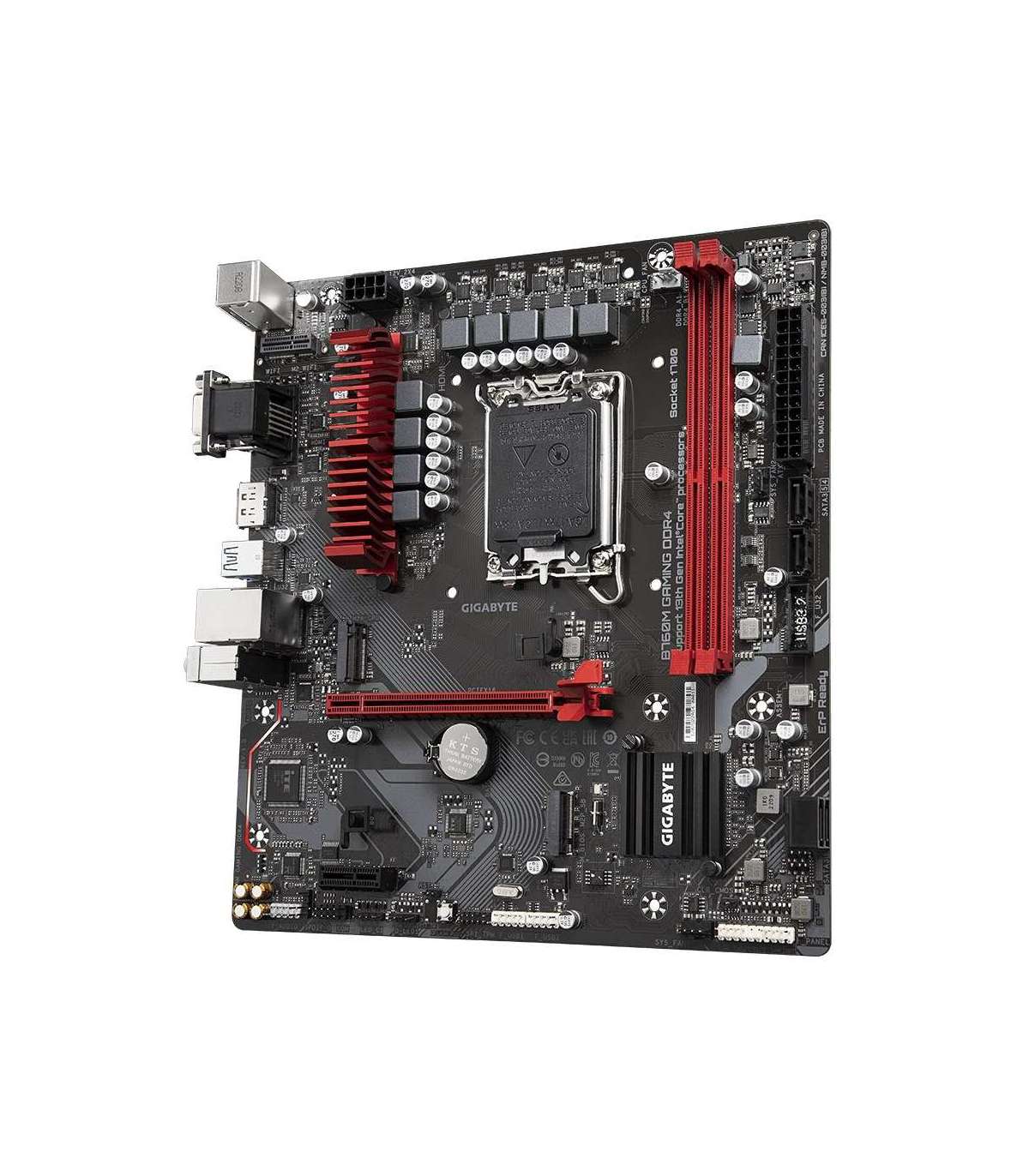

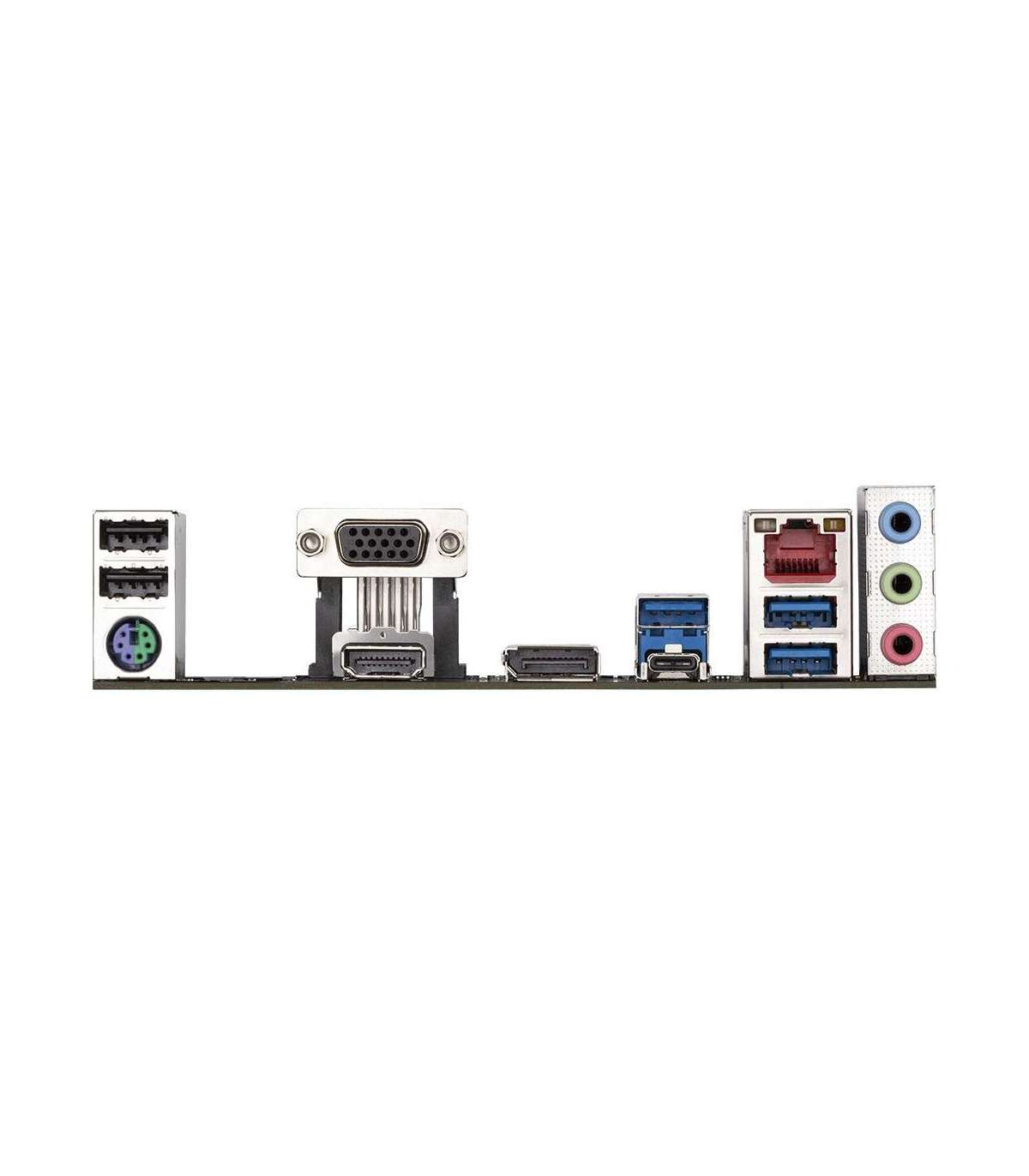

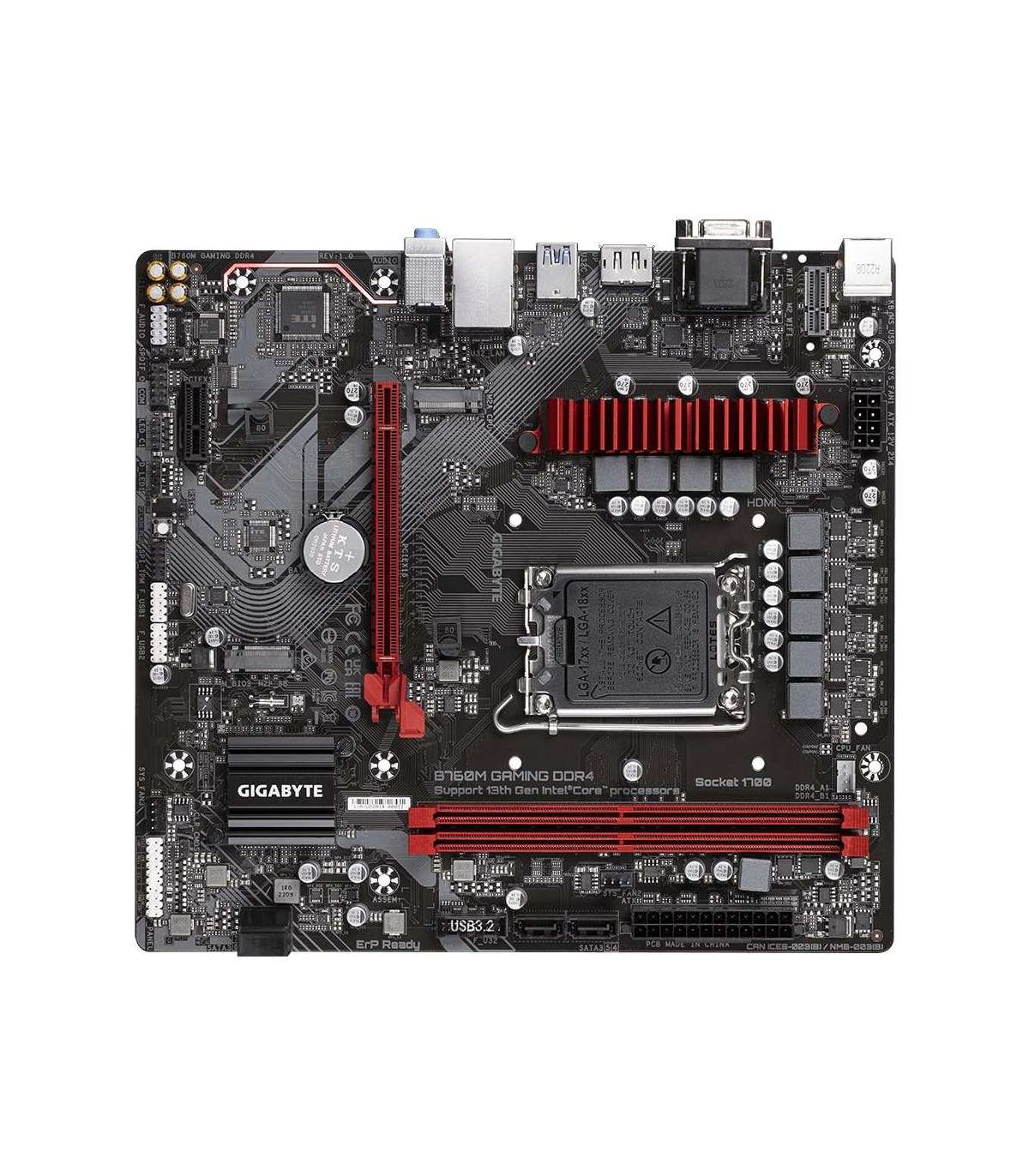

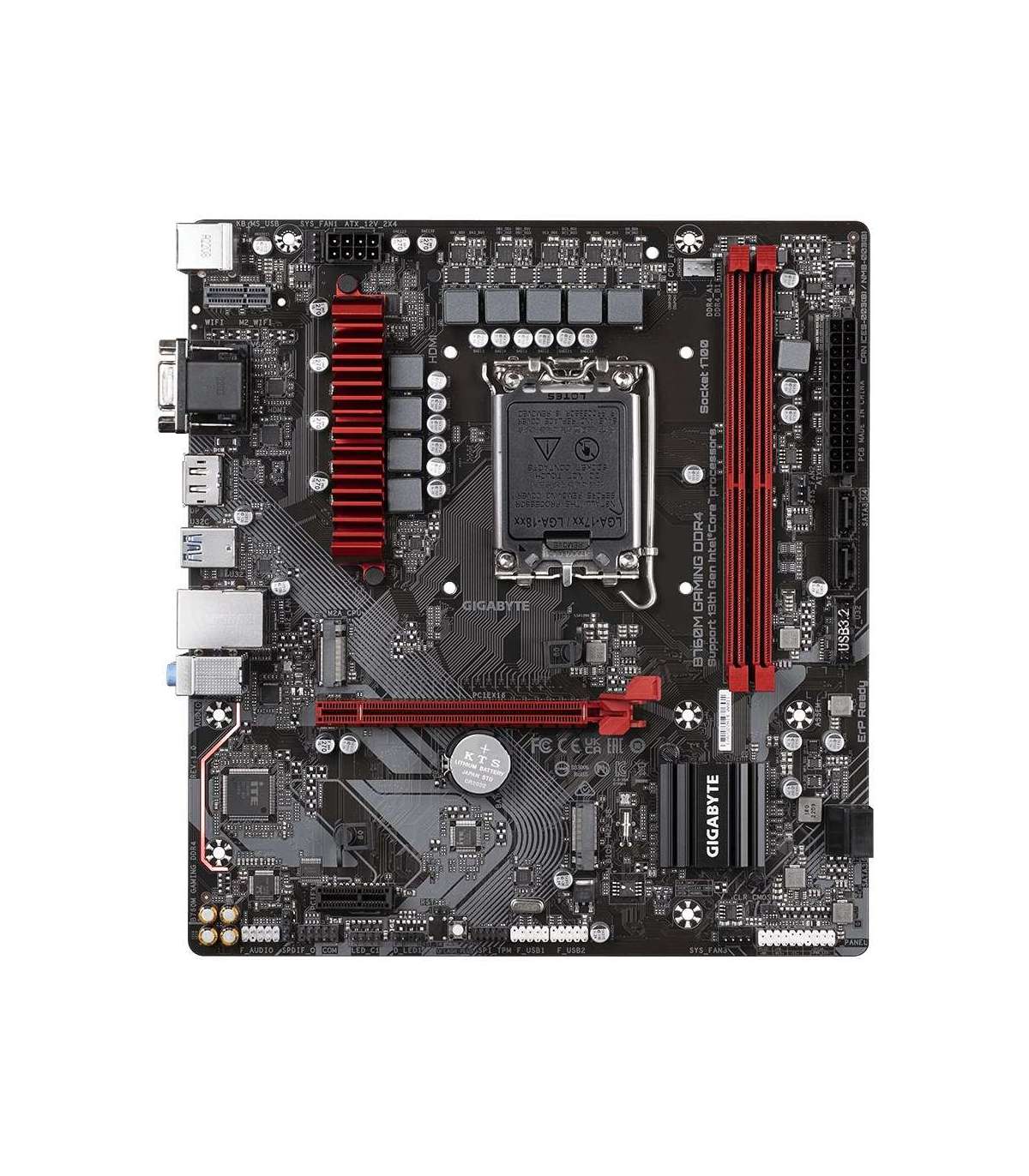

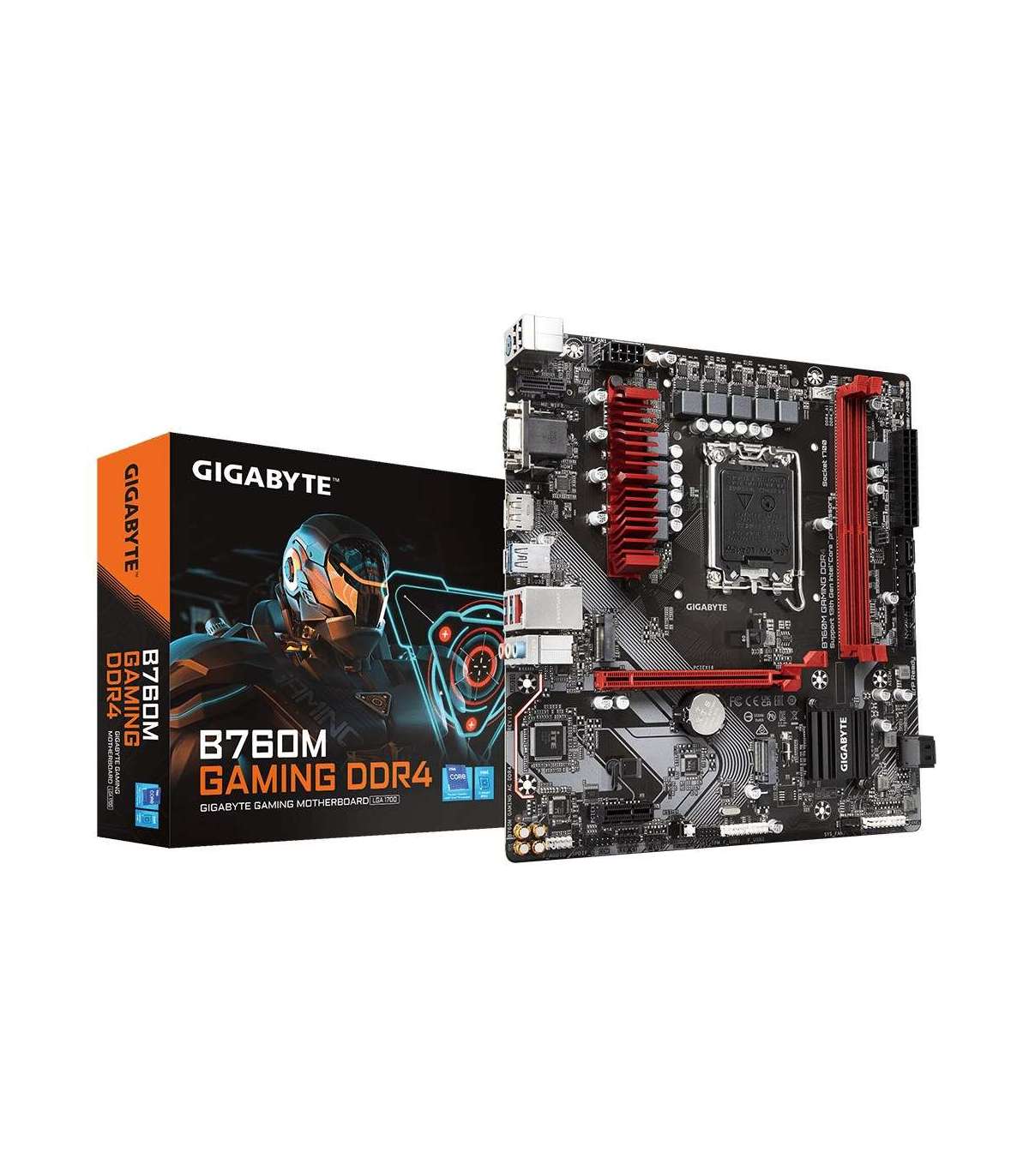

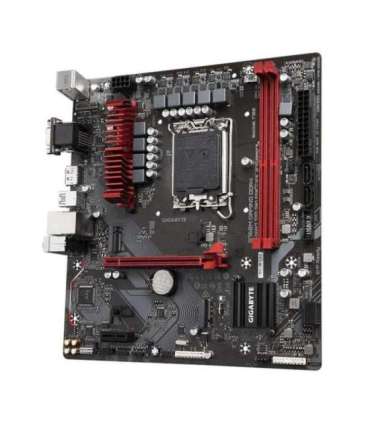

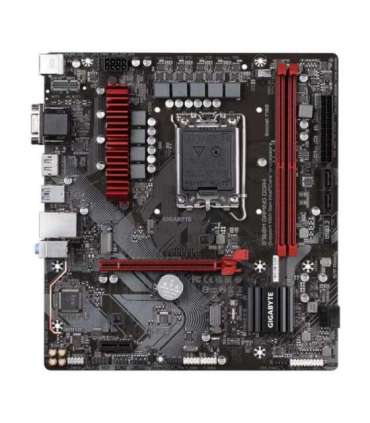

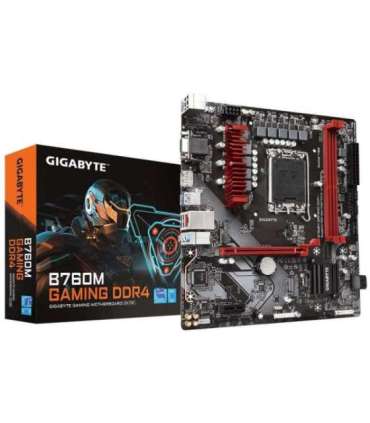

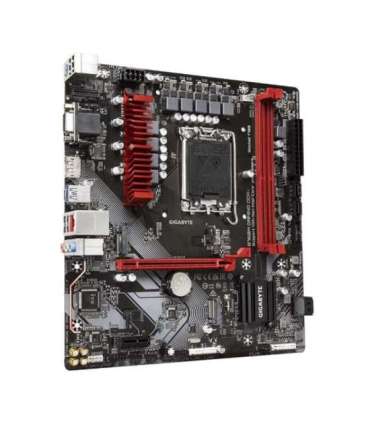

Gigabyte B760M GAMING DDR4 motherboard Intel B760 Express LGA 1700 micro ATX

Lisainfo

Depth

225 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A
USB Type-C

Maximum internal memory

64 GB

Motherboard chipset

Intel B760 Express

HDMI version

2.0

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

Bundled software

Norton Internet Security

Headphone outputs

3

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2933
3000
3200
3300
3333
3400
3466
3600
3666
3733
3800
3866
4000
4133 MHz
4266
4300
4400
4500
4600
4700
4800 MHz
4933 MHz
5000
5133
5333 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

HDCP

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Number of storage drives supported

6

RAID support

Yes

PCI Express x16 slots

1

PCI Express x1 slots

1

S/PDIF out connector

Yes

DisplayPort version

1.2

Serial port headers

1

Number of displays supported

3
