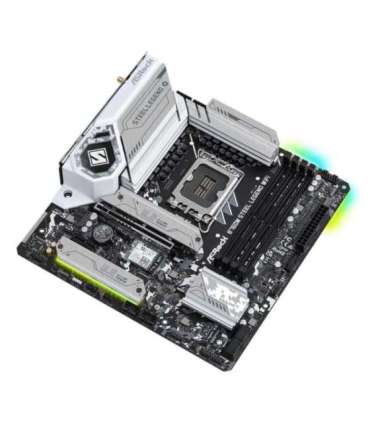

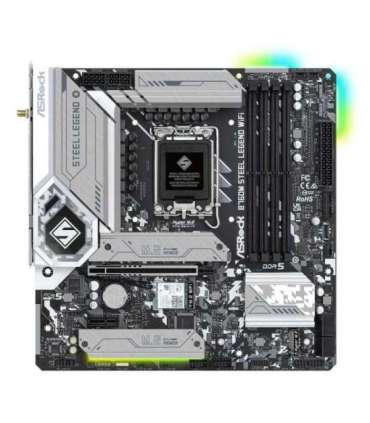

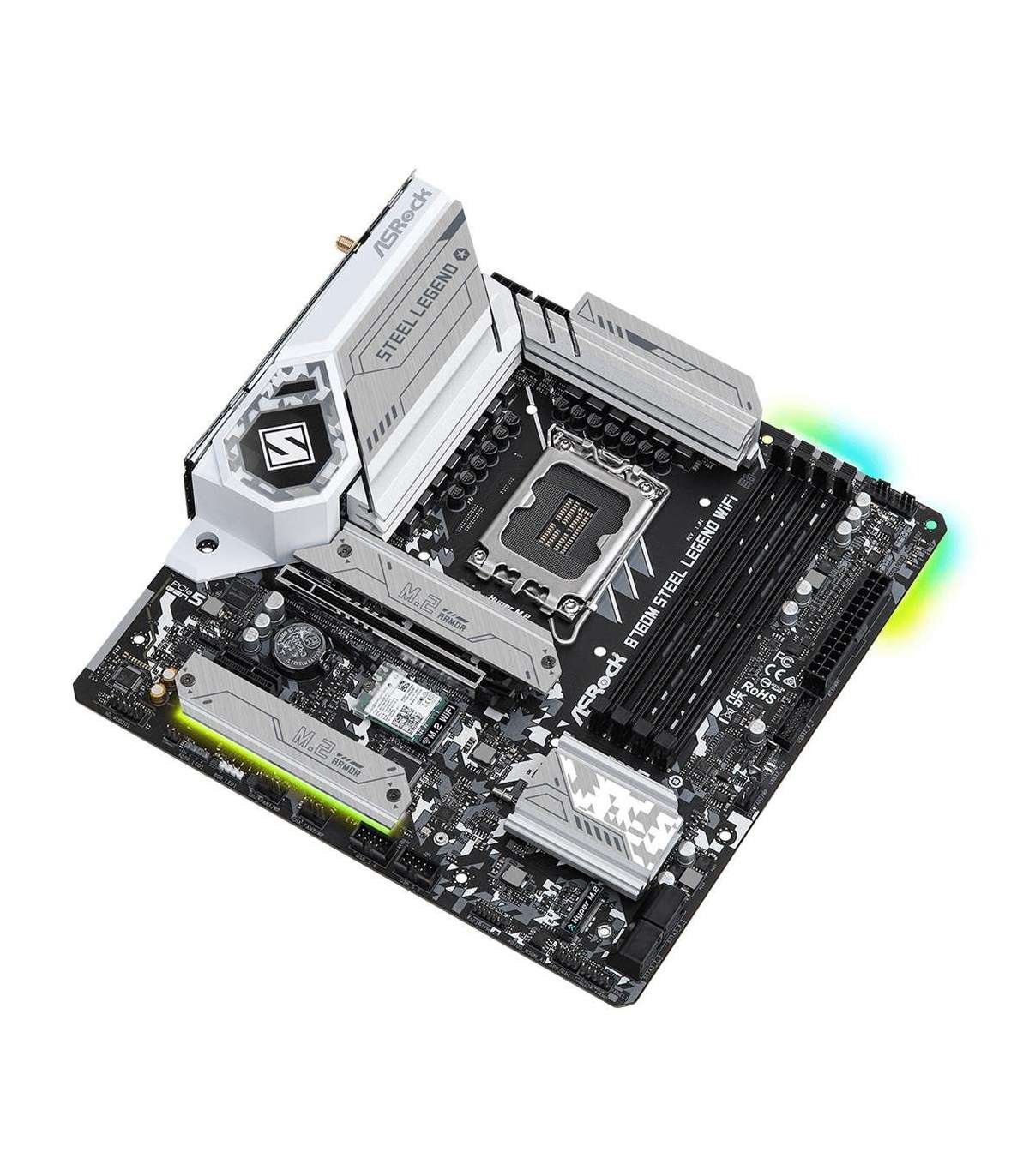

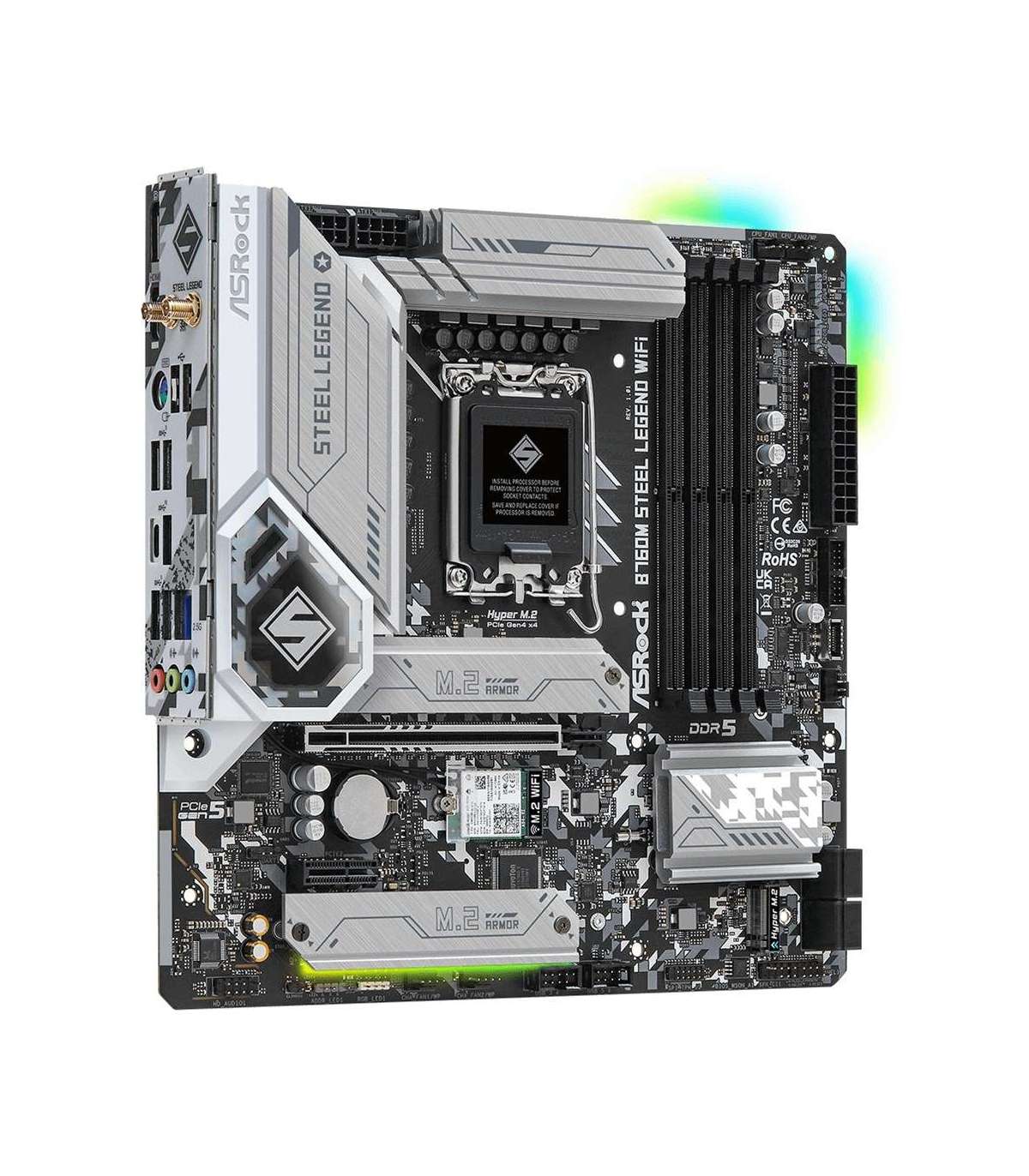

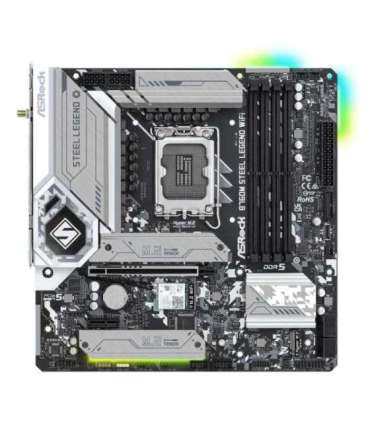

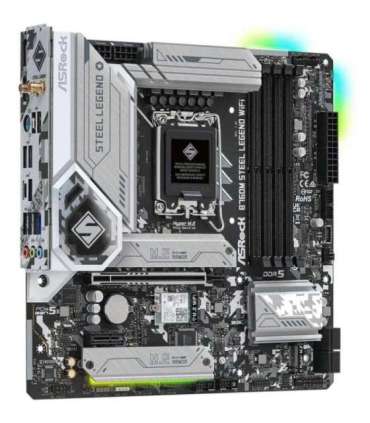

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Microphone in

Yes

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

1

Line-in

Yes

DisplayPort version

1.4

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 1.x) slots

1
