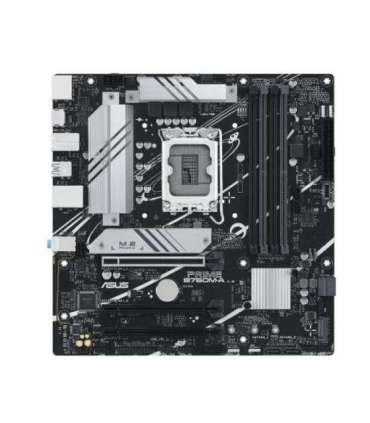

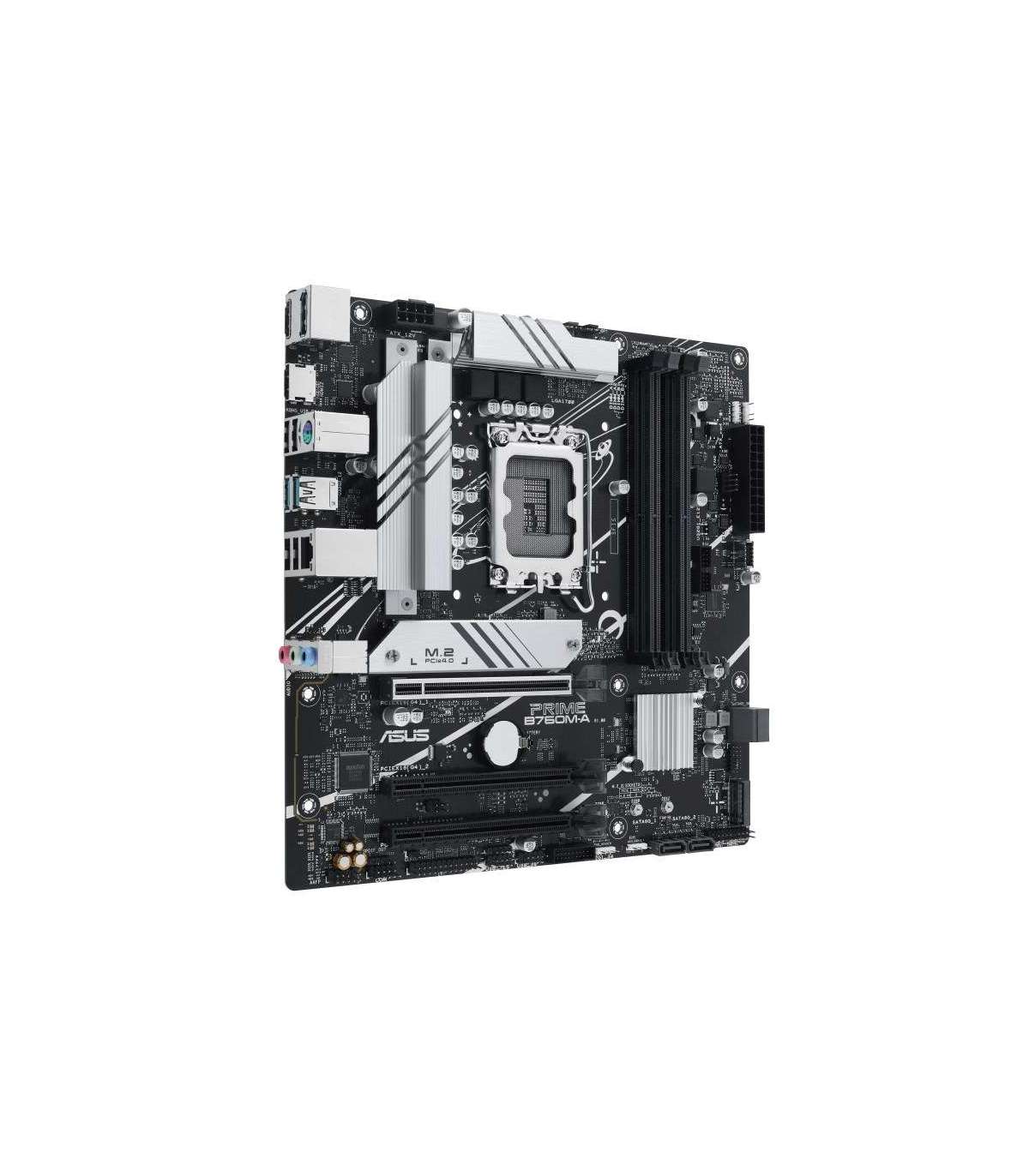

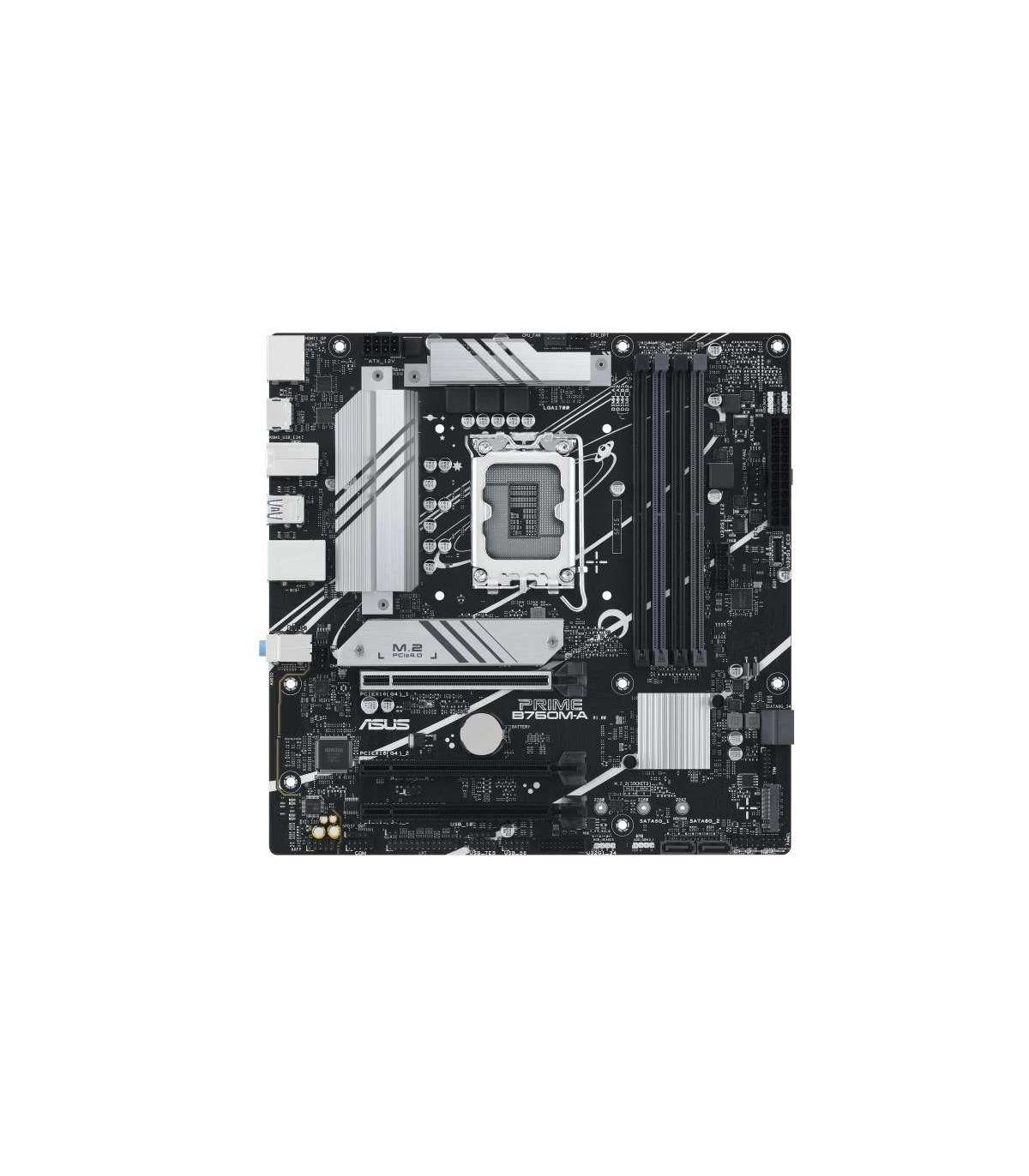

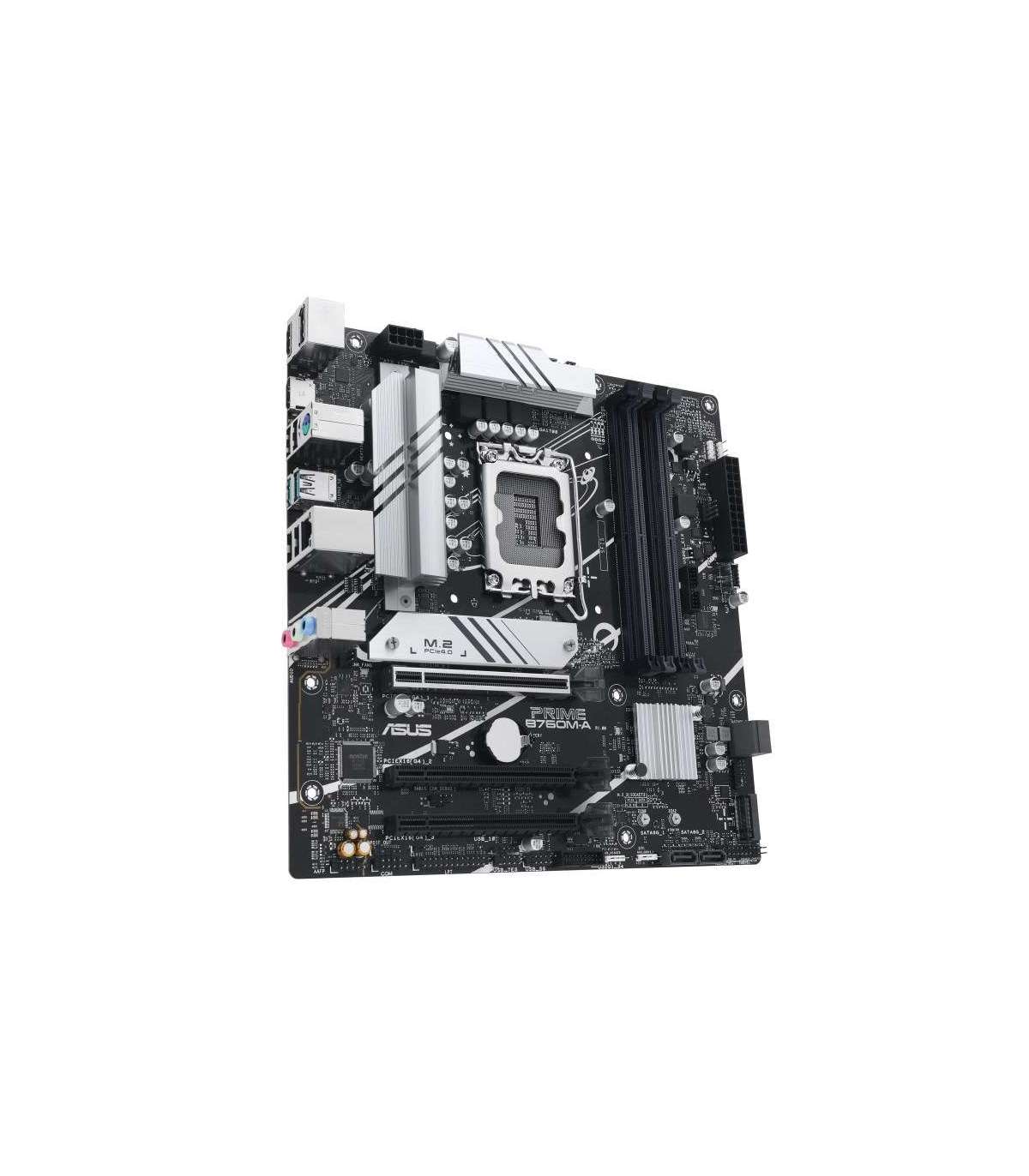

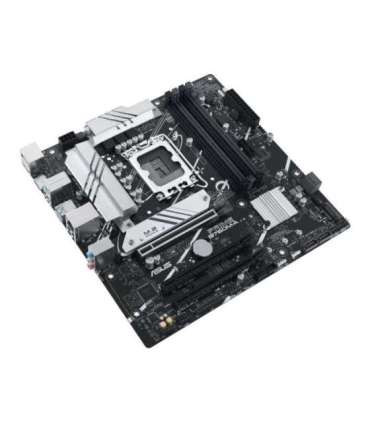

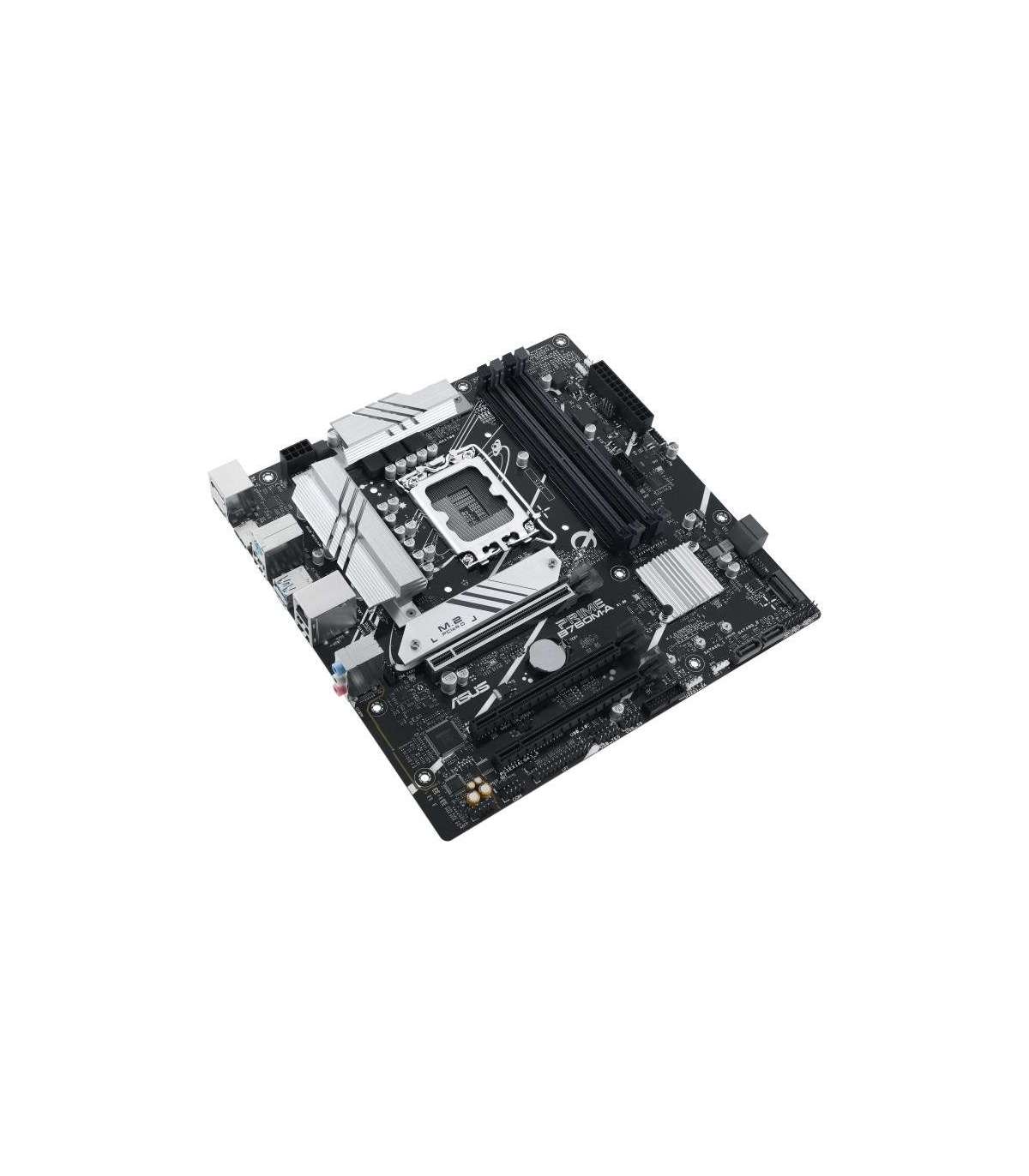

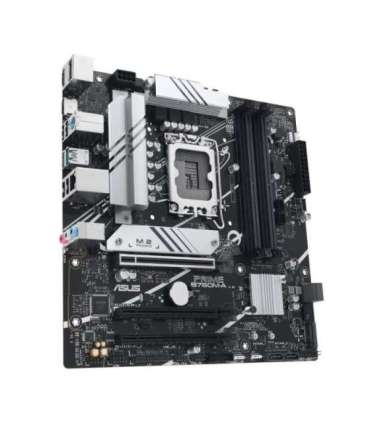

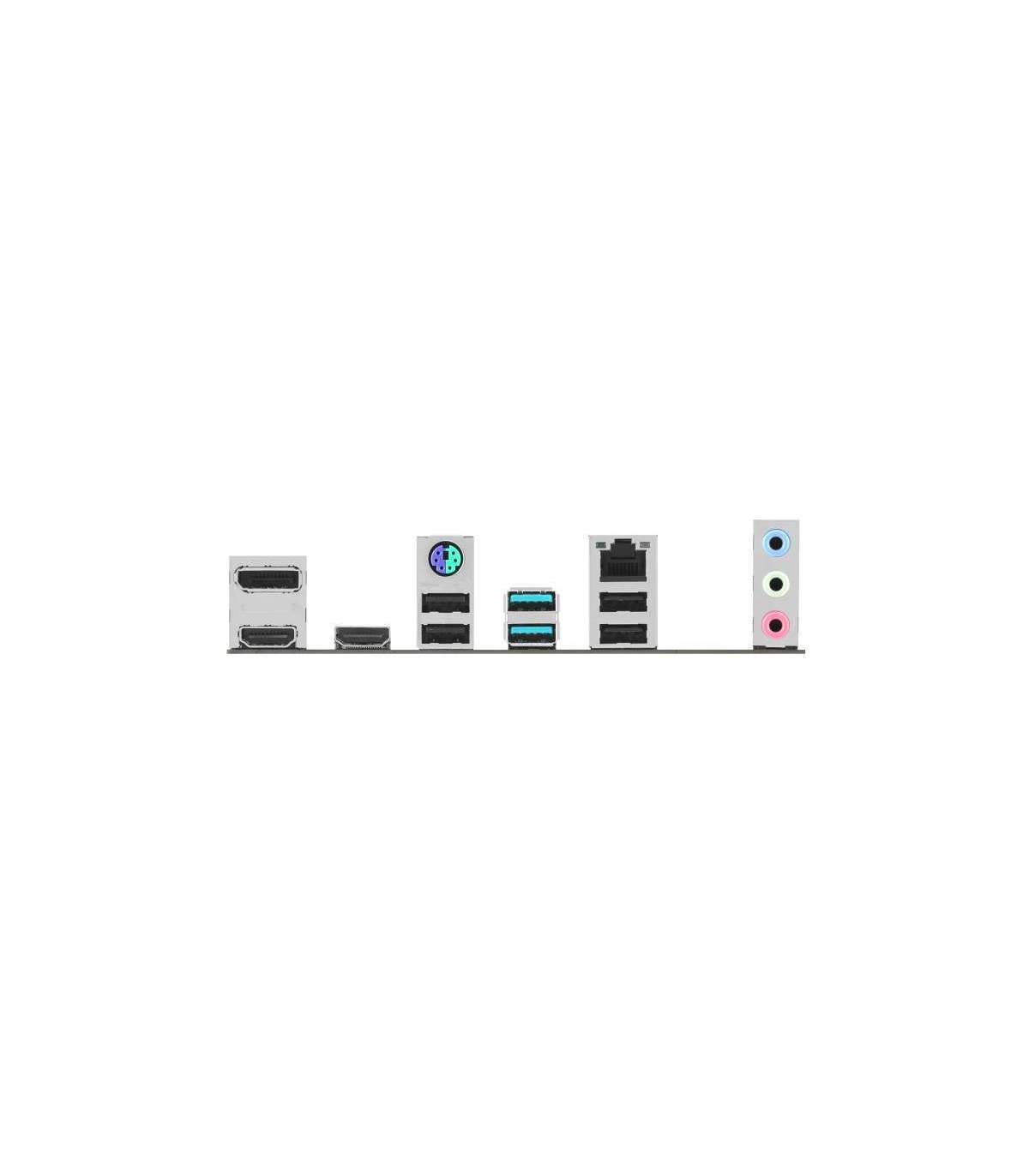

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX motherboard

Lisainfo

Depth

244 mm

Kõrgus

40 mm

Laius

244 mm

Package weight

1.14 kg

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

270 mm

Package depth

263 mm

Package height

52 mm

USB 2.0 ports quantity

4

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

2

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

3

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
5000
5200
5400
5600
5800
6000
6200
6400
6600 MHz
6800
7000 MHz
7200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Microphone in

Yes

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

3

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7200 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

6

Line-in

Yes

S/PDIF out connector

Yes

Clear CMOS button

Yes

WiFi-AP antenna jack

1
