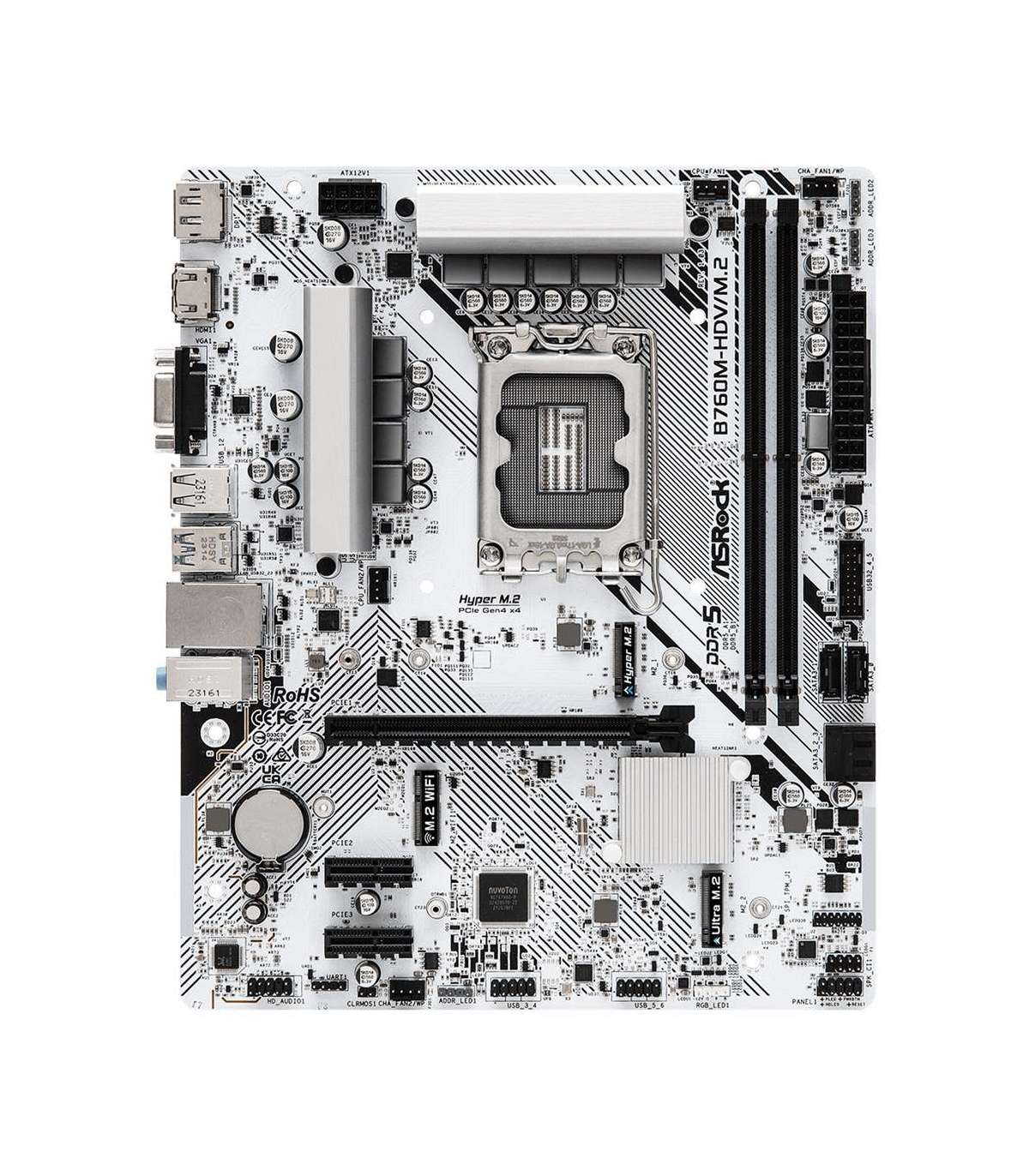

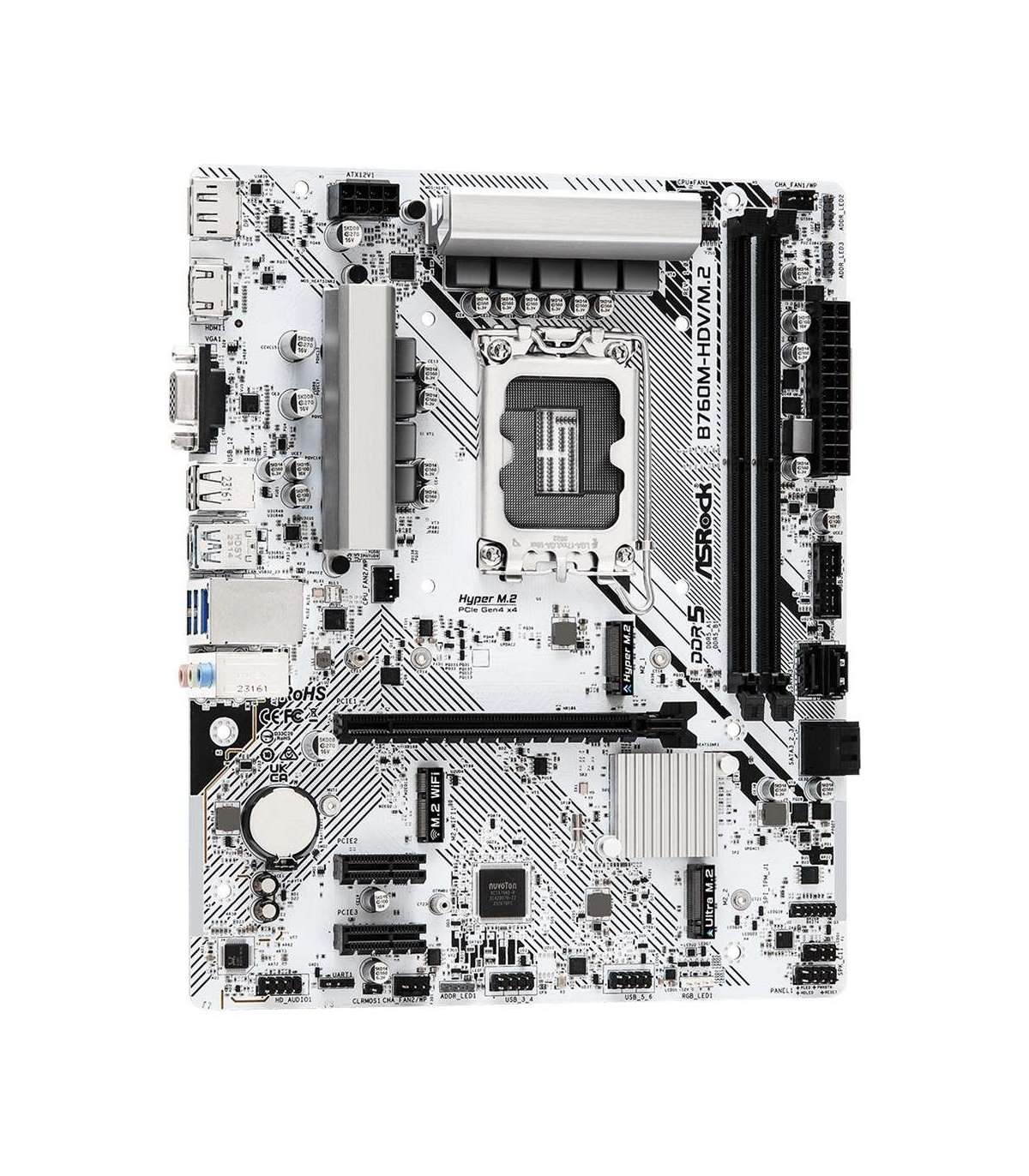

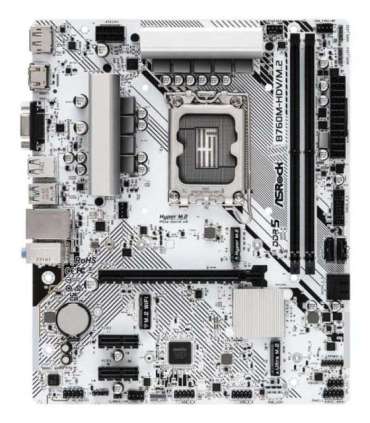

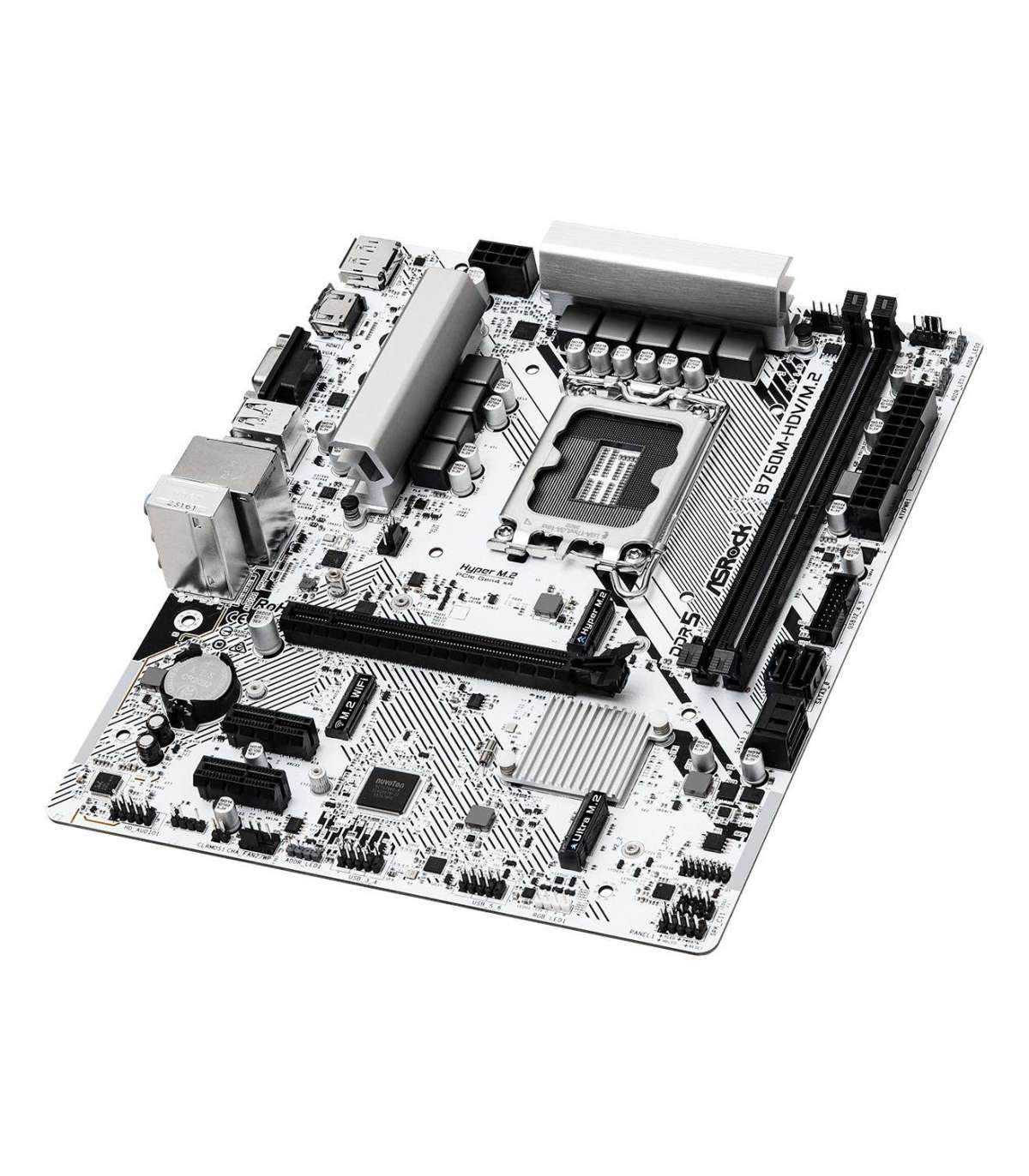

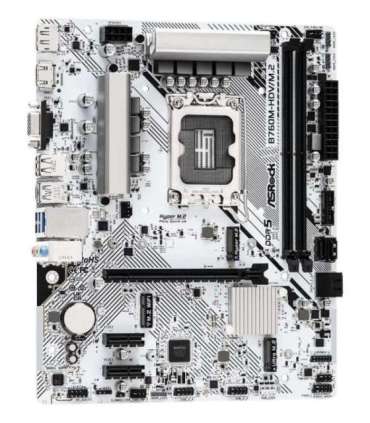

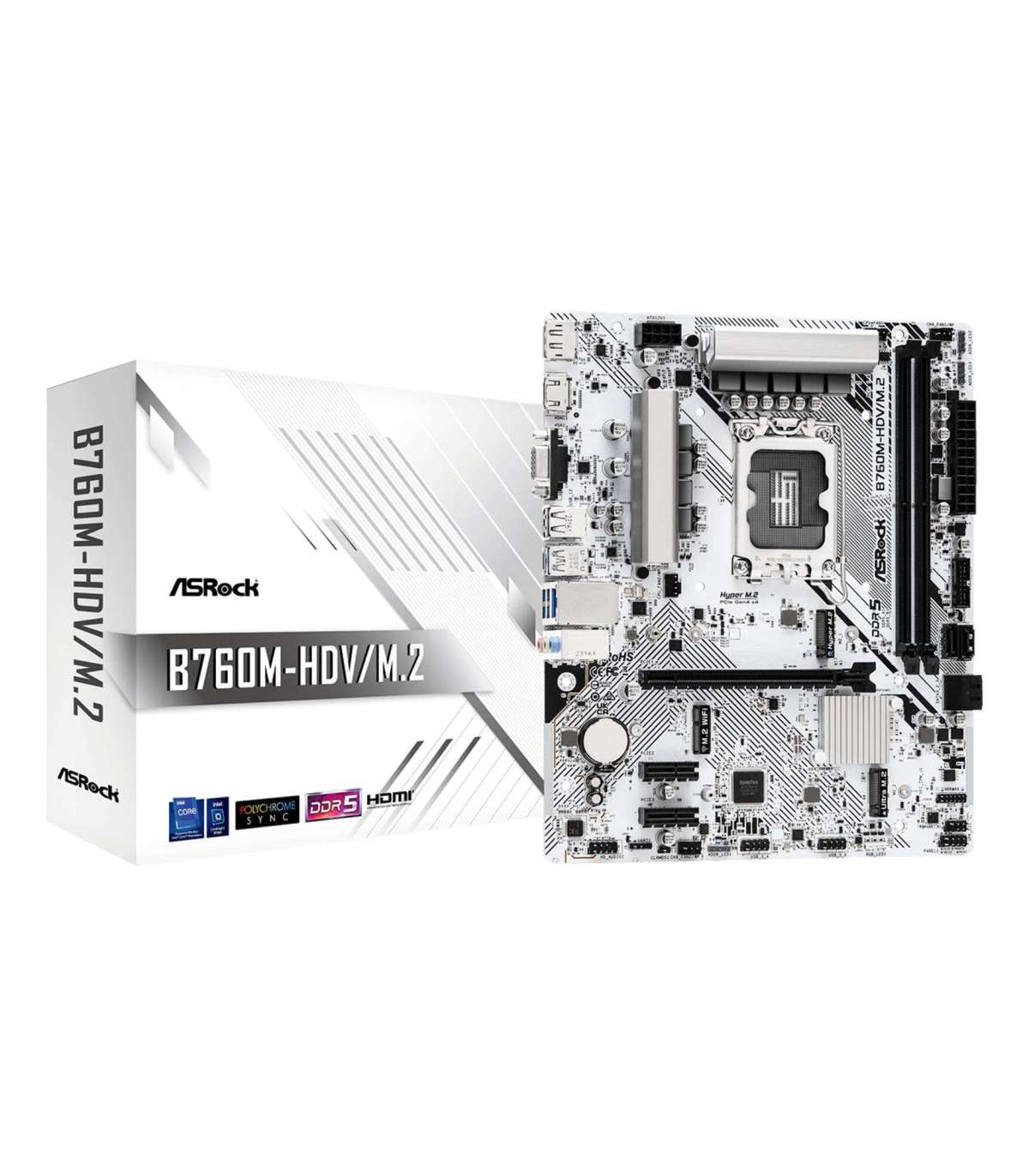

Asrock B760M-HDV/M.2 motherboard Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

201 mm

Laius

244 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

96 GB

Motherboard chipset

Intel B760

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

EFI AMI

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

RAID support

Yes

Line-in

Yes

Screws included

Yes

DisplayPort version

1.4
