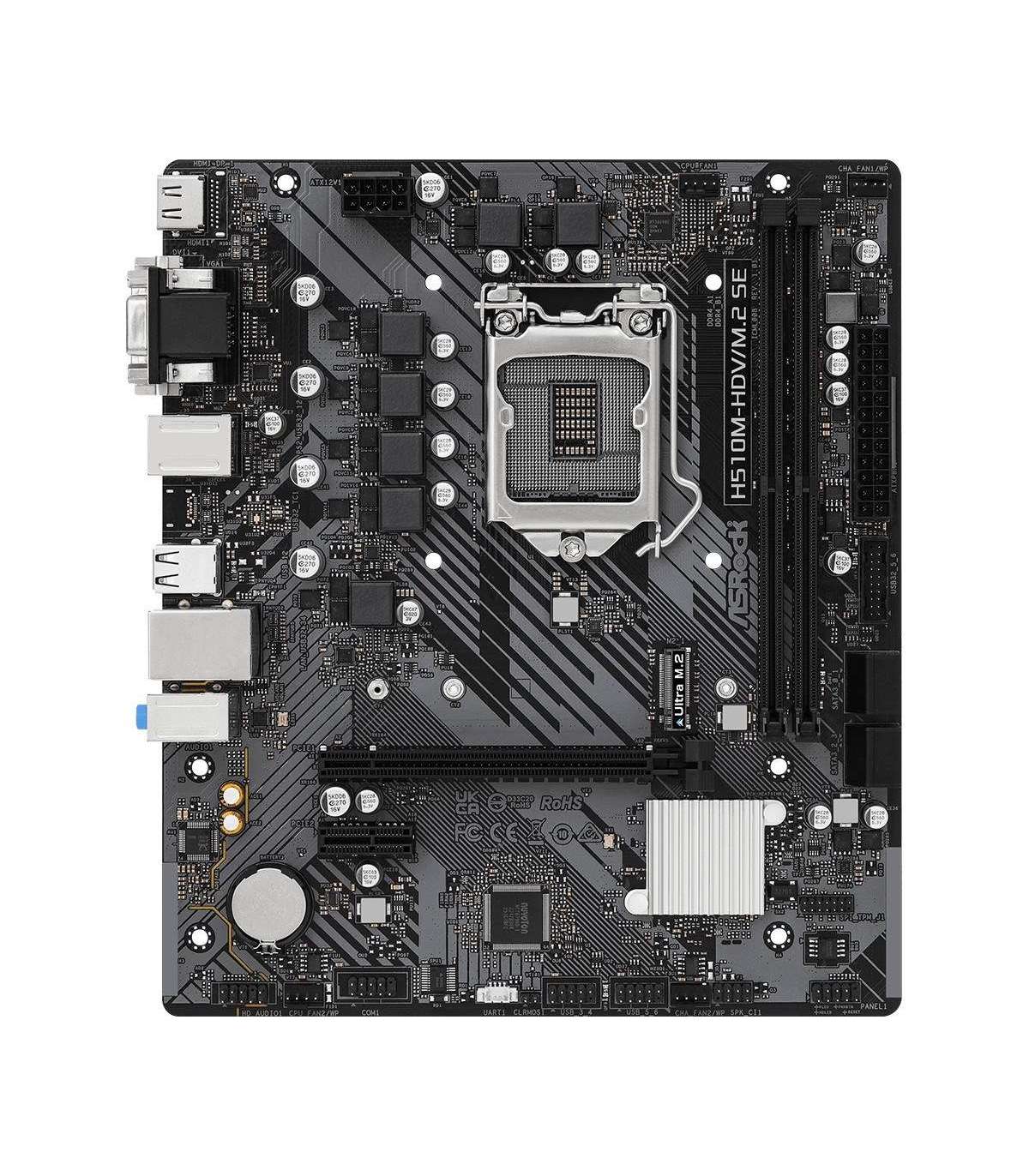

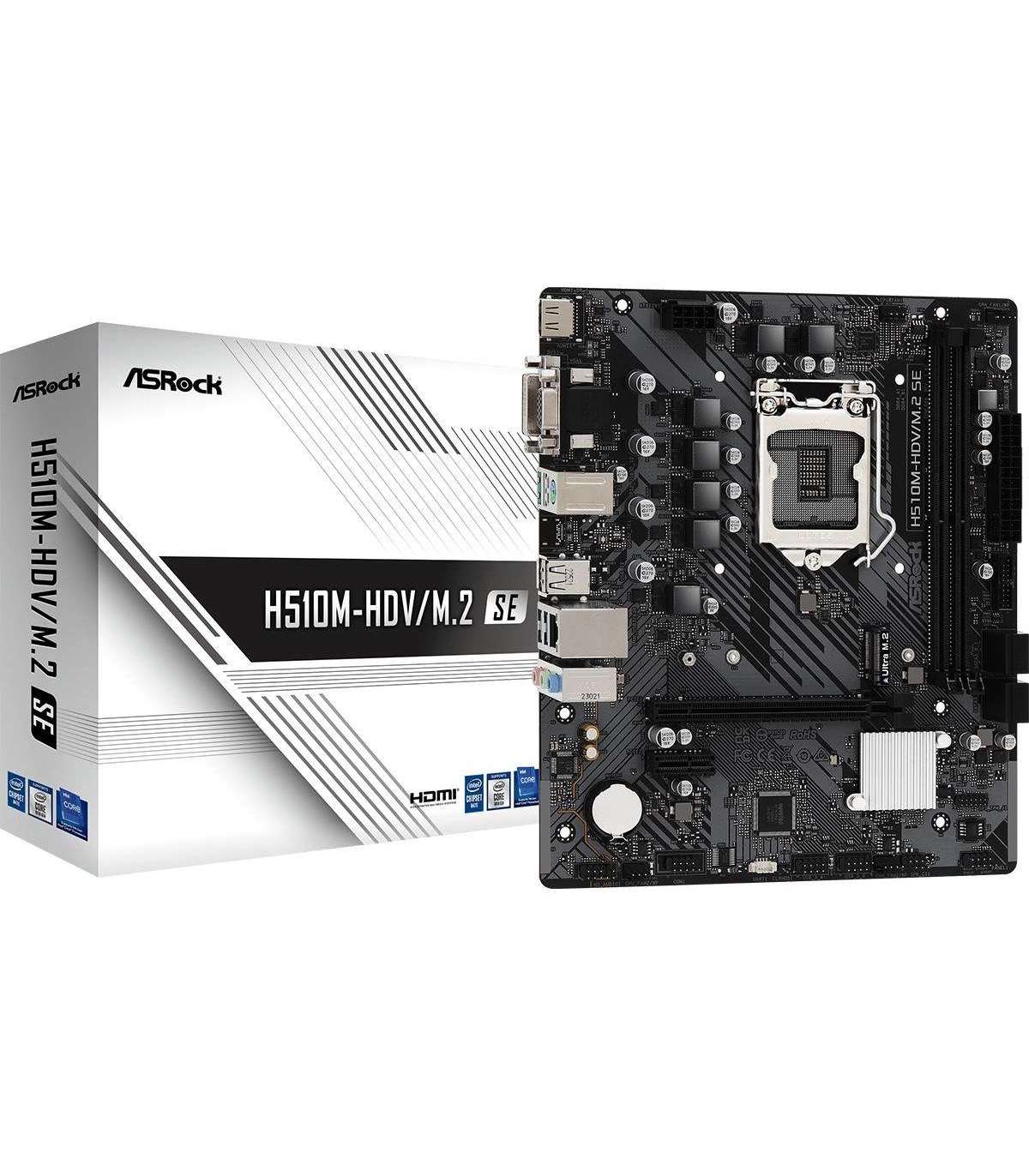

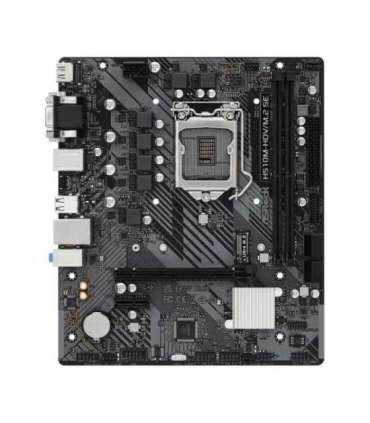

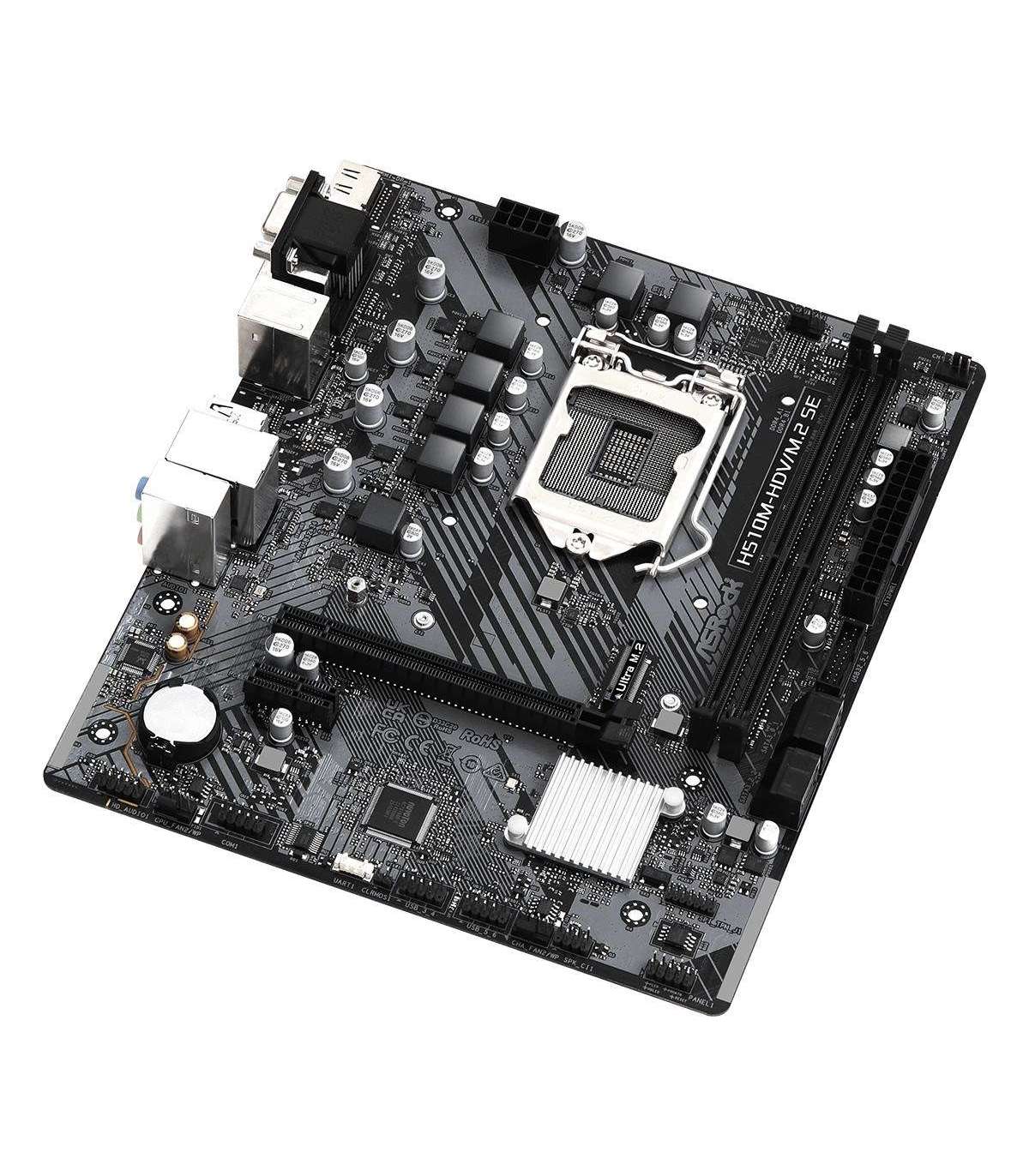

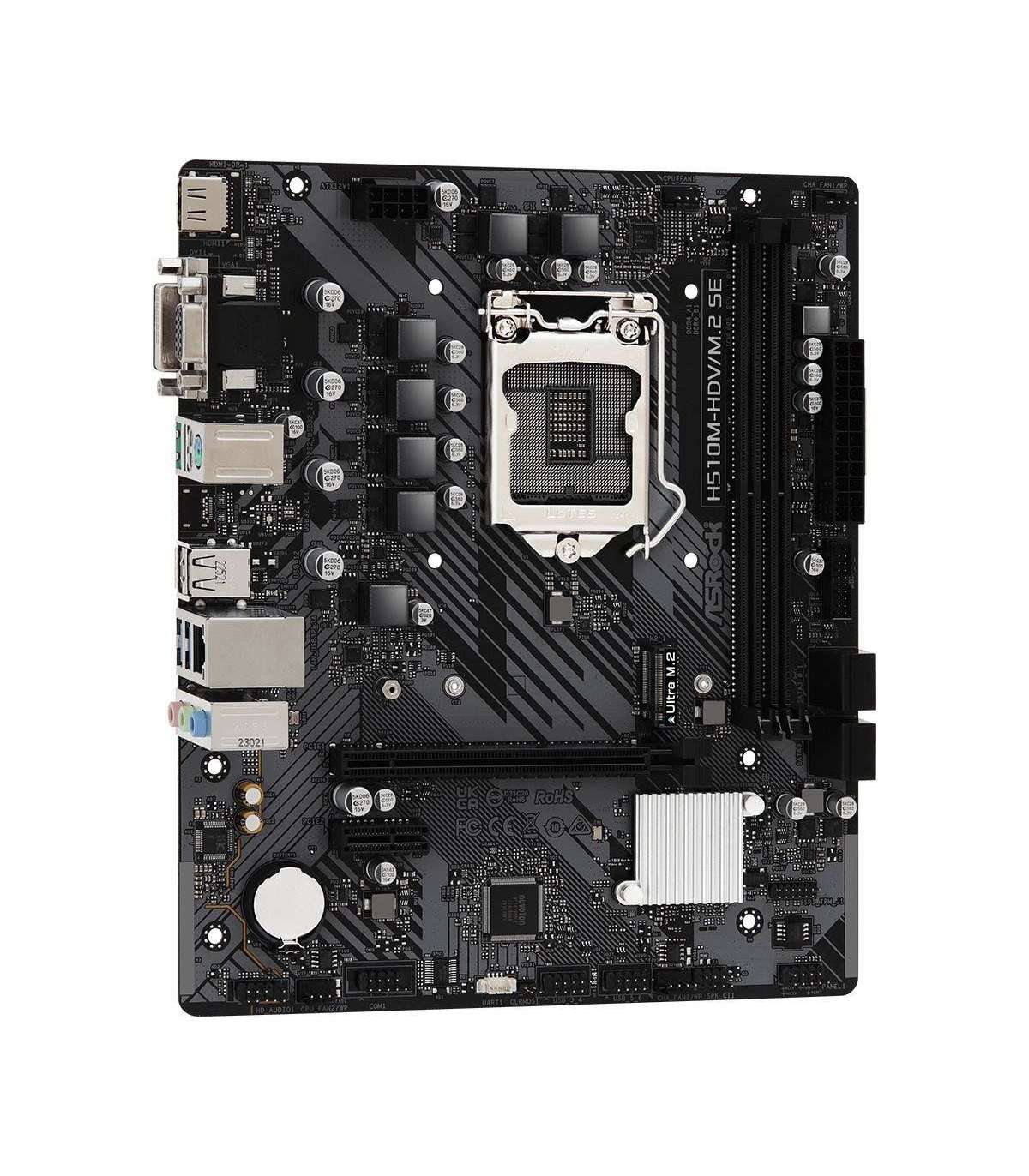

Asrock H510M-HDV/M.2 SE motherboard

Lisainfo

Depth

198 mm

Laius

231 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H470

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1200

Compatible processor series

Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2800
2933

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek 8111H

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Maximum number of SMP processors

1

Number of SATA III connectors

4

TPM connector

Yes

Supported storage drive types

HDD & SSD

PCI Express x16 (Gen 4.x) slots

1

DVI-D ports quantity

1

12V power connector (8-pin)

Y
