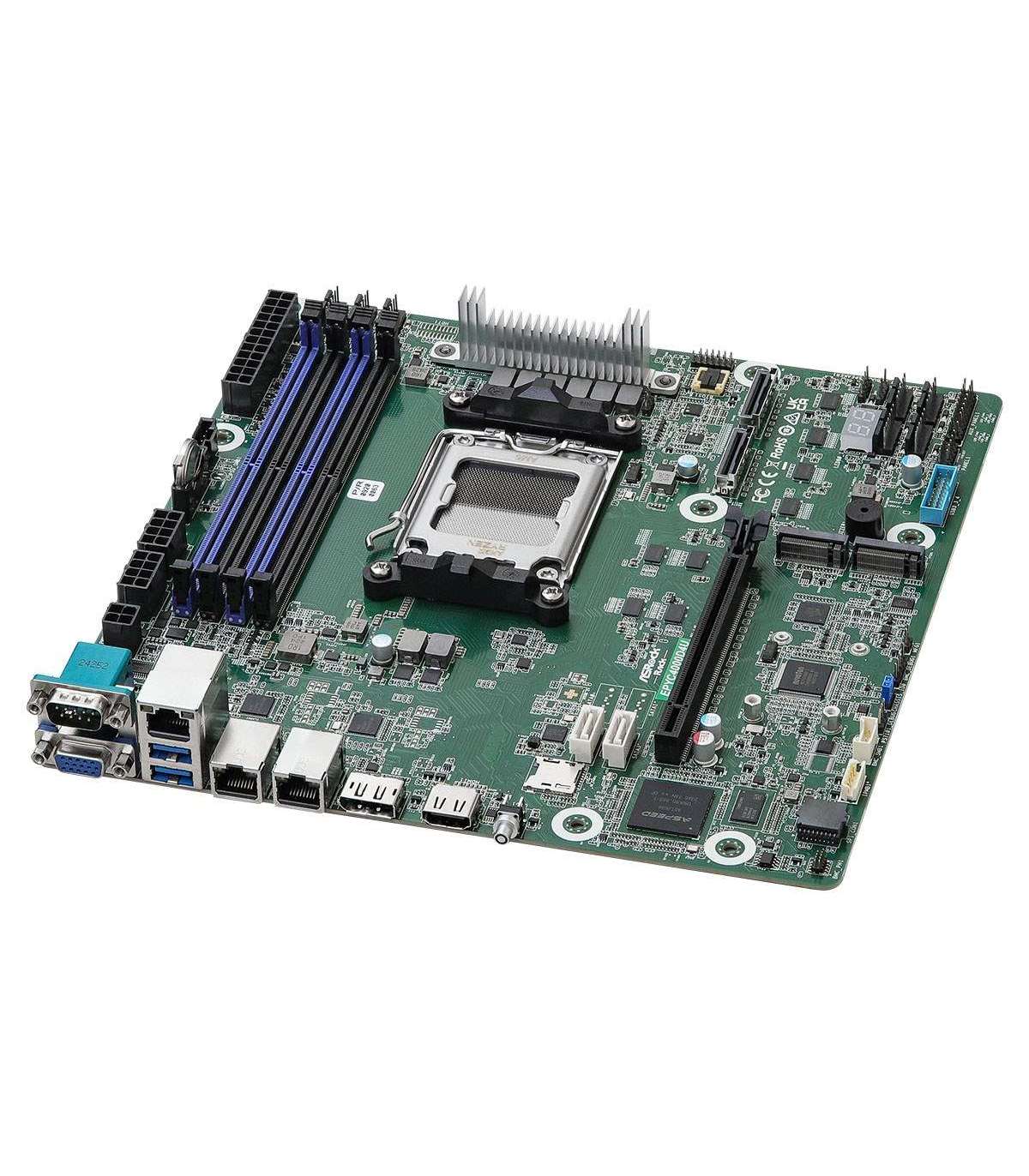

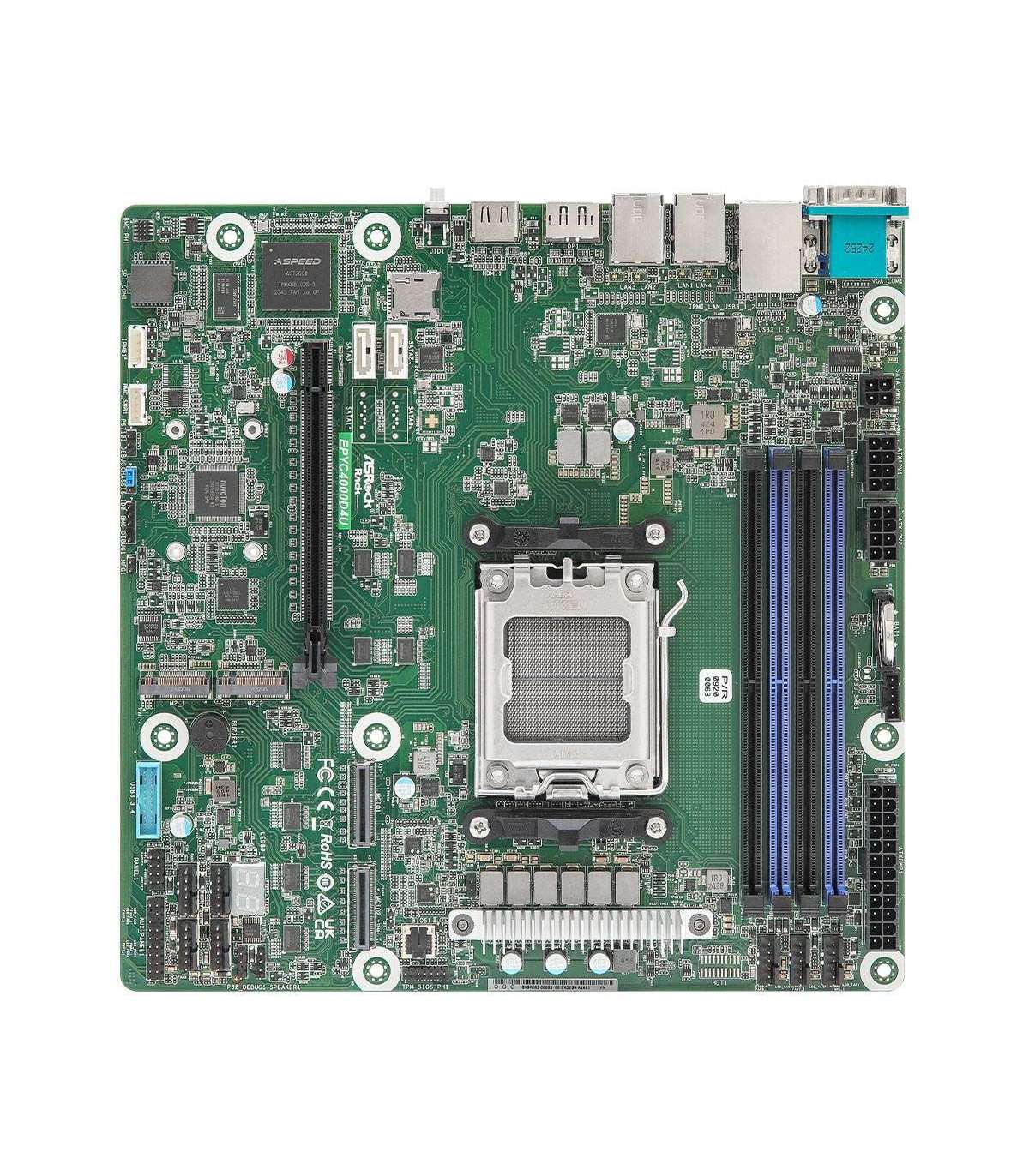

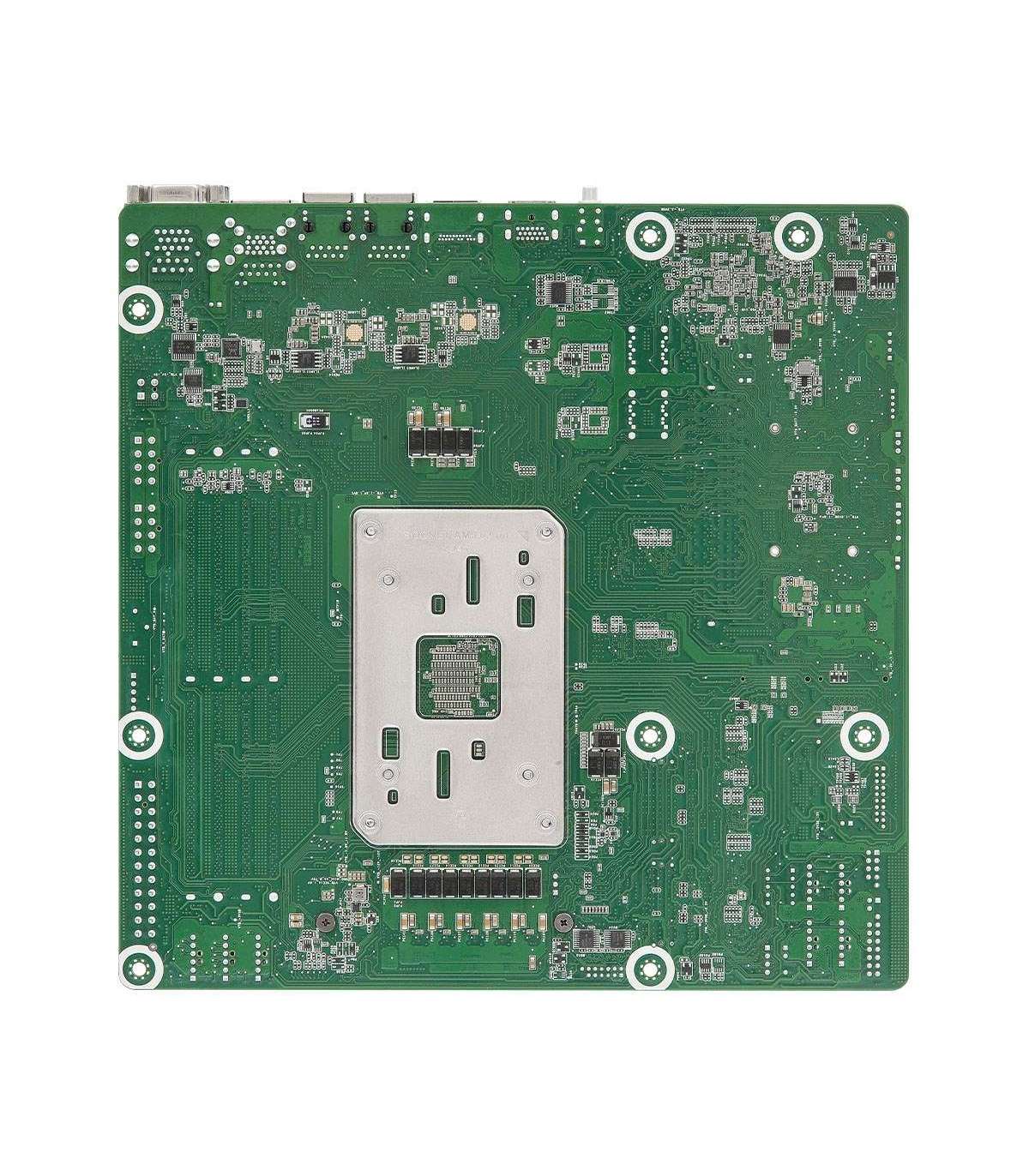

Asrock EPYC4000D4U motherboard KNOLL3 X300 Socket AM5 micro ATX

Lisainfo

Videokaardi mudel

AST2600

Depth

244 mm

Laius

244 mm

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 90%

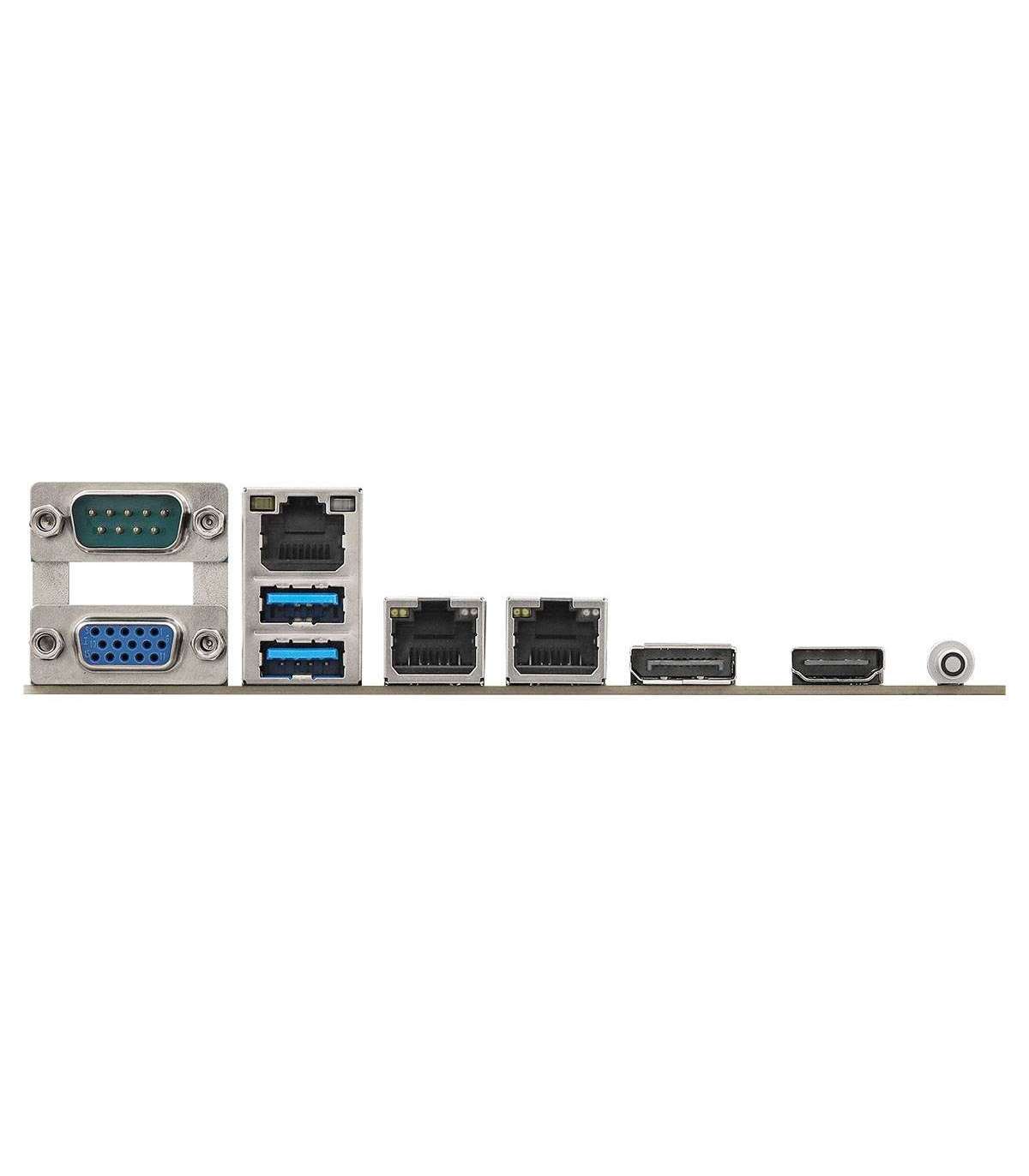

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Wi-Fi

No

Component for

Server

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

48 GB

Motherboard chipset

KNOLL3 X300

HDMI ports quantity

1

Graphics card family

ASPEED

Processor socket

Socket AM5

Compatible processor series

AMD EPYC 4004
AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Supported memory clock speeds

3600
5600 MHz

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Intel I210

ATX Power connector (24-pin)

Yes

BIOS type

UEFI AMI

Supported storage drive interfaces

SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC & Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

2

TPM connector

Yes

DisplayPorts quantity

1

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

256 Mbit

Memory voltage

1.1 V

Serial ports quantity

1

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes

Memory slot pin count

288
