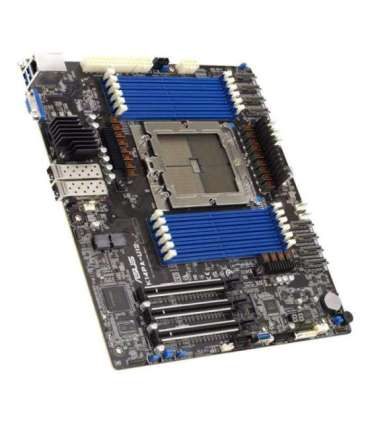

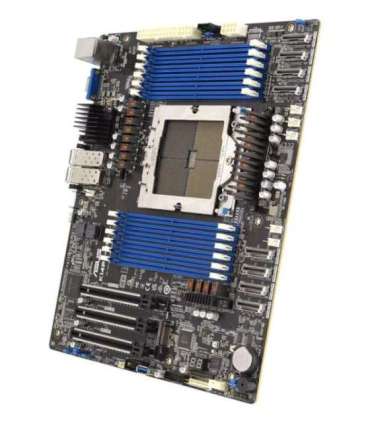

ASUS K14PA-U12/ASMB11 Socket SP5 SSI CEB

Lisainfo

Videokaardi mudel

AST2600

Depth

376 mm

Kaal

1.4 kg

Kõrgus

63 mm

Laius

409 mm

Package weight

2.2 kg

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

Package width

425 mm

Package depth

395 mm

Package height

81 mm

Warnings

Do not open or disassemble the motherboard.
The motherboard may contain electronic components hazardous to health - avoid direct contact.
Use only in a dry and well-ventilated area.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Component for

Server

Ethernet interface type

25 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

On-board graphics card model

Aspeed AST2600

Maximum internal memory

3.07 TB

Graphics card family

ASPEED

Processor socket

Socket SP5

Compatible processor series

AMD EPYC 9004

Motherboard form factor

SSI CEB

Motherboard chipset family

AMD

Supported memory clock speeds

4800

Number of memory slots

12

Supported memory types

DDR5-SDRAM

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2

VGA (D-Sub) ports quantity

1

Chassis intrusion connector

Yes

TPM connector

Yes

Number of M.2 (M) slots

1

Supported memory module capacities

16GB
24GB
32GB
48GB
64GB
96GB
128GB
256GB

Serial port headers

1

PCI Express x16 (Gen 5.x) slots

3
