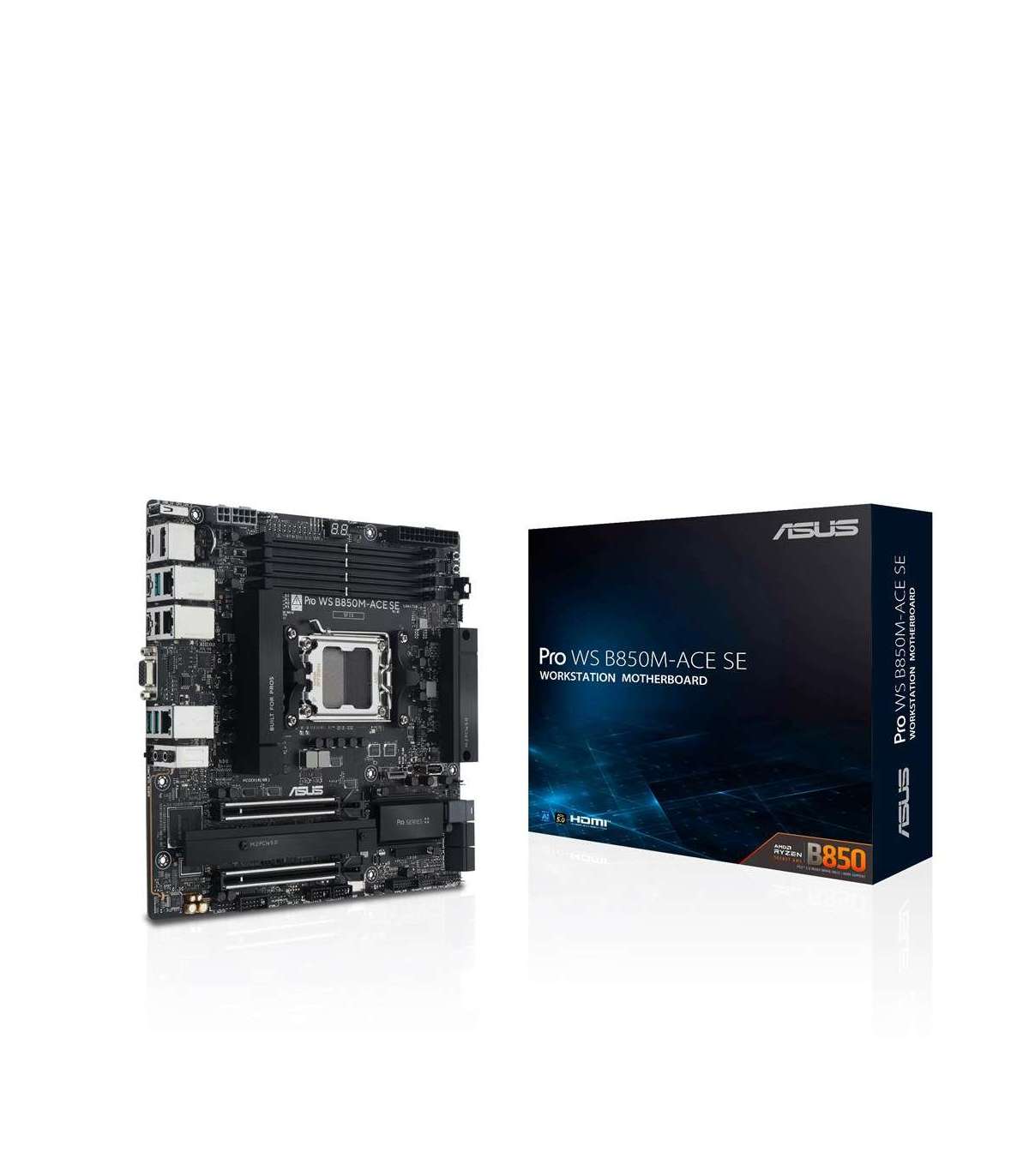

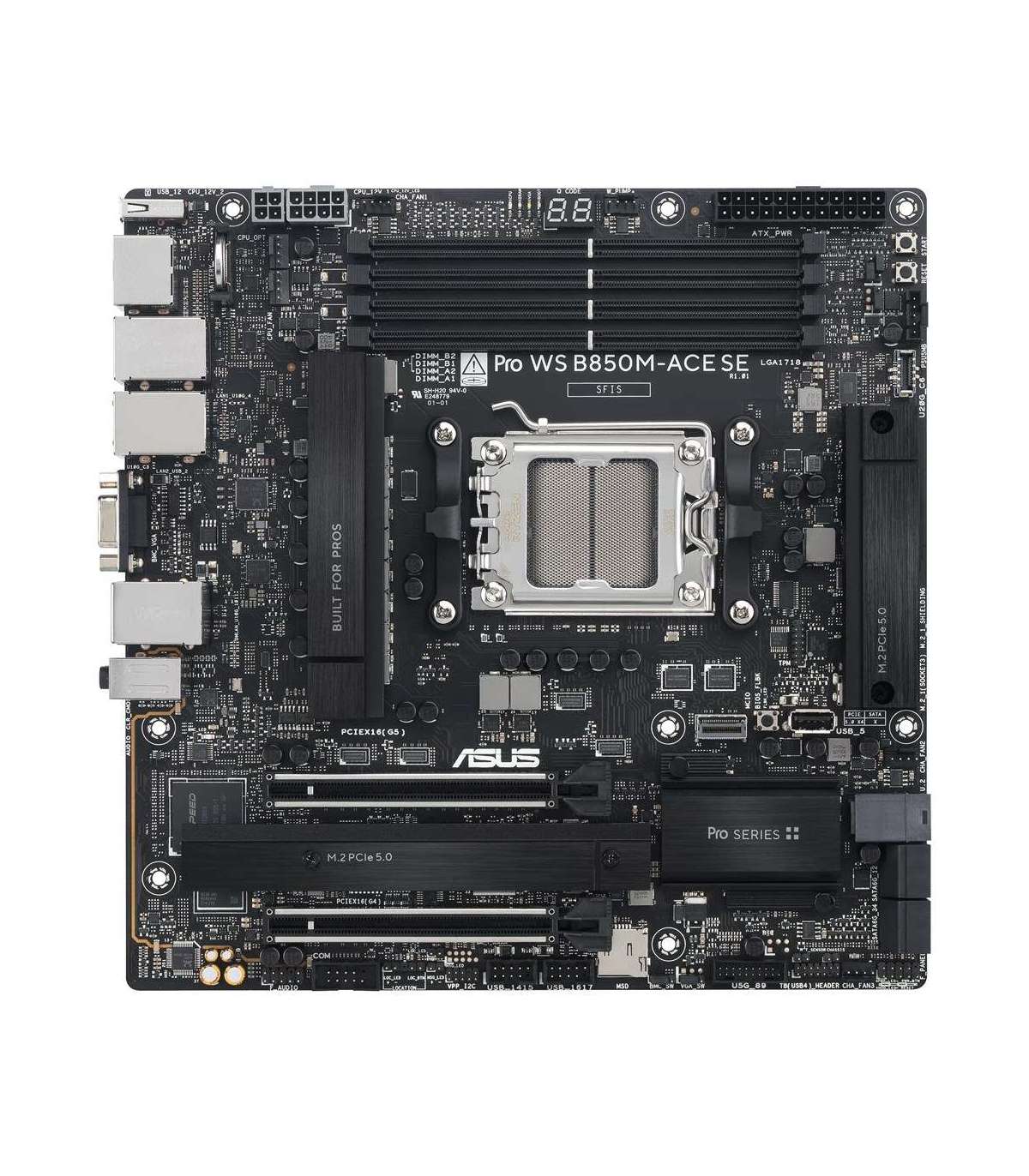

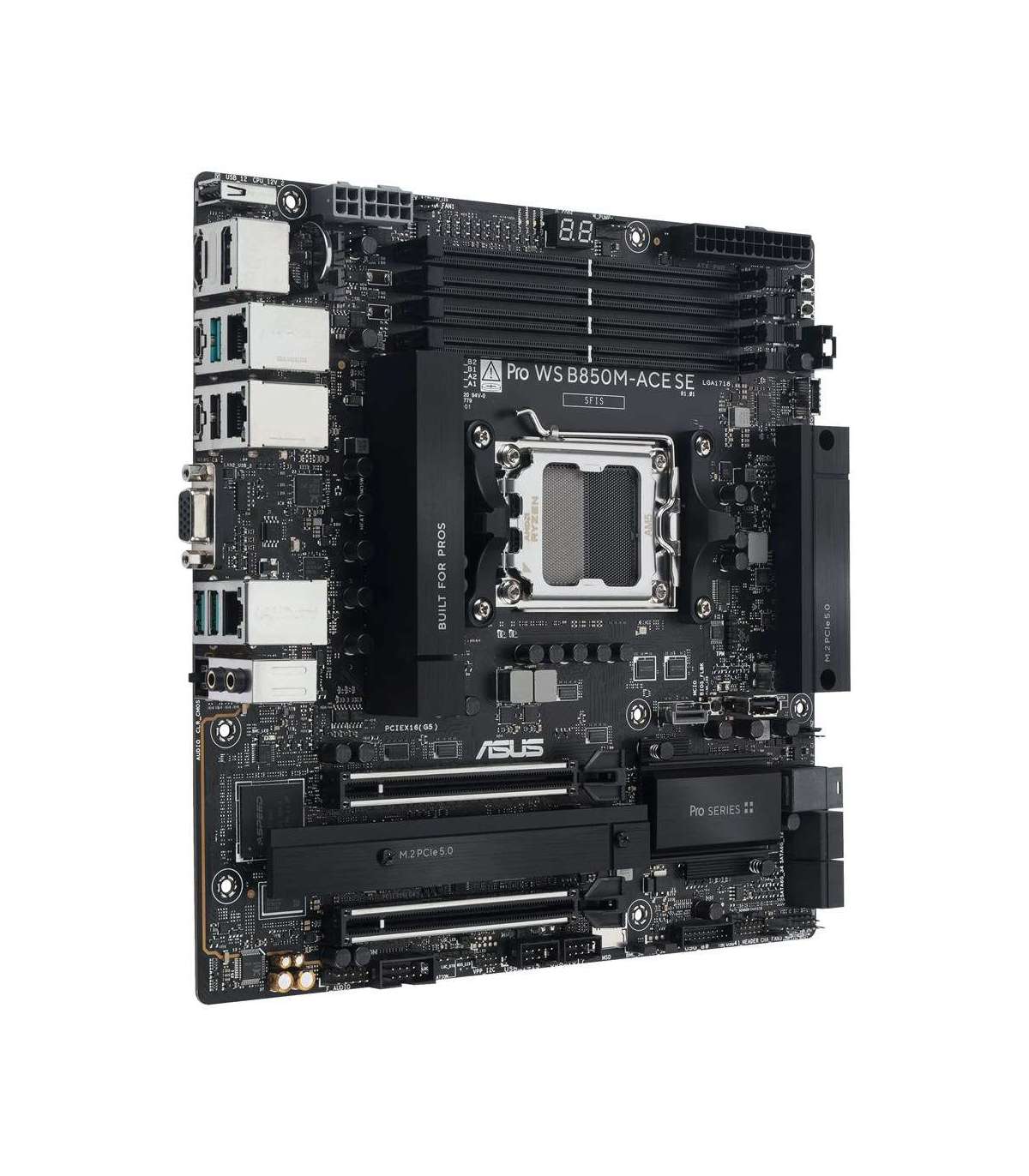

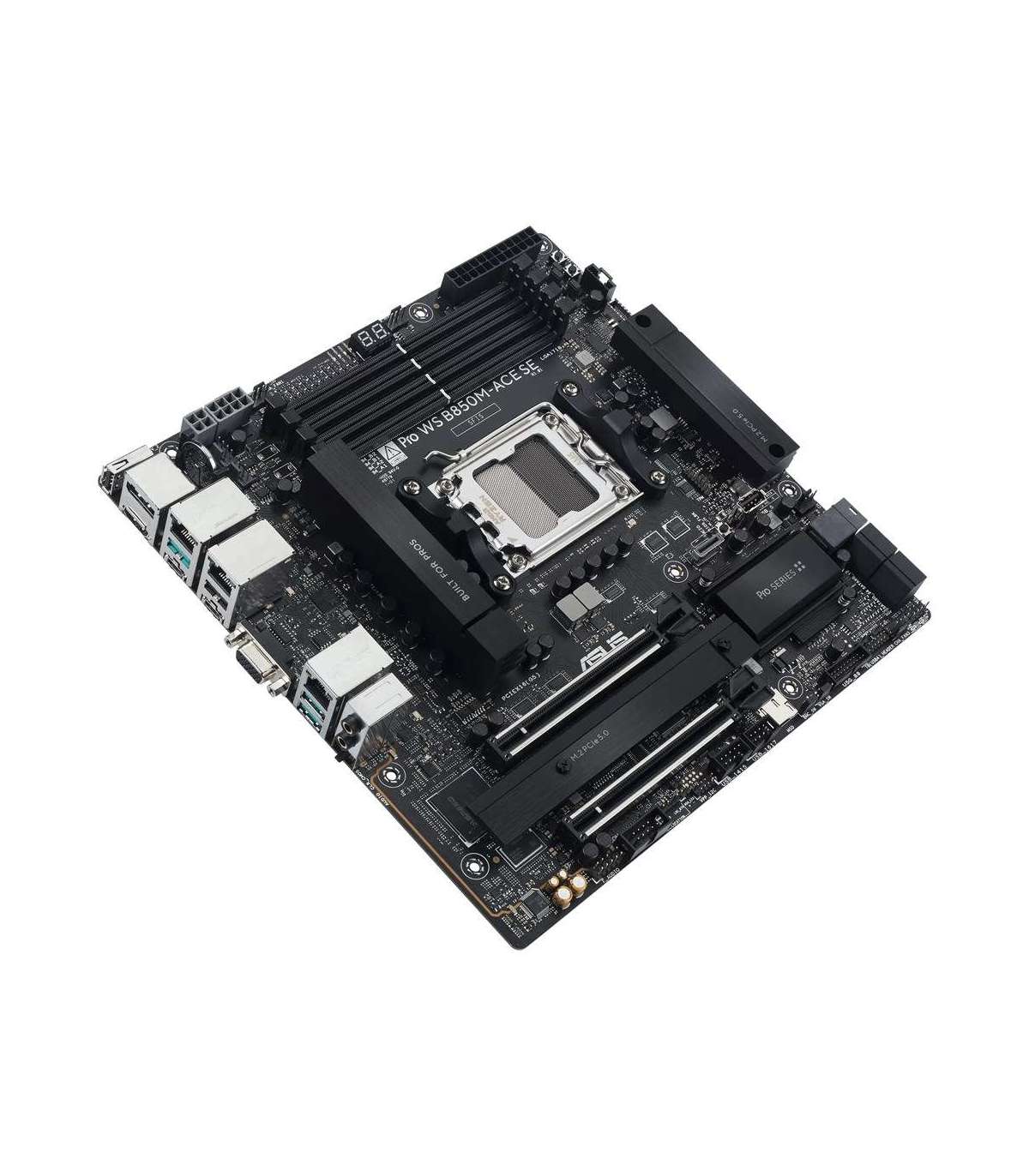

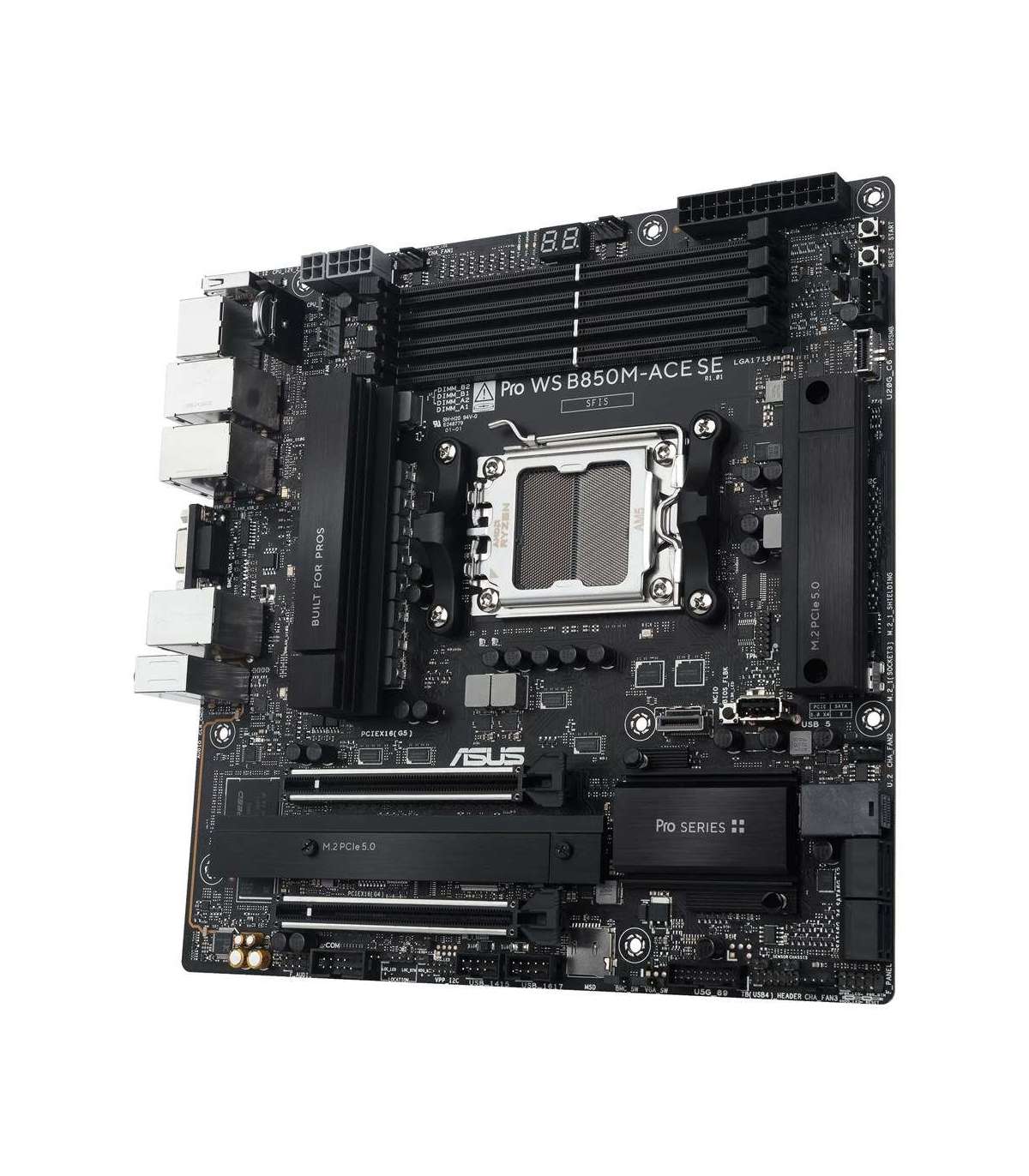

Asus PRO WS B850M-ACE SE AM5 AMD motherboard

Lisainfo

Depth

244 mm

Laius

244 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

3

Windows operating systems supported

Windows 10
Windows 11

Component for

PC

Ethernet interface type

2.5 Gigabit Ethernet
10 Gigabit Ethernet
Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

256 GB

Motherboard chipset

AMD B850

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Memory channels

Dual-channel

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

3

USB 2.0 Type-A ports quantity

2

Processor socket

Socket AM5

Compatible processor series

AMD EPYC 4005
AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

3

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC & Non-ECC

Number of SATA III connectors

4

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM5

EPS power connector (8-pin)

Yes

Number of storage drives supported

6

RAID support

Yes

Audio connector

Yes

Cooling type

Passive

DisplayPort version

1.4

Clear CMOS button

Yes

PCI Express x16 (Gen 5.x) slots

1

BIOS memory size

512 Mbit

Number of audio jack connectors

2

User guide

Yes

USB4 ports quantity

1
